Milwaukee 2974-22 M18 200’ High Resolution Pipeline Inspection System Kit Tools & Equipment

Features

• 200 ft Pipeline Inspection System
• 1080p camera resolution providing the industry’s clearest image inside of drain lines

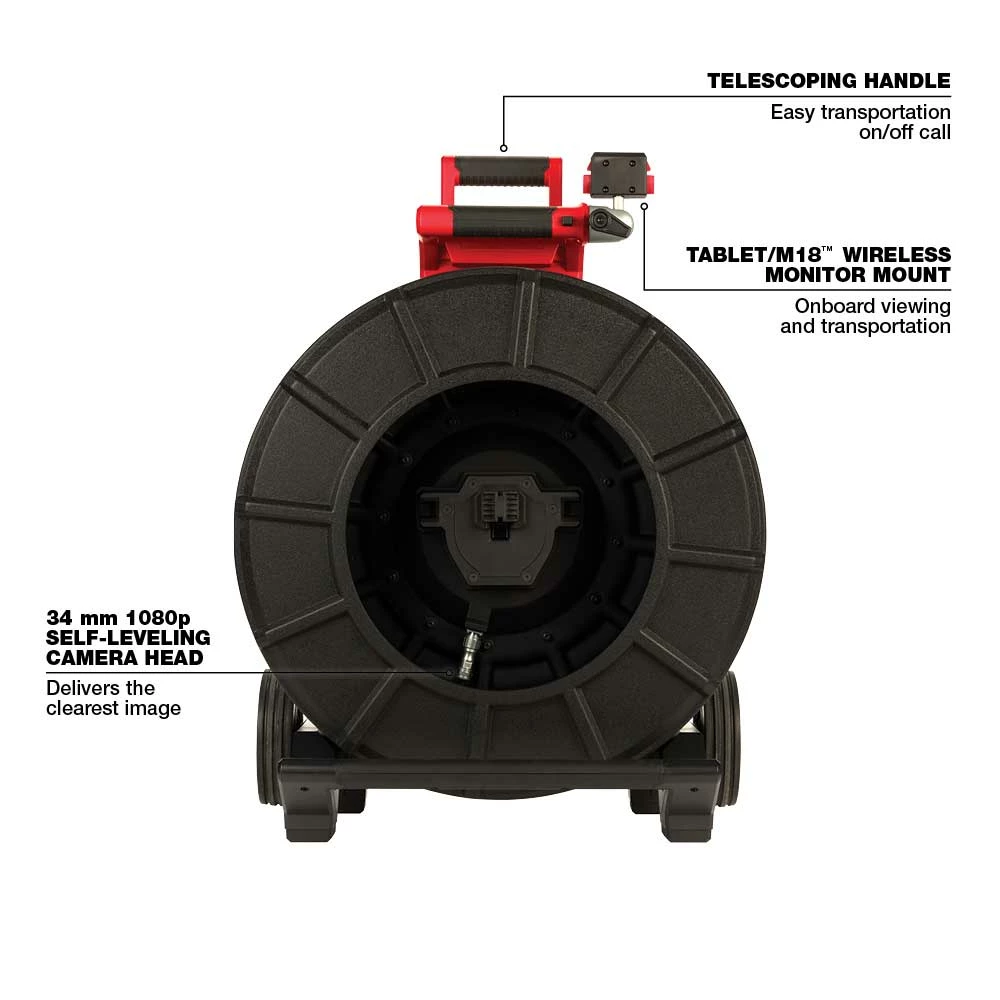

• 34 mm self-leveling camera head
• 12 mm Push Cable Diameter provides stiffness to push maximum distance

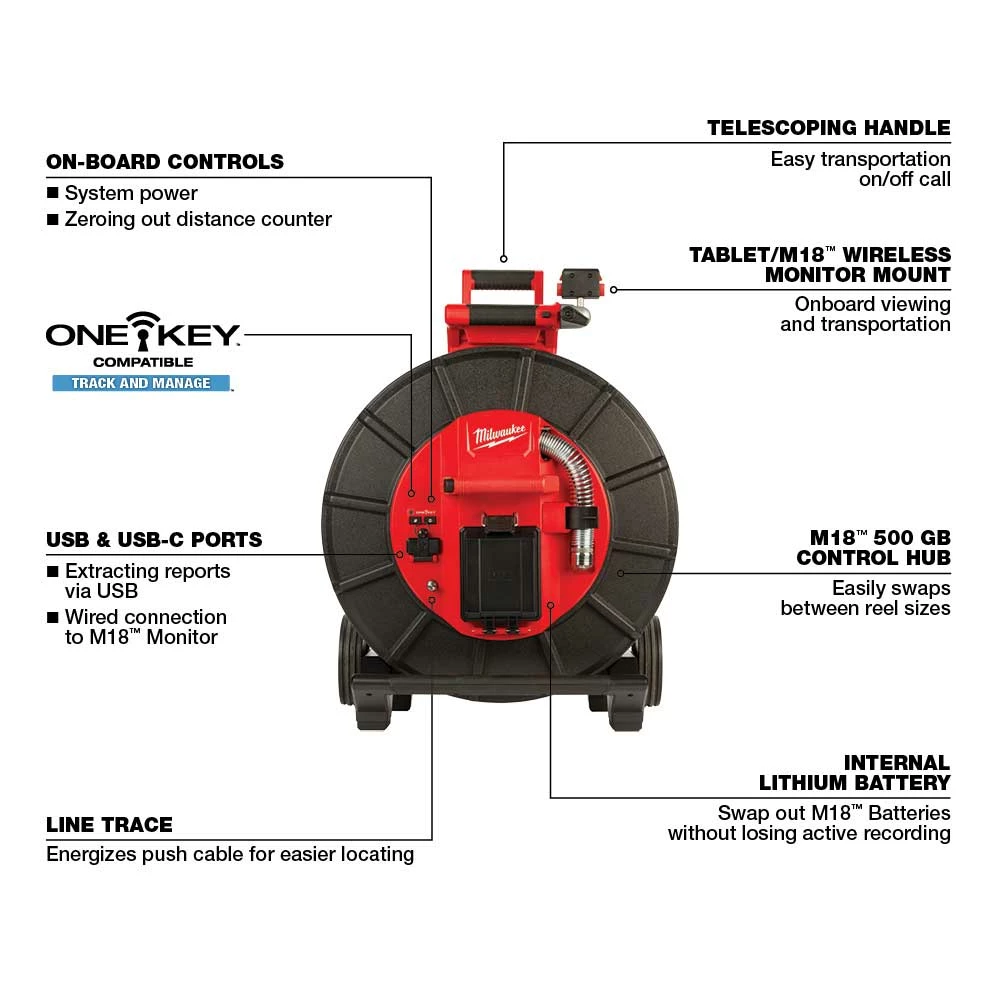

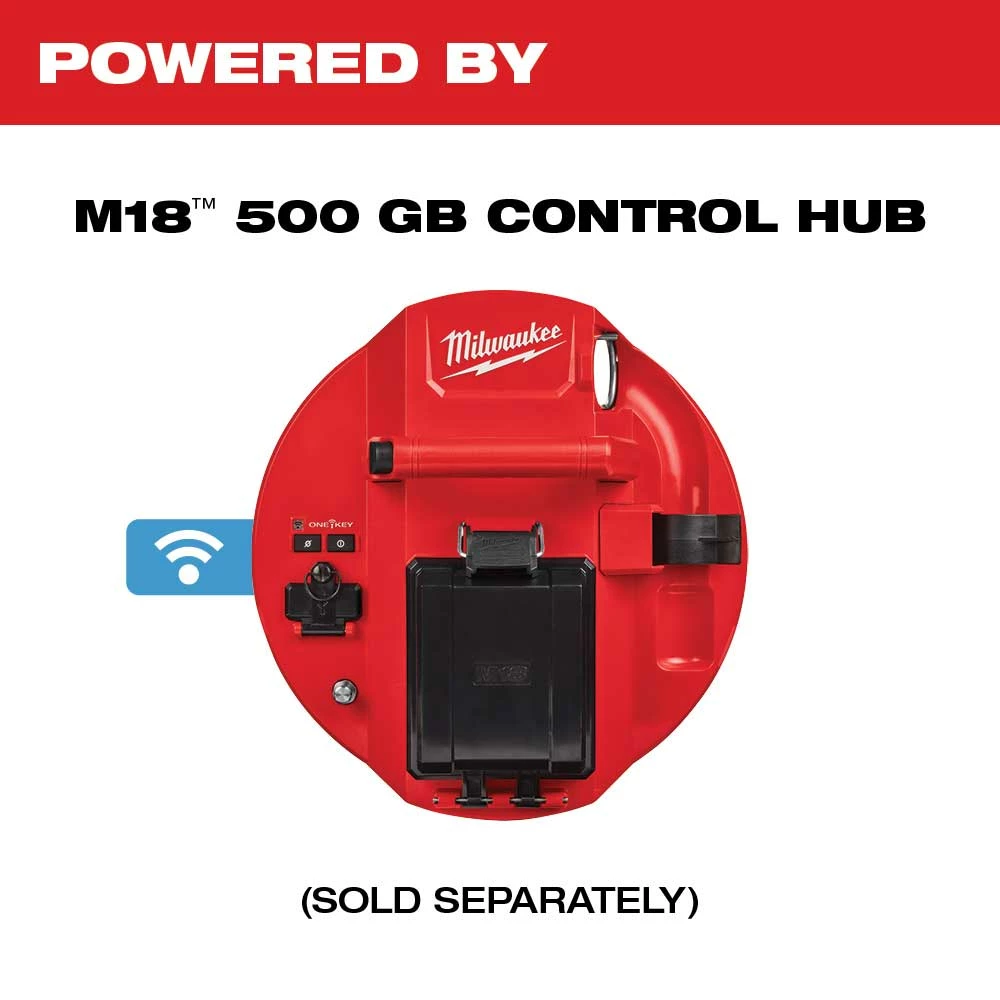

• Powered by the M18 500GB Control Hub

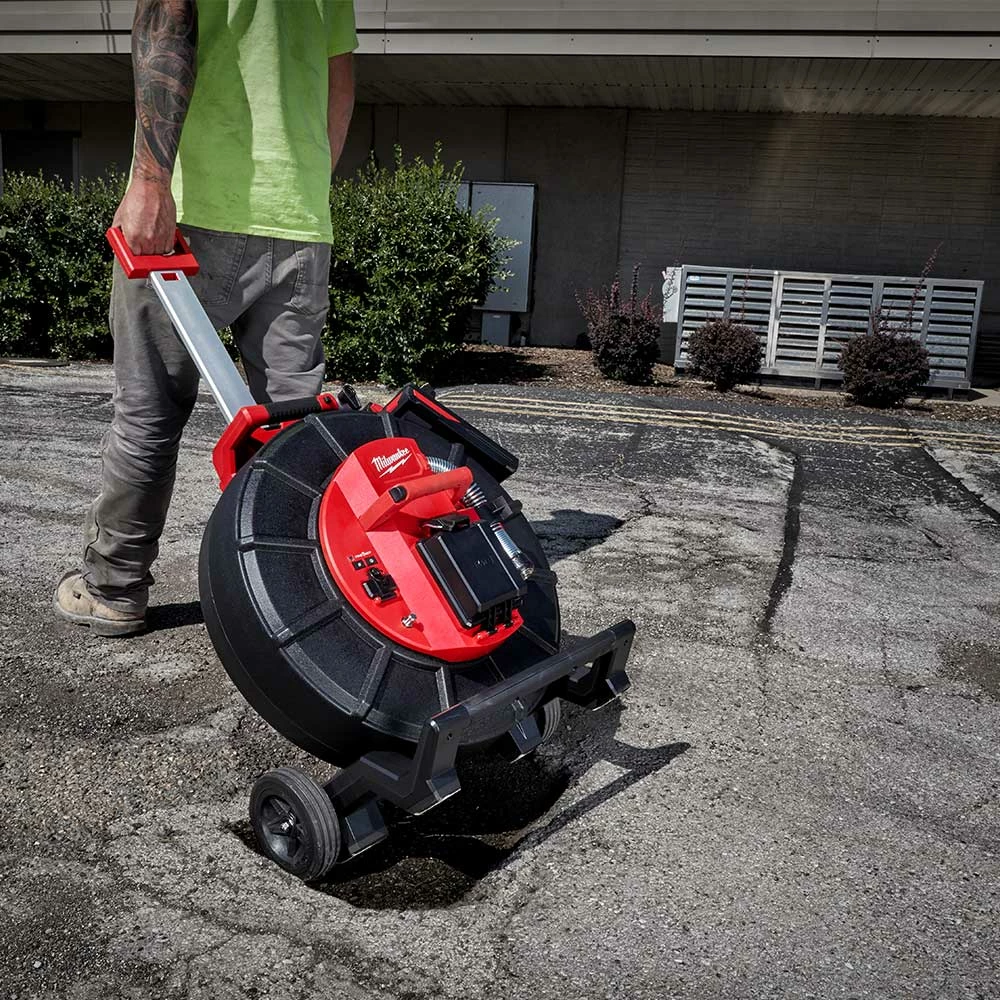

• Telescoping handle and wide wheelbase provide maximum stability
• On board monitor mount for viewing and transportation
• Swap batteries without system shutdown
• 500GB Control Hub
• Record, Edit and Share to Mobile Devices
• Swap Batteries without System Shutdown

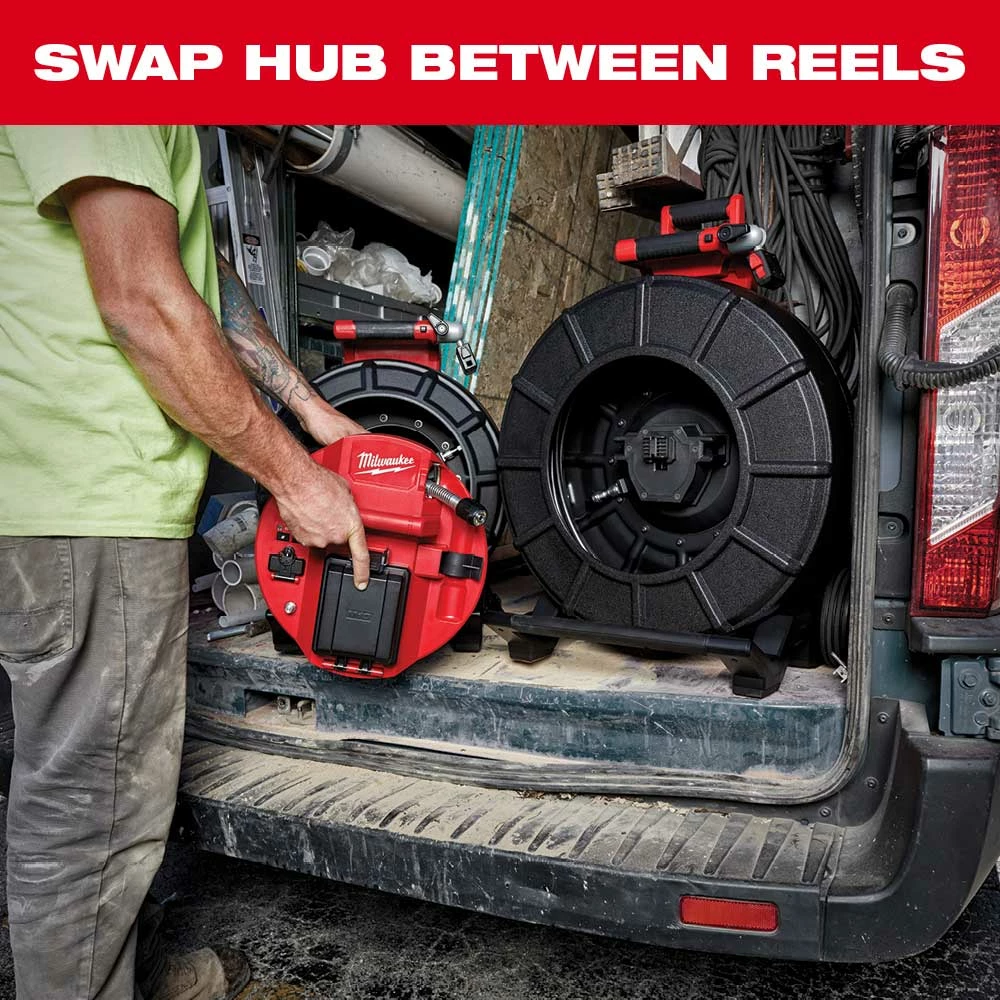

• Unmatched Versatility, Control Hub Swaps Between Reels
• Up to 200′ of Wireless or wired connectivity to viewing device
• On board USB port allows for saving findings on memory stick
• One-Key technology allows for tracking, tool security, and inventory management
• Up to 9 hours of runtime with an M18 REDLITHIUM 5.0AH Battery
• Wired connection backup to the M18 Wireless Monitor via USB-C port
• Water tight battery door protects against water and debris
• Integrated handle and latch allow for easy one handed installation
• Sealed Battery Door
• Sealed USB Door

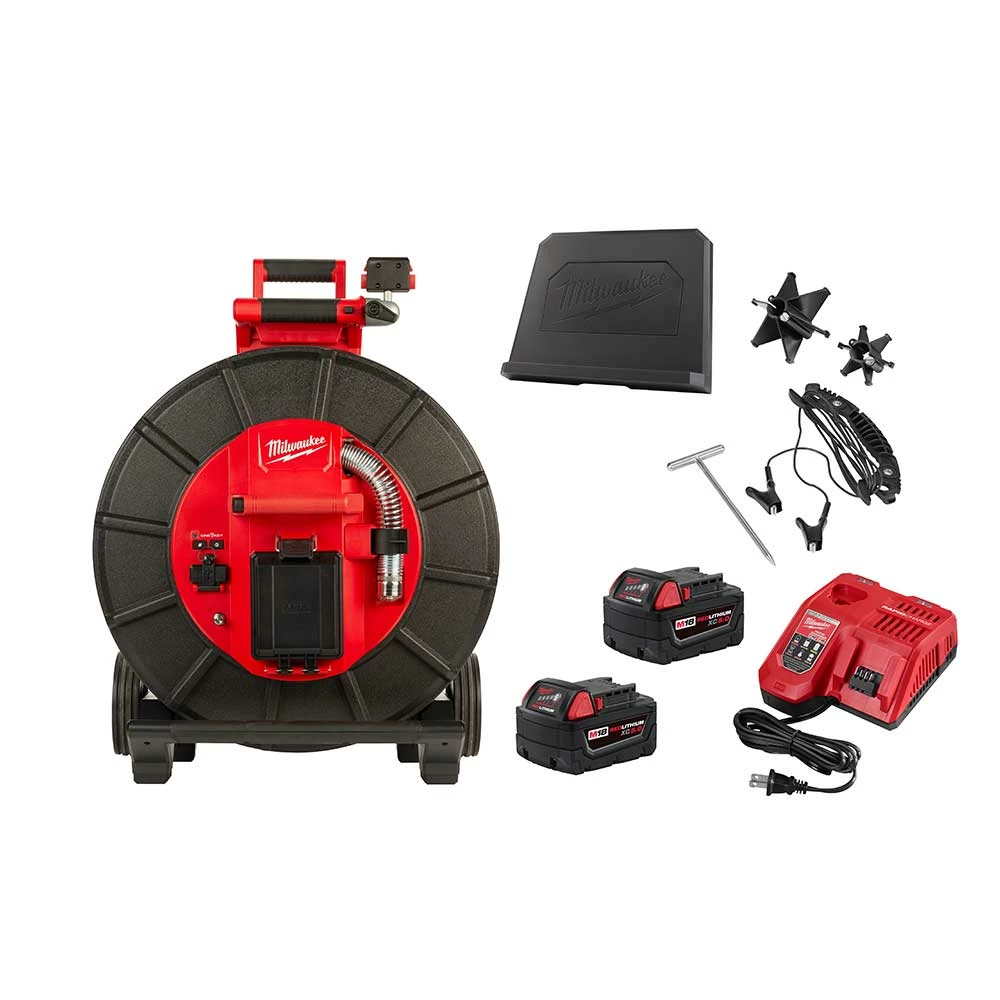

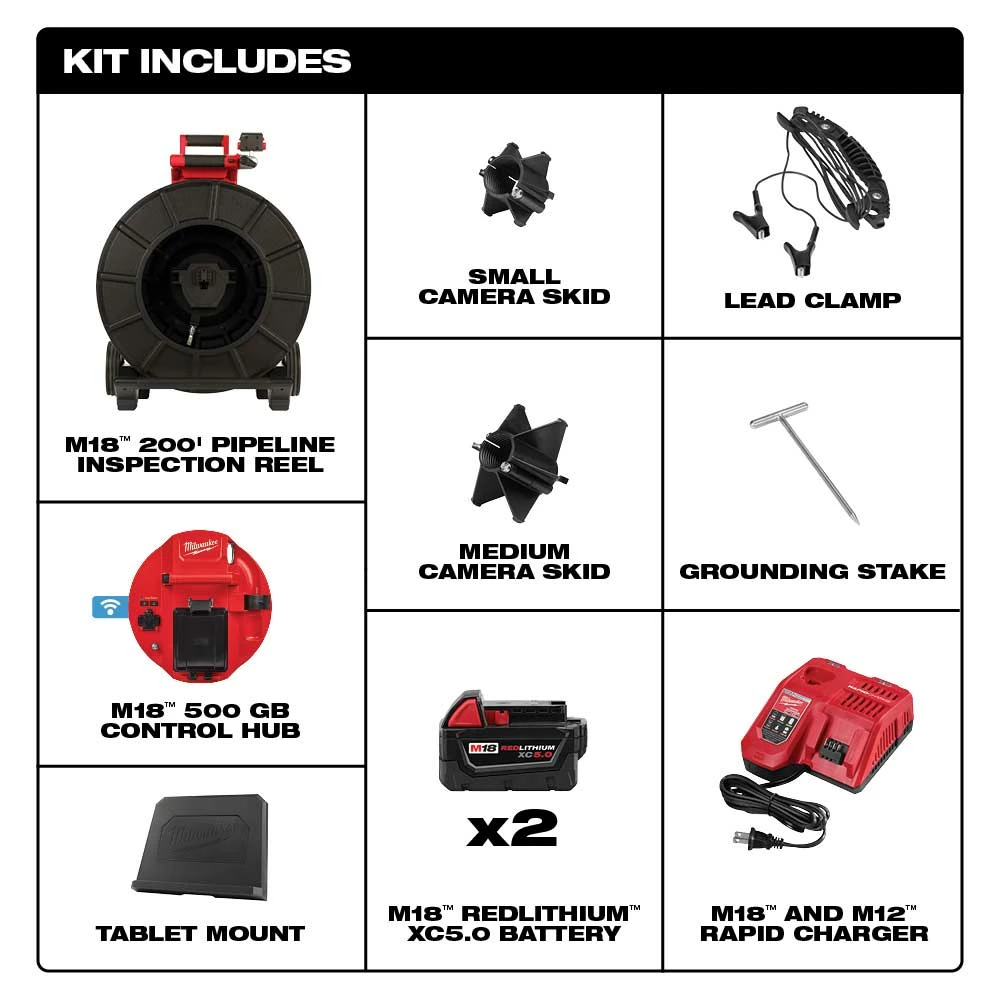

What’s in The Box

• 200’ Pipeline Inspection Reel (2974-20)
• M18 500GB Control Hub (Tool Only)(2970-20)
• (2) M18 REDLITHIUM XC5.0 Extended Capacity Battery Pack(48-11-1850)
• M18 / M12 Rapid Charger(48-59-1808)
• Tablet Mount(48-53-2970)
• Medium camera head skid for 34mm camera
• Small camera head skid for 34mm camera
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 1 Year Camera Head Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	2974-22
Brand	Milwaukee
200 ft Pipeline Inspection System

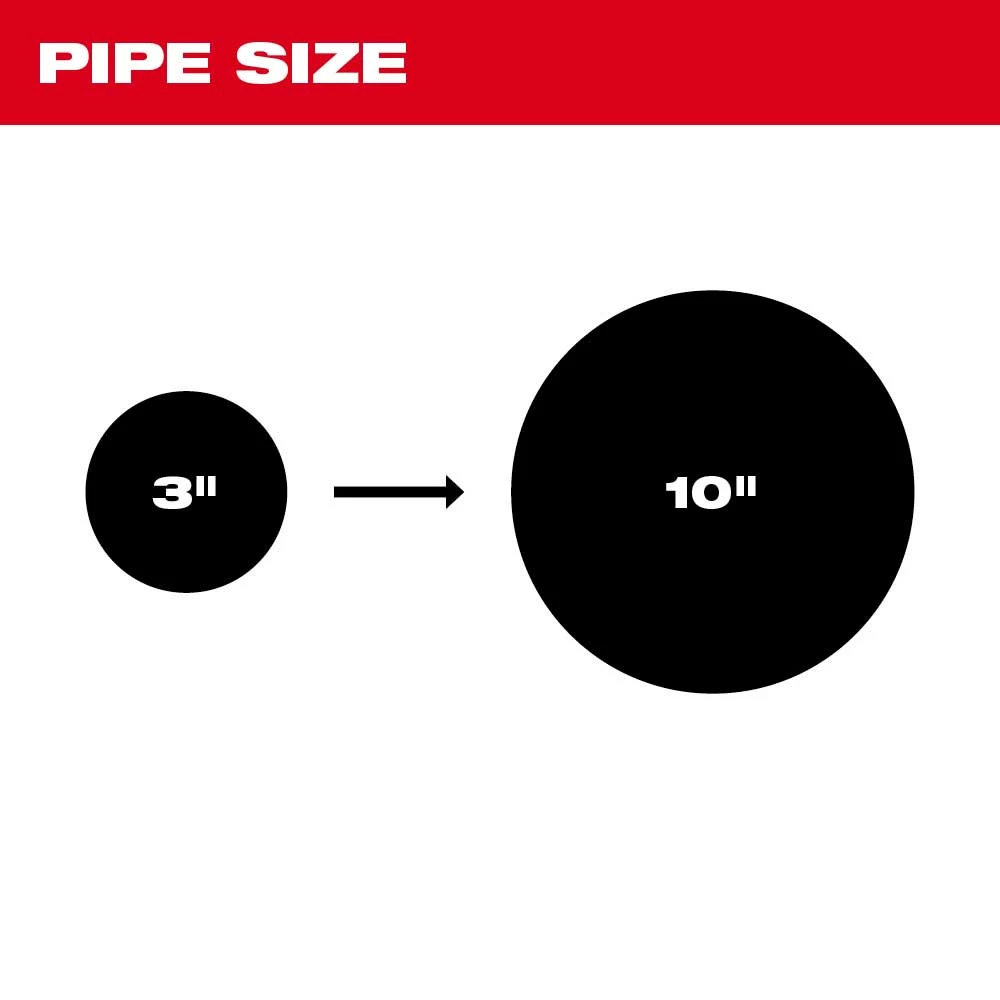

Line Capacity	3 in – 10 in drain lines
Push Cable Length	200 ft
Push Cable Diameter	12mm
Camera Resolution	1080p
Camera Head Ingress Protection	IP67
Sonde Frequency	512kHz, 640Hz, 33kHz
Line Trace Frequency	33kHz, 83kHz
Length	19 in
Width	21.9 in
Height	28.5 in
Weight	48.3 lbs
500GB Control Hub
Volts	M18
Power	Cordless
Video Display	M18 Wireless Monitor or Milwaukee Pipeline Inspection App
Wireless Range	200 ft
Runtime	9 hours
Photo Format	JPEG
Video Format	MPEG4
Internal Storage	500 gb
Data Transfer Method	USB, wireless to mobile devices
Line Trace Frequency	33 kHz, 83kHz
Length	12.2 in
Width	13 in
Height	13.5 in
Weight	8 lbs
