Features
- Premium plunge system with exclusive four-point PM bushing design and constant spring tension to deliver smooth, non-binding plunge action throughout the entire plunge range (2-7/8 in.)
- Patented BodyGrip design with precise macro/micro linear depth adjustment system and patented above the table height adjustment
- Precise macro/micro depth adjustment system to 1/64 in. increment, 3 in. metal depth scale, adjustable pointer, and 6-position (1/8 in. increment) adjustable metal turret stops for precise, multiple-pass routing
- Exclusive motor shield design
- Electronic variable speed with soft start (10,000 – 24,000 RPM)

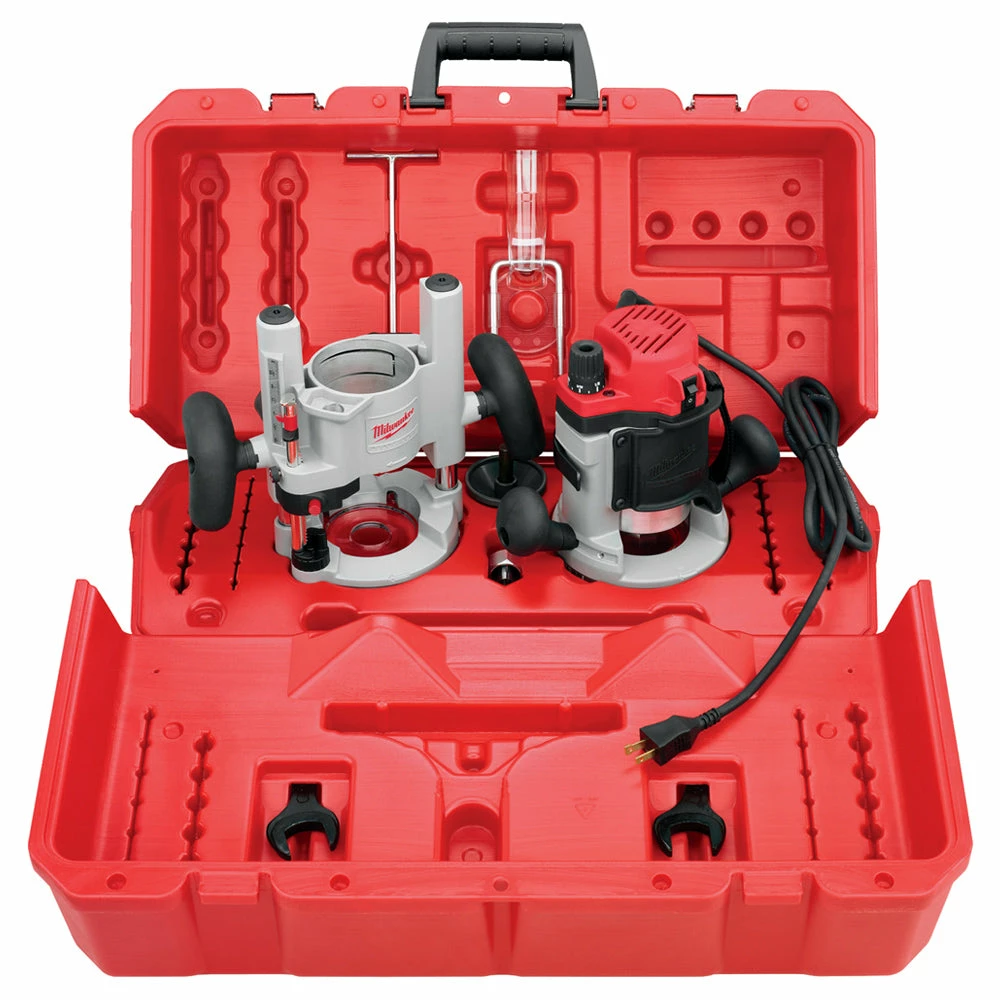

What’s in The Box
- (1) 2-1/4 Max HP EVS Multi-Base Router Kit (5616-24)
- (2) 1 1/8 Collet Wrenches
- (1) 1/2 Collet
- (1) 1/4 Collet
- (1) Carrying Case
- (2) Clear Sub-Bases
- (1) Concentricity Gauge
- (1) Dust Shield
- (1) Fixed Based Assembly
- (1) Fixed Based Assembly
- (1) Plunge Base Assembly
Warranty
- 5 Years Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Cord Type | 8′ Fixed |
| Electronic Feedback | Yes |
| No Load RPM | 10,000-24,000 |
| Amps | 13 |
| Construction Type | Double Insulated |
| Max HP | 2.2 |
| Base | 6 Inch Plunge |
| Depth Adjustment | 1-21/32 |
| Collet Diameter | 1/4-1/2 |
| Plunge Stroke | 2-7/8 |
| Dial Speed Control | Yes |
| Height | 8-1/2 |
| Weight | 8.8 lbs |



















Reviews
There are no reviews yet.
