Features
- 15.0 Amp, 4,400 RPM Motor- delivers maximum cutting performance and does not bog down, even under heavy loads.
- Hardened steel worm gearing -provides maximum torque in the toughest applications
- Magnesium Construction-durable, lightweight

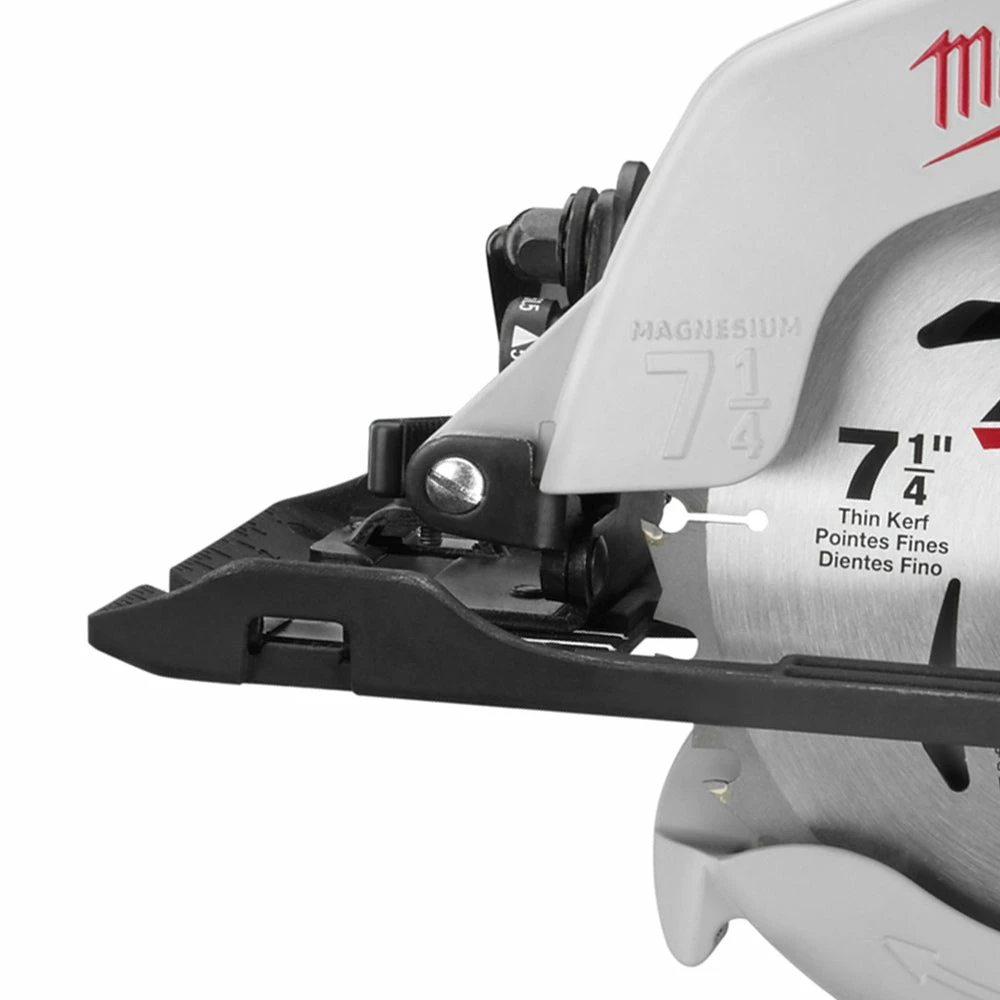

- Heavy-Duty Composite Shoe- will not warp, bend or kick up a burr
- Exclusive Oil Site Glass- instantly gauge current oil level
What’s in The Box

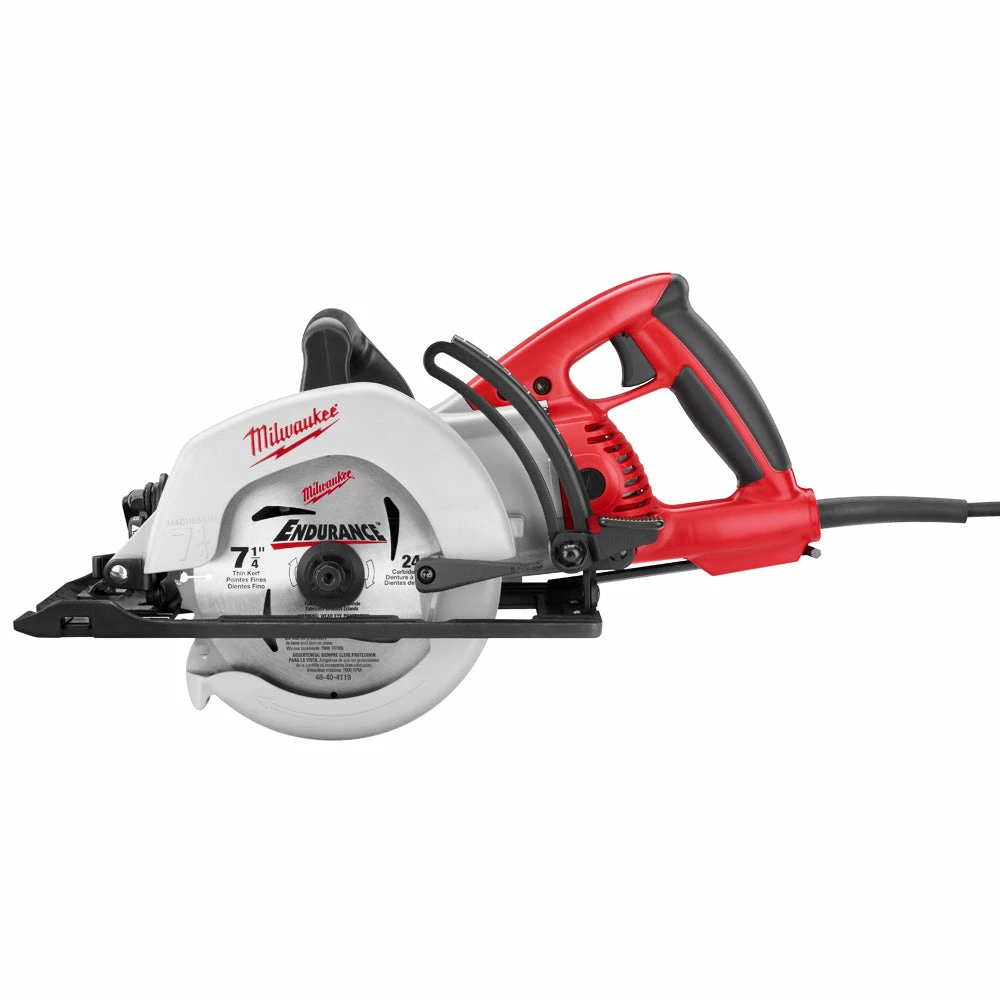

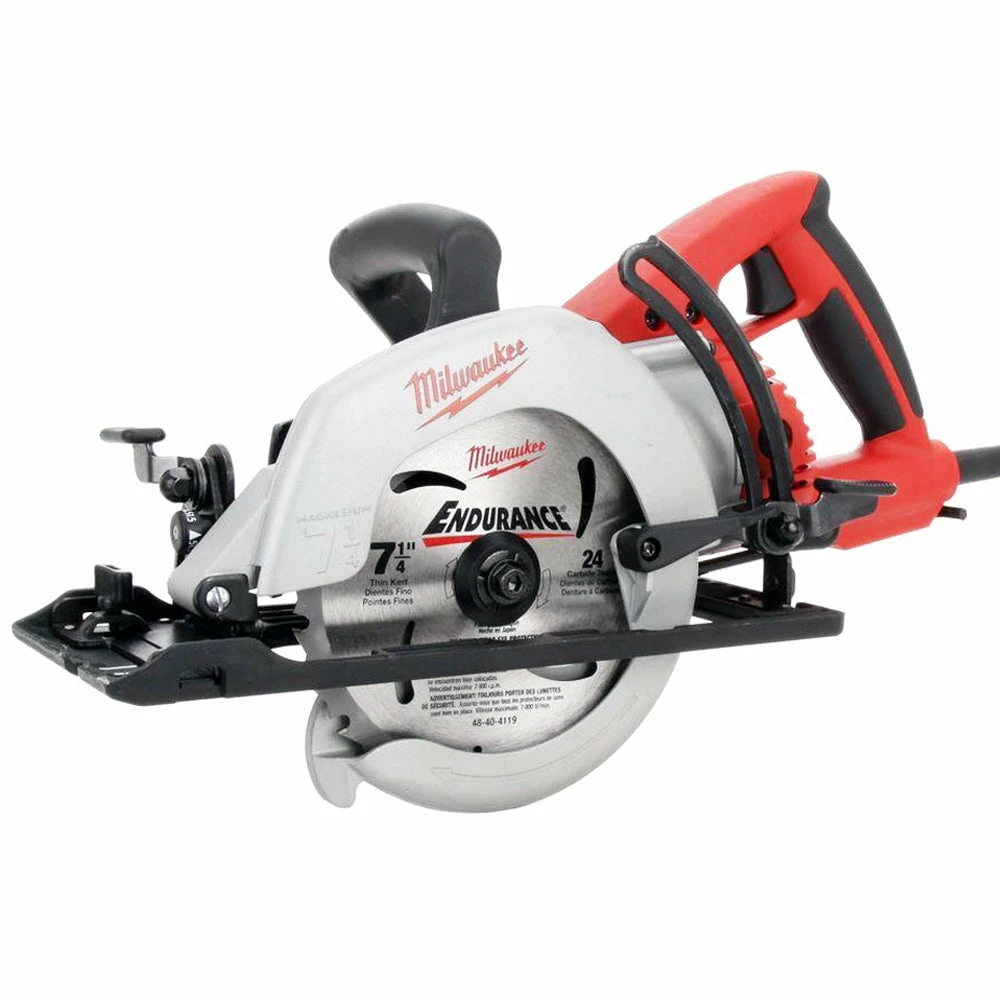

- (1) 7-1/4″ Worm Drive Circular Saw (6477-20)
- (1) Carbide Tipped Blade
- Owner’s Manual
Warranty
- 5 Years Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Voltage | 120 AC/DC |
| Cord Type | 2-Wire |
| No Load RPM | 4,400 |
| Amps | 15 |
| Spindle Lock | Yes |
| Depth of Cut at 45 Degrees | 1-25/32″ |
| Depth of Cut at 50 Degrees | 1-9/16″ |
| Depth of Cut at 90 Degrees | 2 and 7-16 Inch |
| Blade | 7-1/4″ |
| Maximum Bevel Capacity | 51.5 degrees |
| Arbor | Diamond |
| Item Length | 19″ |
| Weight | 15 lbs |
