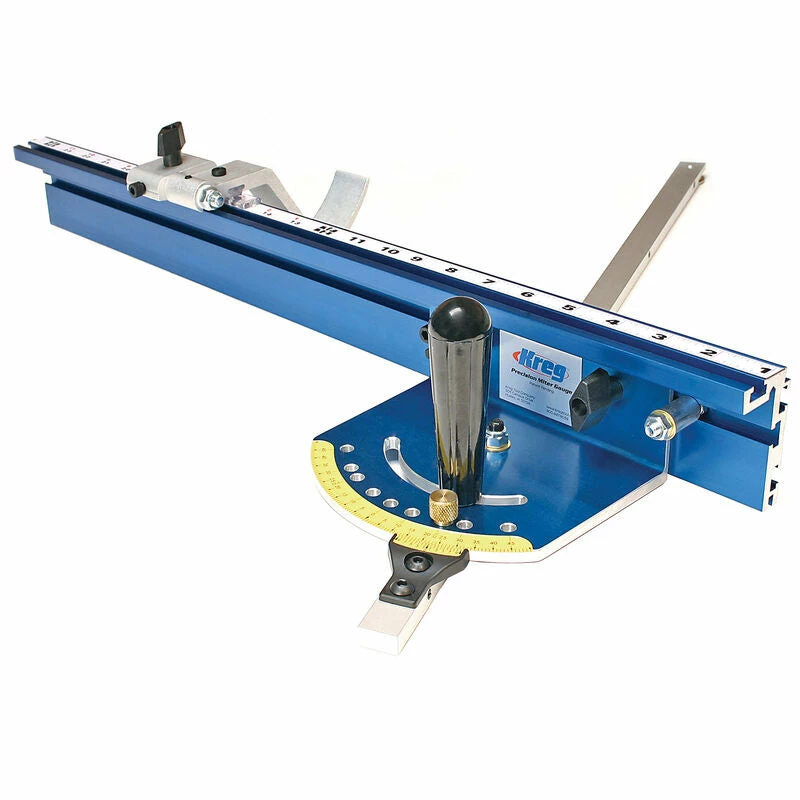

Features
- Factory-calibrated; perfect right out of the box
- Positive stops at 0-Degrees, 10-Degrees, 221/2-Degrees, 30-Degrees, and 45-Degrees (degrees)
- Brass pin allows quick changes between positive stop angles

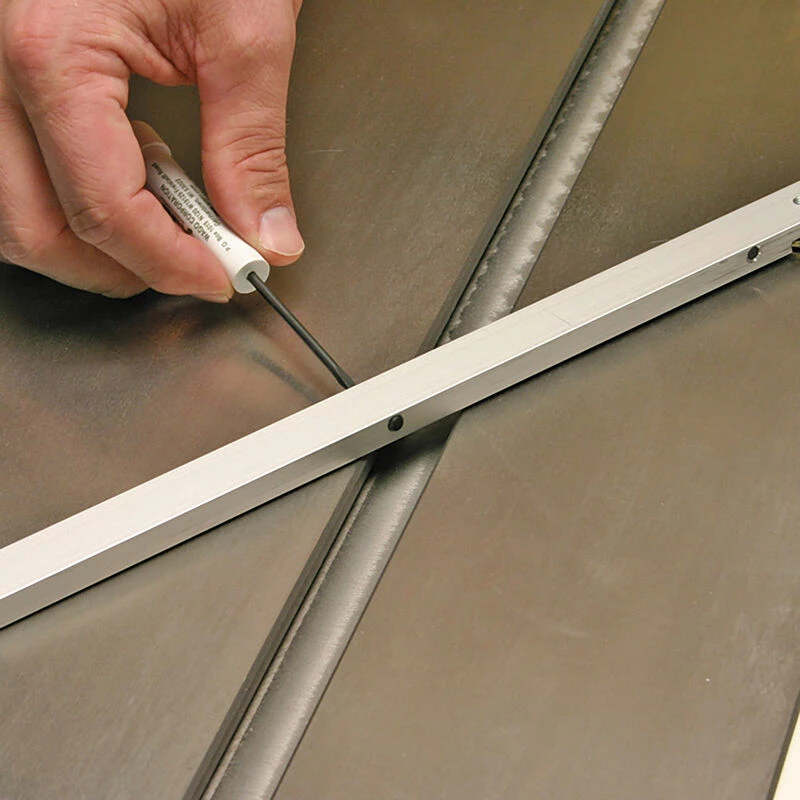

- 24 (610mm) bar with 5 bar adjusters eliminates play between the bar and miter slot
- 24 (610mm) Fence with Swing Stop and Self-Adhesive Measuring Tape
What’s in The Box
- Miter Gauge
- (1) 24-Inch Fence w/ Scale
- Zero-Return Stop
- Swing Stop w/ Precision Lens Cursor
- Self-Adhesive Measuring Tape
- Owner’s Manual
Warranty
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | KMS7102 |
| Brand | Kreg |
| Fence | 24 in. Aircraft-Grade Aluminum Fence |
| T-Slot Bar | 24 in. Long 3/8 in. Thick 3/4 in. Wide |
| Positive Stops | 0-Degrees, 10-Degrees, 22-1/2-Degrees, 30-Degrees, and 45-Degrees |
| Vernier Scale | Adjusts to 1/10th of a degree |
| Finish | Anodized for Easy Clean-Up |
| Calibration | Factory–Calibrated Perfect Right Out Of The Box |
| Product Weight | 6.5 lbs. |
