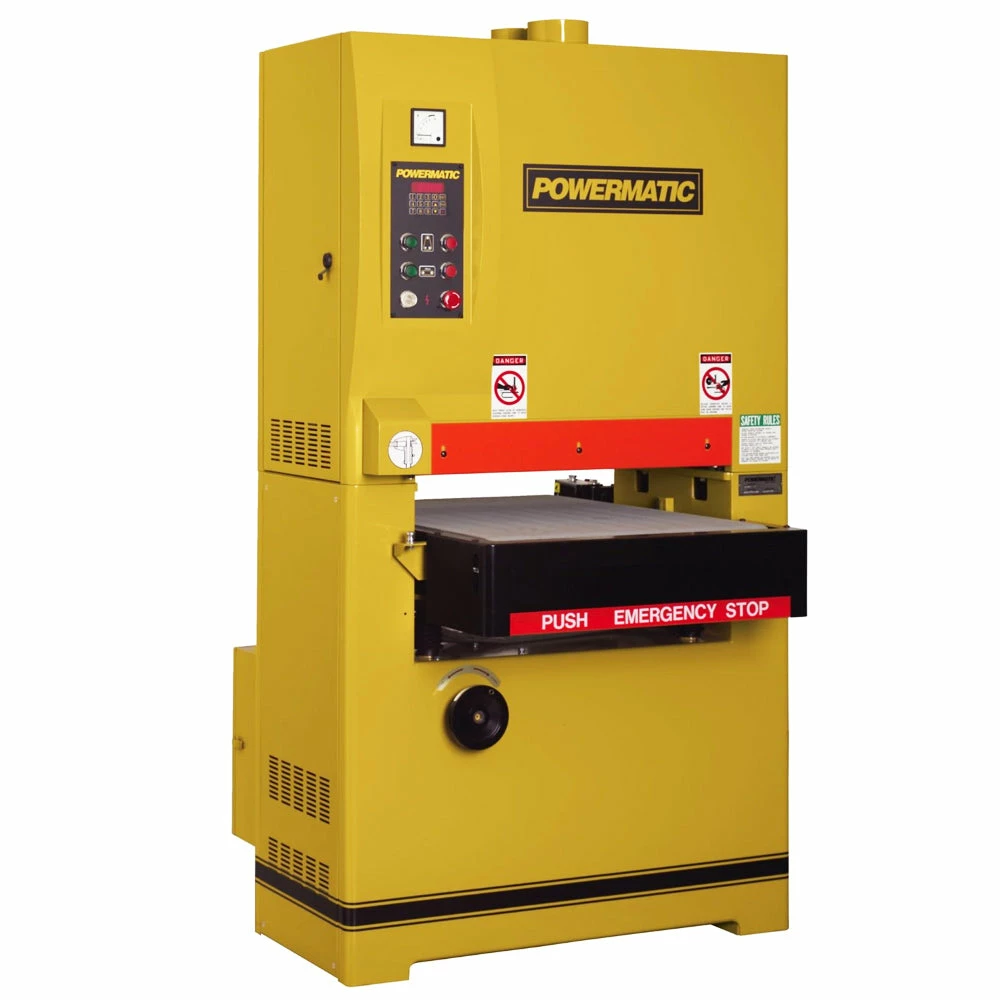

Powermatic 1790825 15-Hp 230/460V 25″ Wide Belt Variable Speed Sander Tools & Equipment

Features

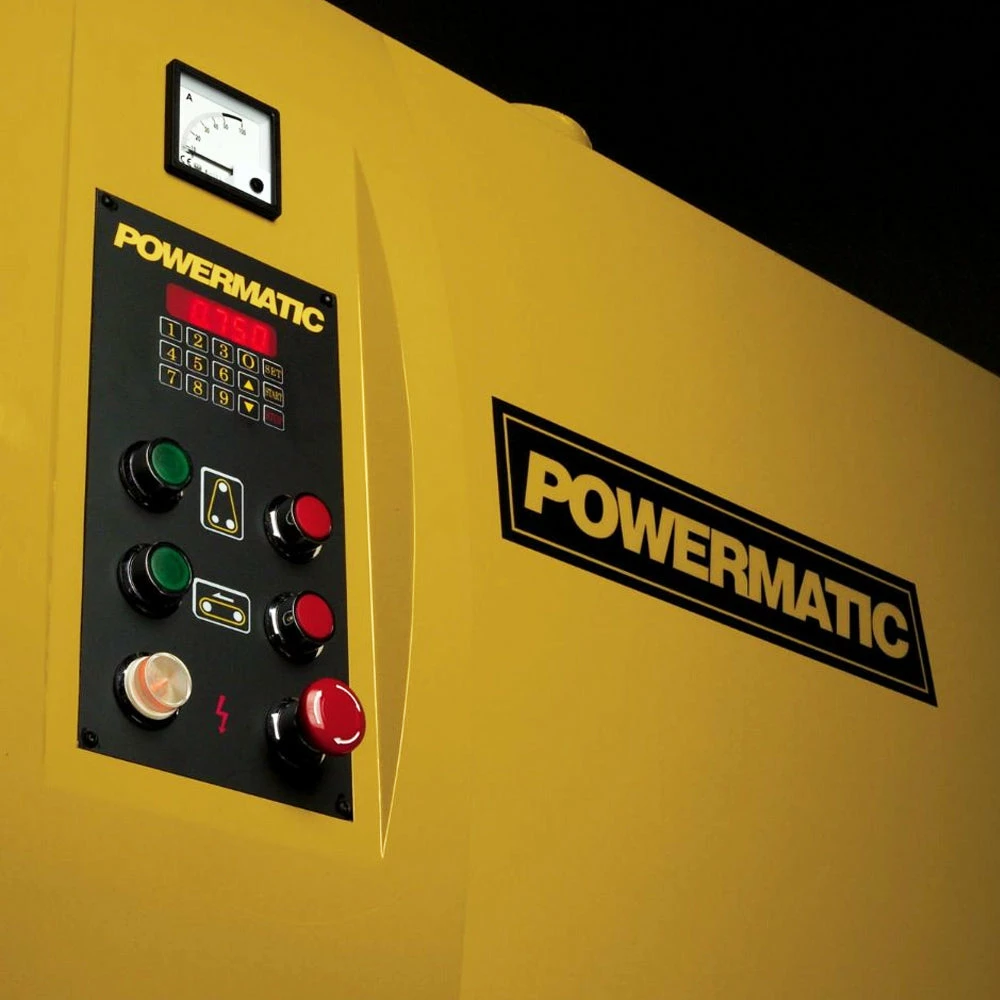

• Centralized controls allow you to access all the needed buttons on one simple panel

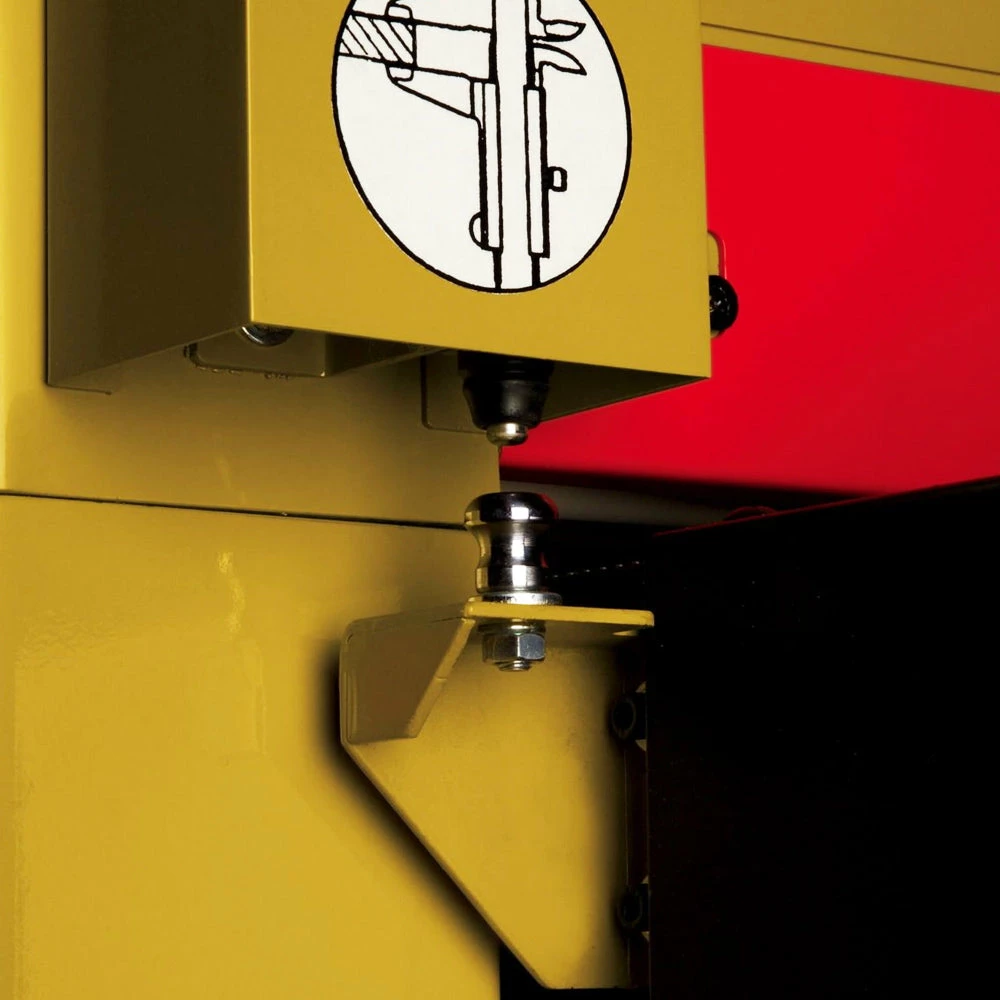

• The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
• Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
• The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• The electric eye system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
• The three motor system allows for maximum horsepower to independently power the drive drums, the variable speed feed belt, and the feed table
• 460V operation requires two additional overload relays, parts WB25-812A and WB25-814A

What’s in The Box

• WB-25, 25″ Wide Belt Sander, 15HP 3PH 230/460V, Vari Speed, Dro
• 2 sanding belts, 100 and 180 grit
• Graphite platen
• Tool box
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1790825
UPC	662755878763
Style (Type)	Wide Belt
Maximum Board Width (In.)	25 “
Maximum Board Thickness (In.)	6
Feed Rate (FPM)	15 – 49
Sanding Belt Speed (FPM)	2,625
Sanding Belt Size (In.)	25 x 75
Table Height from Floor (In.)	31-3/8 – 37-3/8
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	5
Feed Motor Power (HP)	1
Table Lift Motor Power	1/4
Motor Power (HP)	15
Motor Phase	3
Motor Voltage (V.)	230, 460
Prewired Voltage (V.)	230
