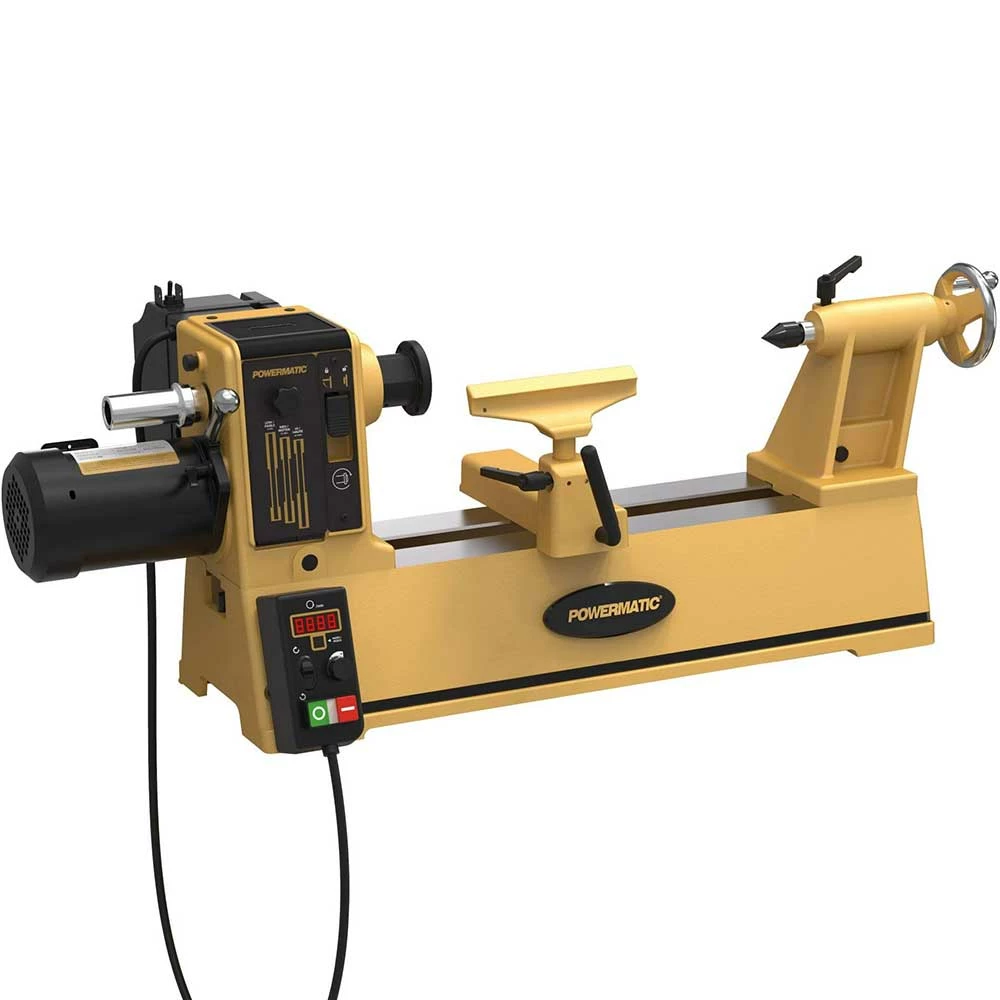

Powermatic 1792014 2014 115V/230V 1 HP Durable Cast Iron Bench Top Lathe Tools & Equipment

Features

• Motor only requires a 115-volt single-phase input while providing a consistent torque with 1 horsepower, 230 volts, and 3 phase output using an inverter.

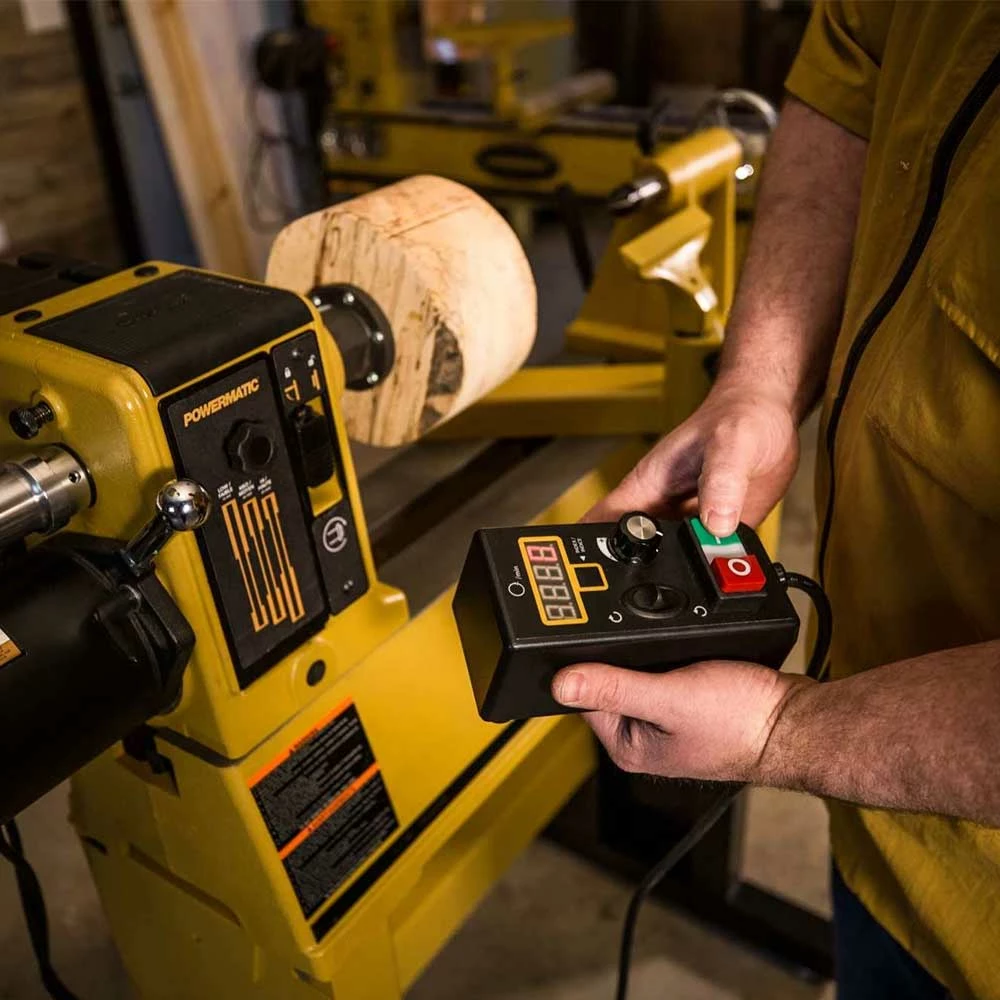

• Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety
• Twenty four positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process
• Sliding headstock and removable tailstock make outboard turning easy
• Cast iron bed reduces motor vibration for decreased noise and added precision
• Variable speeds from as low 15RPMs to as high as 3600RPMs
• With constant monitoring of the motor, the inverter keeps torque consistent.
• Lathe easily disassembles for better portability
• Acme threads on tailstock for smoother operation and longevity
• Includes 8-inch tool rest with 1-inch post
• The attached tool caddy allows convenient access to centers, wrenches, and accessories.
• Banjo features a non-marring, pinch style clamp for solid tool rest placement
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• Main power disconnect on the rear of headstock lockout for safety

What’s in The Box

• POWERMATIC 2014 Lathe – 1792014
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	1792014
Brand	PowerMatic
Prewired Voltage	115V
Motor Voltage	230V
Motor Phase	1
Horsepower	1
Size	20 x 14 in
Style	Benchtop
Swing Over Bed	14-1/4 in
Swing Over Tool Rest Base	10-3/4 in
Distance Between Centers	19-1/4 in
Headstock Movement	Sliding
Spindle Taper	MT2
Quill Taper	MT2
Spindle Threads	1-1/4 x 8TPI
Speed Range	15-3600
Number of Indexing Positions	24 Positive Locking
Outboard Turning	Yes
Bed Construction	Cast Iron
Weight	185 lbs
