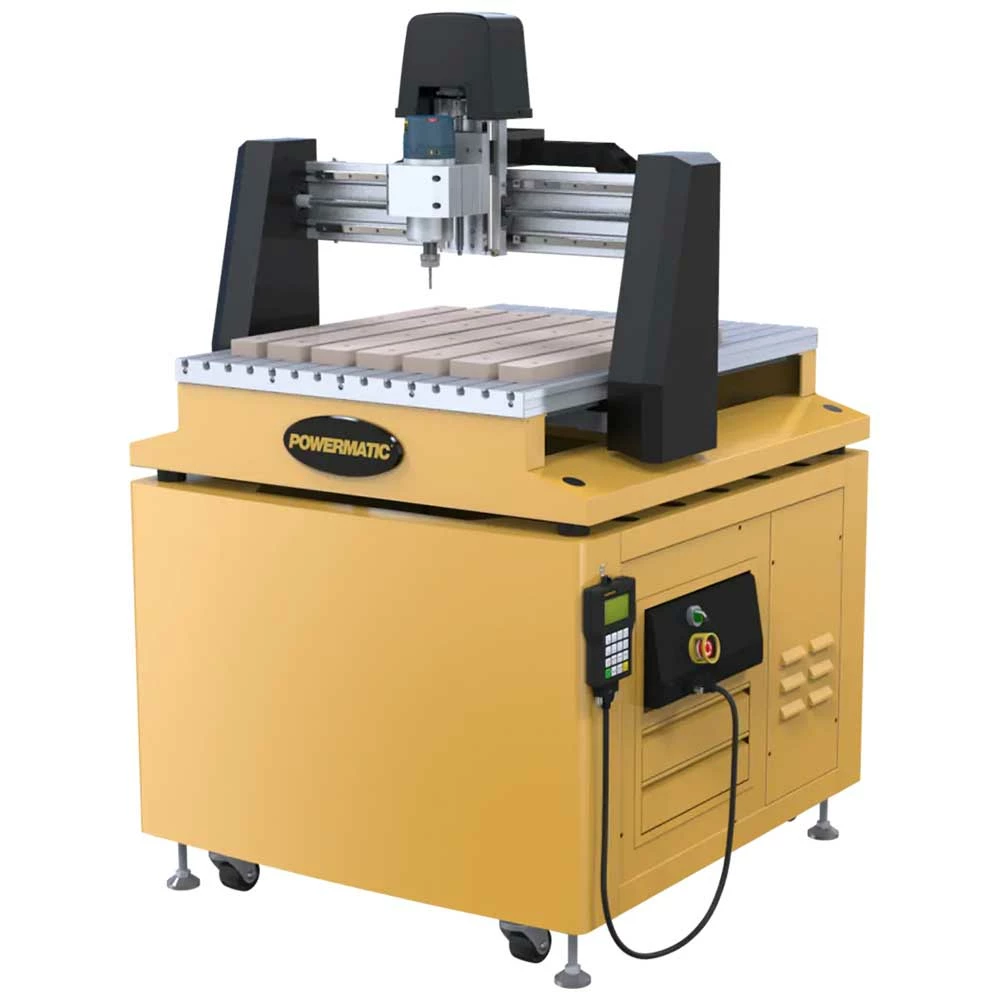

Powermatic 1797022K PM-2x2RK 2″ X 2″ CNC Premium Heavy Duty Kit W/ Router Mount Tools & Equipment

Features

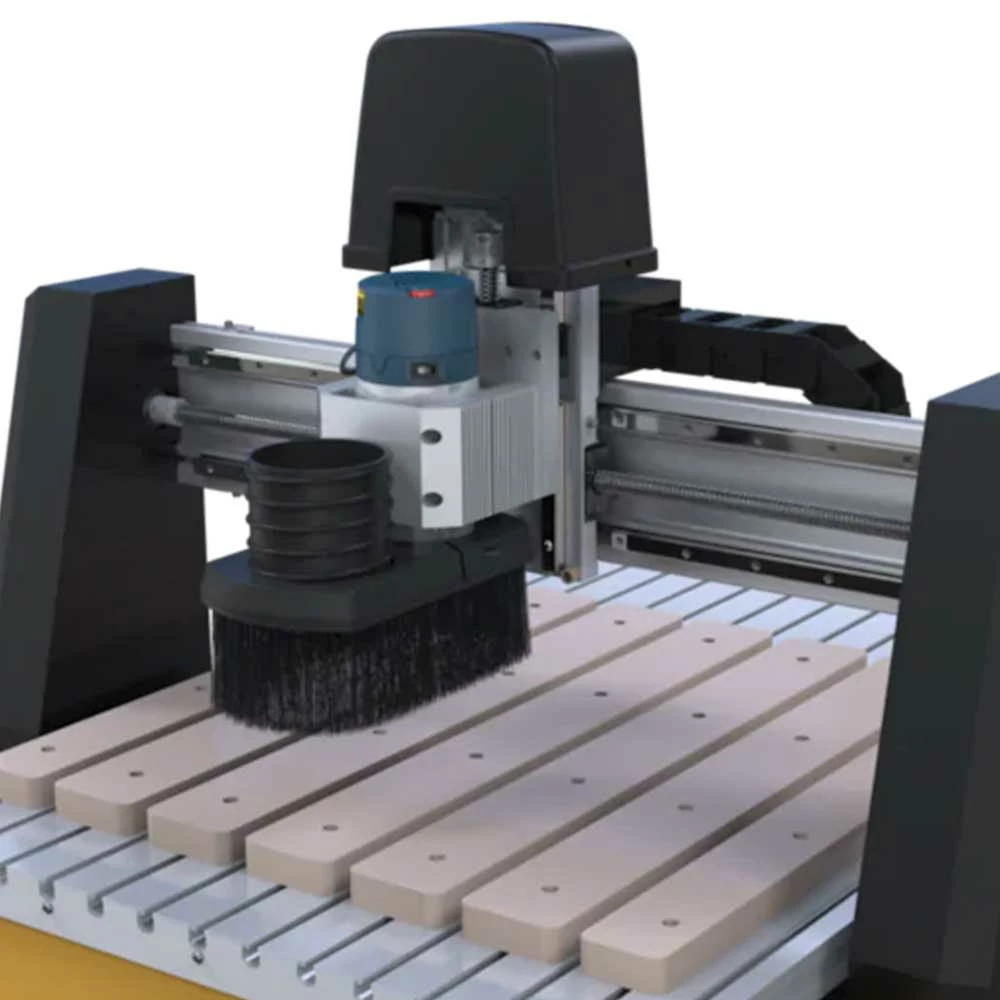

• Exclusive gravity cast aluminum gantry supports provide greater stability of the spindle.
• The included touch-off puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller

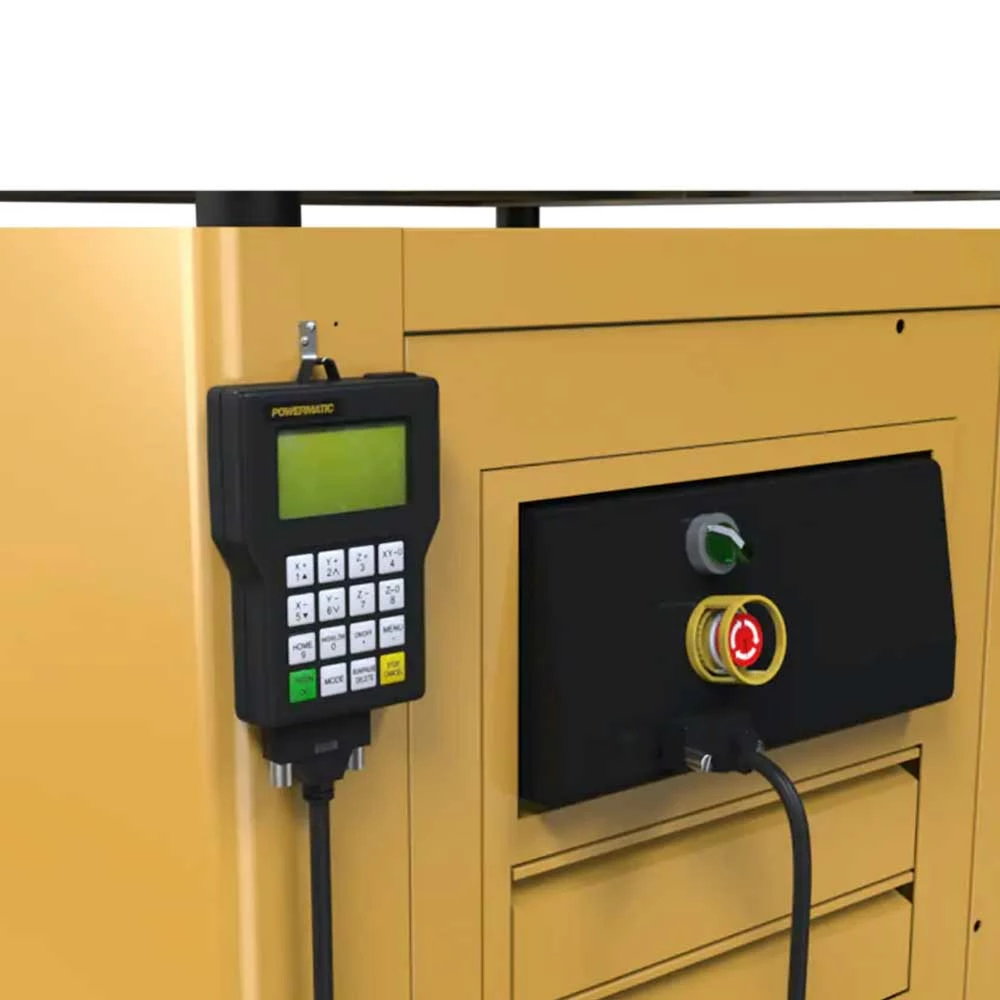

• The handheld controller attaches to the DSP control box via an 8-foot cable that makes it easy to oversee any project from a variety of positions
• The enclosed cabinet is heavy-duty welded steel and includes a handy toolbox for storage
• Integrated casters provide mobility, while independent leveling feet provide stability
• Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement
• Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
• Flexible nylon track chains protect all cables preventing rubbing and stress
• High-torque stepper motors control each axis, providing fast, quiet and precise movement
• An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program. The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
• Included dust shoe provides a clean surface as the machine works when hooked up to a dust collector

What’s in The Box

• Powermatic CNC Kit – 1797022K
• Router Mount
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	1797022K
Brand	PowerMatic
Voltage	115V – Only
Motor Phase	1
Horsepower	3
Size	20 x 14 in
Style	Router
X-Axis Travel	24 in
Y-Axis Travel	24 in
Z-Axis Travel	6 in
Precision Ball Screw Axis	X/Y/Z
Precision Linear Guide Axis	X/Y/Z
Rapid Feed Rate	200 IPM
Router	NOT INCLUDED
TOuch Off Puck	Included
Recommended Circuit Size	15 amps
Floor SPace Required	52 x 45 in
Dust Collection Minimum CFM Required	300
Weight	598 lbs
