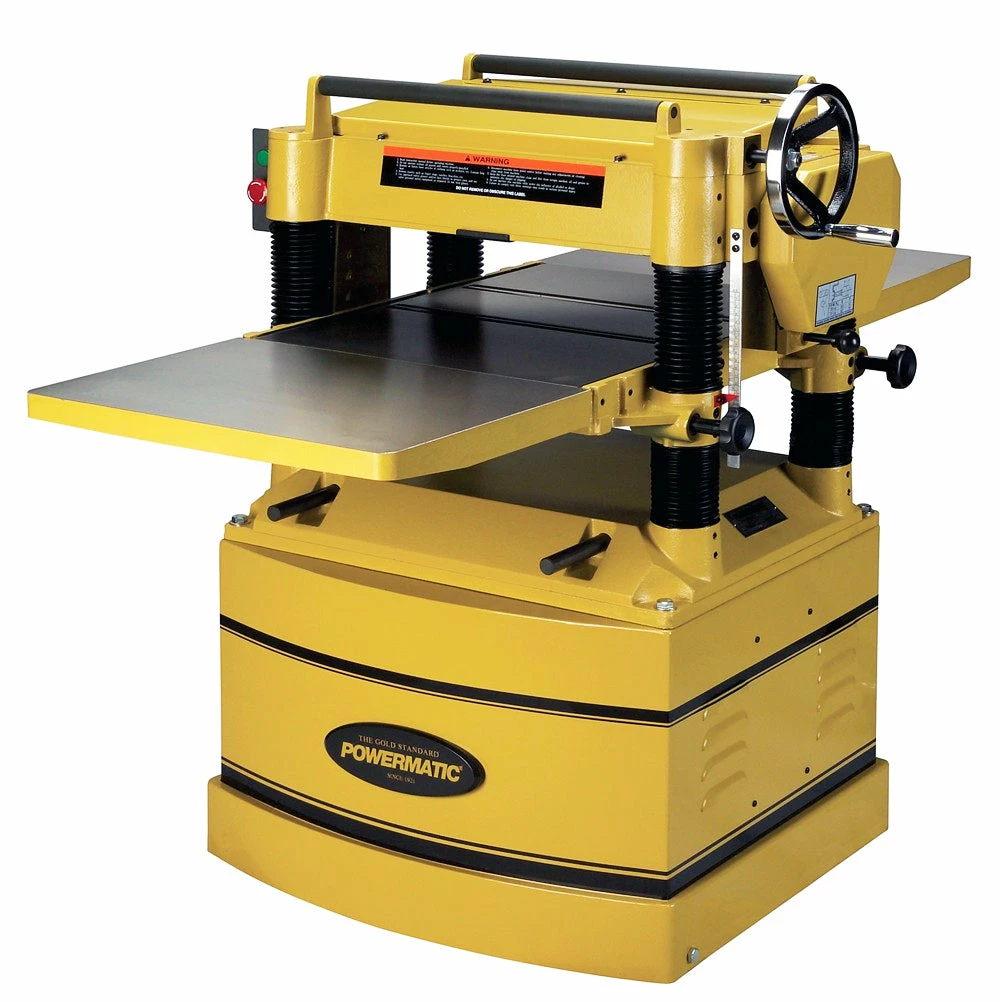

Powermatic 209 5-Hp 230/460V 20″ Heavy Duty Planer W/ 5″ Dust Port

Features

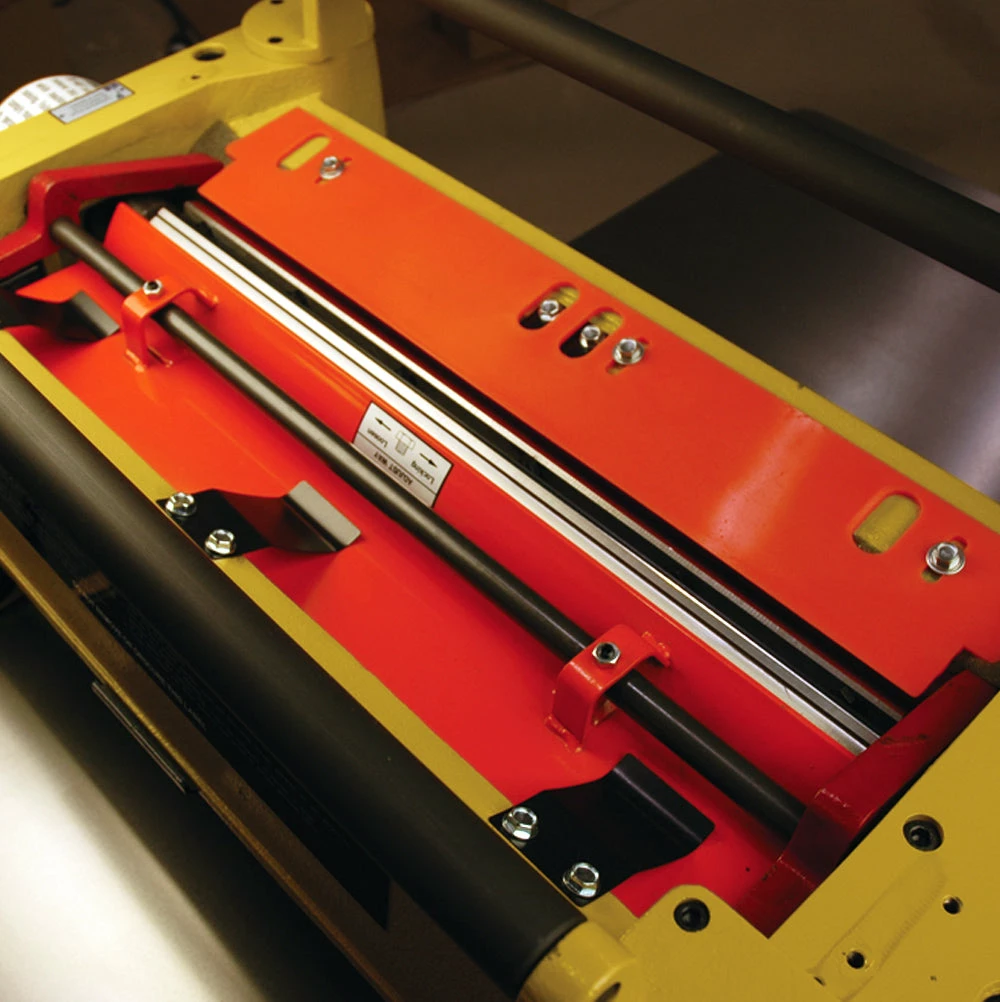

• Knife setting gauge
• 5HP motor and 20″ planing capacity for heavy duty work
• Fully enclosed base cabinet with integrated casters for shop mobility
• Cast iron table with extensions creates a big 55-1/2″ x 20″ working area
• Four feed speeds – 24 and 31 FPM, 16 and 20 FPM with gear change – provide versatility

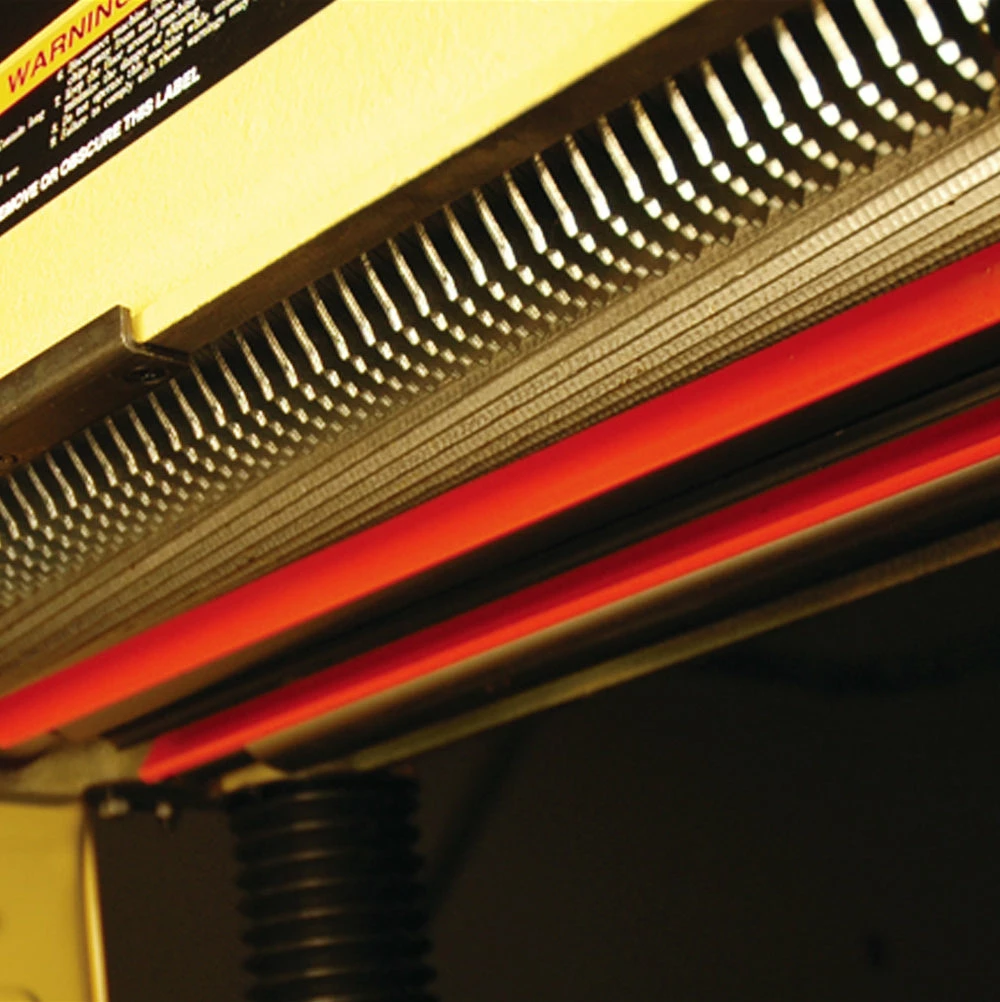

• Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
• 460V operation requires an additional 460V magnetic switch: 209-5016E
• Single-sided knives
• Cast iron extension tables

What’s in The Box

• Powermatic 209, 20″ Planer, 5HP 3PH 230/460V
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery

Specifications

Model	1791297
UPC	662755501234
Style (Type)	Planer
Cutterhead Speed (RPM)	5,000
Cutterhead Diameter (In.)	3-3/16
Cuts Per Minute	20,000
Number of Knives	4
Maximum Depth of Cut (In.)	3/32
Maximum Planing Width (In.)	20
Maximum Planing Thickness (In.)	8
Minimum Planing Length (In.)	6-3/4
Feed Rate (FPM)	24, 31; 16, 20 with Gear Change
Number of Speeds	4
Range of Speeds	24, 31, 16, 20
Bed Rollers Adjustable from Front	N.A.
Table Support	4 Column
Digital Readout	Inch / Metric
Dust Collection Minimum CFM Required (CFM)	900
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	5
Motor Phase	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
