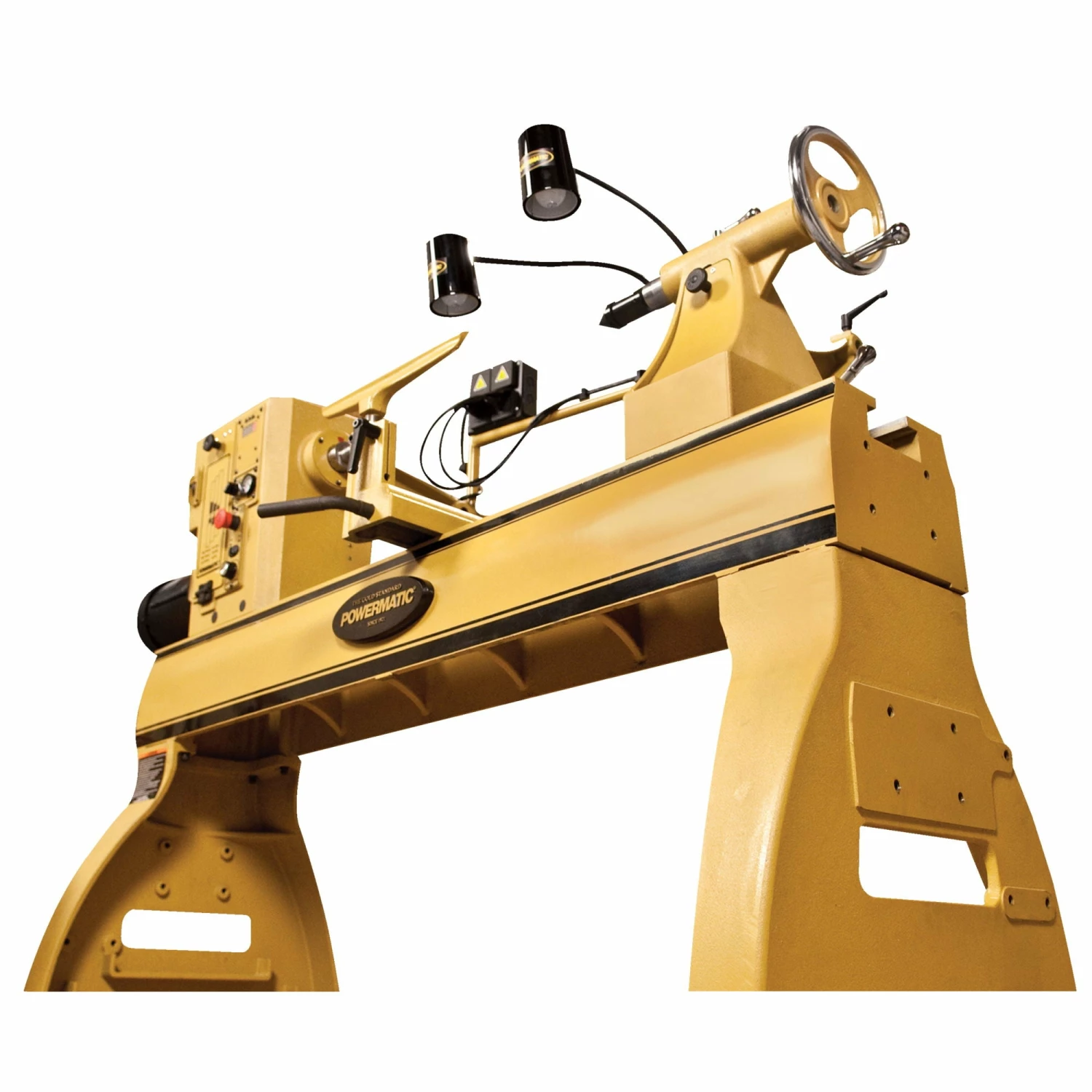

Powermatic 4224B Lathe W/ Lamp Kit 3HP 3PH 220V – 1794224K Tools & Equipment

Features

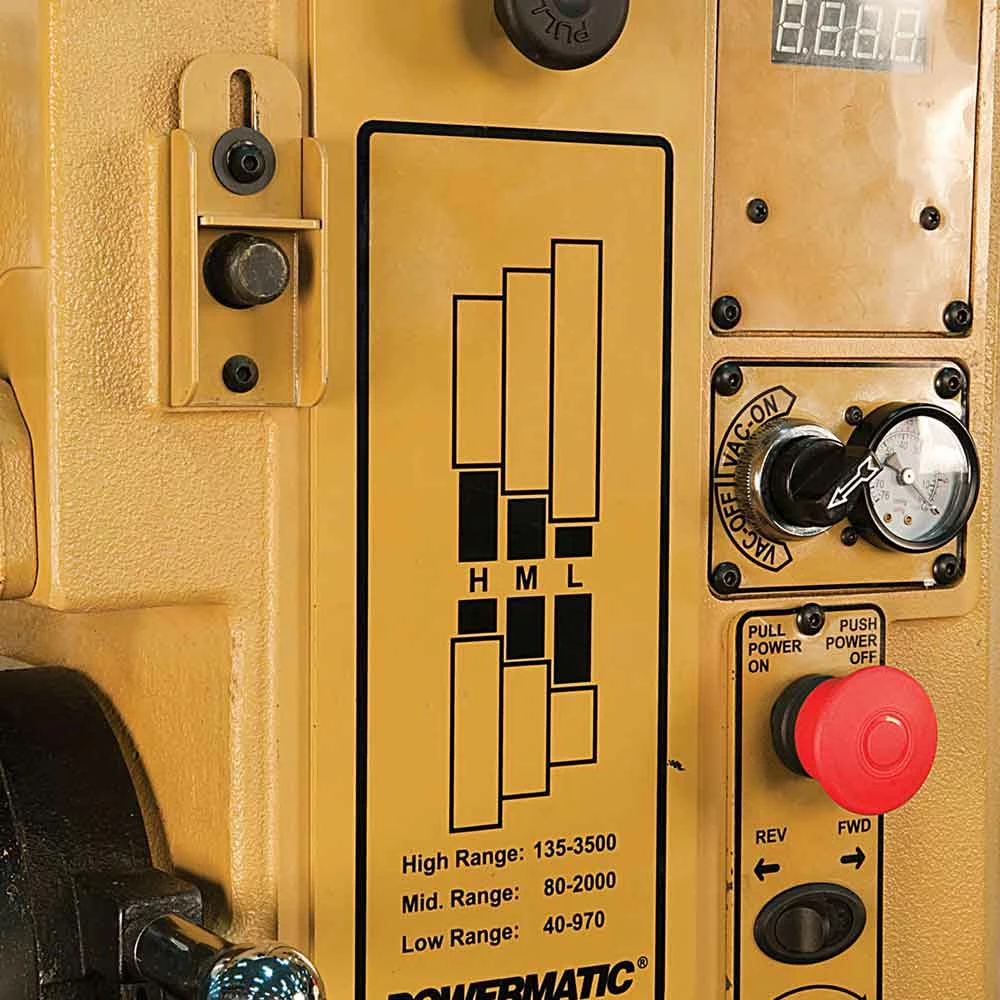

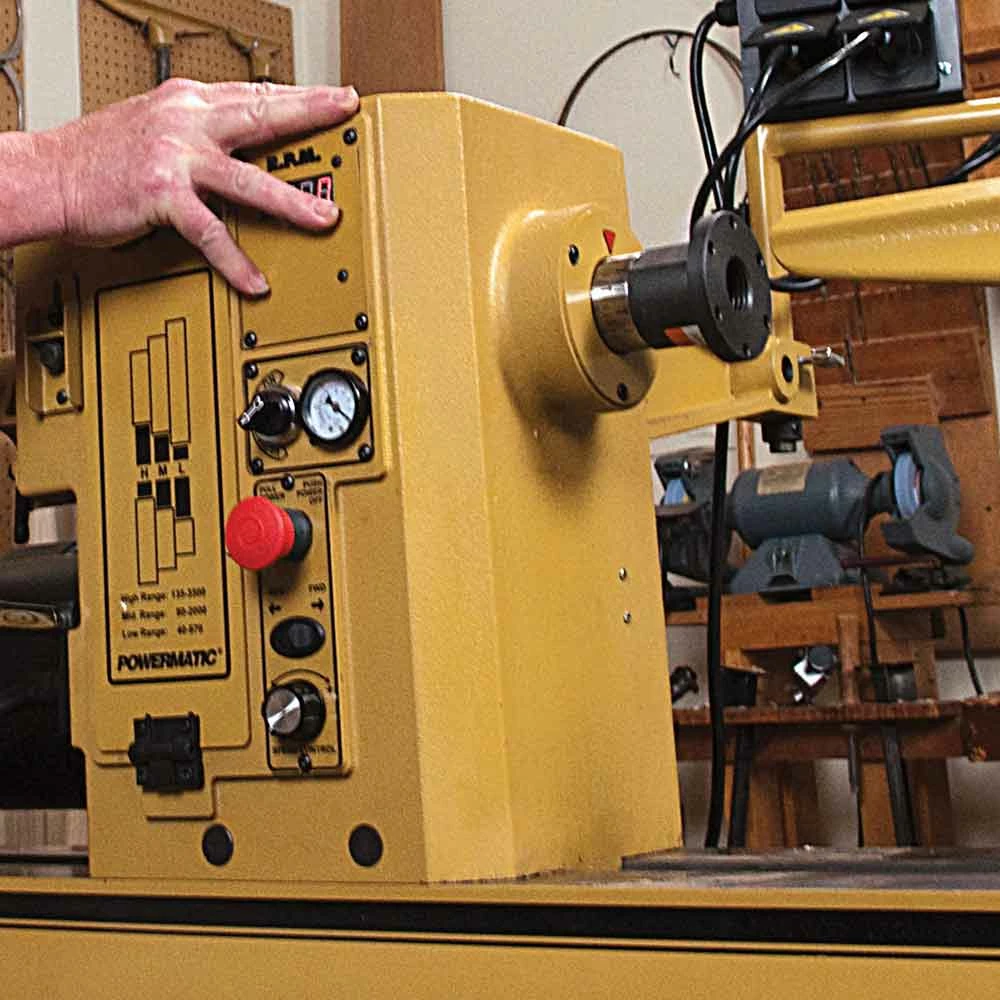

• Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments

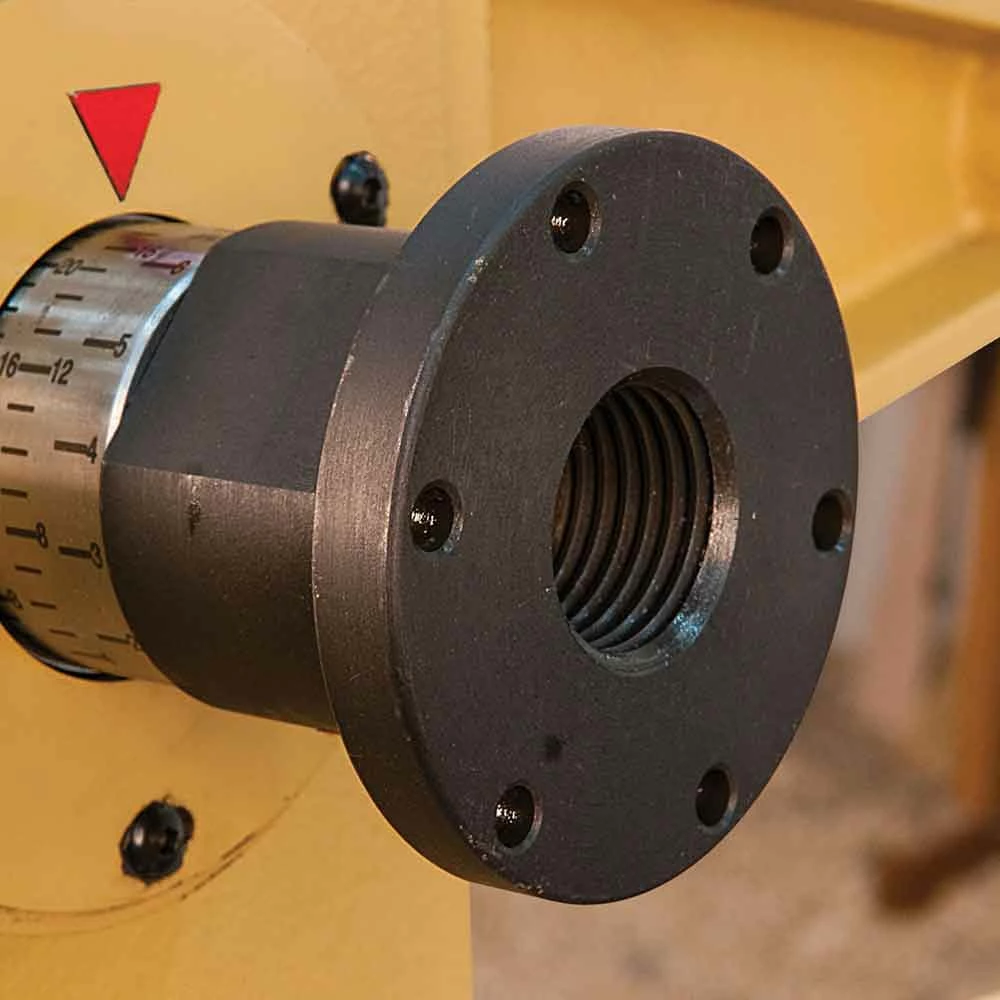

• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features

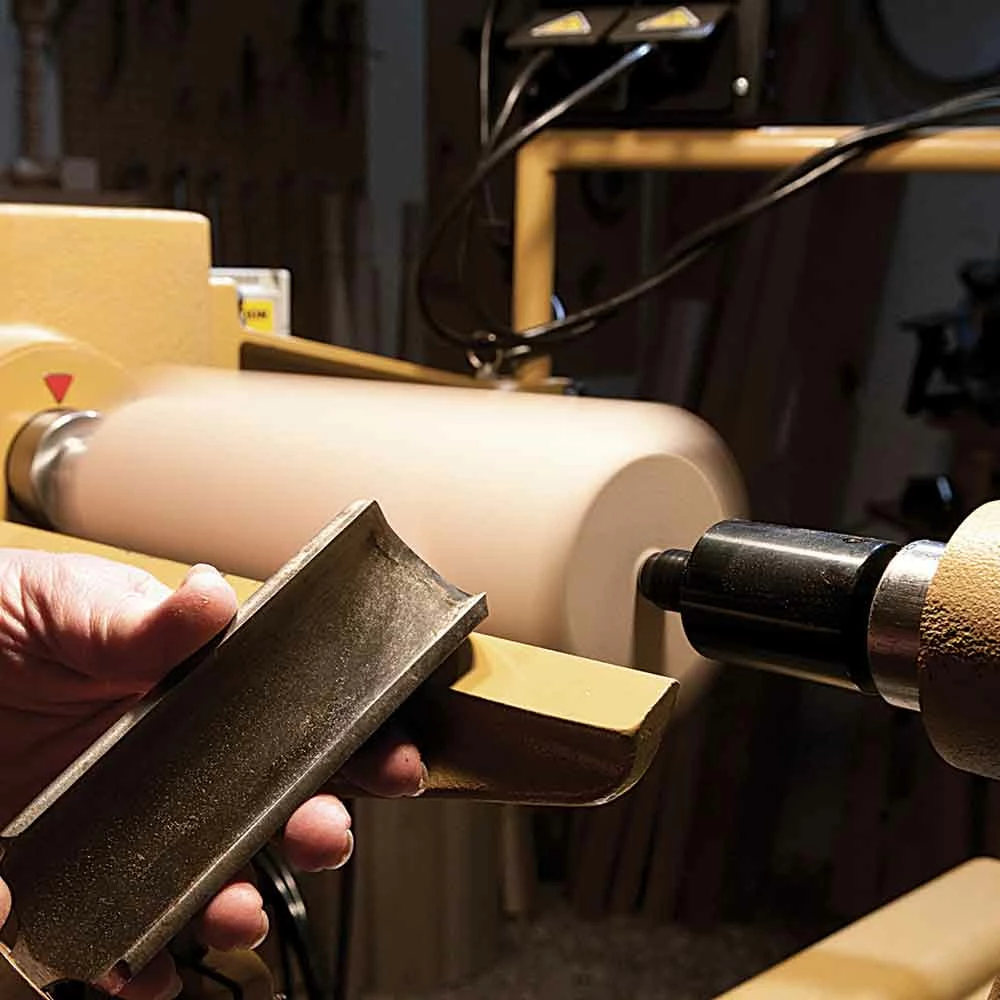

• Vacuum system provides quick method of chucking bowl blanks
• 15-amp quad receptacle for easy reach of powered accessories

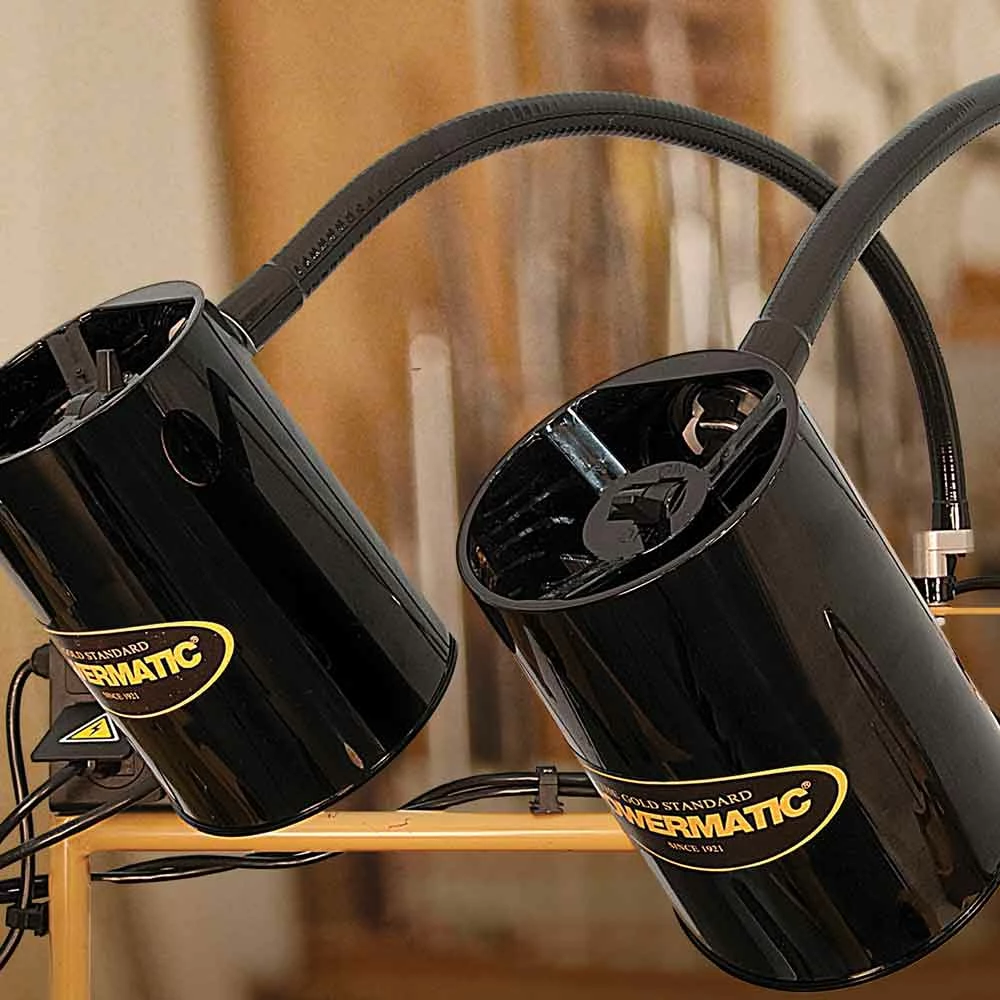

• Two 100W task lamps provide ideal lighting
• Air nozzle with quick connect for clearing dust/chips
• Set of dead centers which hold a spindle for visual comparison
• Laser etched quill is self ejecting.
• Two position mount for the optional bed extension
• Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Attached tool caddy allows convenient access to centers, wrenches, etc.
• Tailstock has internal storage for additional accessories
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• Magnetic-backed remote on/off switch can be moved anywhere on the machine
• A variable frequency drive allows this machine to run on single or three phase power

What’s in The Box

• Powermatic 4224B Lathe w/ Lamp Kit, 3HP 3PH 220V
• Owners Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1794224K
UPC	731325221084
Style (Type)	Leg Stand
Swing Over Bed (In.)	24
Swing Over Tool Rest Base (In.)	21
Distance Between Centers (In.)	42
Headstock Movement	Full Length of Bed
Spindle Taper	MT-2
Ram Travel Quill Travel	4-1/2
Spindle Threads (In. x TPI)	1-1/4″ x 8 TPI
Spindle Speeds	40 – 3500
Speed Range	40 – 3,500
Number of Indexing Positions	98
Centerline of Spindle to Floor (In.)	44
Outboard Turning	88
Bed Construction	Cast Iron
Motor Power (HP)	3
Motor Phase	3
Motor Voltage (V.)	220
