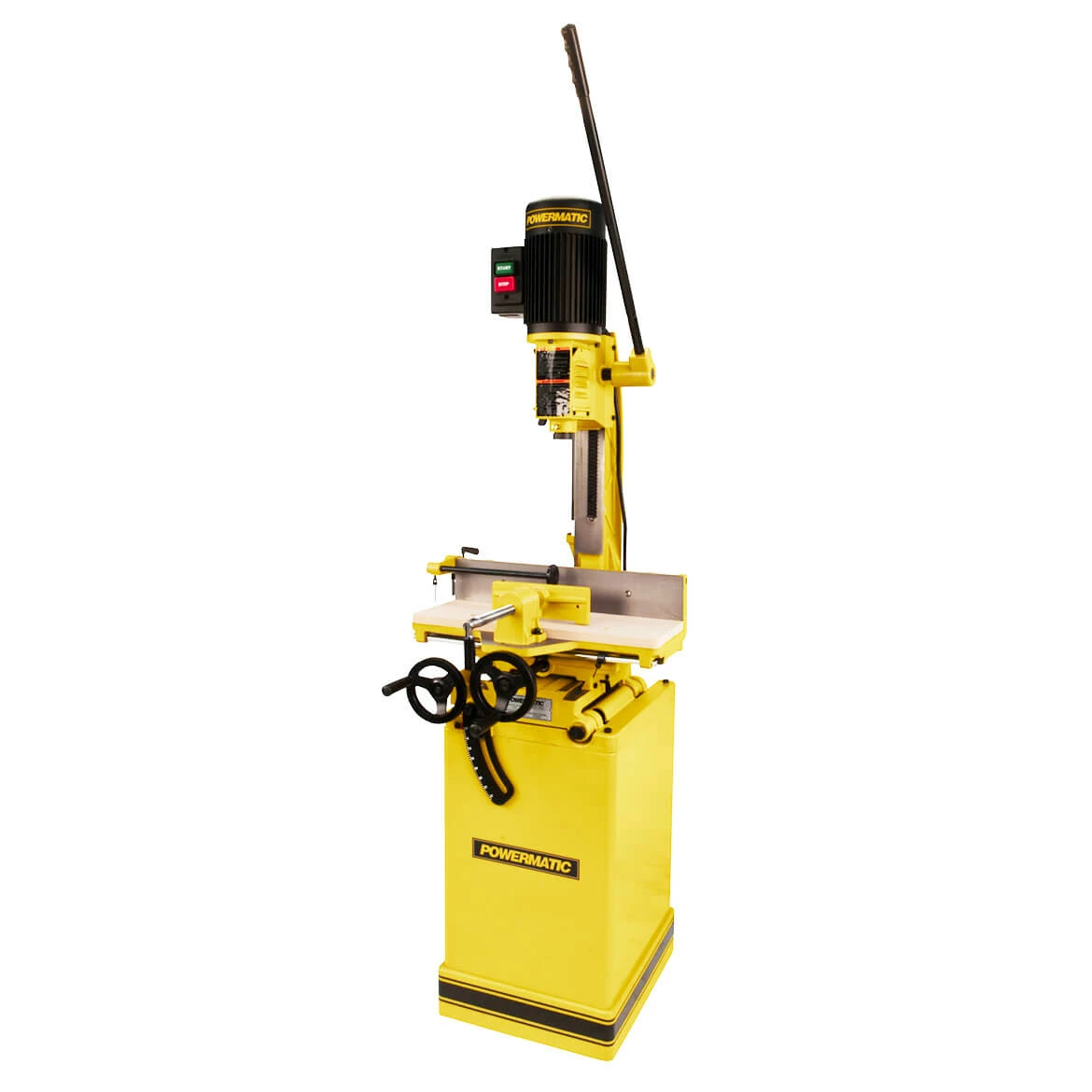

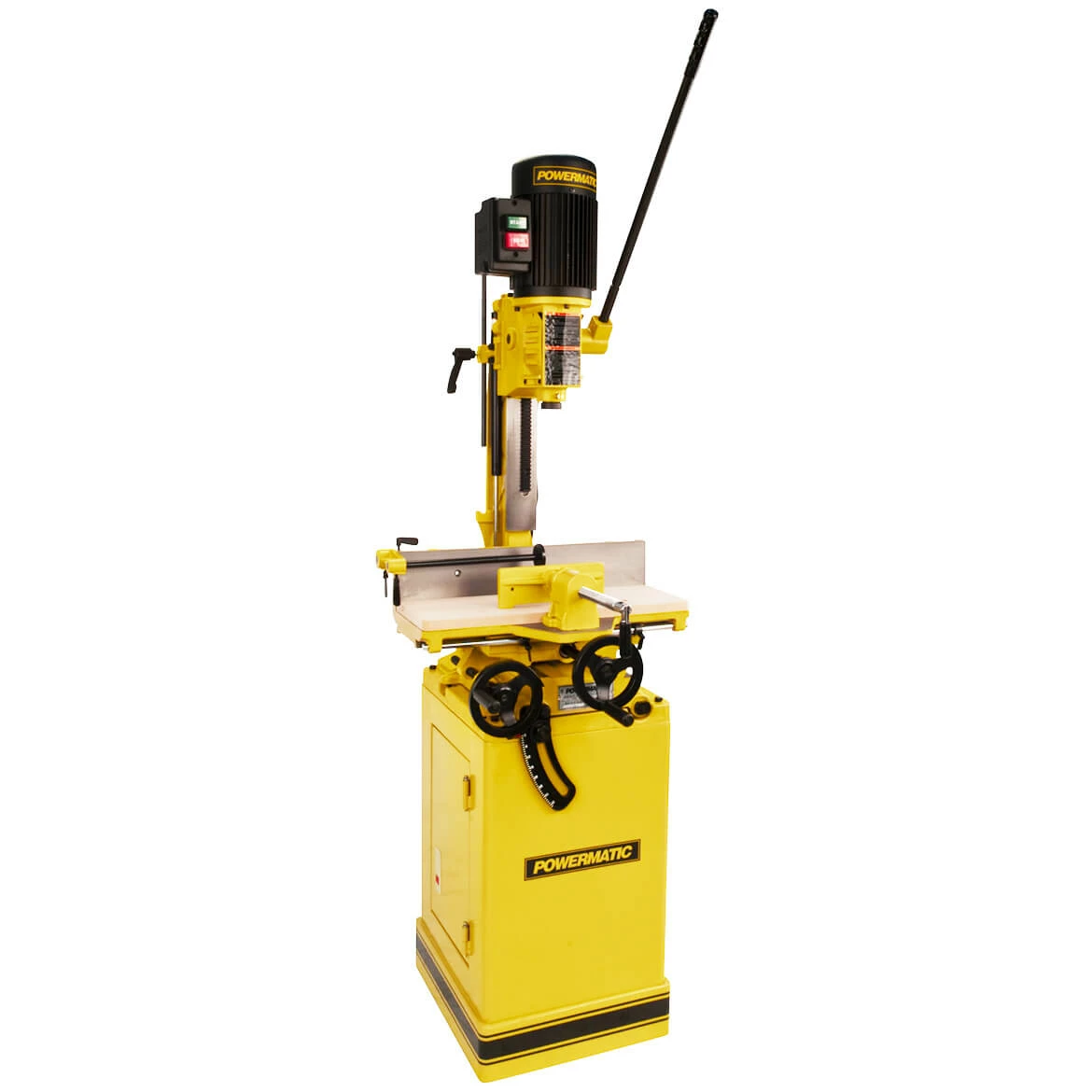

Powermatic 719T Tilt Table Mortiser W/ Stand 1HP 1PH 115/230V – 1791264K

Features

• Sturdy cast iron construction with precision-machined column and table
• Quick position table mounted swiveling vise clamp accommodates angled work pieces
• Feed lever features size positions allowing for quick adjustments
• Table and fence tilt from 0 to 35° for angled mortises
• Gas cylinder controlled rack and pinion system for smooth head raising and lowering

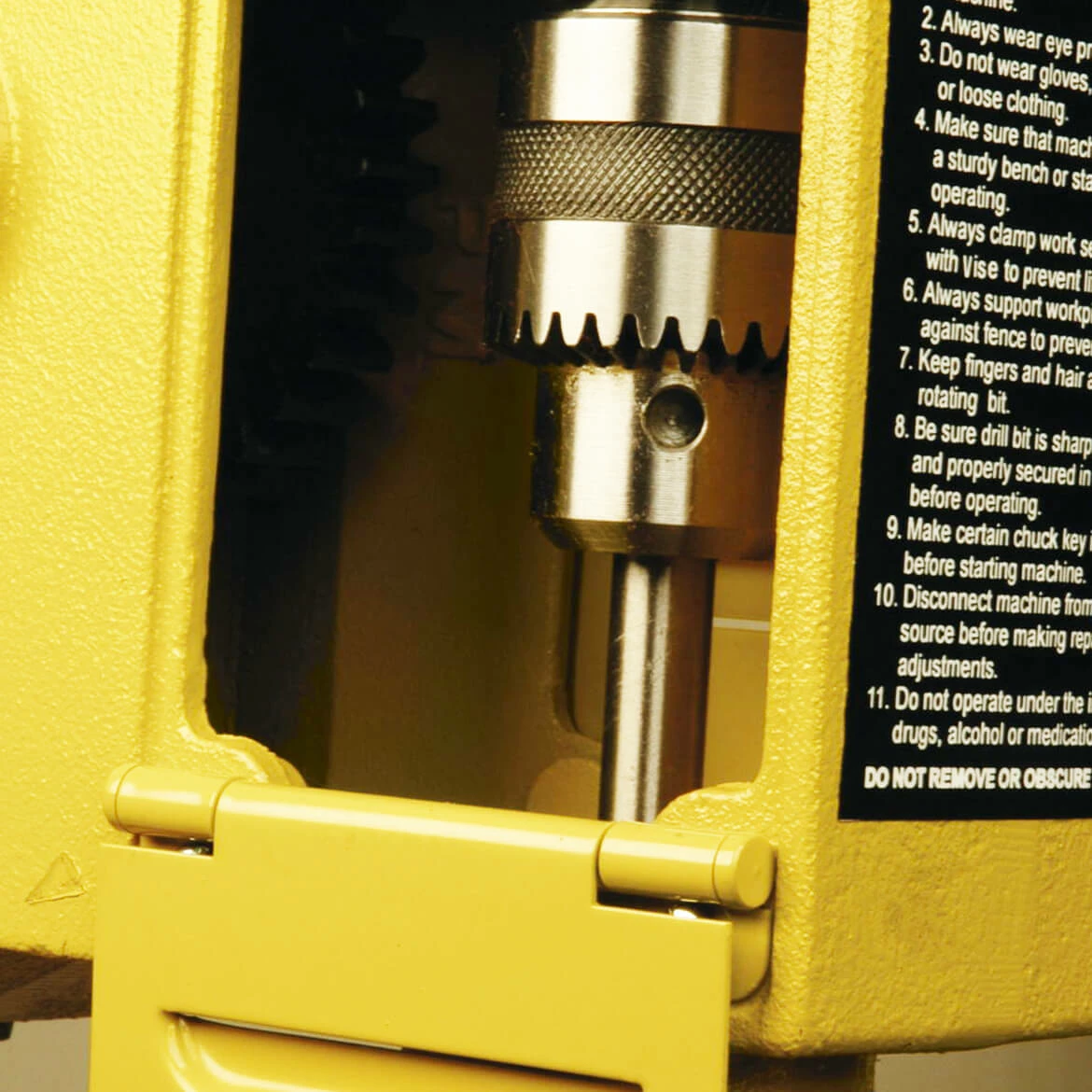

• Hinged chuck door allows easy access for quick bit changes
• Quick adjust depth stop for uniform mortise depths
• Provided 5/8″, 3/4″ and 1-1/8″ bushings allow multiple chisel shank sizes

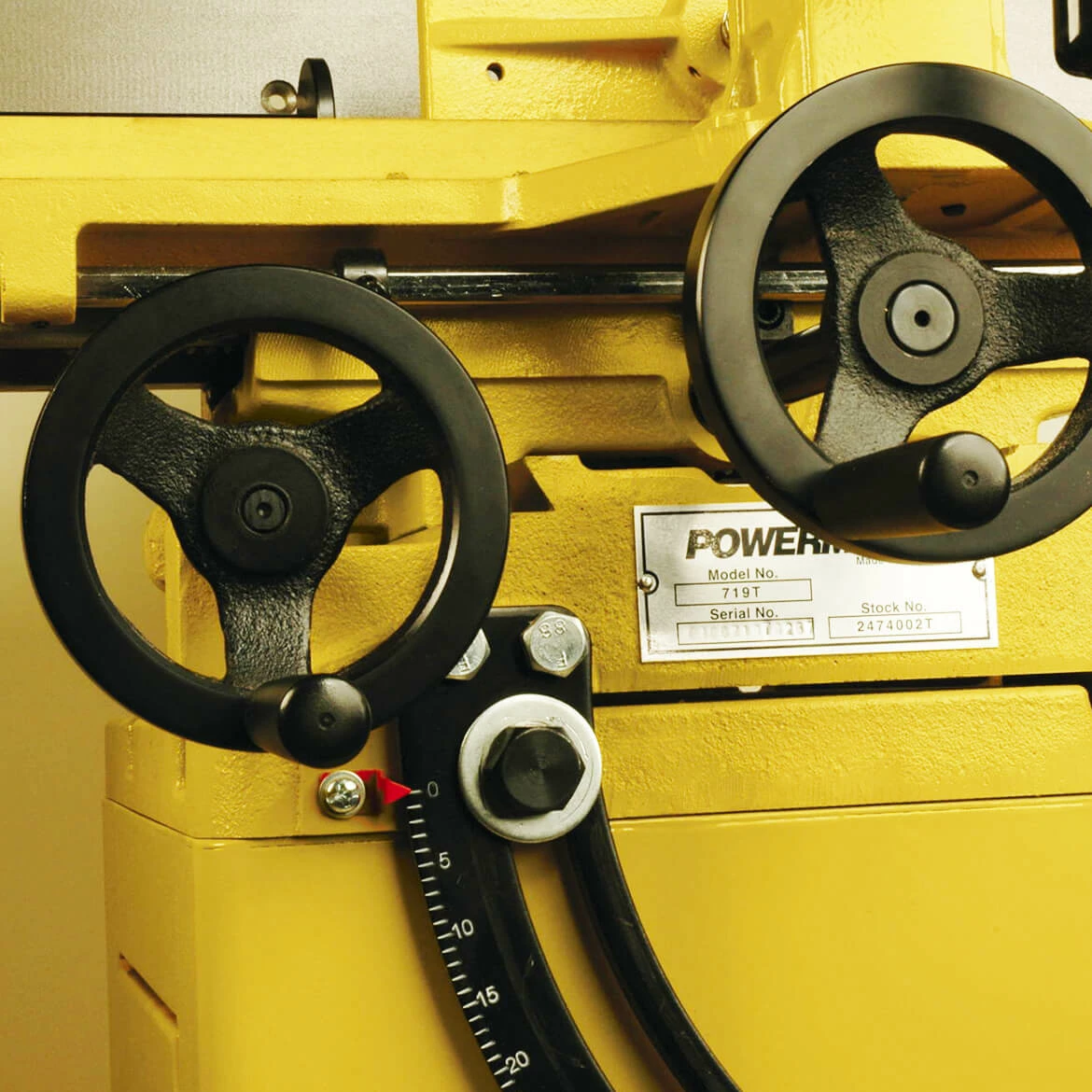

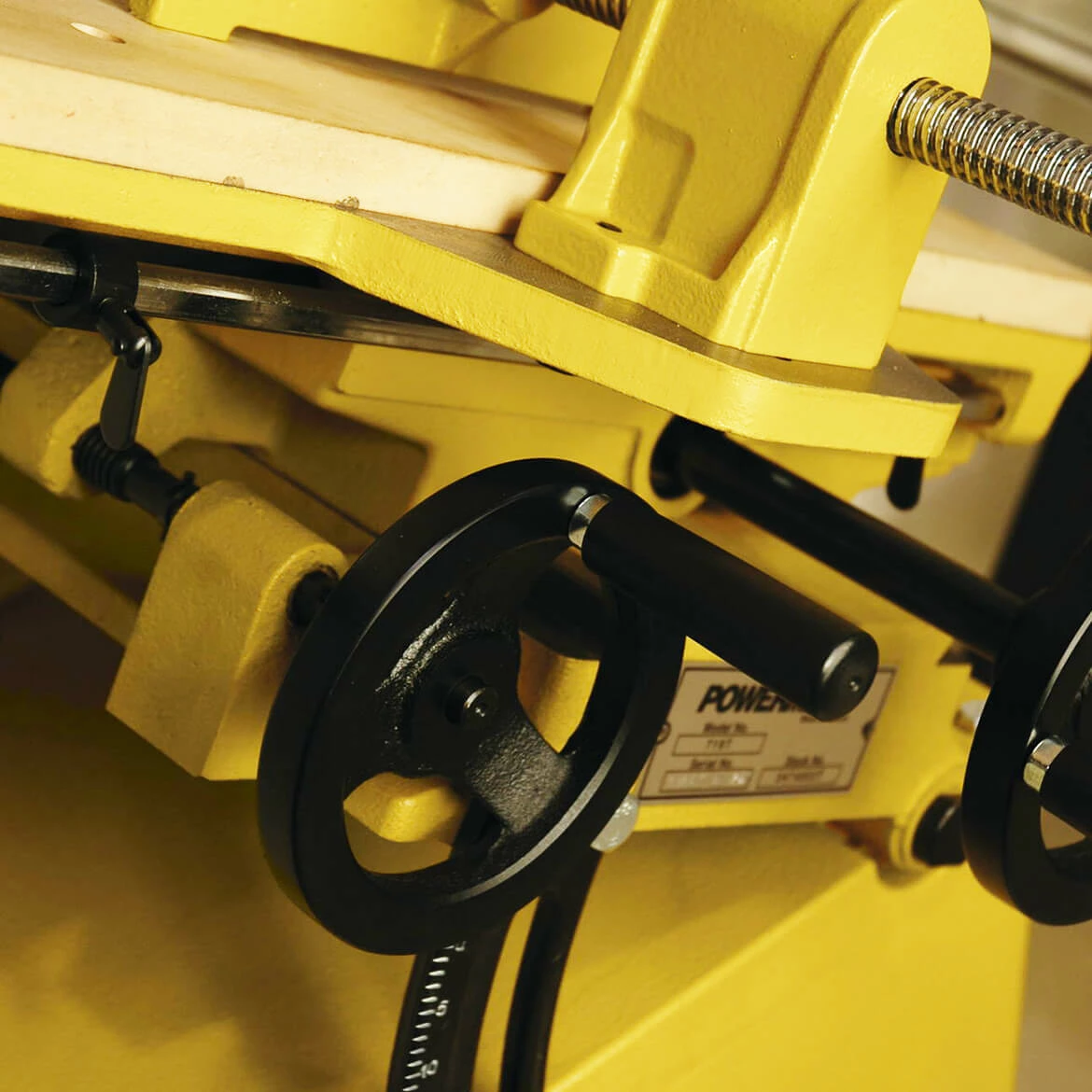

• Handwheels control smooth linear and cross table motions
• Adjustable work stop for repeat cuts

What’s in The Box

• Powermatic 719T Tilt Table Mortiser w/ Stand, 1HP 1PH 115/230V
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
  repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791264K
UPC	662755510557
Style (Type)	Tilt Table
Chisel Capacity (In.)	1/4 – 1
Chisel Center to Fence (In.)	4
Chisel Shank Capacity (In.)	5/8, 3/4, 1-1/8
Chisel Stroke (In.)	10-3/4
Bushing Size (In.)	5/8, 3/4, 1-1/8
Chuck Size (In.)	1/2
Spindle Speed (RPM)	1,725
Spindle Taper	N.A.
Table Size (L x W) (In.)	7 x 20-1/4
Table Tilt (Deg.)	0 – 35
Table Travel – Cross (In.)	4
Table Travel – Longitudinal (In.)	15-1/2
Fence Size (L x H) (In.)	4-1/2 x 20-1/4
Base Size (In.)	14 x 16
Motor Power (HP)	1
Motor Phase	1
Motor Voltage (V.)	115, 230
Prewired Voltage (V.)	115
Motor Current (Amps)	11, 5-1/2
