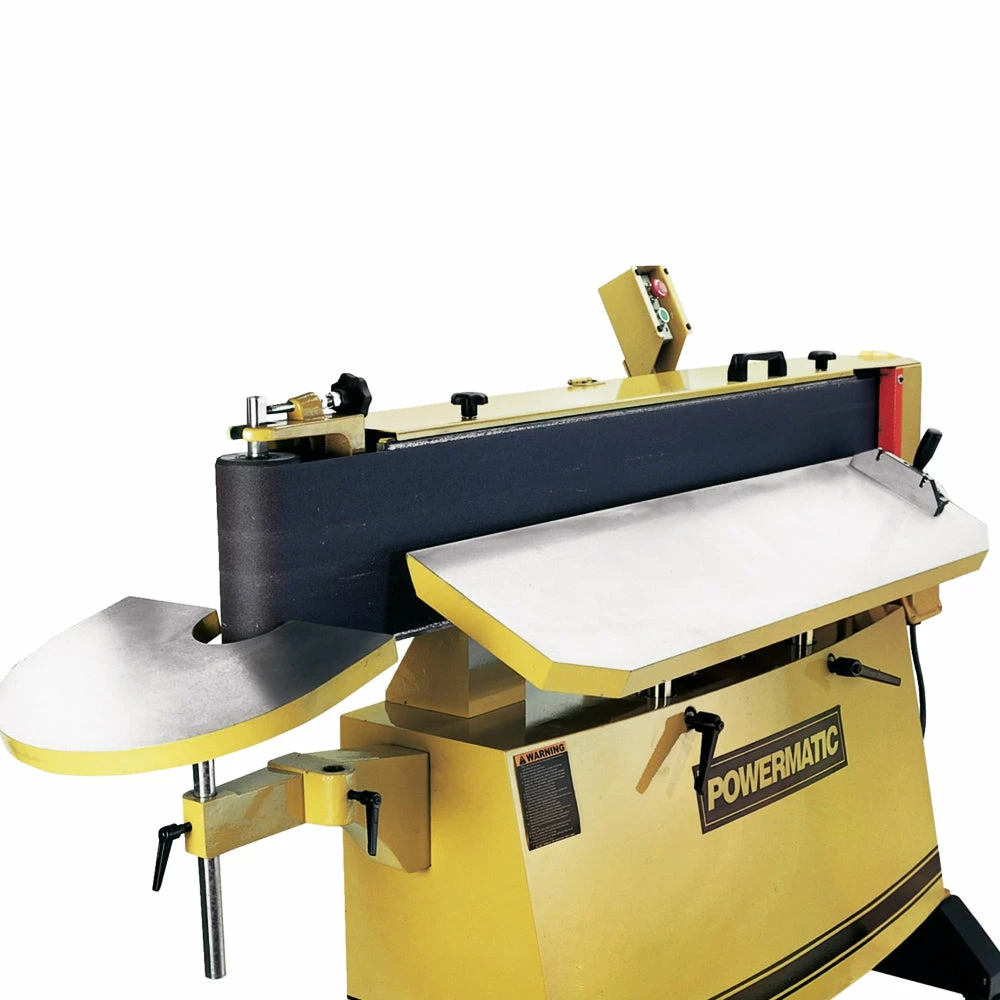

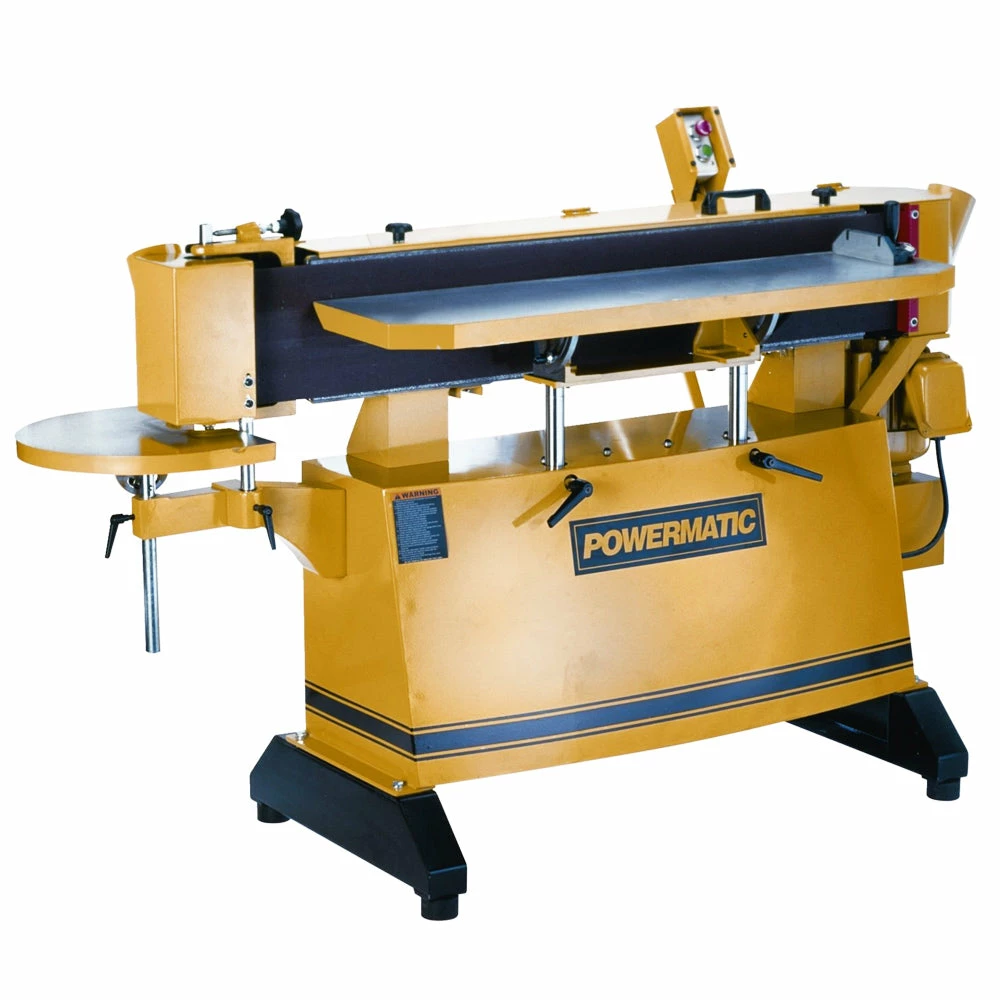

Powermatic OES9138 3-Hp 230V Heavy Duty Cast Iron Oscillating Edge Sander

Features

• 3HP motor with 9″ x 138-3/4″ abrasive belt handles large workpieces
• Oscillates 24 cycles per minute for better finish and longer belt life
• 9-1/2″ x 48″ platen with graphite pad offers largest work surface in its class

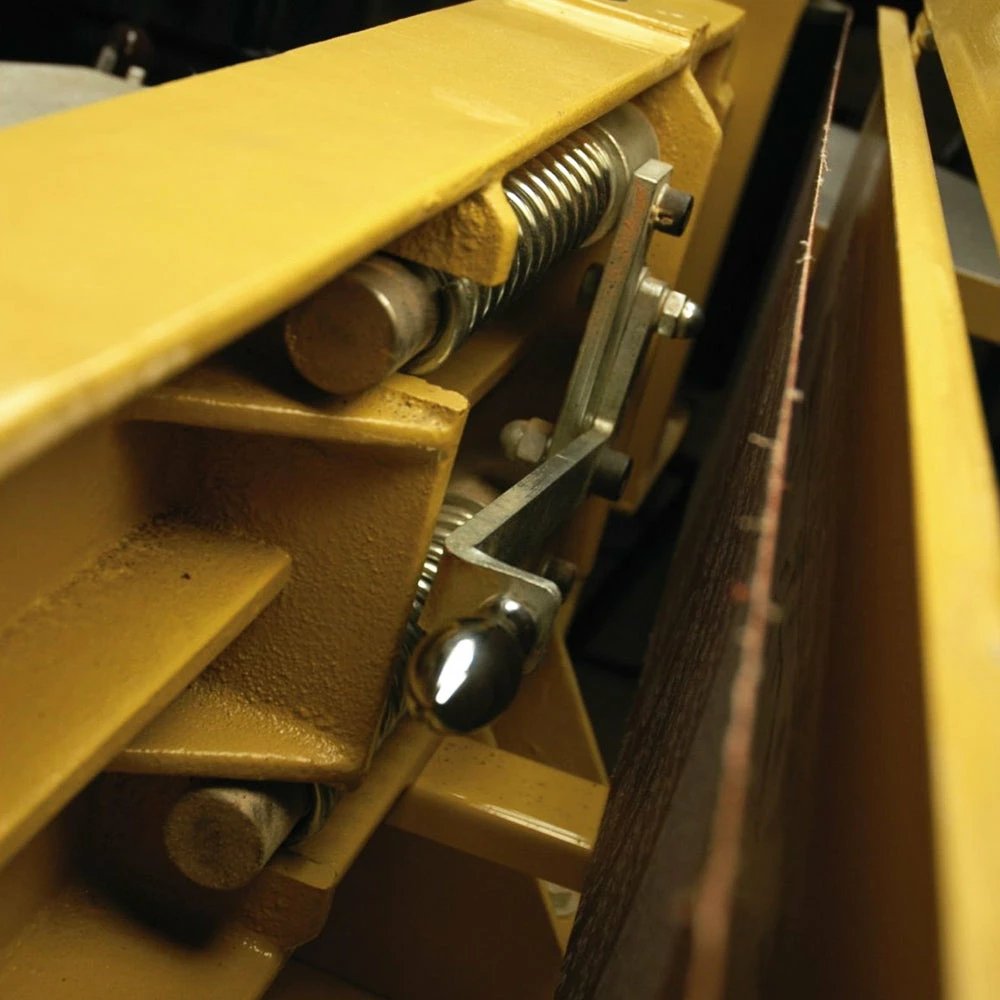

• Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
• Pedestal control switch for easy access
• Heavy-duty oscillating gearbox and shaft for long maintenance-free use
• Hinged guard opens for infinite length sanding
• Dual dust collection ports keep work area clean and extend abrasive belt life
• Tilting main and end tables
• Platen with graphite pad

What’s in The Box

• Powermatic OES9138 Oscillating Edge Sander, 3HP 1PH 230V
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791282
UPC	662755464126
Style (Type)	Horizontal/Vertical Oscillating Edge
Sanding Belt Size (L x W) (In.)	9 x 138-3/4
Belt Speed (FPM)	3542
Drum Diameter (In.)	4 Outboard, 9 Drive
Platen Size (In.)	9-1/2 x 48
Oscillations Per Minute	24
Main Table Size (L x W) (In.)	48 x 11-3/4
Main Table Tilt (Deg.)	5 In, 45 Out
Table Height from Floor (In.)	34-1/2 – 40-3/4
End Table Size (In.)	18
End Table Tilt (Deg.)	40 ? in, 45 ? out
Electrical Controls	Magnetic Starter
Dust Collection Minimum CFM Required (CFM)	1,100
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase	1
Motor Voltage (V.)	230
