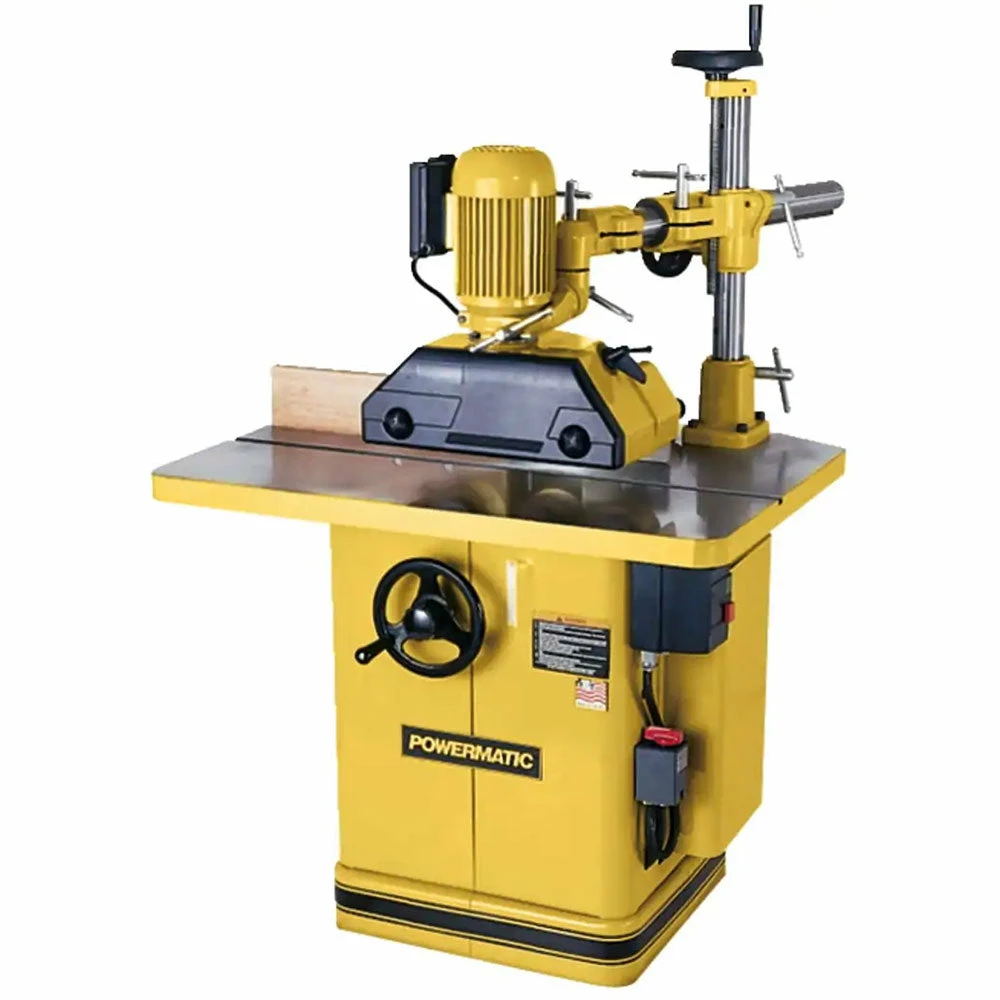

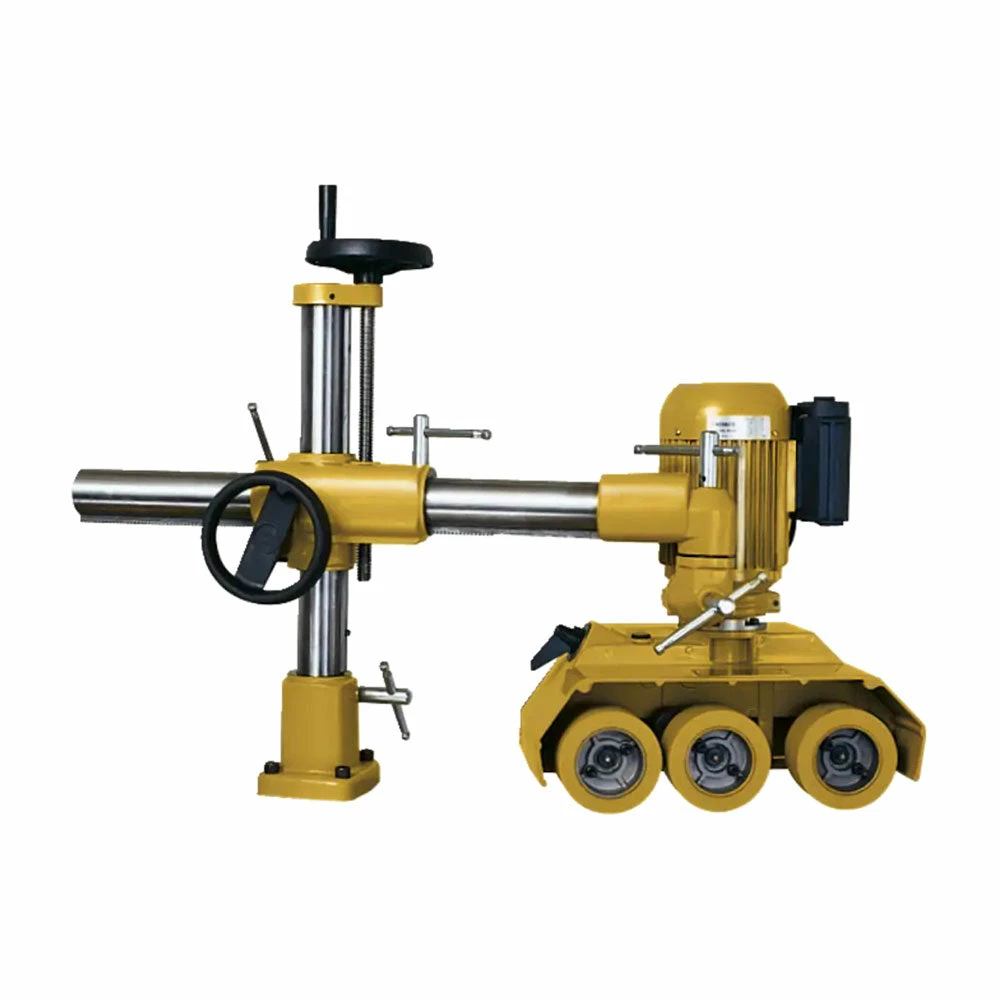

Powermatic PF-31 115V 1 HP 1 Phase Variable Speed Heavy Duty Power Feeder Tools & Equipment

Features

• Continuous duty motors transfer power from the gearbox to the feed roller
• Solid cast iron construction of body pieces and base
• Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
• Universal joints provide stability for vibration-free feeding
• Roller chain and sprocket design provide positive feeding for all types of materials
• Smart roller system allows for the tire to be replaced with out replacing the assembly
• The support column is fully adjustable for horizontal, vertical, or angled feeder position
• Rollers can be changed out easily and quickly

What’s in The Box

• PF-31 Feeder
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	1790807K
Brand	Powermatic
Volts	115V
Motor Phase	1
Horsepower	1
Number of Rollers	3
Distance Between Rollers – Center to Center	5.07 – 5.90 in
Number of Speeds	4 Speeds
Range of Speeds	13, 26, 33, 66
Max Height of Rollers Parallel to Tabletop	8-1/2 in
Rotation	Forward/Reverse
Swing	360 Degrees
Movement – Horizontal	18-1/16 in
Movement – Vertical	9-3/4 in
Column Diameter	2-1/4 in
Weight	134 lbs
