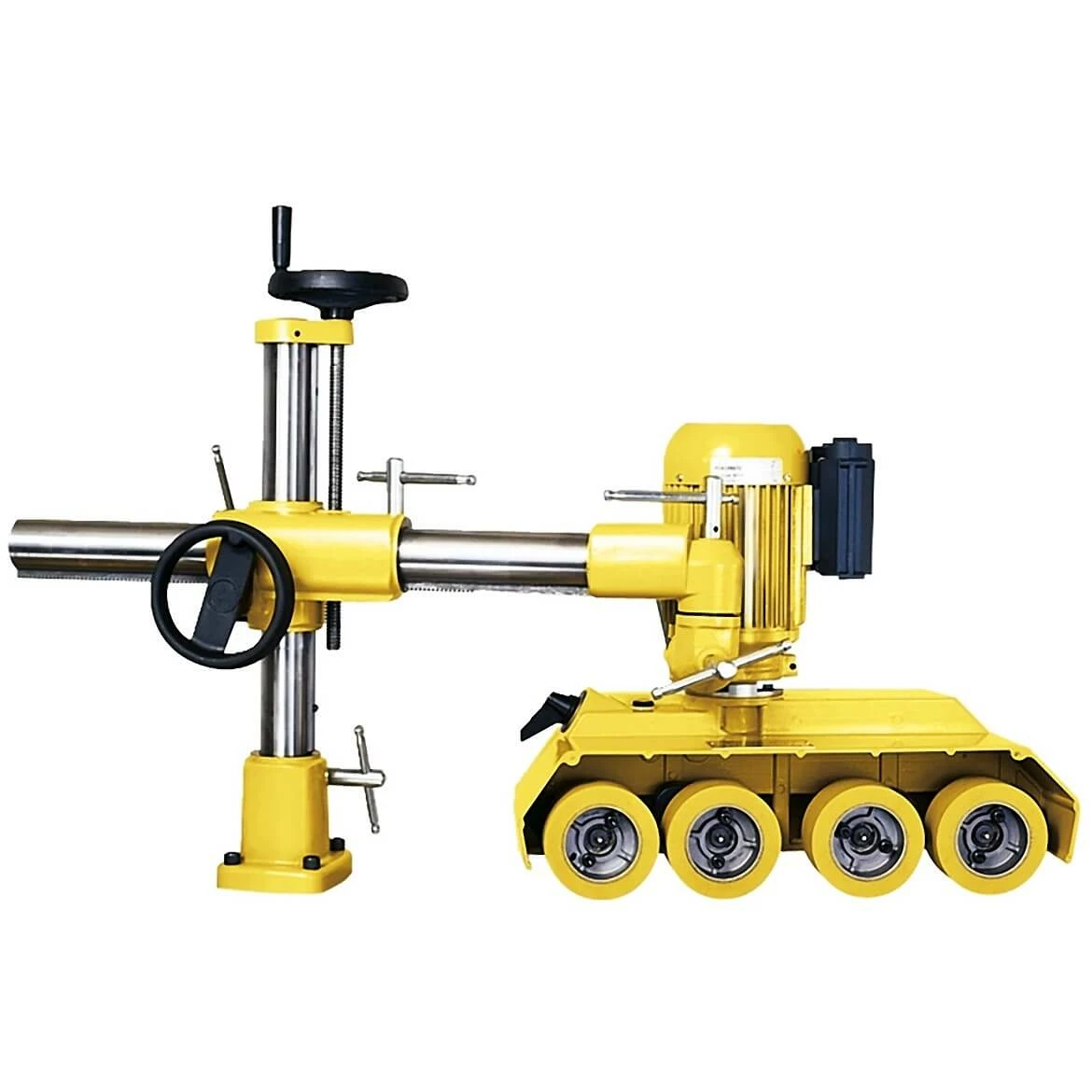

Powermatic PF-41 Power Feeder 1HP 1PH 115V 4-Speed 4 Wheel – 1790812K

Features

• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical or angled feeder position
• Feeder body, column base and joints are cast iron for heavy duty operation
• Rollers can be changed out easily and quickly

What’s in The Box

• Powermatic PF-41 Power Feeder, 1HP 1PH 115V, 4 Speed, 4 Wheel
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
  repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1790812K
UPC	662755353772
Distance Between Rollers – Center to Center (In.)	5.23 – 5.93 – 5.00
Number of Speeds	4 Speeds
Range of Speeds	13, 36, 43, 108
Feed Rate (FPM)	Variable
Maximum Height of Rollers Parallel to Tabletop (In.)	8.45
Rotation	Forward/Reverse
Swing (Deg.)	360
Movement – Horizontal (In.)	18.07
Movement – Vertical (In.)	9.83
Column Diameter (In.)	2-7/25
Motor Power (HP)	1
Motor Phase	1
Motor Voltage (V.)	115
