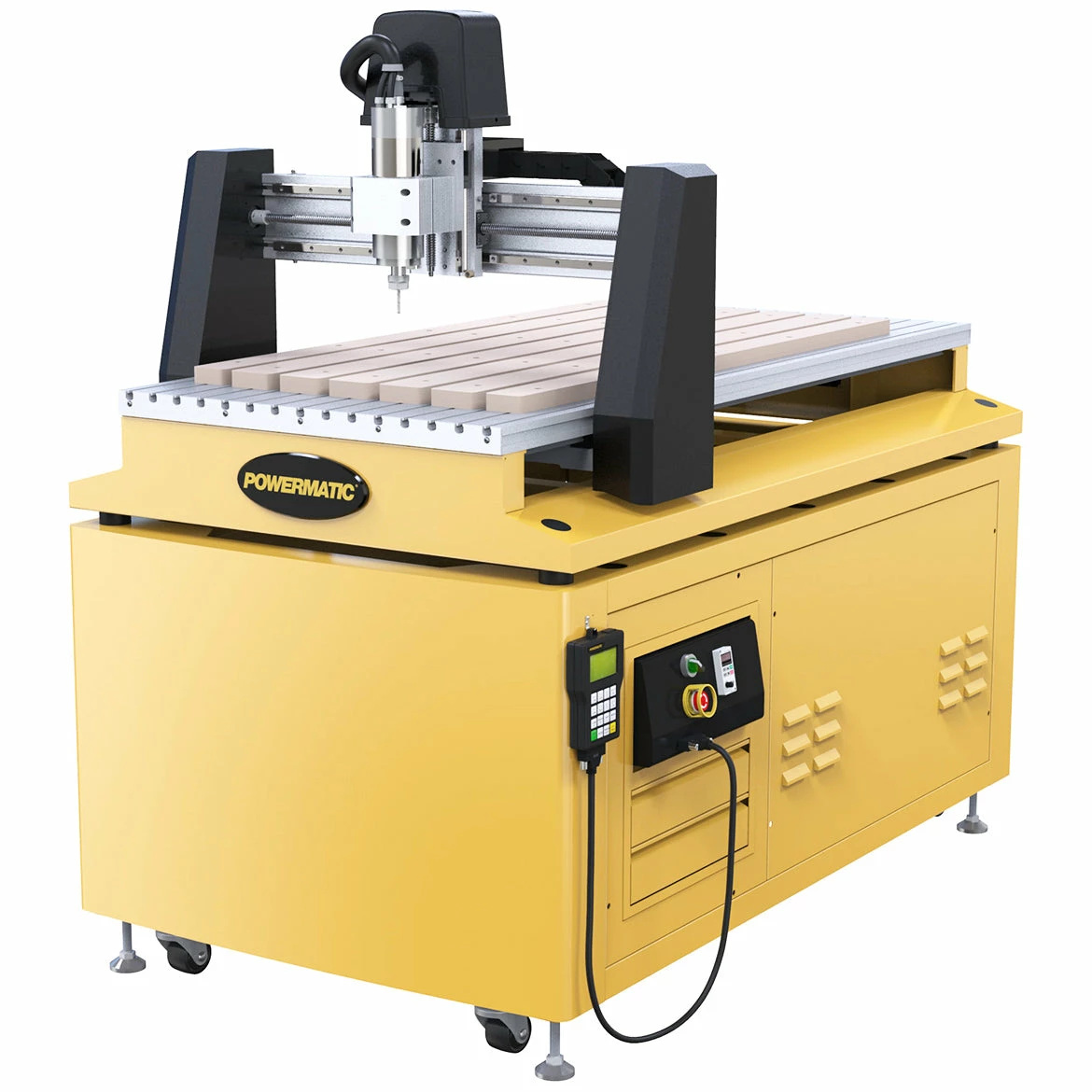

Powermatic PM-2x4SPK 230V 2′ X 4′ Liquid Cooled Electro Spindle CNC Kit Tools & Equipment

Features

• Heavy-duty welded steel frame provides rigidity and maintains accuracy
• The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
• An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program

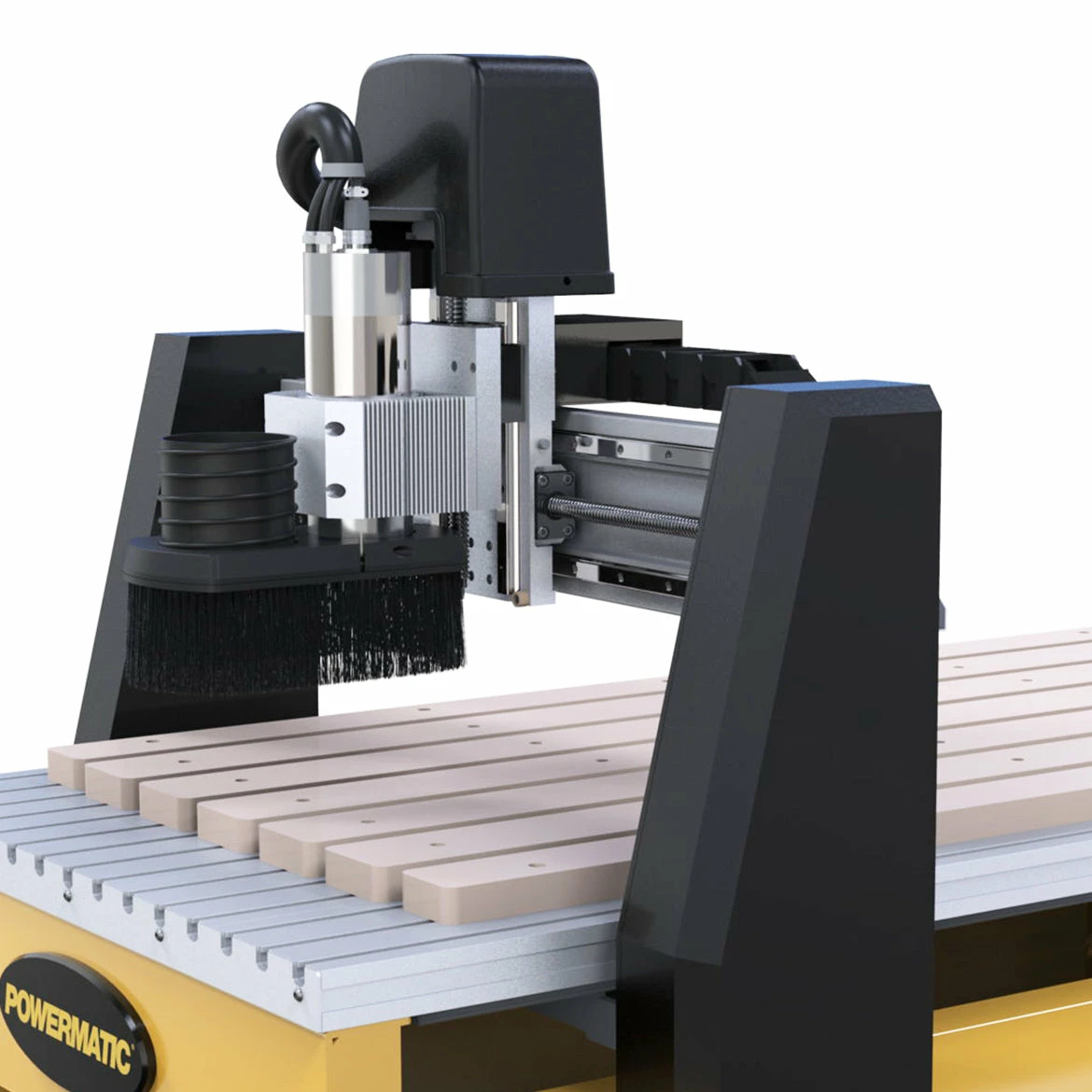

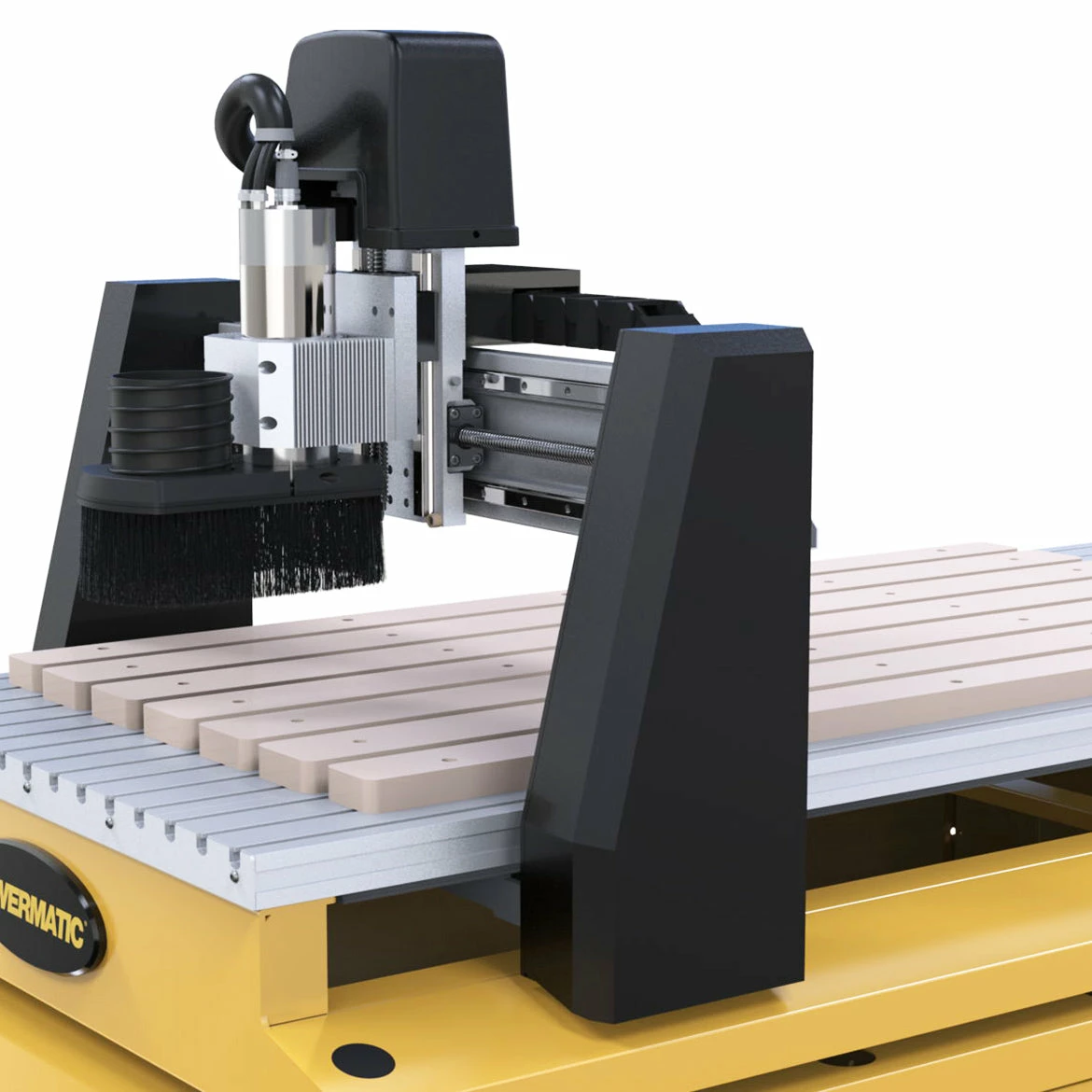

• Exclusive, heavy-duty gantry supports are made of gravity cast aluminum

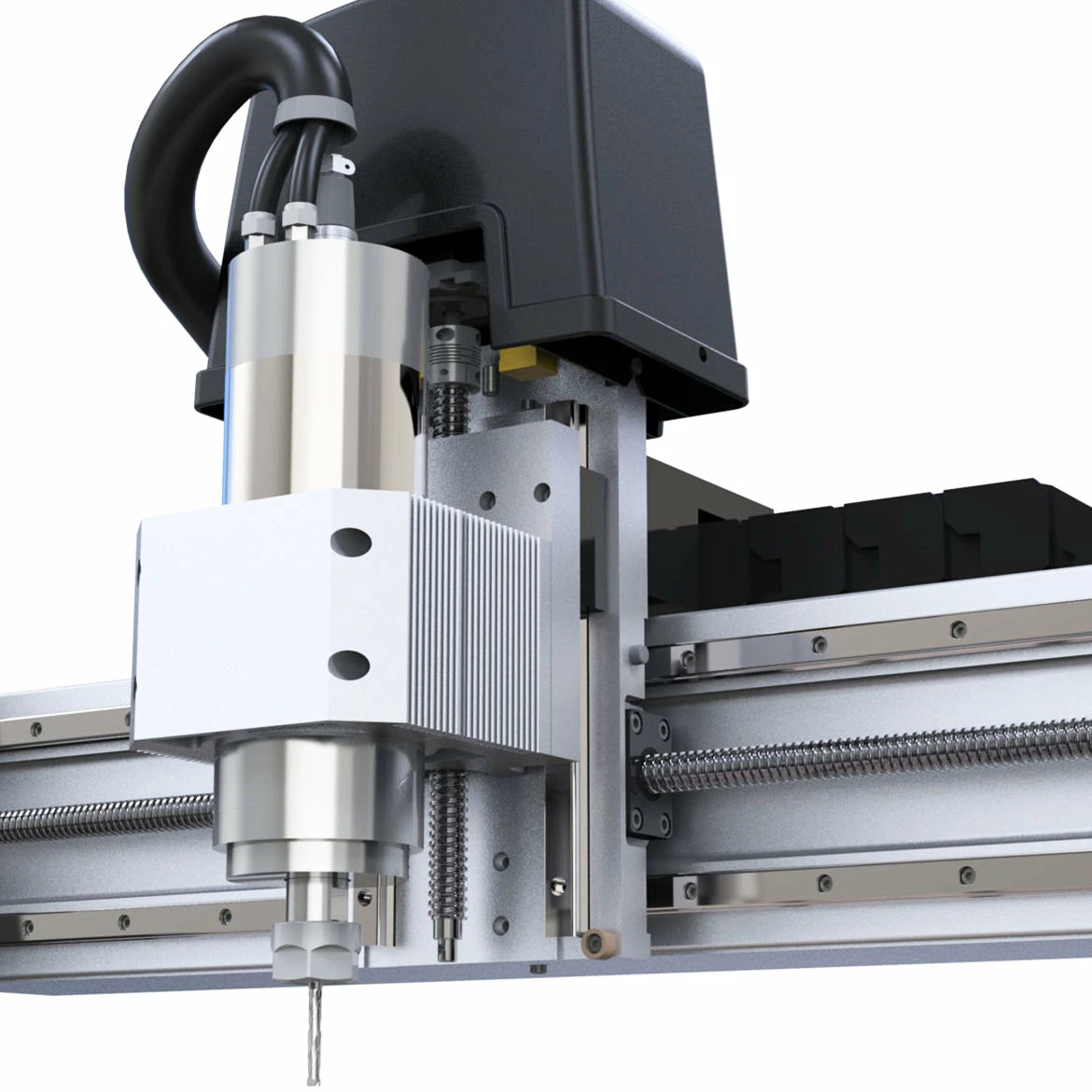

• Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement

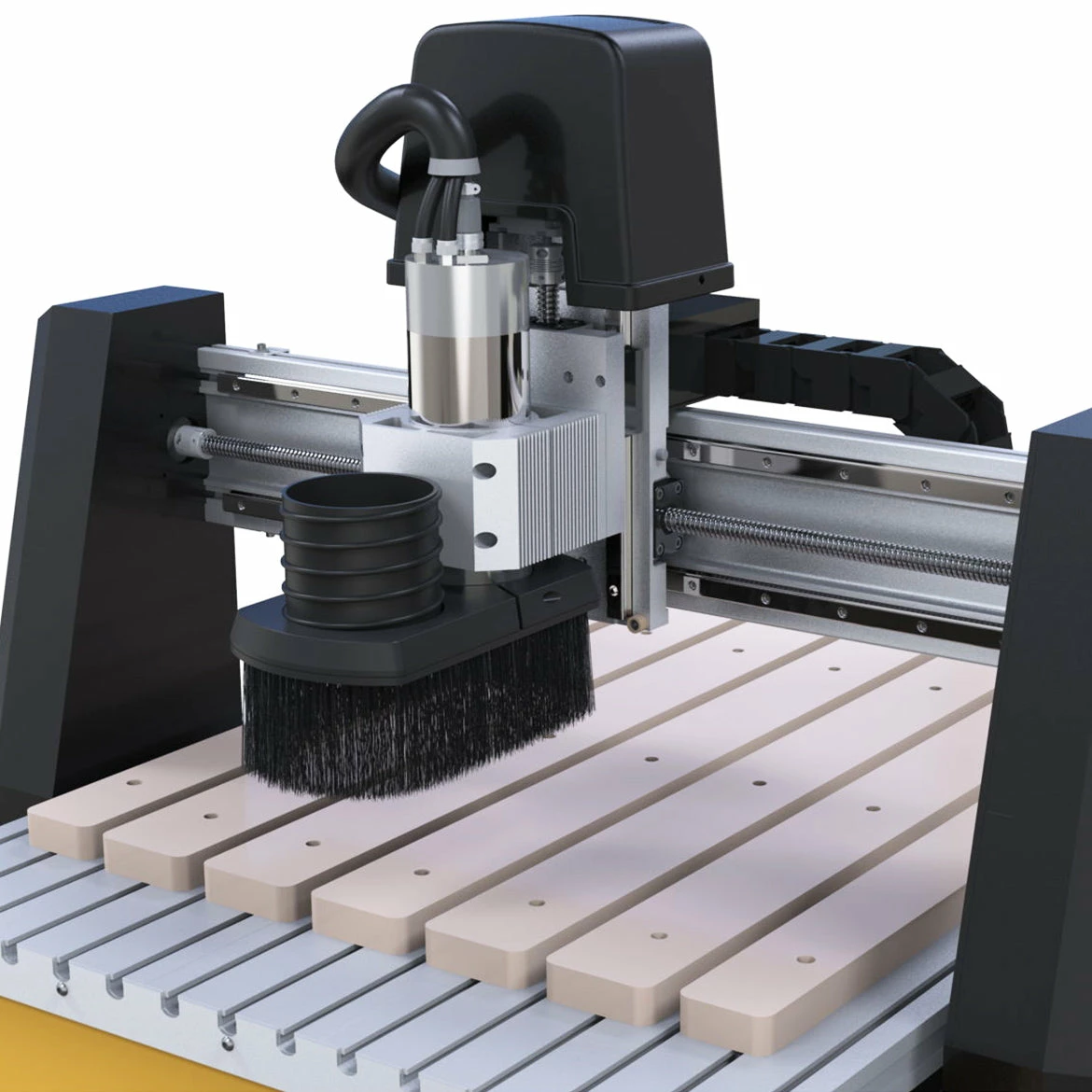

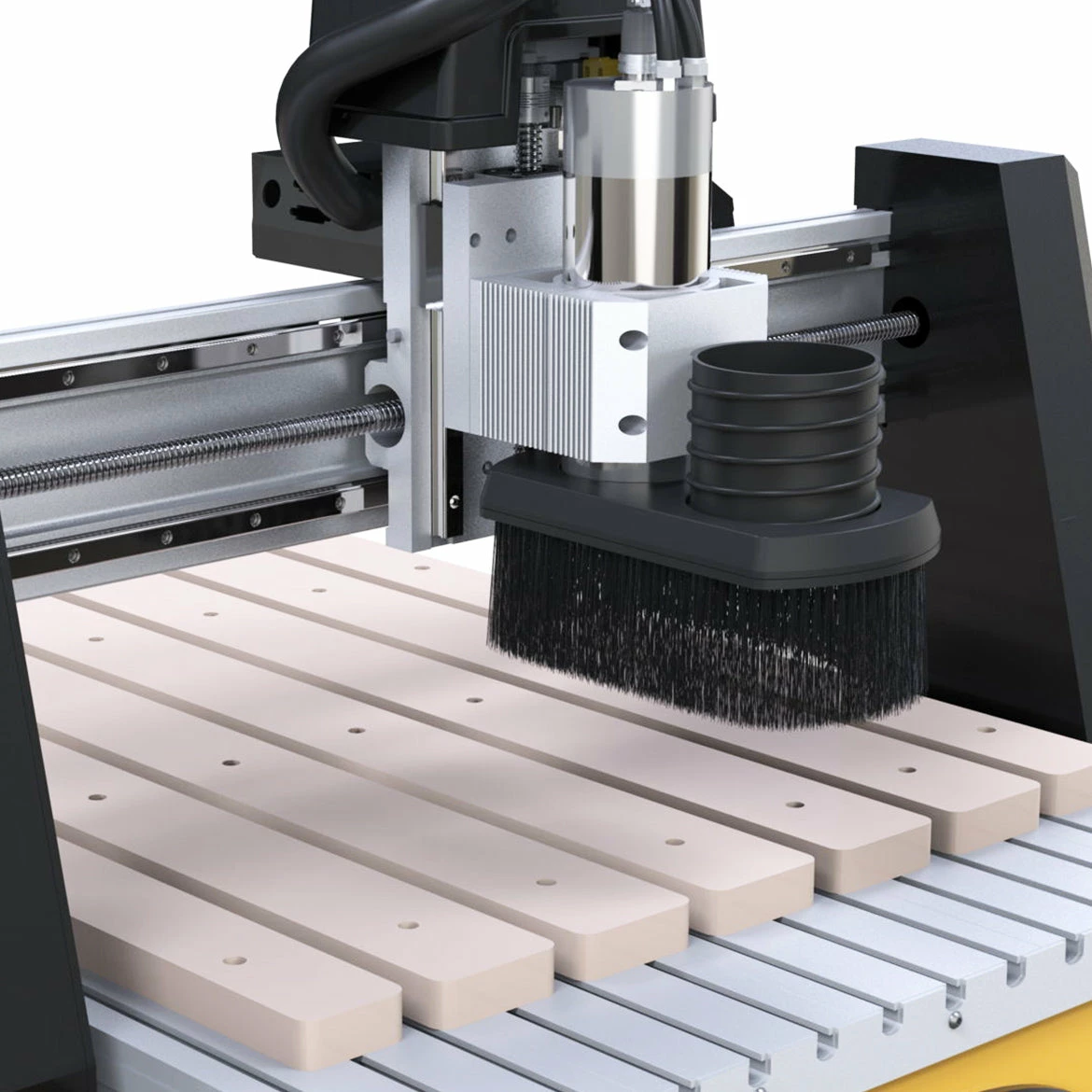

• The electro spindle is liquid cooled by a system that pushes coolant through the spindle while a radiator and fan assembly dissipate the heat
• Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit

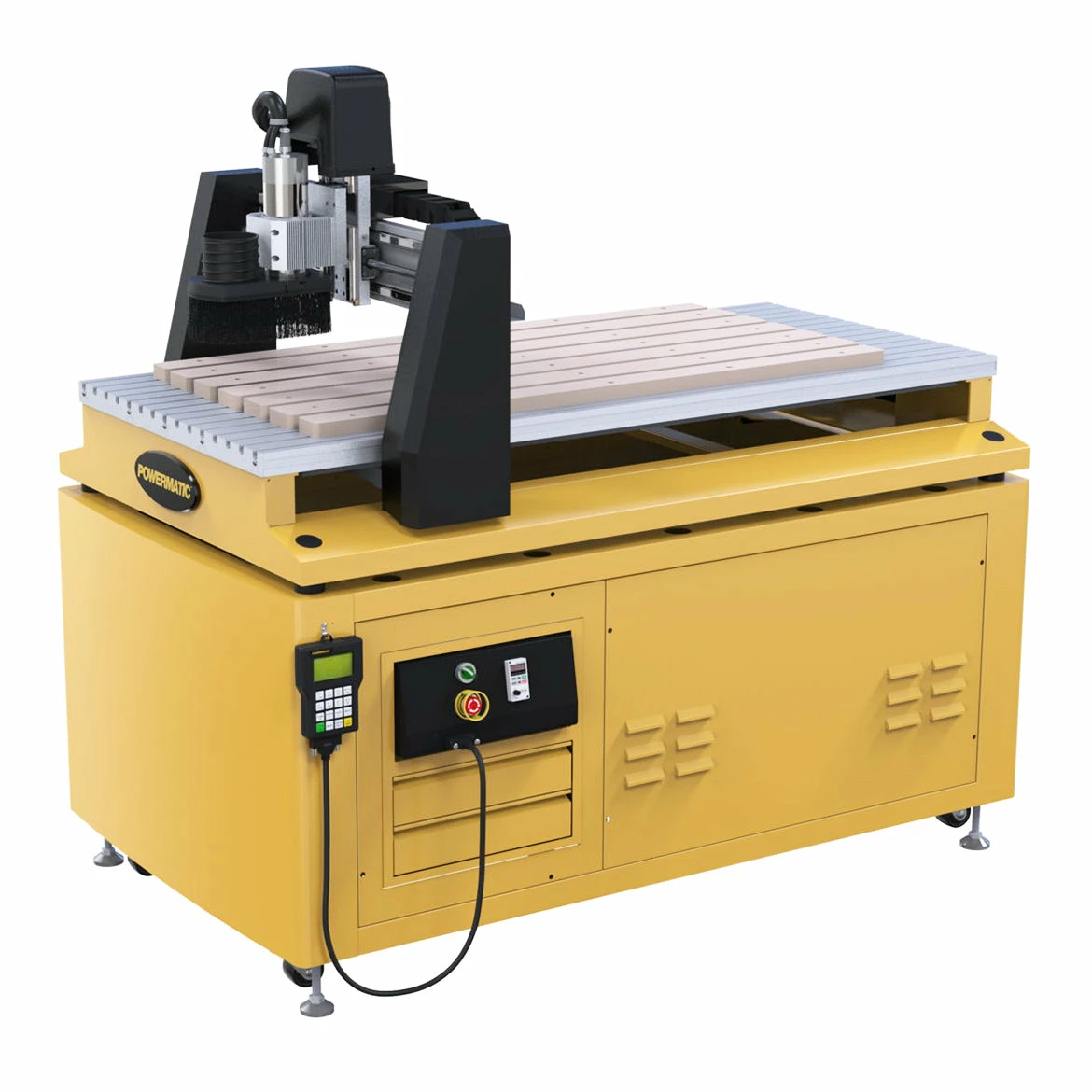

• The handheld controller attaches to the DSP control box via a 8 foot cable that makes it easy to oversee any project from a variety of positions
• Flexible nylon track chains protect all cables preventing rubbing and stress
• High-torque stepper motors control each axis, providing fast, quiet and precise movement
• The included puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller

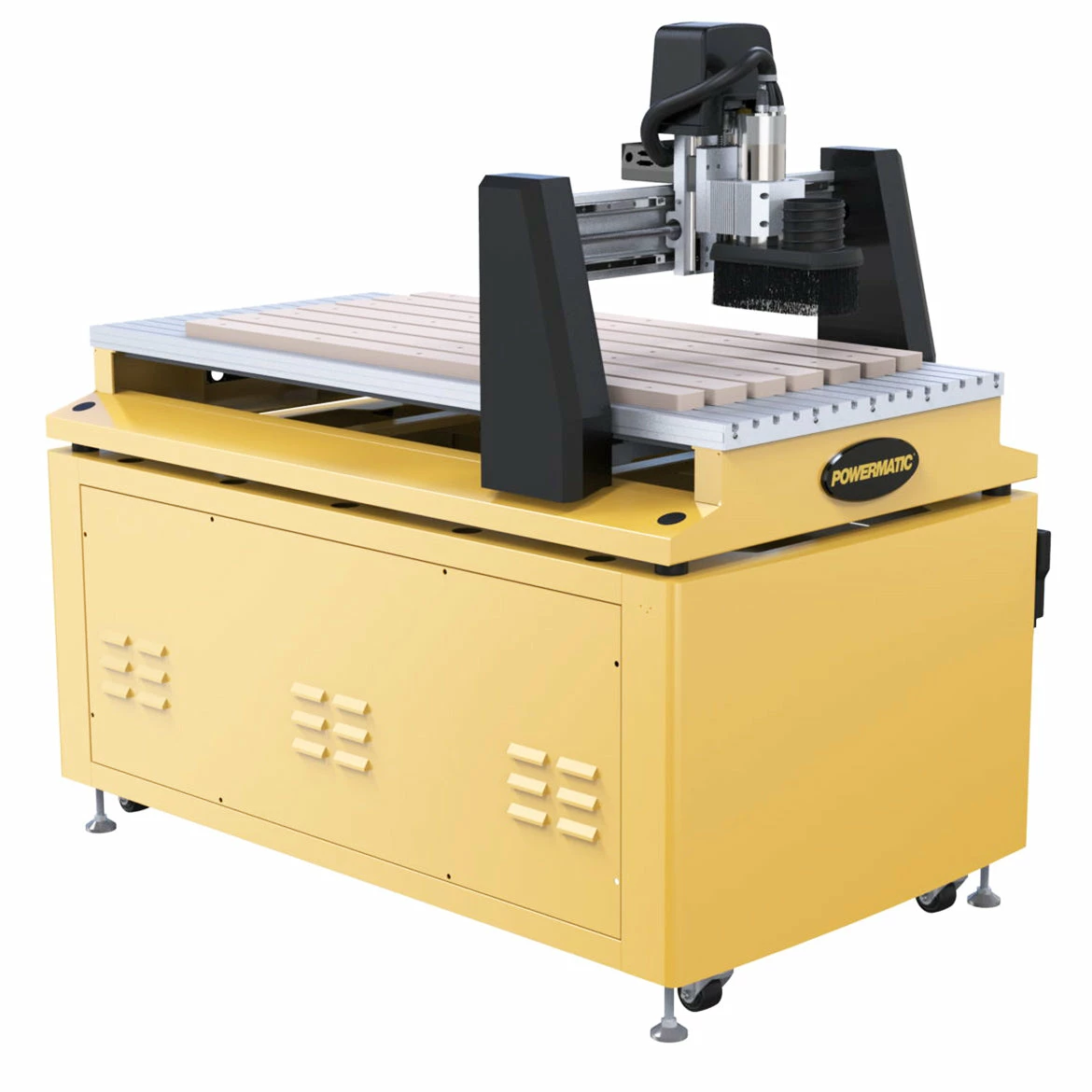

• Enclosed steel stand features drawers for storage, casters for mobility and independent leveling feet
• Hold down clamps have a 5/16″ T-bolt with a 1-1/8″ wide by 5-1/4″ aluminum arm – 4 hold down clamps included with CNC kit

What’s in The Box

• 2-Foot x 4-Foot CNC w/ Electro Spindle
• Owners Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	1797024K
Brand	Powermatic
Voltage	230v
Horsepower	3 Hp
Motor Phase	Single
Style (Type)	Spindle
X-Axis Travel	24 in.
Y-Axis Travel	48 in.
Z-Axis Travel	6 in.
Precision Ball Screw Axis	X / Y / Z
Precision Linear Guide Axis	X / Y / Z
Rapid Feed Rate	200 Ipm
Router	Spindle
Collet	ER-20
Spindle Speed	0 – 24,000 Rpm
Touch Off Puck	Included
Recommended Circuit Size	10A
Floor Space Required	52 in. x 69 in.
Dust Collection Minimum CFM Required	300 Cfm
Product Weight	748 lbs.
Shipping Weight	750 lbs.
