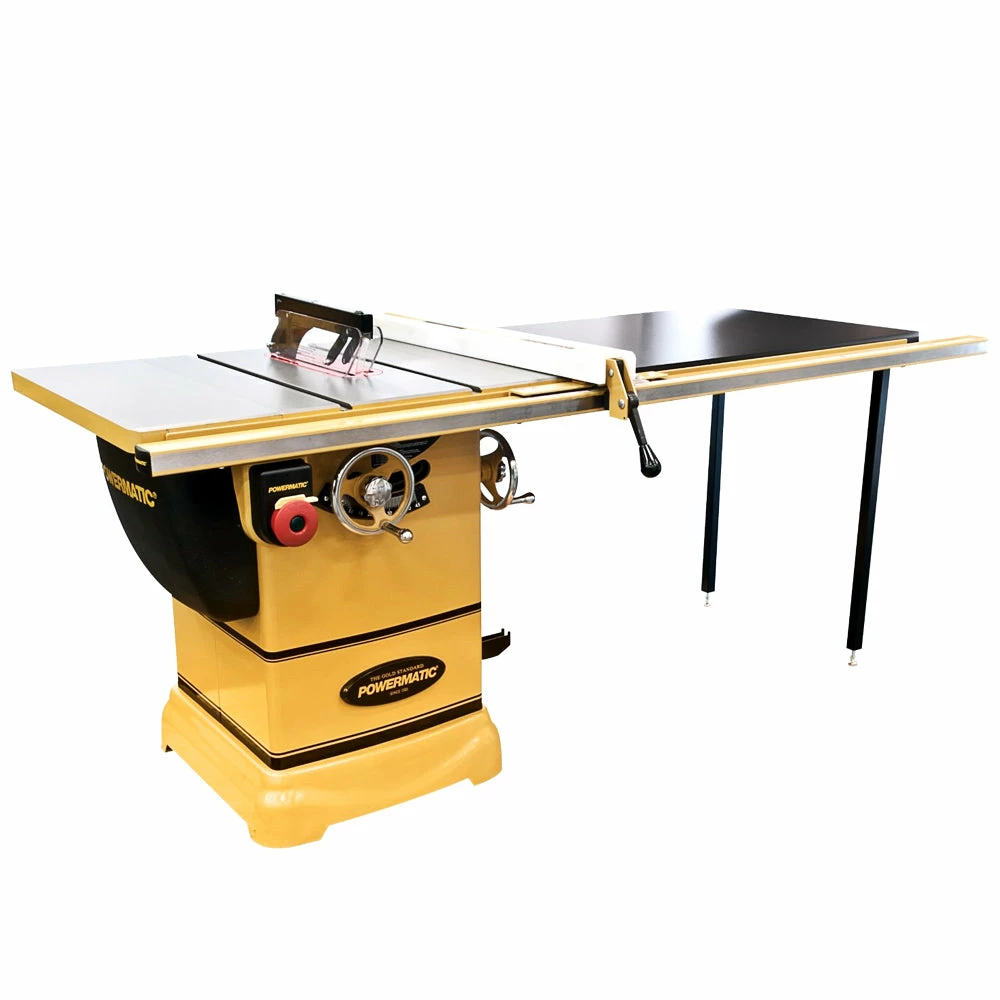

Powermatic PM1000 Tablesaw 52″ RIP Accu-Fence 1-3/4HP 1PH 115V – 1791001K

Features

• Cabinet saw that only requires 115V power
• A blade surround and collection hose provide an unobstructed path, maximizing dust collection
• Conveniently located hands free power switch
• Tool-less guard assembly with independent side leaves is easy to use, maximizing safety

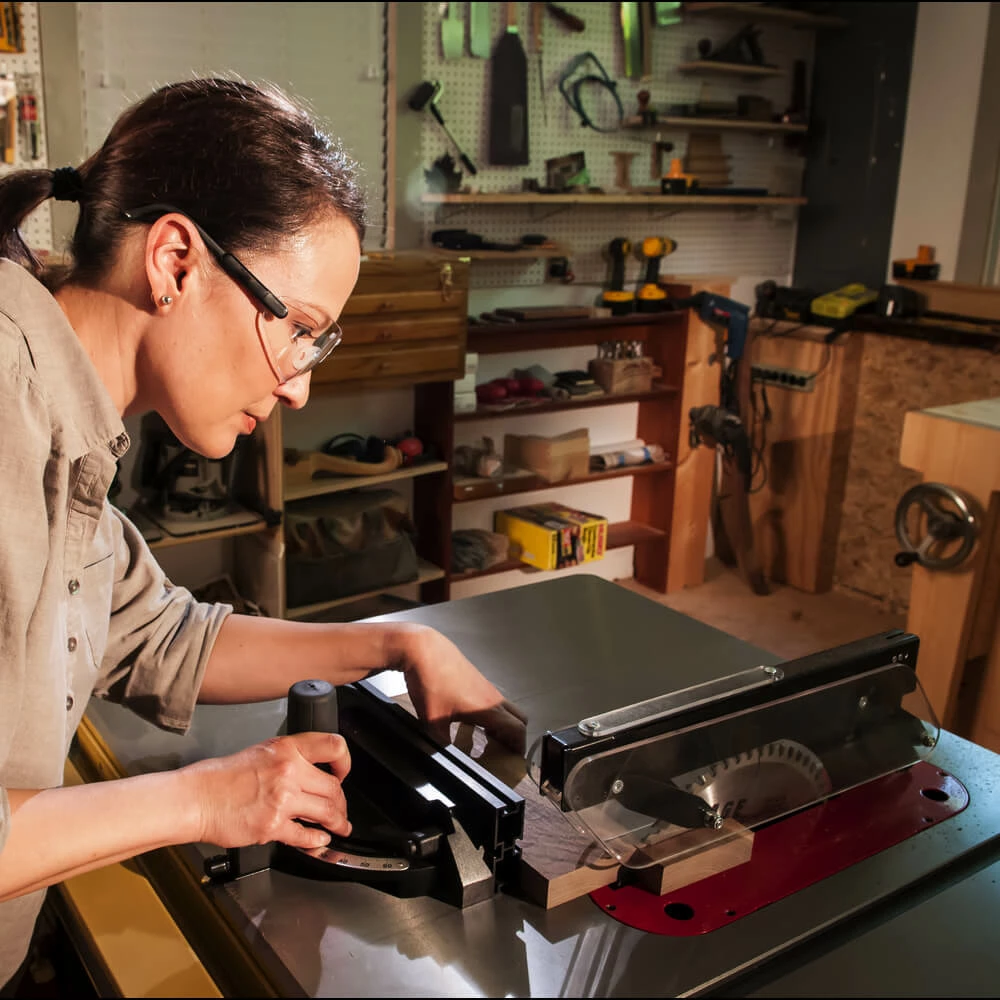

• The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts

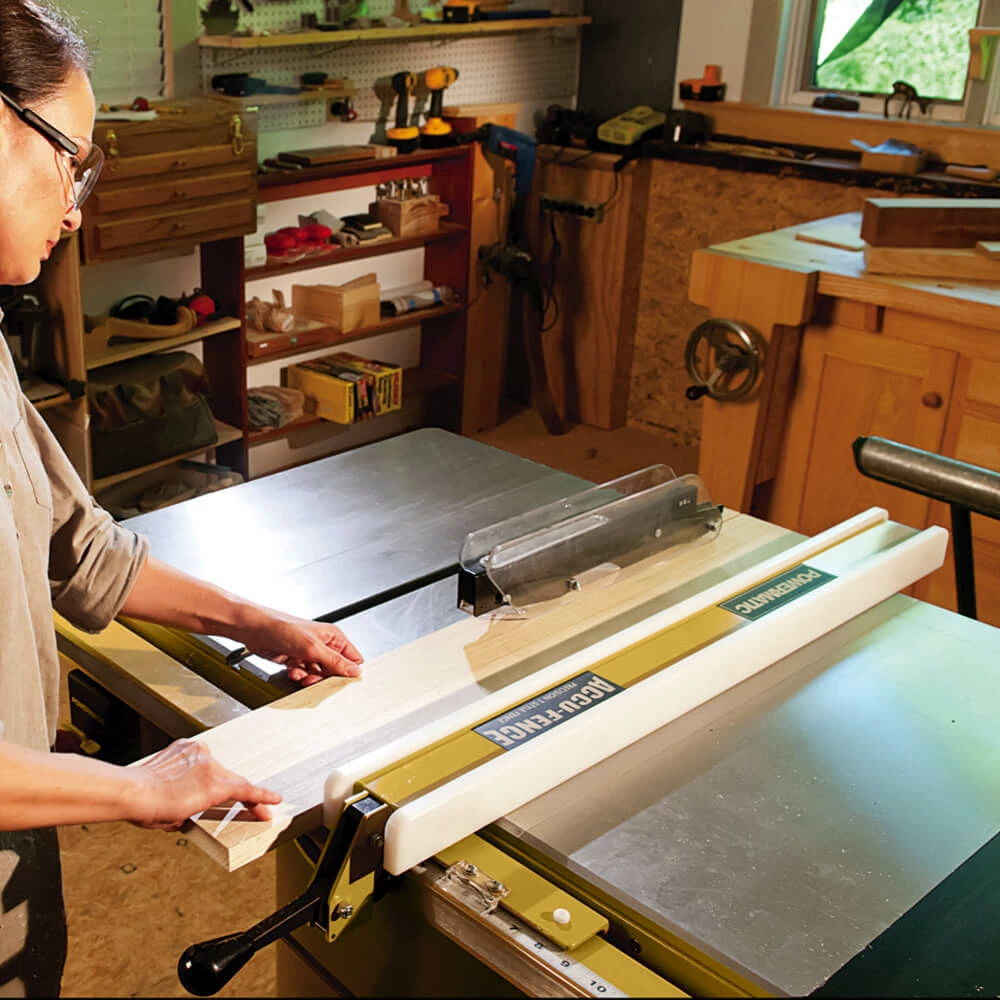

• Exclusive AccuFence provides rigidity and precision
• The poly-V belt drive system reduces vibration and maximizes efficiency
• Ergonomically designed 7″ handwheels provide momentum – making blade height and bevel adjustments easy
• Arbor lock allows for one handed blade changes with minimal tools
• Cast iron work surface features a beveled edge
• Bevel scale is conveniently located with large, easy to read numbers
• Hinged motor cover provides quick access to the interior of the cabinet

What’s in The Box

• Powermatic PM1000 Table Saw, 1-3/4HP 1PH 115V 52″ RIP w/ Accu Fence System
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791001K
UPC	731325263831
Style (Type)	Cabinet
Blade Diameter (In.)	10
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4200
Maximum Depth of Cut (In.)	3-1/8
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Rip Left of Blade (In.)	12
Maximum Rip Right of Blade (In.)	52
Maximum Diameter of Dado (In.)	8
Maximum Width of Dado (In.)	13/16
Table Type	Cast Iron
Table Height from Floor (In.)	34-1/4
Table Size (In.)	20 x 27
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-3/4
Motor Phase	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Current (Amps)	15/7.5
Recommended Circuit Size (Amps.)	20
