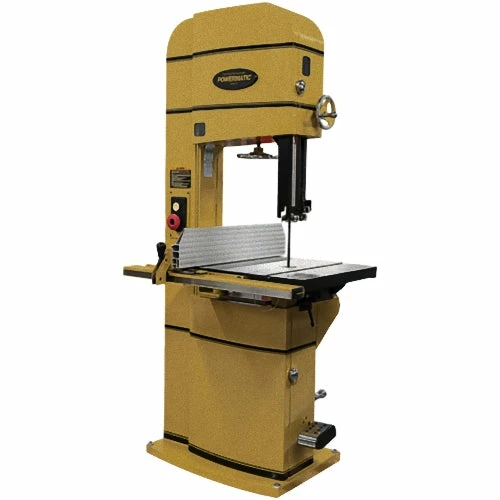

Powermatic PM1800B-3 5-Hp 230/460V 18″ Heavy Duty Cast Iron Bandsaw

Features

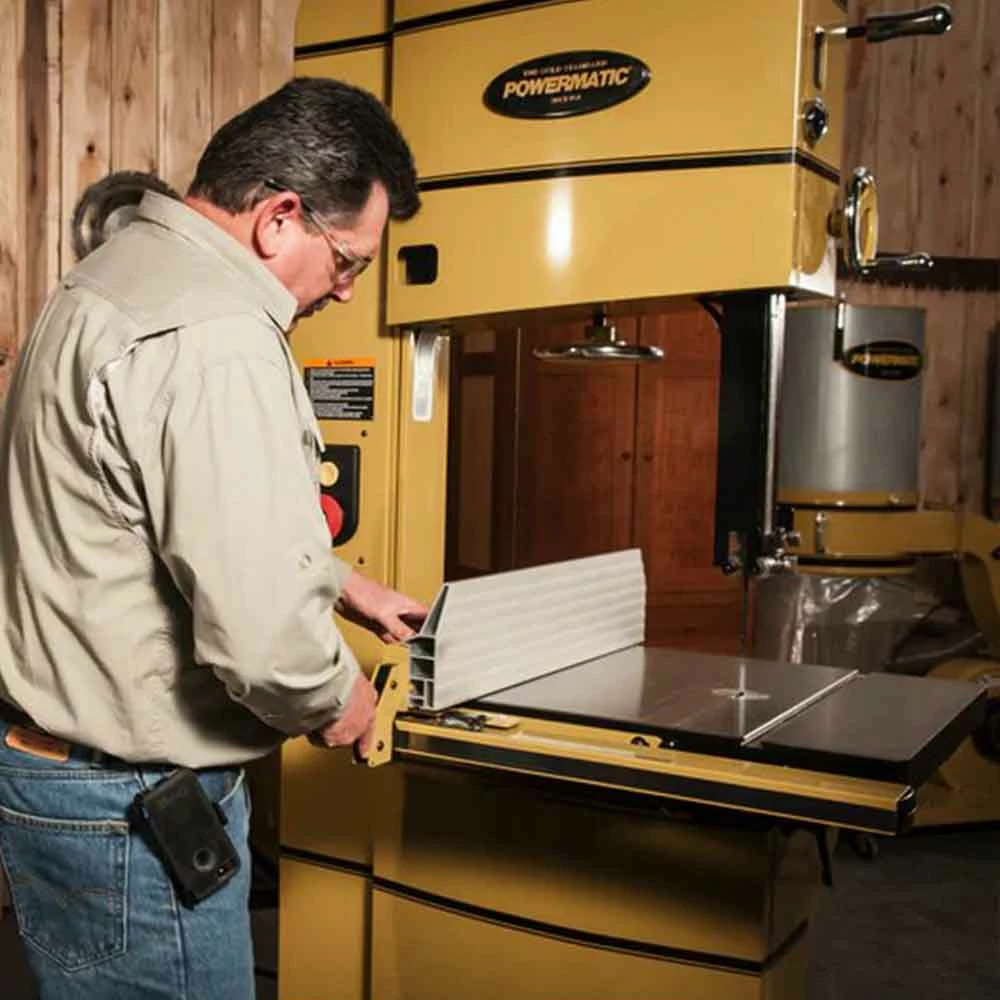

• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table

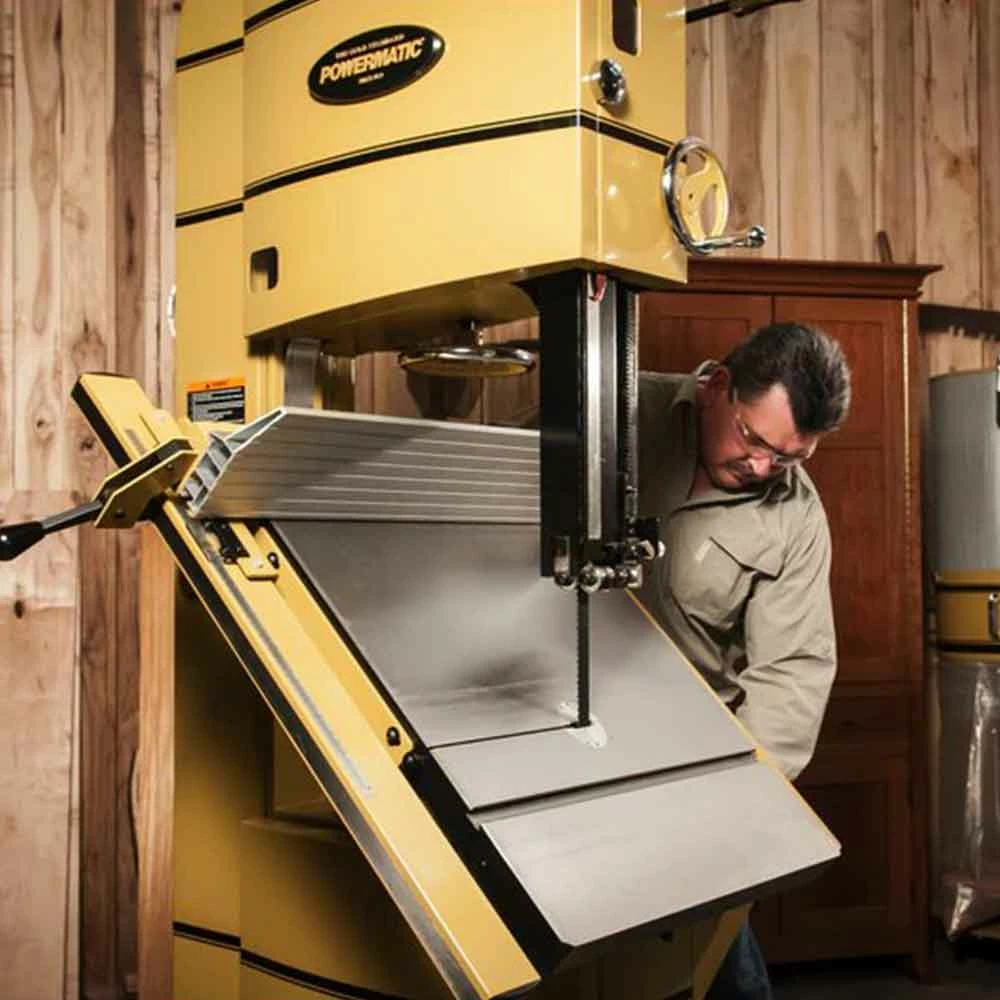

• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position
• Solid steel resaw post for optimum rigidity
• Blade tension release with electrical interlock prevents the band saw from starting when the blade is de-tensioned

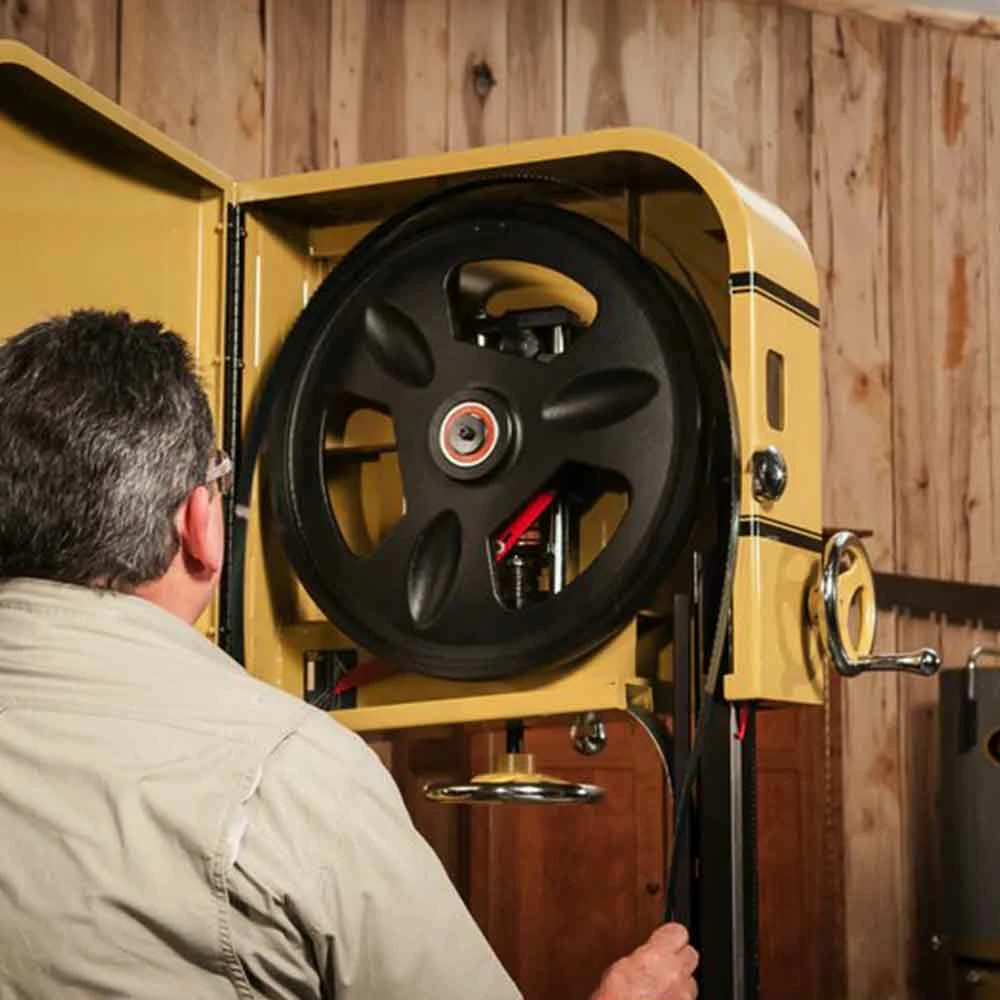

• Heavy duty upper wheel support and tracking mechanism for smooth operation
• High end blade guides with tool less adjustment provide stability and increase cut accuracy
• Four sided blade guard for optimum protection
• Integrated foot brake stops a coasting blade
• Magnetic switch protects the motor from harm due to potential electrical supply issues
• Heavy-duty 5 horsepower motor provides power needed for all projects

What’s in The Box

• PM1800B-3 5 HP 18 x 18-Inch 3-Phase Vertical Band Saw – 1791801B
• Owners Manual

Warranty

• 5 Year – Woodworking Machinery
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 90 Days – On Parts; Consumable items
• 30 Day Satisfaction Guaranteed

Specifications

Model	MP1800B-3
Sku	1791801B
Brand	Powermatic
Length (in.)	38
Width (in.)	42
Height (in.)	81
Weight (lbs.)	806
AC Voltage	230V / 460V
Blade Length (in.)	160
Blade Speed (SFM)	2,300 / 4,400
Cutting Capacity (W x H) (in.)	18 x 18
Dust Port Size (in.)	4
Horsepower	5
Min. Dust Collection (CFM)	600
Miter Positive Stops	45 / 90 Degrees
Motor Phase	3
PreWired Voltage	230V
Table Dimensions (in.)	24 x 27
Table Height (in.)	38
Table Tilt (Left) (Degrees)	10
Table Tilt (Right) (Degrees)	45
Type	Band Saw
