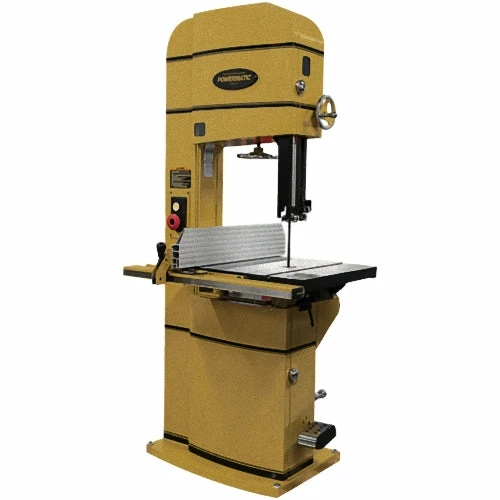

Powermatic PM1800B 5-Hp 230V 18″ Heavy Duty Cast Iron Bandsaw Tools & Equipment

Features

• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position
• Solid steel resaw post for optimum rigidity
• Blade tension release with electrical interlock prevents the band saw from starting when the blade is de-tensioned

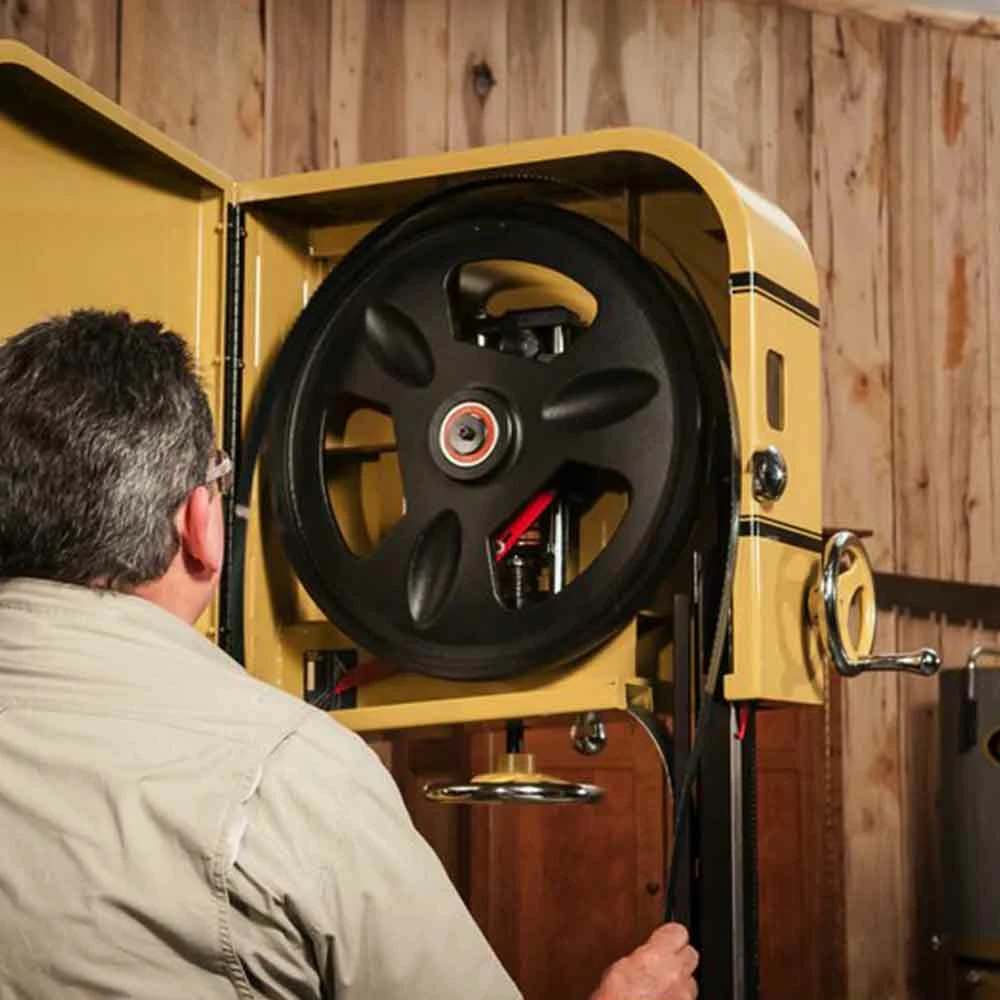

• Heavy duty upper wheel support and tracking mechanism for smooth operation
• High end blade guides with tool less adjustment provide stability and increase cut accuracy
• Four sided blade guard for optimum protection
• Integrated foot brake stops a coasting blade
• Magnetic switch protects the motor from harm due to potential electrical supply issues
• Heavy-duty 5 horsepower motor provides power needed for all projects

What’s in The Box

• PM1800B 230-Volt 5 HP 18 x 18-Inch Single Phase Vertical Band Saw – 1791800B
• Owners Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery

Specifications

Model	PM1800B
Sku	1791800B
Brand	Powermatic
Length (in.)	38
Width (in.)	42
Height (in.)	81
Weight (lbs.)	806
AC Voltage	230
Blade Length (in.)	160
Blade Speed (SFM)	2,300 / 4,400
Cutting Capacity (W x H) (in.)	18 in. x 18
Dust Port Size (in.)	4
Horsepower	5
Min. Dust Collection (CFM)	600
Miter Positive Stops	45 / 90 Degrees
Motor Phase	1
PreWired Voltage	230V
Table Dimensions (in.)	24 in. x 27
Table Height (in.)	38
Table Tilt (Left) (Degrees)	10
Table Tilt (Right) (Degrees)	45
Type	Band Saw
