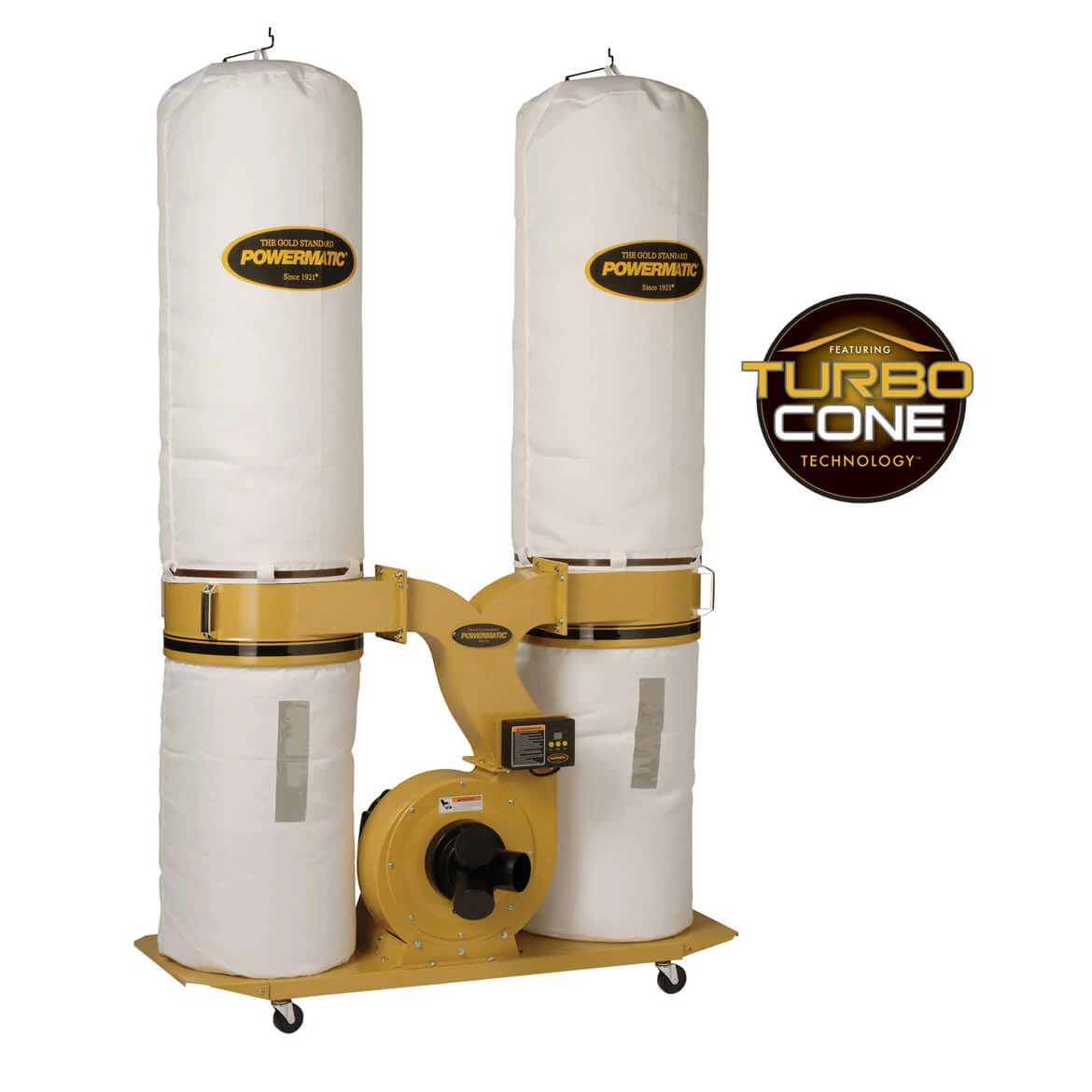

Powermatic PM1900TX-BK Dust Collector W/ Bag Filter KIt 3HP 3PH – 1792073K Tools & Equipment

Features

• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• All-metal duct construction for rigidity and improved air flow
• 30-micron filter bags for improved capture of fine dust particles
• The large impeller is powered by a 3HP motor for peak performance
• Triple 4” dust ports allow for several hoses to be attached at the same time
• Cloth collection bags with view window use a snap ring for rapid installation/removal
• 10 cubic feet collection bag capacity reduces number of bag changes.
• Tall filter bags require less cleaning due to the larger surface area
• Four swivel casters for easy maneuverability

What’s in The Box

• Powermatic PM1900TX-BK3 Dust Collector, 3HP 3PH 230/460V, 30-Micron Bag Filter Kit
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1792073K
UPC	731325175271
Air Flow @ 4″ (CFM)	234
Air Flow @ 8″ (CFM)	1,754
Number of Air Inlets	4
Efficiency (Micron)	30
Static Pressure (WC)	11.31
Sound Rating (DB)	86 – 92
Bag Diameter (In.)	20
Collection Bag Capacity (Cu. Ft.)	10
Collection Bag Length (In.)	30
Filter Bag/Canister Length (In.)	48
Impeller Diameter (In.)	14
Impeller Fins	7
Impeller Material	Steel
Velocity @ 4″ (CFM)	5,200
1-Hose Connection Diameter (In.)	8
2-Hoses Connection Diameter (In.)	4
3-Hoses Connection Diameter (In.)	4
Motor Power (HP)	3
Motor Phase	3
Motor Voltage (V.)	230, 460
Prewired Voltage (V.)	230
Motor Current (Amps)	8-1/5, 4-1/10
