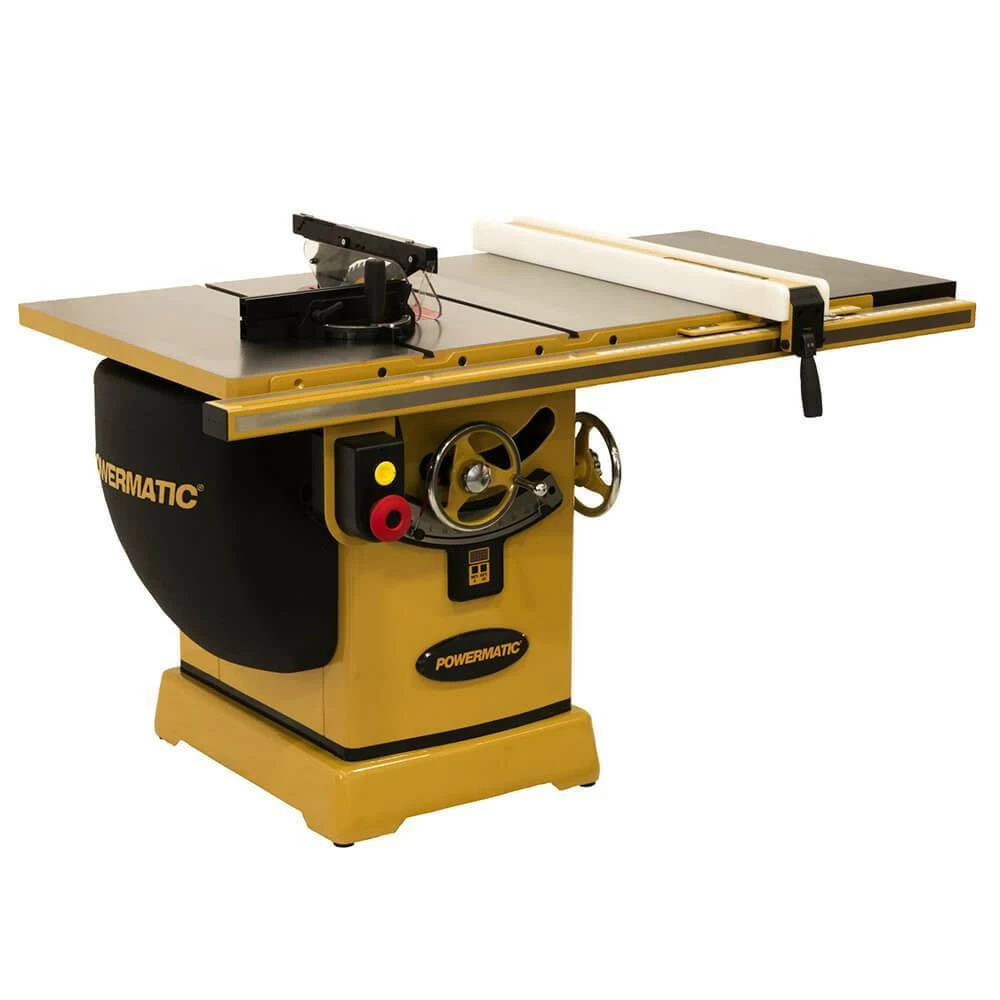

Powermatic PM23130K 230-Volt 30-Inch 3 HP 1-Phase RIP Table Saw W/ ACCU-FENCE Tools & Equipment

Features

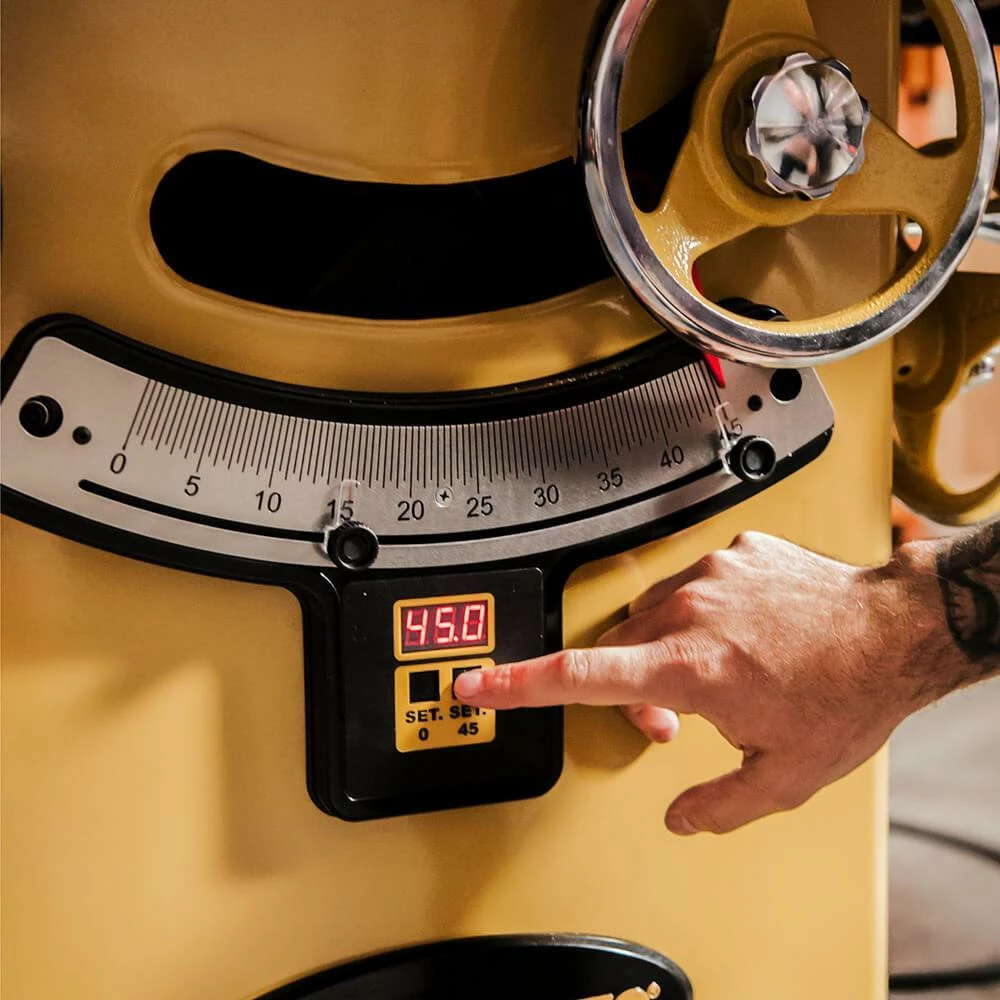

• Integrated Digital Read Out for precise bevel cuts.

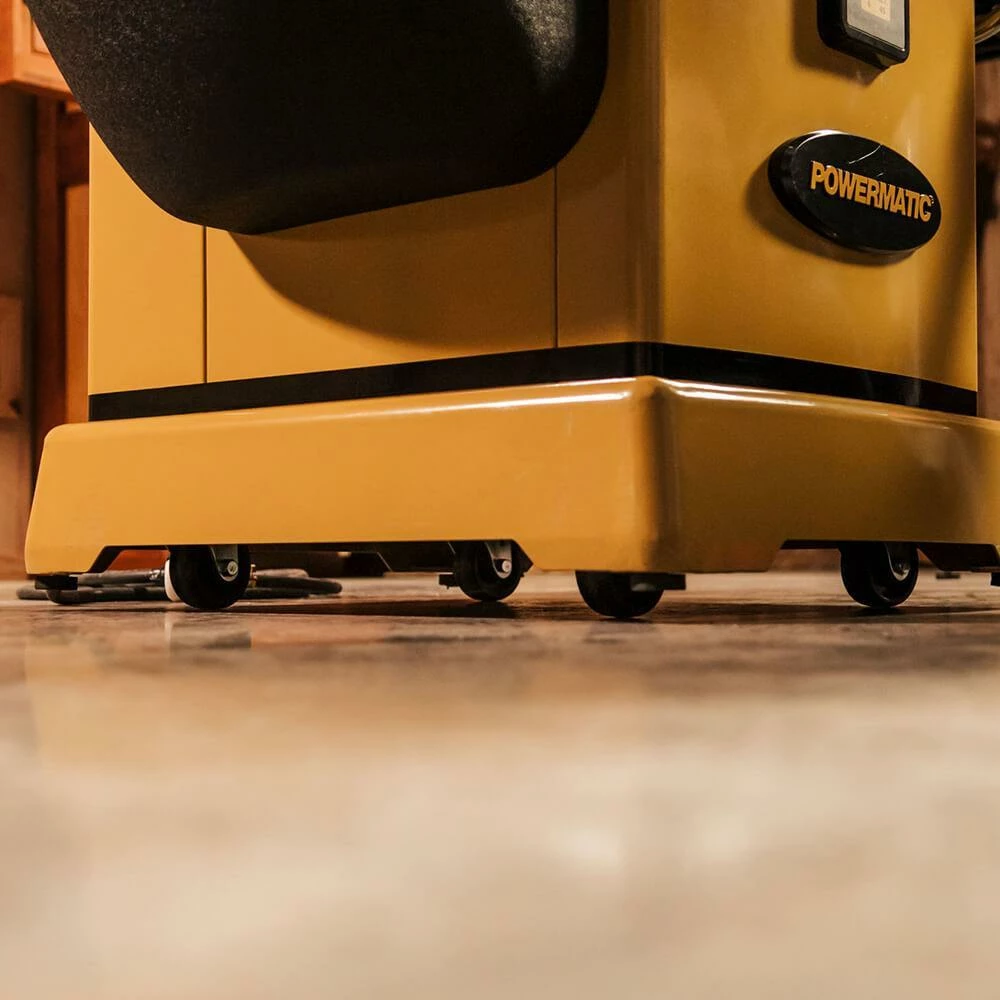

• Newly designed integrated hydraulic castor system with greater travel than previous model.
• Matching beveled edge between table and extension wings.

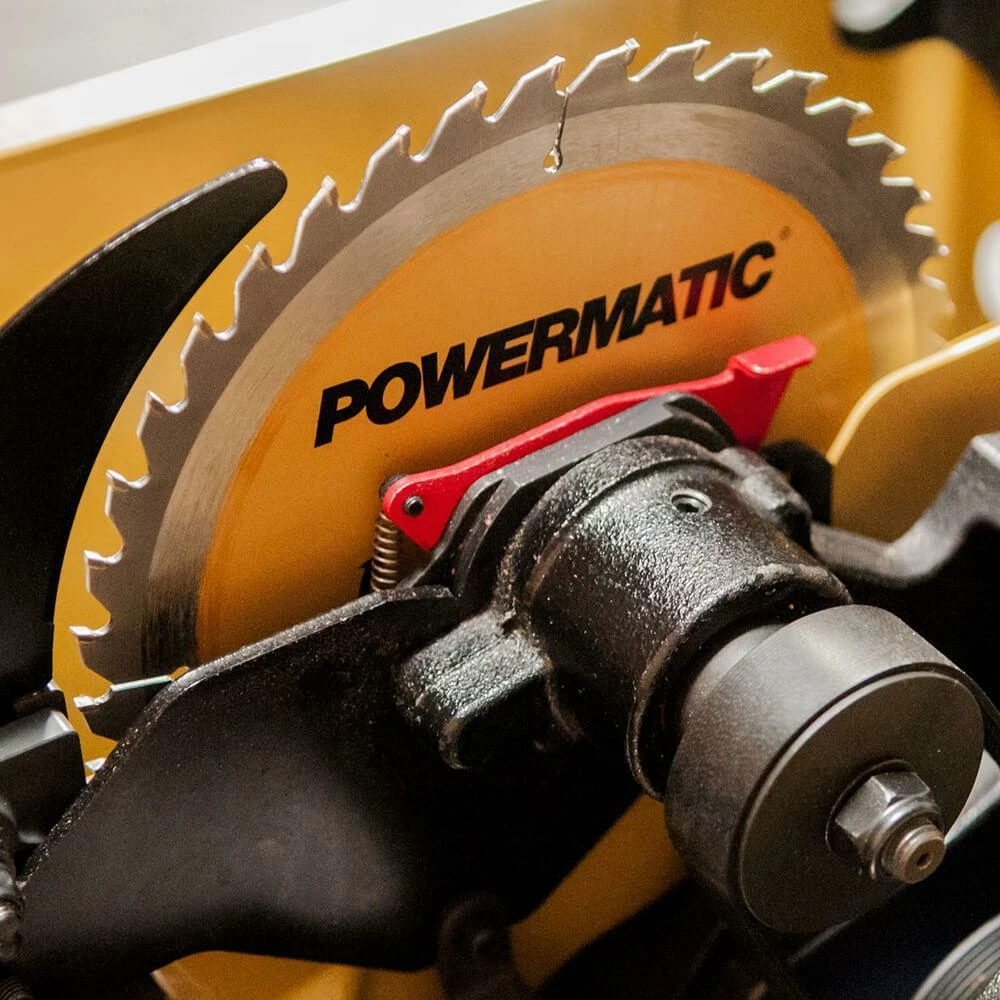

• Newly designed Arbor lock for quick and easy blade changes.

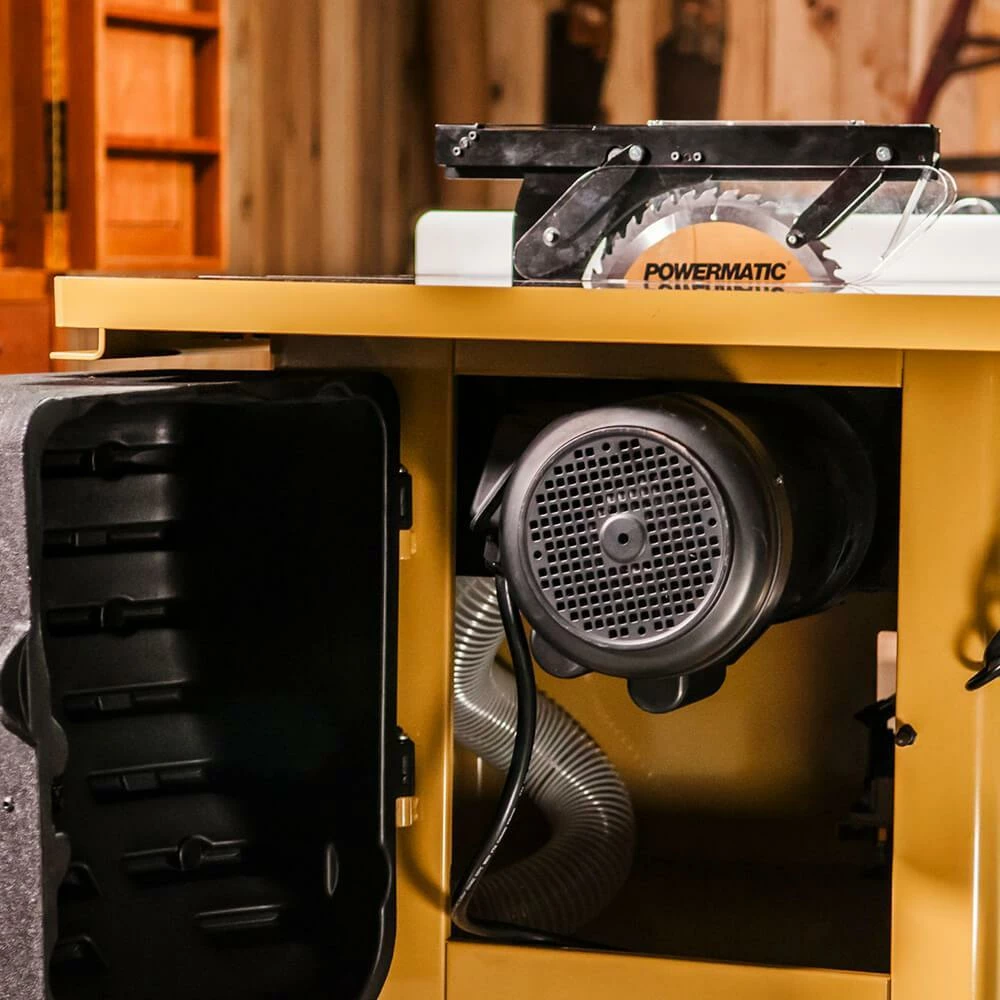

• Improved dust collection inside and outside of the cabinet.

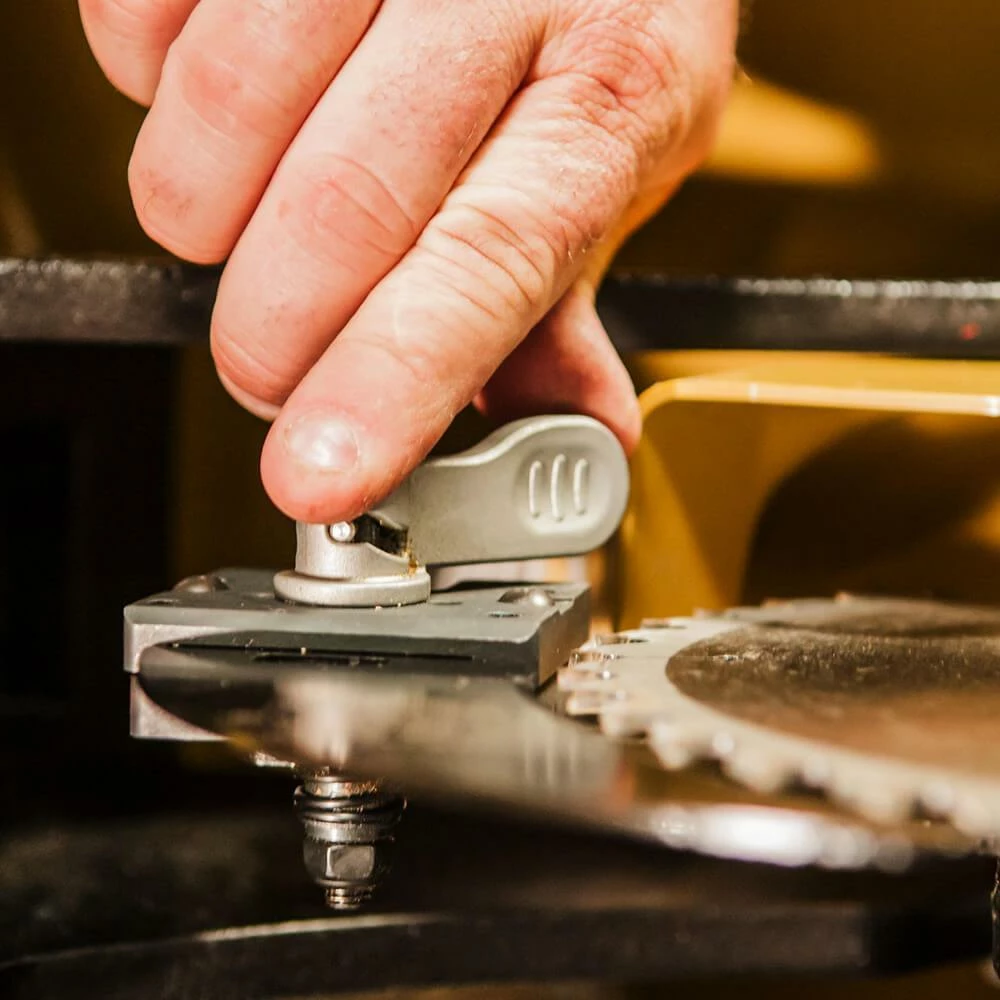

• Quick release riving knife lever for hassle free riving knife changes.
• Wider stance, box trunnion design.

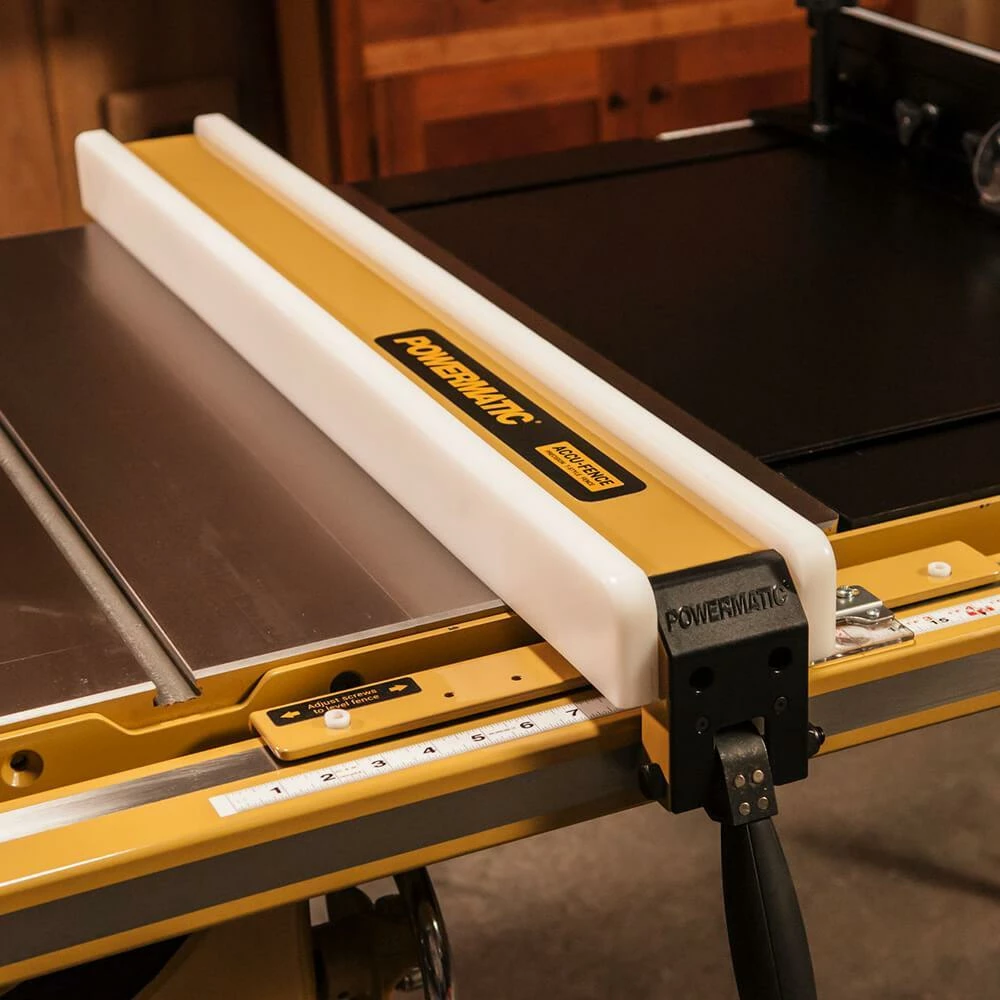

• Newly designed Accu-Fence system for precision cuts.

What’s in The Box

• Powermatic 230-Volt 30-Inch 3 HP 1-Phase RIP Table Saw – PM23130K
• ACCU-FENCE
• Owner’s Manual

Warranty

• 5-Year on Woodworking machinery
• 2-Year on Industrial or commercial woodworking machinery
• 1-Year on Motors
• 30 Day Satisfaction Guaranteed

Specifications

Sku	PM23130K
Brand	Powermatic
Motor Voltage	230V
Motor Current (Amp)	14.5 Amp
Recommended Circuit Size (Amp)	20 Amp
Motor Power (HP)	3 HP
Motor Phase	1
Dust Collection (Cfm)	400 Cfm
Dust Port Outside Diameter (In.)	4 In.
Style (Type)	Cabinet
Blade Diameter (In.)	10 In.
Arbor Diameter (In.)	5/8 In.
Arbor Speed (Rpm)	4500 Rpm
Maximum Depth of Cut at 90 Degrees (In.)	3-1/8 In.
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8 In.
Maximum Diameter of Dado (In.)	8 In.
Maximum Width of Dado (In.)	13/16 In.
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	11-1/4 In.
Maximum Rip Right of Blade (In.)	30 In.
Maximum Rip Left of Blade (In.)	13-1/2 In.
Table Type	Cast Iron
Table Height from Floor (In.)	35 In.
Table Size (In.)	22 x 30-1/2 In.
Table Size with Extensions (In.)	42 x 30-1/2 In.
Table T-Slot (In.)	3/4 x 3/8 In.
Shipping Weight (lbs)	680 lbs
