Features
- Integrated Digital Read Out for precise bevel cuts.

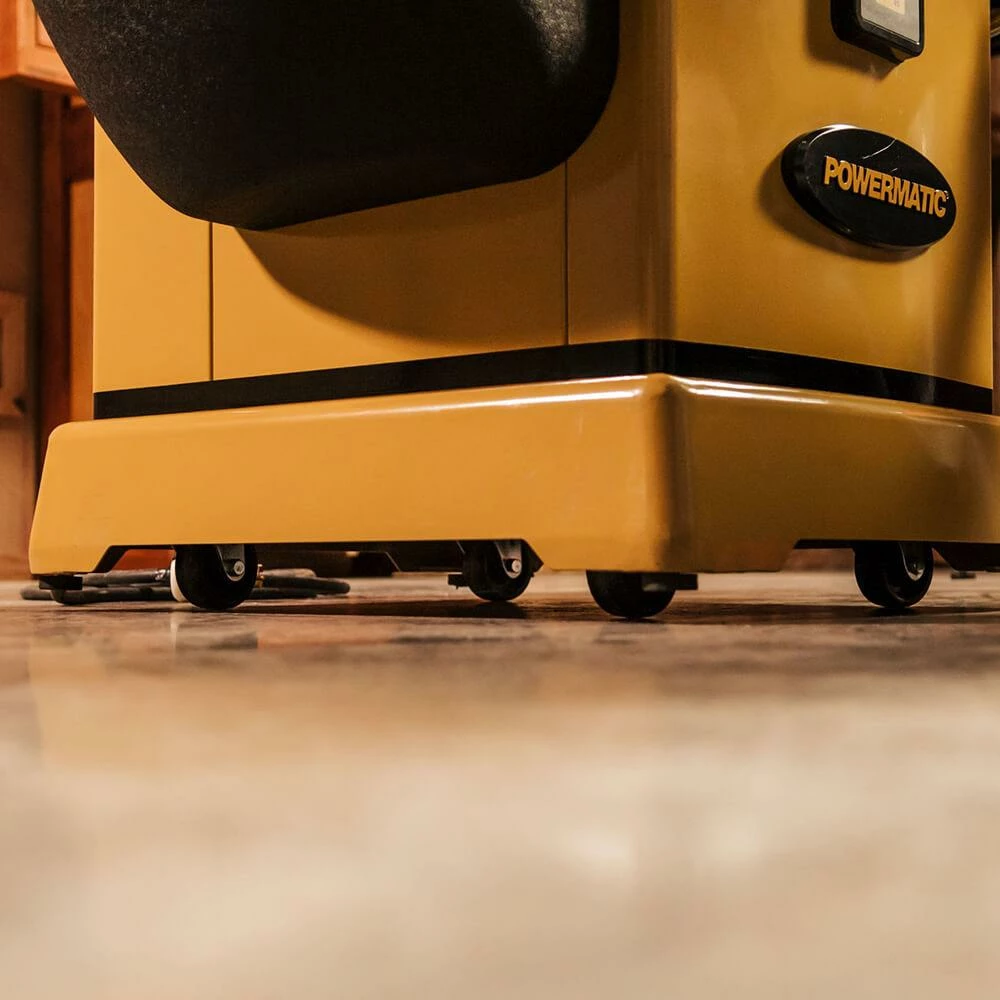

- Newly designed integrated hydraulic castor system with greater travel than previous model.
- Matching beveled edge between table and extension wings.

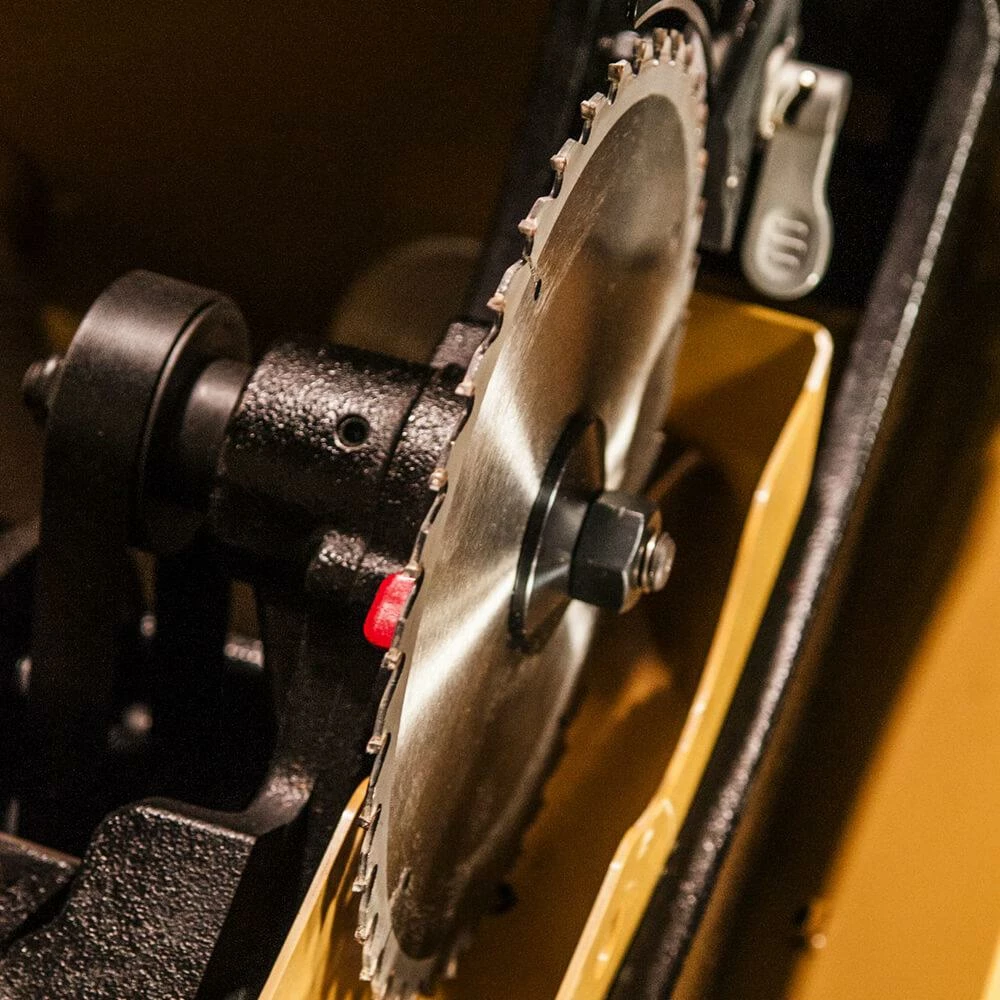

- Newly designed Arbor lock for quick and easy blade changes.
- Improved dust collection inside and outside of the cabinet.
- Quick release riving knife lever for hassle free riving knife changes.
- Wider stance, box trunnion design.
- Newly designed Accu-Fence system for precision cuts.
What’s in The Box
- Powermatic 230V 50-Inch 3 HP RIP Table Saw – PM23150WK
- ACCU-FENCE
- Owner’s Manual
Warranty
- 5-Year on Woodworking machinery
- 2-Year on Industrial or commercial woodworking machinery
- 1-Year on Motors
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | PM23150WK |
| Brand | Powermatic |
| Motor Voltage | 230V |
| Motor Current (Amp) | 14.5 Amp |
| Recommended Circuit Size (Amp) | 20 Amp |
| Motor Power (HP) | 3 HP |
| Motor Phase | 1 |
| Dust Collection (Cfm) | 400 Cfm |
| Dust Port Outside Diameter (In.) | 4 In. |
| Style (Type) | Cabinet |
| Blade Diameter (In.) | 10 In. |
| Arbor Diameter (In.) | 5/8 In. |
| Arbor Speed (Rpm) | 4500 Rpm |
| Maximum Depth of Cut at 90 Degrees (In.) | 3-1/8 In. |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 In. |
| Maximum Diameter of Dado (In.) | 8 In. |
| Maximum Width of Dado (In.) | 13/16 In. |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 11-1/4 In. |
| Maximum Rip Right of Blade (In.) | 50 In. |
| Maximum Rip Left of Blade (In.) | 13-1/2 In. |
| Table Type | Cast Iron |
| Table Height from Floor (In.) | 35 In. |
| Table Size (In.) | 22 x 30-1/2 In. |
| Table Size with Extensions (In.) | 42 x 30-1/2 In. |
| Table T-Slot (In.) | 3/4 x 3/8 In. |
| Shipping Weight (lbs) | 750 lbs |
