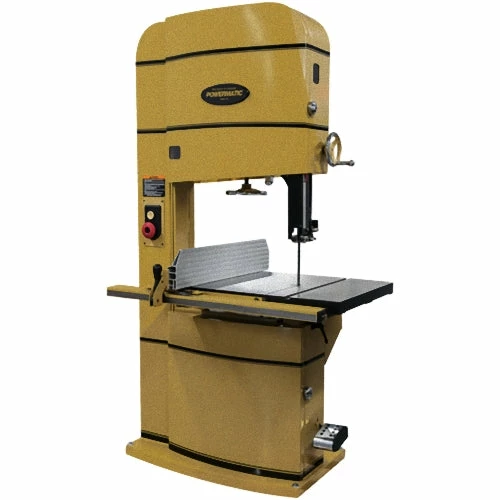

Powermatic PM2415B 5-Hp 230V 24″ X 15″ Heavy Duty Vertical Bandsaw Tools & Equipment

Features

• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table

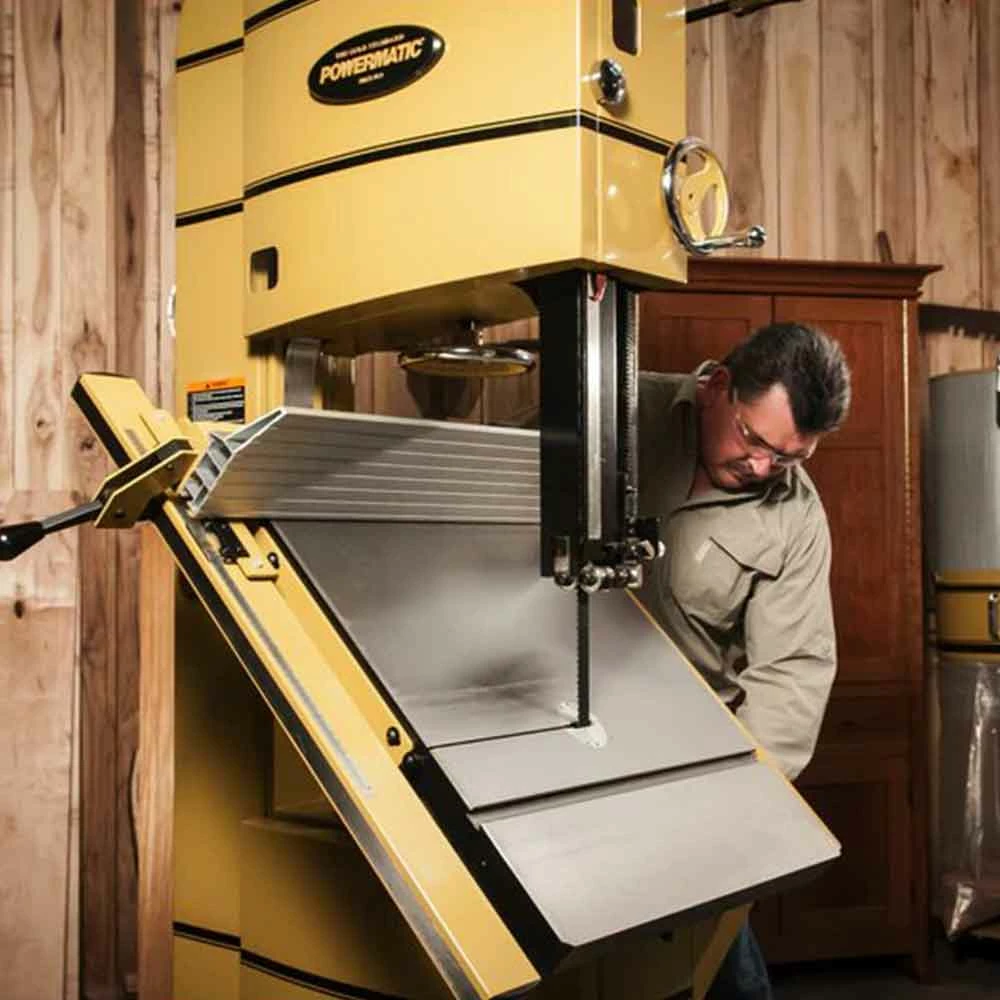

• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position
• Solid steel resaw post for optimum rigidity
• Blade tension release with electrical interlock prevents the band saw from starting when the blade is de-tensioned

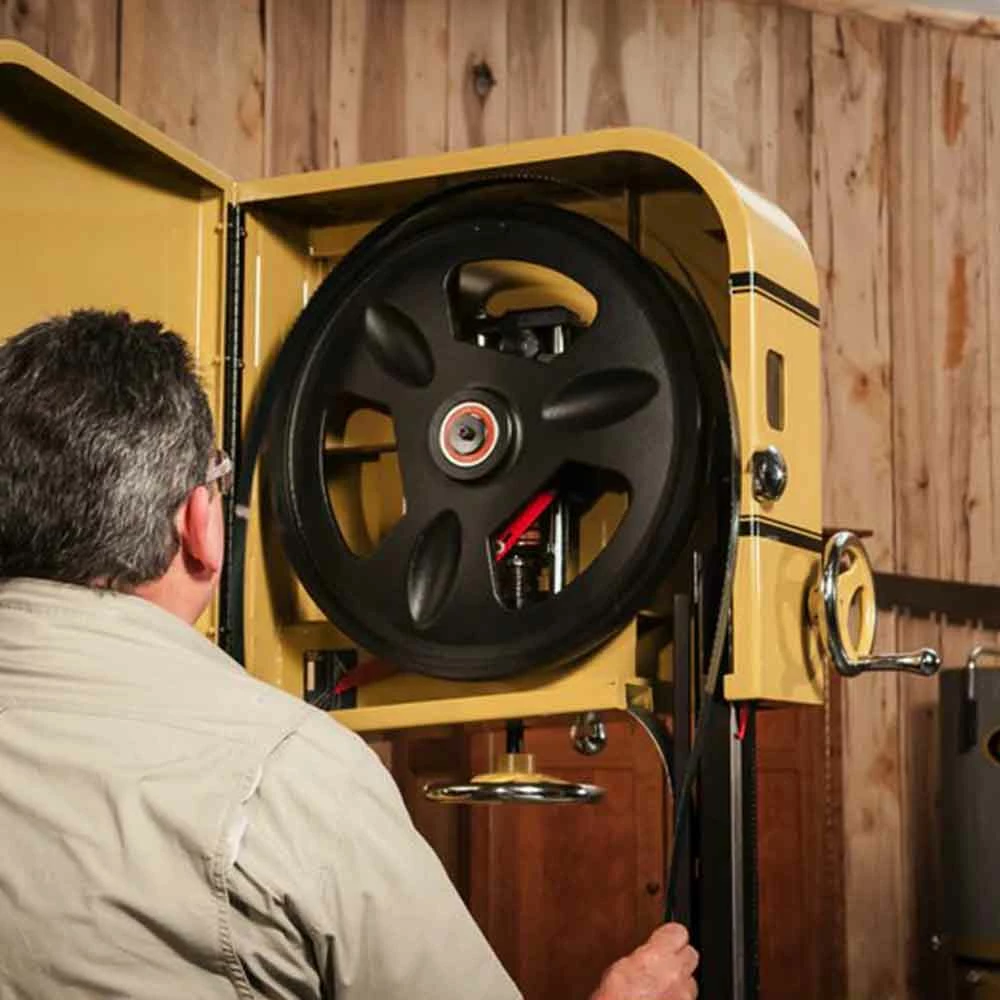

• Heavy duty upper wheel support and tracking mechanism for smooth operation
• High end blade guides with tool less adjustment provide stability and increase cut accuracy
• Four sided blade guard for optimum protection
• Integrated foot brake stops a coasting blade
• Magnetic switch protects the motor from harm due to potential electrical supply issues
• Heavy-duty 5 horsepower motor provides power needed for all projects

What’s in The Box

• PM2415B 230-Volt 5 HP 24 x 15-Inch Single Phase Vertical Band Saw – 1791259B
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	PM2415B
Sku	1791259B
Brand	Powermatic
Length (in.)	44
Width (in.)	42
Height (in.)	81
Weight (lbs.)	1049
AC Voltage	230
Blade Length (in.)	183
Blade Speed (SFM)	2,500 / 4,800
Cutting Capacity (W x H) (in.)	24 x 15
Dust Port Size (in.)	4
Horsepower	5
Min. Dust Collection (CFM)	600
Miter Positive Stops (Degrees)	45 / 90
Motor Phase	1
PreWired Voltage	230
Table Dimensions (in.)	24 x 34
Table Height (in.)	35
Table Tilt (Left) (Degrees)	10
Table Tilt (Right) (Degrees)	45
Type	Band Saw
