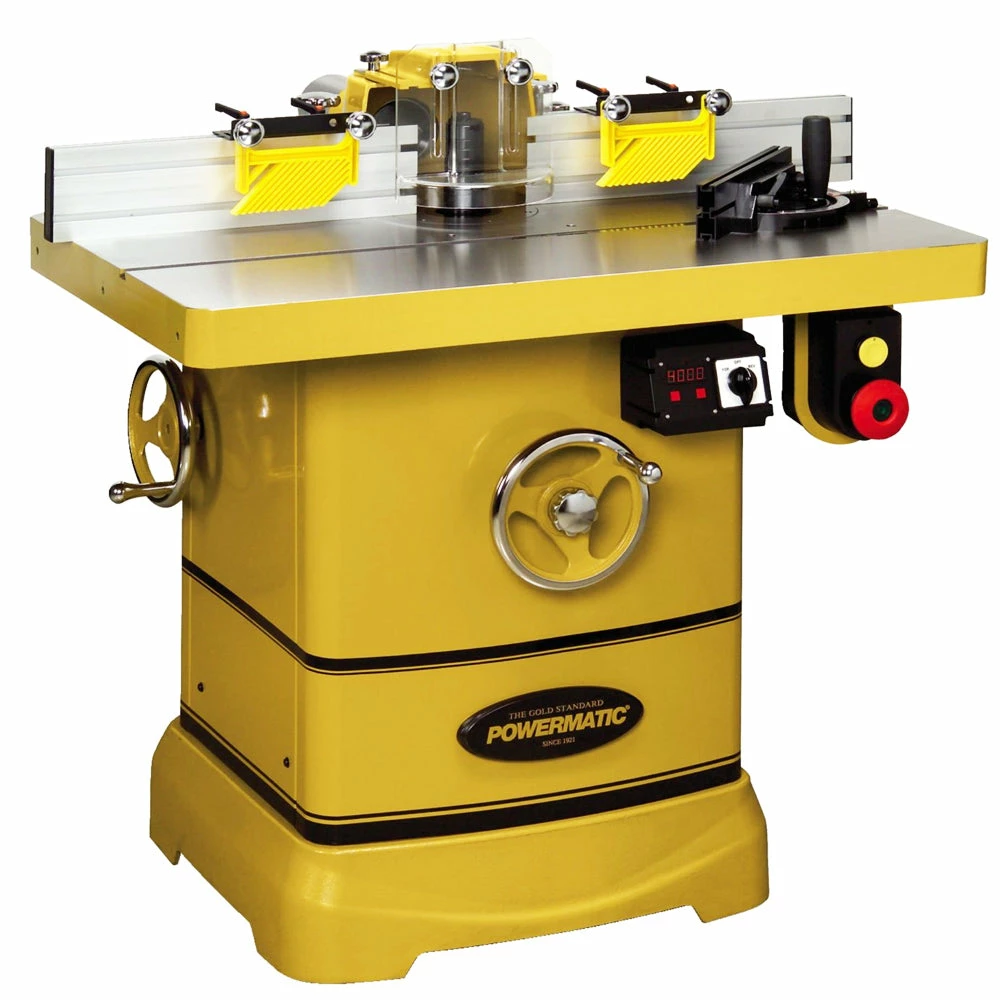

Powermatic PM2700 5-Hp 230V Heavy Duty Cast Iron Table Shaper W/ Miter Gauge Tools & Equipment

Features

• Integrated caster system built into the cast iron base for instant shop mobility

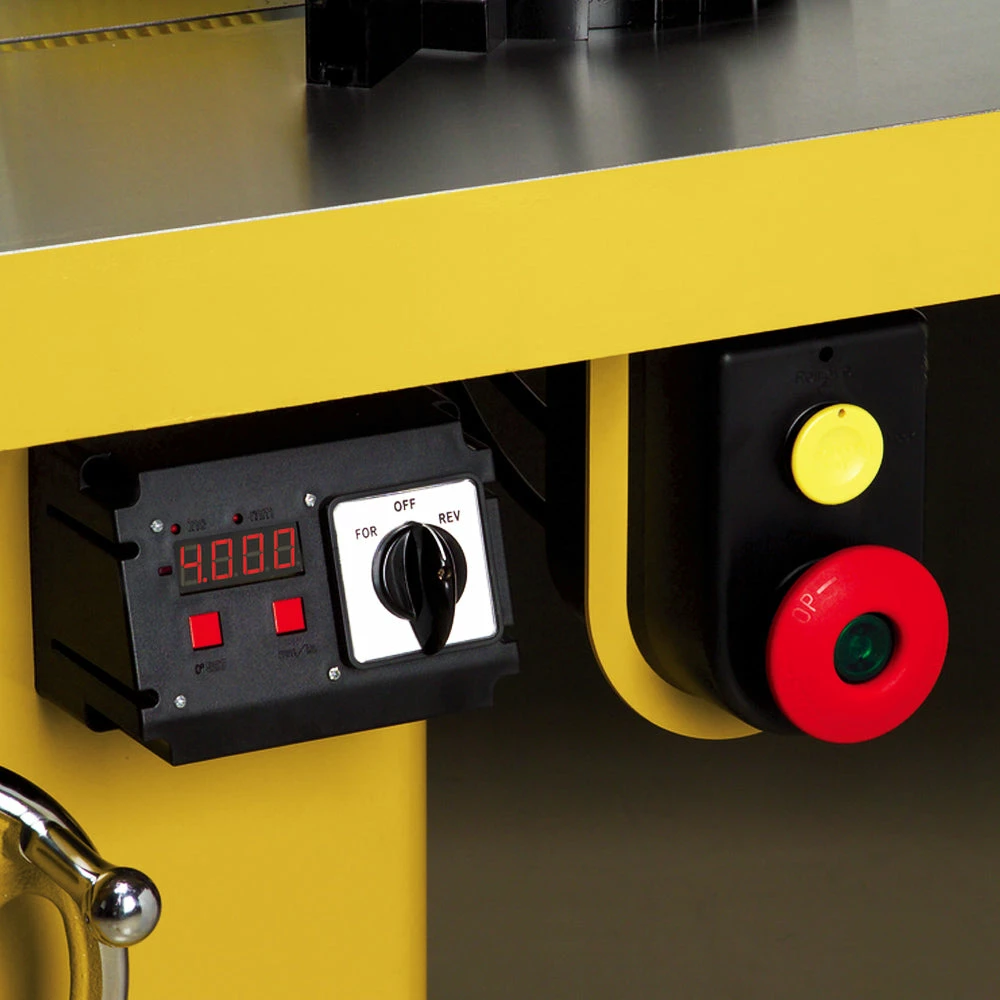

• Spindle height digital readout for making fine incremental adjustments on multiple passes
• Heavy duty 30″ x 40″ precision ground tabletop for smooth stock feeding

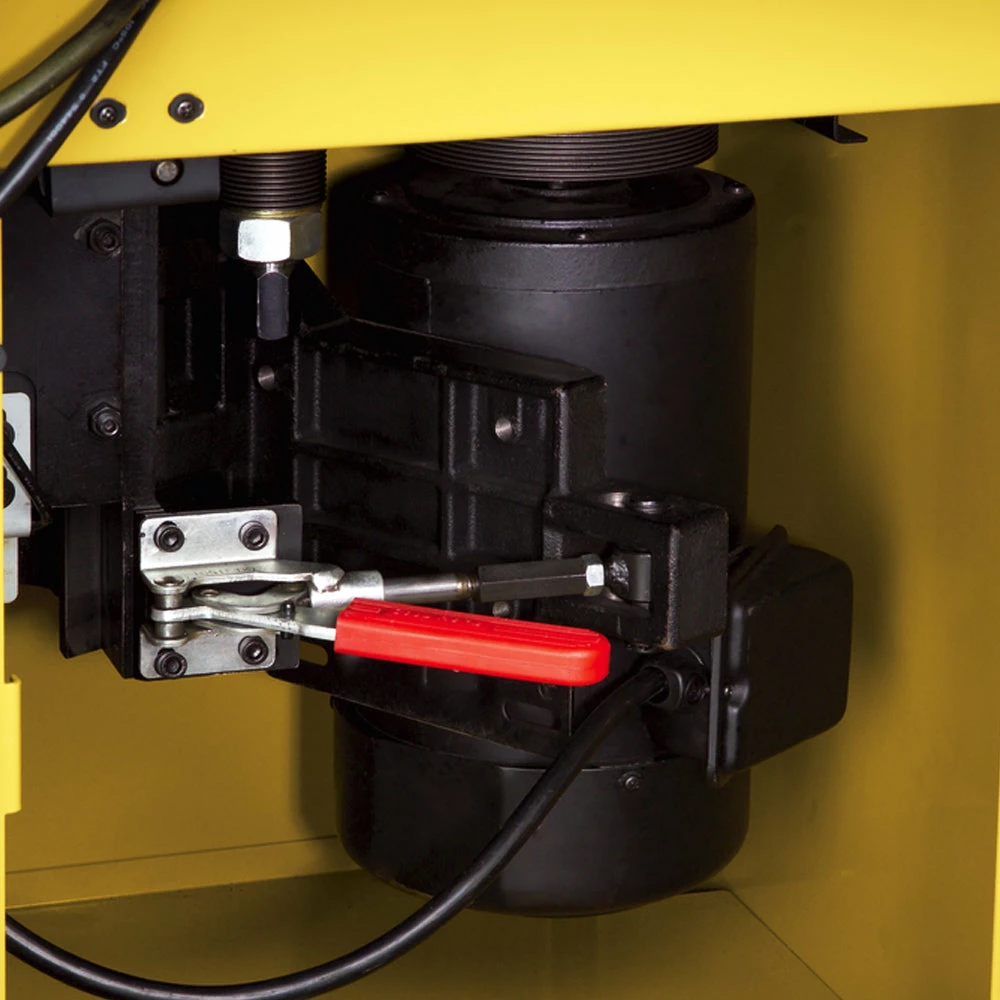

• Convenient quick lock belt tensioning for easy speed adjustment

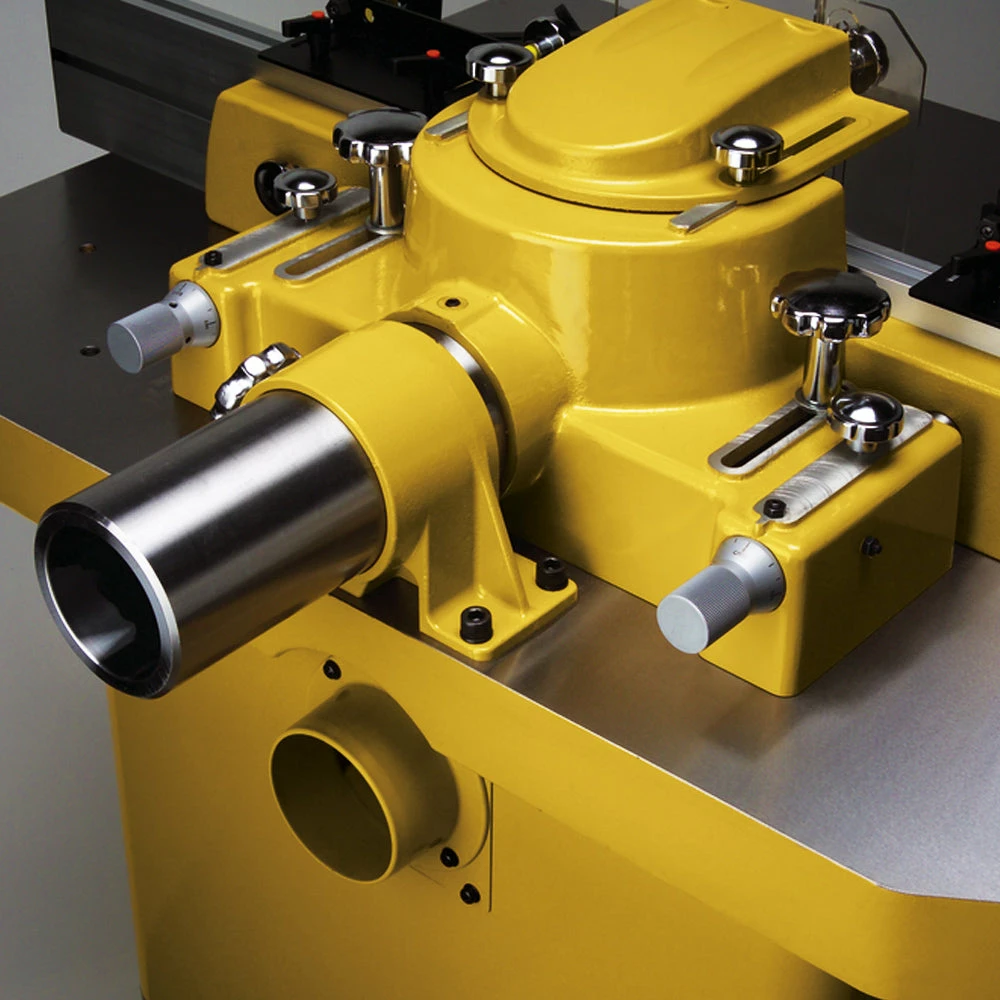

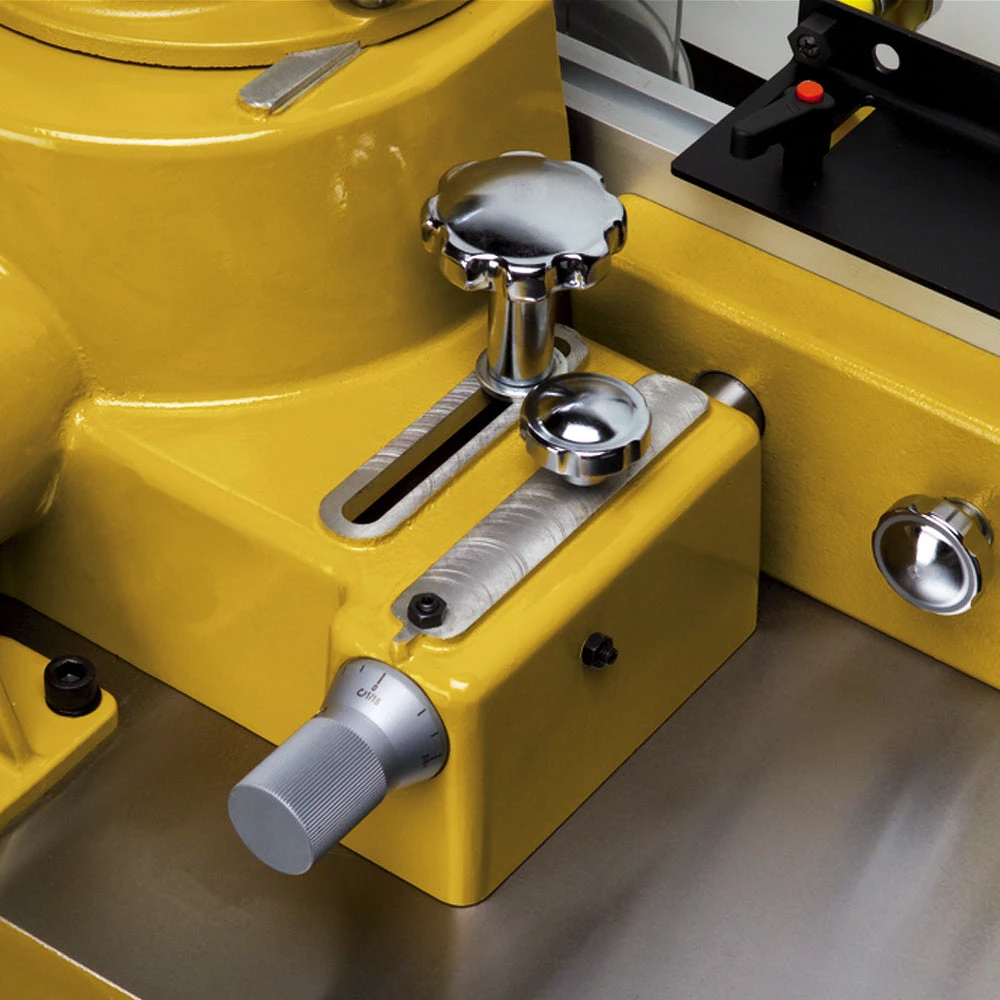

• Industrial fence system with fine adjust dials for more precise positioning
• 3HP totally enclosed motor offers plenty of power
• Two spindle speeds (reversible) for a variety of work

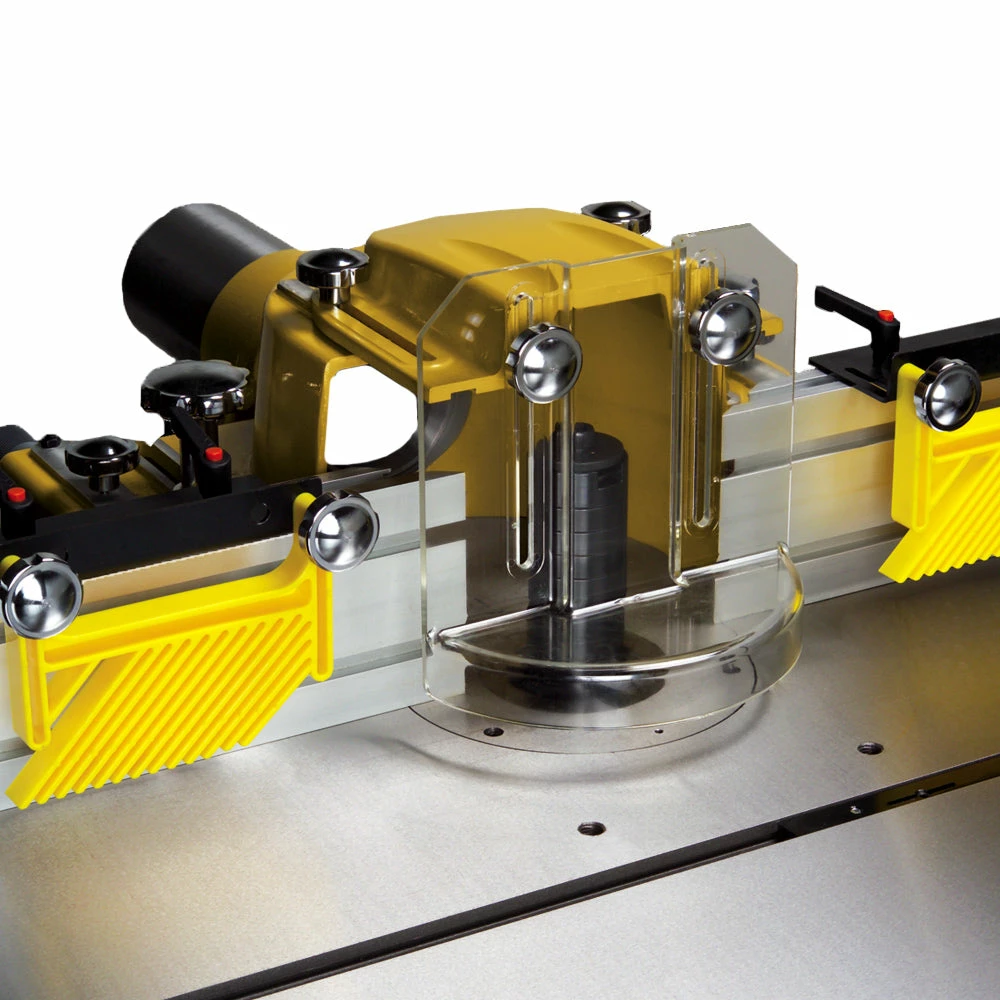

• Superior clear cutter guard promotes safety, allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• Fence has dual featherboards for work holding
• Dual 4″ ports for attachment to dust collection system
• 3/4″ and 1-1/4″ interchangeable spindle collets
• Spindle height digital readout
• Featherboard hold downs
• Deluxe miter gauge
• Integrated caster system

What’s in The Box

• Powermatic PM2700 Shaper, 5HP 1PH 230V, DRO, Casters
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1280101C
UPC	662755905957
Style (Type)	Shaper
Spindle Speed (RPM)	7,500, 10,000
Maximum Spindle Diameter (In.)	1-1/4
Spindle Size Under Nut (In.)	3/4 (3-3/4), 1-1/4 (6)
Spindle Travel (In.)	4
Spindle Tilt (Deg.)	N.A.
Reversible	Yes
Table Opening Diameter (In.)	7-3/8
Table Inserts (In.)	2-35/64, 45/32, 5-3/4
Table Insert Opening Diameter (In.)	2-35/64, 4-5/32, 5-3/4
Table Size (In.)	40 x 30
Table Travel (In.)	N.A.
Table Height from Floor (In.)	35-1/2
Sliding Table Size (In.)	N.A.
Fence Size (L x H) (In.)	18-3/4 x 4-7/8
Fence Travel (Major and Minor) (In.)	N.A.
Dust Port Outside Diameter (In.)	4
Dust Collection Minimum CFM Required (CFM)	600
Digital Readouts	Spindle Height
Electrical Controls	Yes
Motor Power (HP)	5
Motor Phase	1
Motor Voltage (V.)	230
