Reliance 310CRK 120/240-Volt 30-Amp 10-Circuit Pro/Tran 2 Transfer Switches

Features

• 30 Amp power inlet box installs outdoors near where the generator will be used
• 10 ft. 30 Amp power cord goes from the generator to the inlet box
• 1 in. circuit breakers make customization easy, 2 double-pole 20 Amp breakers and 6 single-pole 15 Amp breakers are included, accepts GFCI and AFCI circuit breakers
• Transfer switch can be used to power one double-pole 30 Amp circuit with a circuit breaker change
• Includes wire connectors and a high-impact non-metallic cover

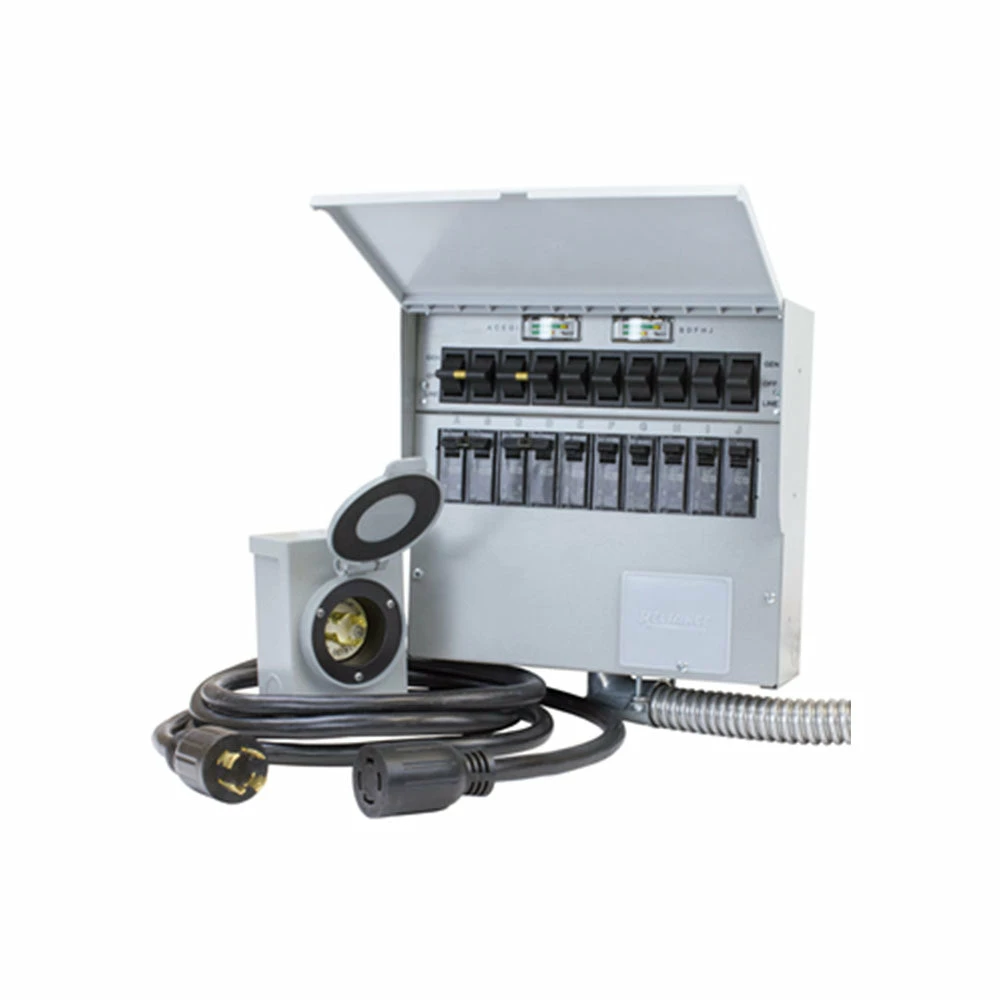

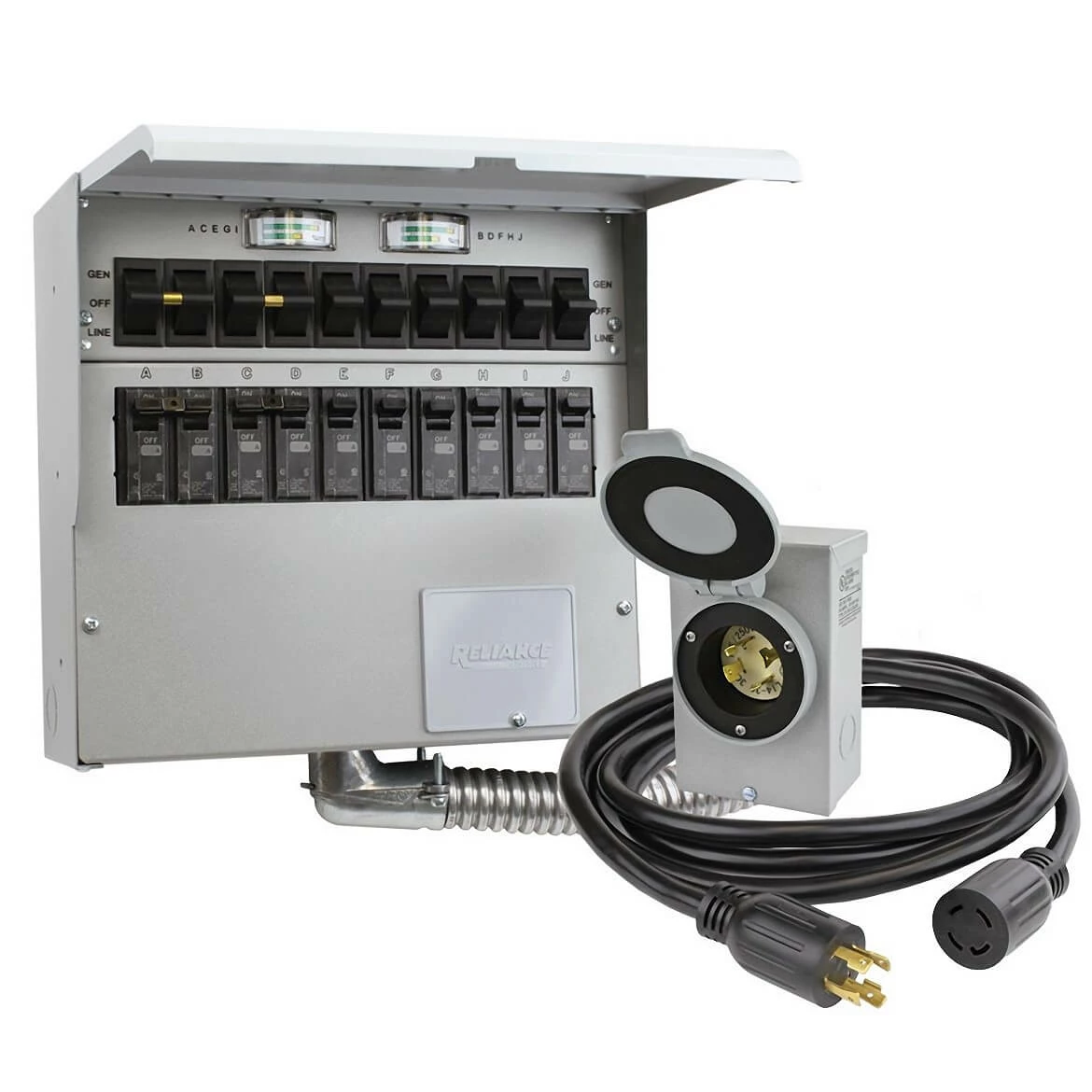

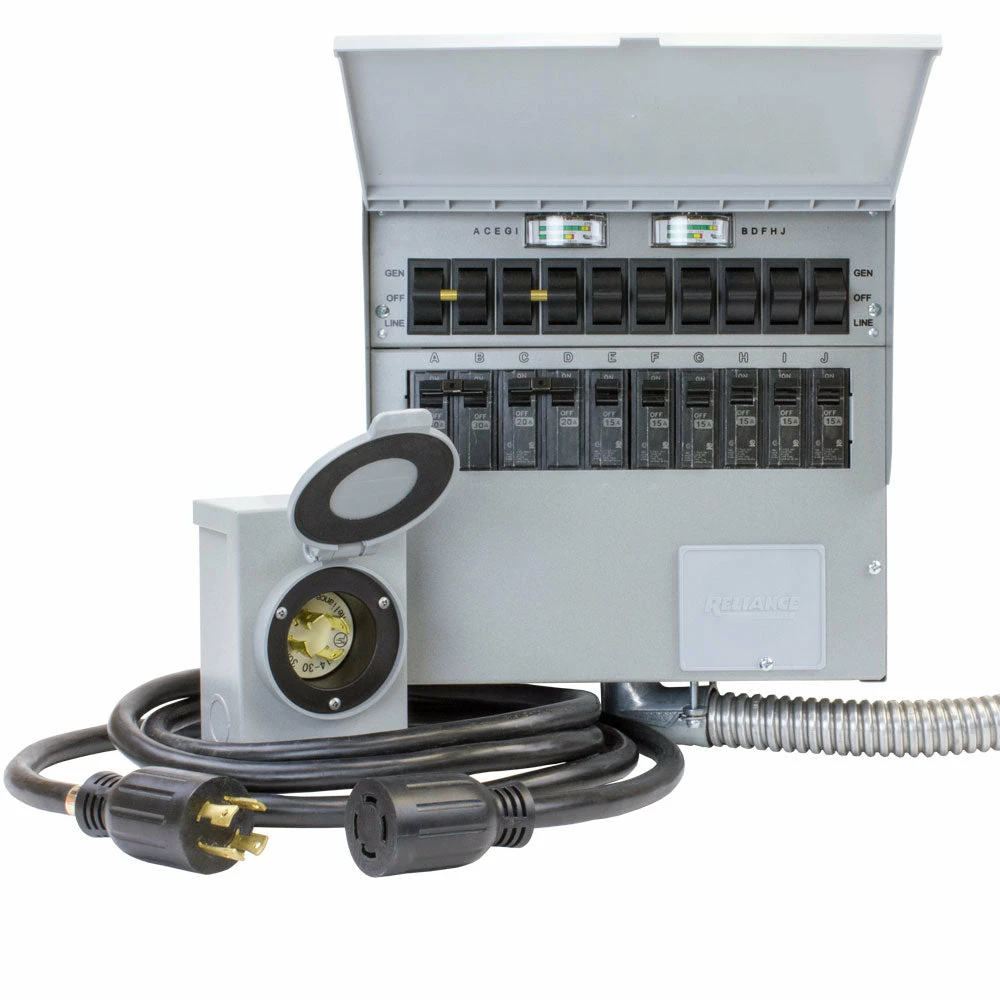

What’s in The Box

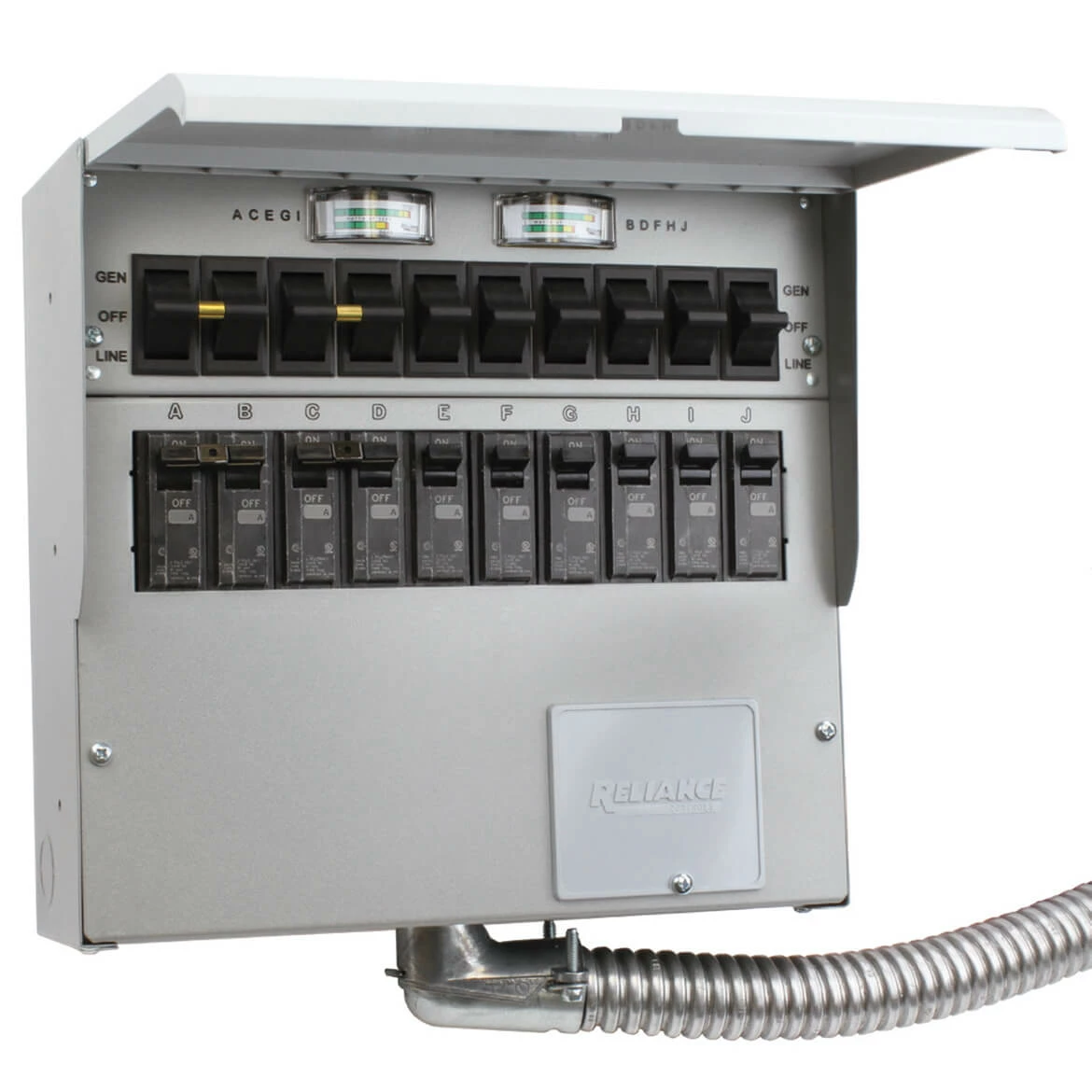

• 10-Circuit Prewired Transfer Switch
• 10-Foot Power Cord
• Outdoor Painted Steel Power Inlet Box
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	310CRK
Brand	Reliance
Voltage	120/240
Max. Generator Running Wattage	7,500
Phase	Single
Frequency	60 Hertz
Connection Type	Male
Prongs	Four-Prong
Circuits	6 – 15A/120V 2 – 20A/120V 1 – 20A/240V
Max. Single-Pole Circuits	10
Max. Double-Pole Circuits	5
Max. Combined Load at 125 Vac	60
Max. Combined Load at 250 Vac	30
Power Inlet	L14-30
Recommended Cord Size (Guage)	10
Counduit Size (in.)	1
Conduit Length (in.)	18
Watt Meters	Yes
Cabinet Type	Indoor
Weight (lbs.)	25
Dimensions (HxWxD) (in.)	11 x 1.75 x 4.5 (27.94 x 29.85 x 11.43 cm)
