Reliance A510C 120/240-Volt 50-Amp 10-Circuit Pro/Tran 2 Transfer Switch Transfer Switches

Features

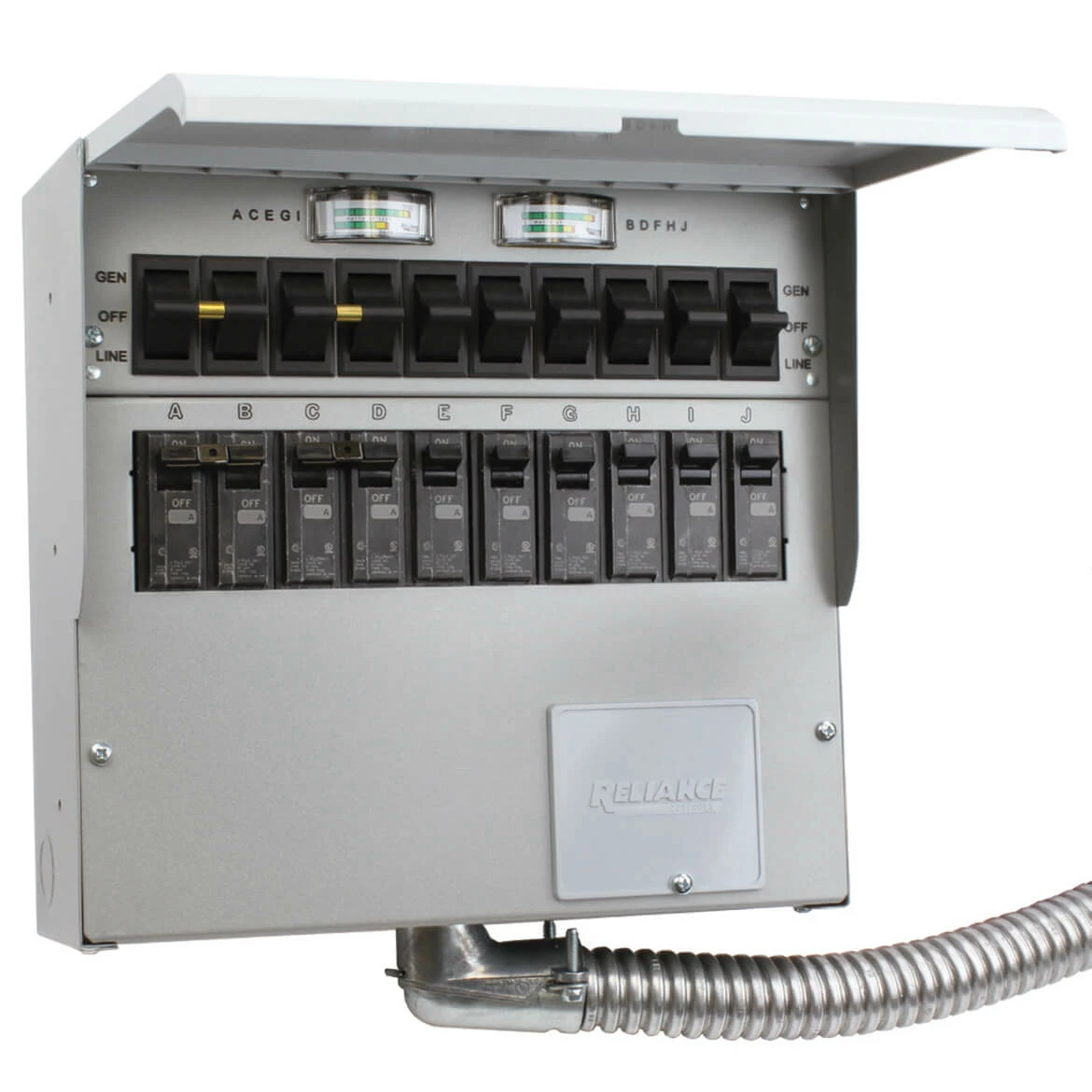

• Pro/Tran 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
• The next generation of Loadside manual transfer switches
• (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
• Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
• 10 Single-Pole Circuits or 5 Double-Pole Circuits
• NEW Color-Coded Built-In Wattage Meter
• Helps you balance and manager generator load
• Hinged, Non-Metalic Cover
• Protects toggle swtiches/breakrs and povides a finished apperance
• Powder-Coated Steel Cabinet For Indoor Installation

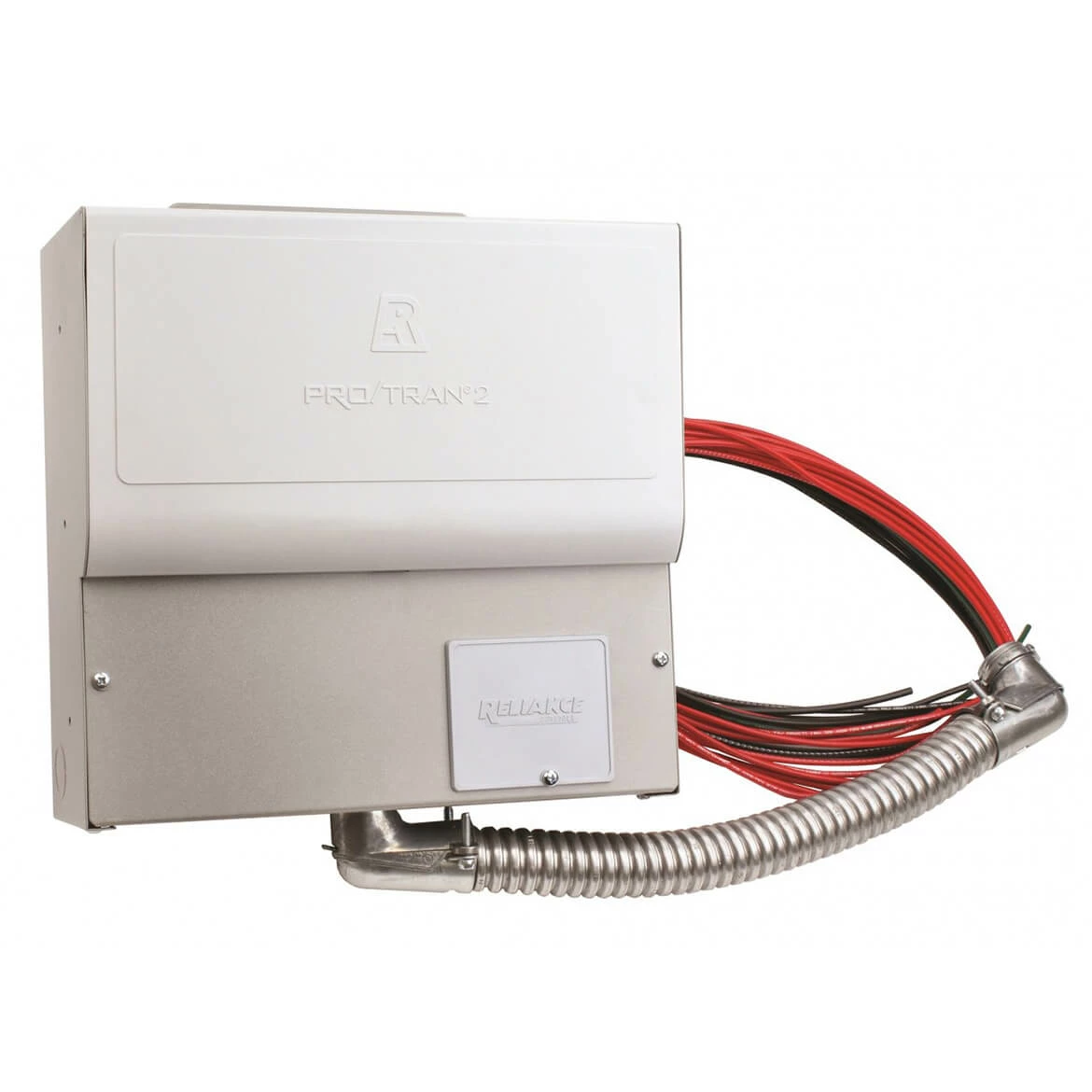

• 18 Flexible conduit w/ all factory wires clearly marked/colored
• (6) Combination 1/2 and 3/4 knockouts for easier installation
• Requires 50-Amp Power Intel (PB50) (Sold Separtately)
• Safety and Certifications
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

What’s in The Box

• 120/240-Volt 50-Amp 10-Circuit Indoor Transfer Switch – A510C
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	A510C
Brand	Reliance
Voltage	120/240
Frequency	60 Hertz
Max. Generator Running Wattage	12,500
Circuits	6 – 15A/120V,1 – 20A/240V,1 – 30A/240V
Phase	Single
Max. Single-Pole Circuits	10
Max. Double-Pole Circuits	5
Max. Combined Load at 125 Vac	100
Max. Combined Load at 250 Vac	50
Power Inlet	None
Recommended Cord Size (Guage)	6
Conduit Size (in.)	1
Conduit Lenght (in.)	18
Watt Meters	Yes
Weight (lbs.)	20
Cabinet Type	Indoor
Dimensions (HxWxD) (in.)	11 x 11.75 x 4.5 (28.58 x 29.85 x 11.43 cm)
