Features
- Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
- Conveyor Bed parallelism is easily adjusted by turning the dial on the outside of the bed with no tools required
- Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
- Dust hood includes an integrated channel that mirrors the shape of the drum and directs the chips and dust to the 4” collection port
- Precision machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat damage
- Precision flattened reinforced steel conveyor bed
- One rotation of the top position handwheel adjusts the drum height by 1/16”
- Redesigned conveyor system pulls the workpiece through the sander instead of pushing
- The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
- Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
- Toolless abrasive take-up clips make changing abrasives quick and easy
- Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
- Separate feed and drum motors provide independent control, optimizing the performance of the sander
- Conveyor belt TRACKERS reduce the need for manual belt adjustments

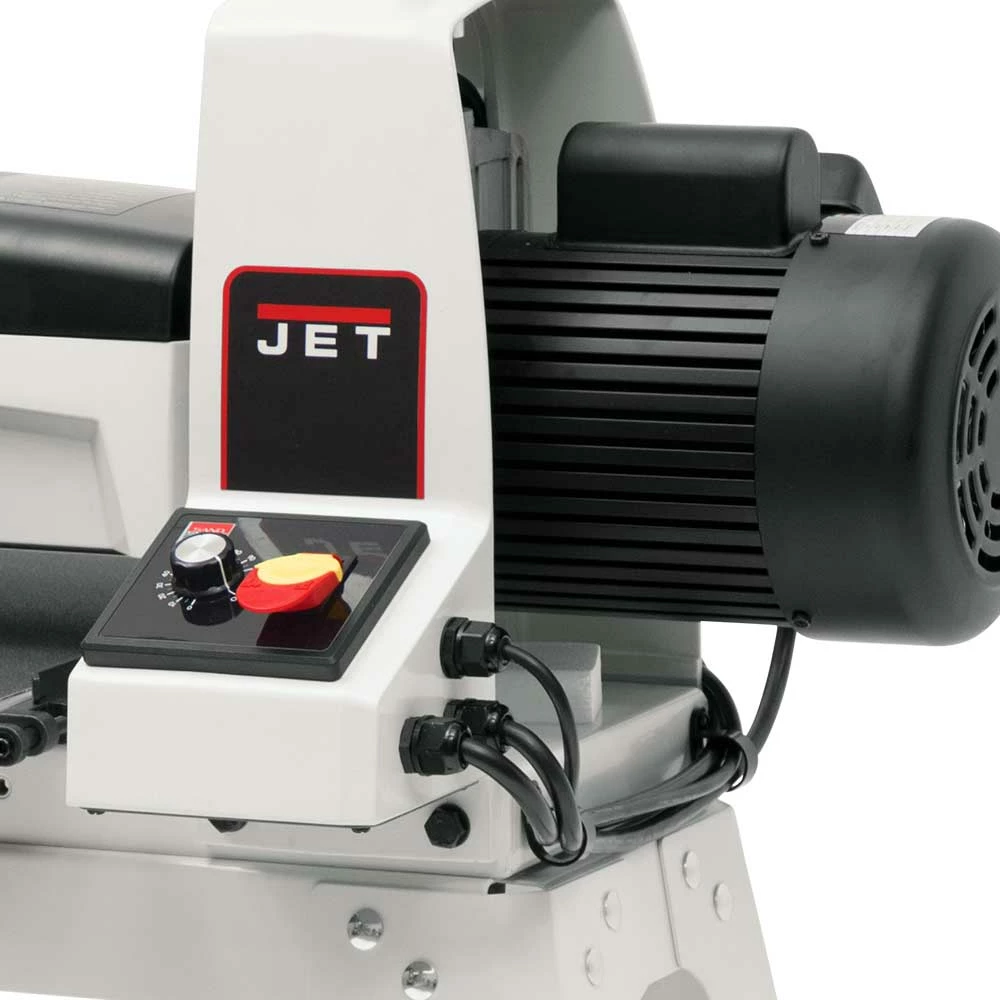

- Integrated on/off switch and variable speed control knob are conveniently located

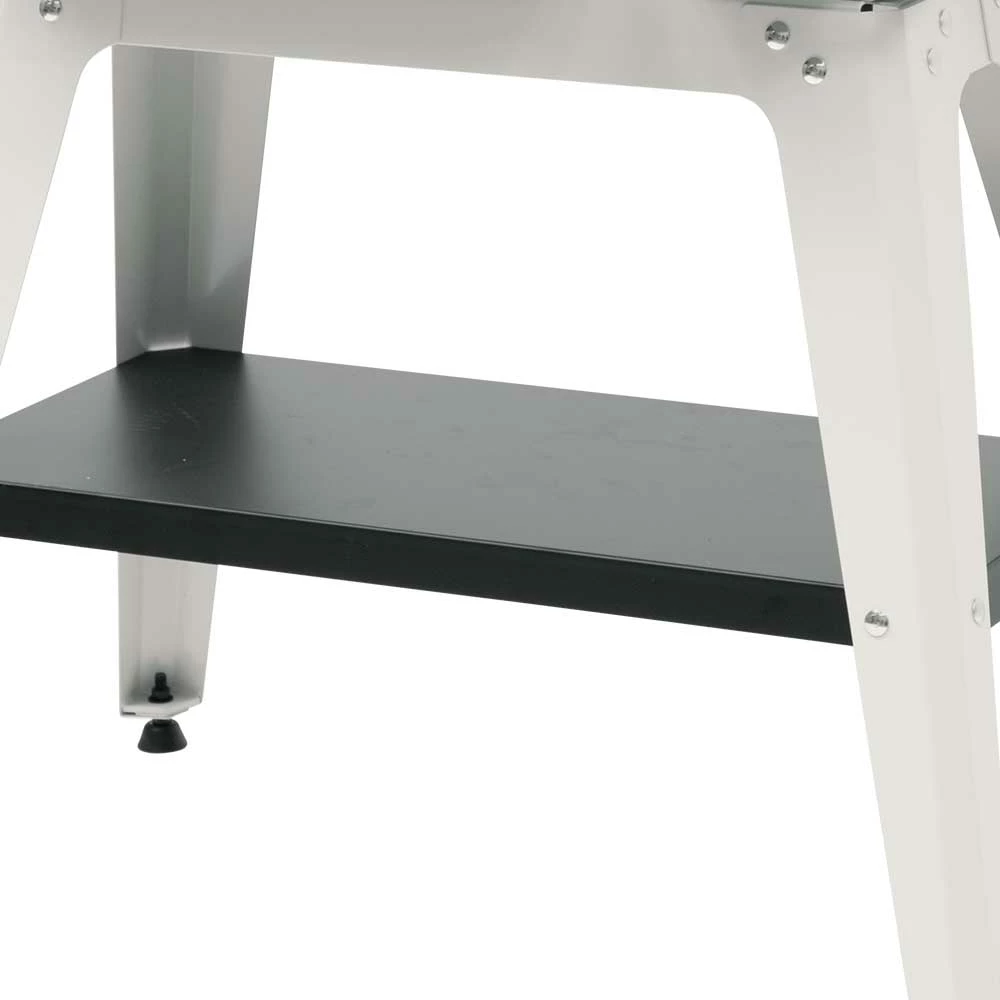

- Stand features a 20″ x 37″ footprint to increase stability and has a storage shelf and pre-drilled holes for casters
- Drum is easily removable
- Drum utilizes sealed and permanently lubricated ball bearings for longer life
What’s in The Box

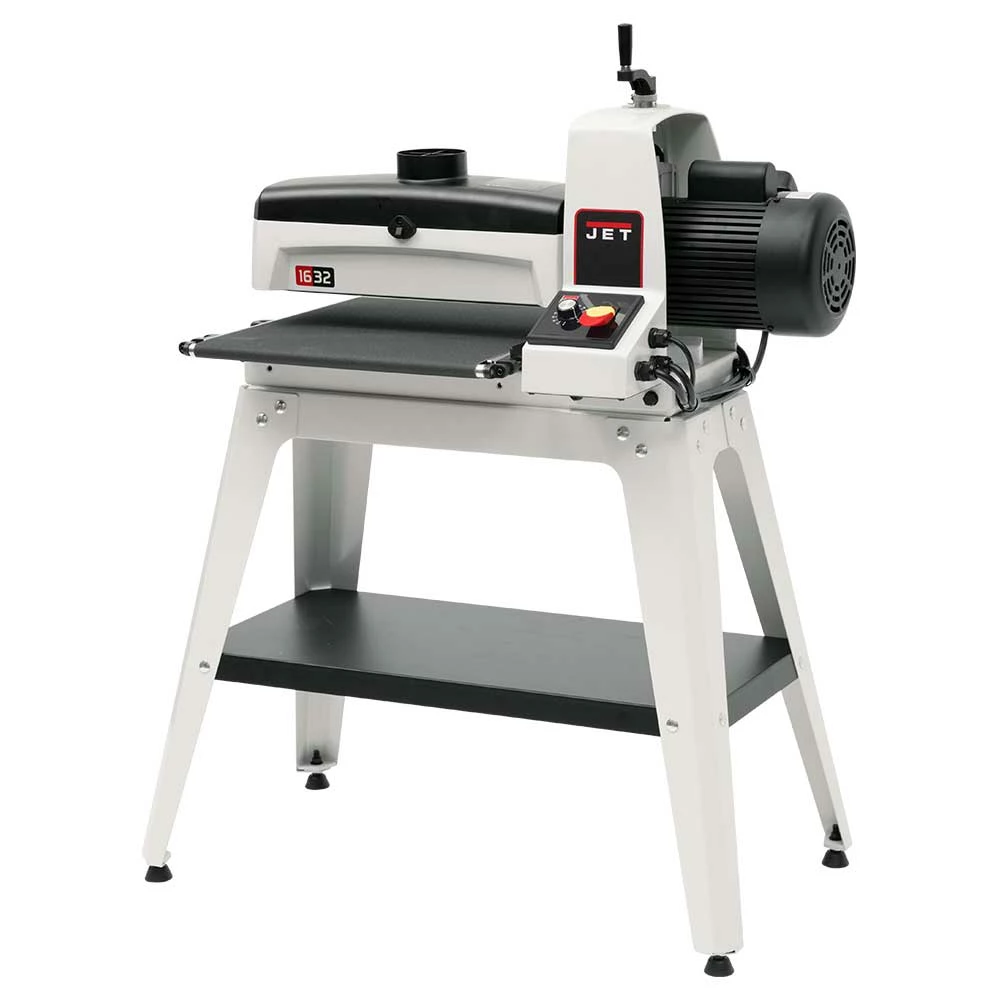

- Jet 1632 20 Amp Corded SandSmart Drum Sander w/ Woodworking Stand – 723520K
- Owner’s Manual
Warranty
- 5 Years Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 723520K |
| Brand | Jet |
| Motor Power | 1-1/2 HP |
| Motor Phase | 1 PH |
| Motor Voltage | 115V |
| Motor Amps | 14 |
| Drum Length | 16 in |
| Drum Speed | 1720 RPM |
| Conveyor Motor | 43 in-lbs torque, direct drive, dc |
| Conveyor Speed | 0-10 FPM |
| Dust Collection Minimum CFM Required | 400 |
| Dust Port Outside Diameter | 4 in |
| Recommended Circuit Size | 20 Amps |
| Drum Diameter | 5 in |
| Drum Bearing Diameter | 1 in |
| Max Board Width | 32 (two passes) |
| Minimum Board Length | 2-3/8 in |
| Minimum Board Thickness | 1/32 in |
