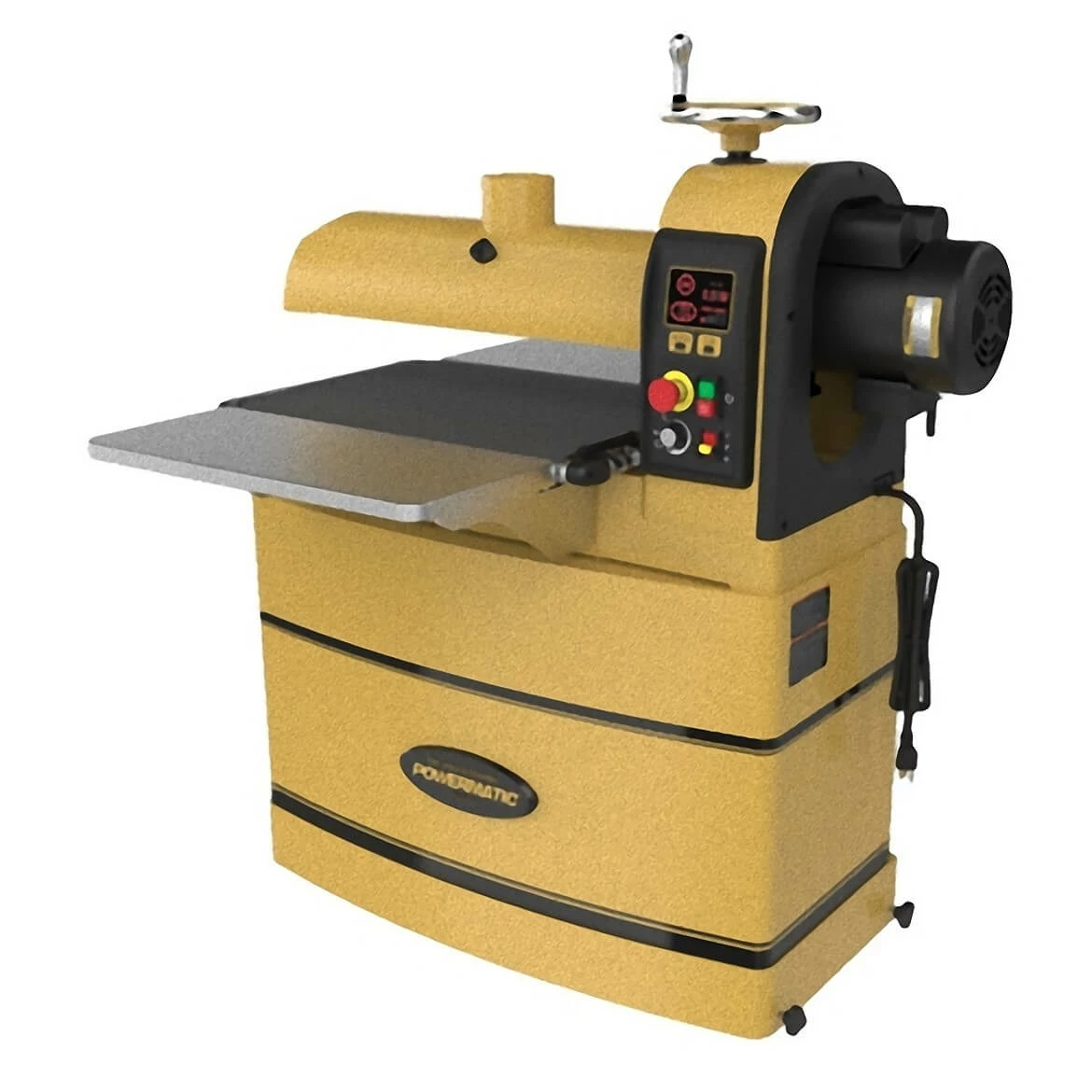

Sanders Powermatic PM2244 115-Volt 1-3/4-Hp 22-Inch Single Phase Drum Sander – 1792244

Features

• Integrated LED control panel shows power, belt speed, and digital-read-out (DRO)
• Equipped with Feed Logic to produce exceptional finish while preventing machine overload
• Secondary, absolute depth scale provides an additional height reading
• Drum carriage is cast iron to provide greater strength and consistent performance
• Steel hood with a 4 in. dust port provides excellent dust collection
• Infeed/outfeed tables proved 37-1/2 in. of support for the workpiece
• Emergency stop for quick shutoff

What’s in The Box

• PM2244 115-Volt 1-3/4-Hp 22-Inch Single Phase Drum Sander – 1792244
• Owner’s Manual

Warranty

• 5 Year – Woodworking Machinery
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 90 Days – On Parts; Consumable items
• 30 Day Satisfaction Guaranteed

Specifications

Model	PM2244
Sku	1792244
Brand	Powermatic
Length (in.)	45.6
Width (in.)	23
Height (in.)	50.35
Weight (lbs.)	418
Amperage	14A
Conveyor Speed (FPM)	0 – 10
Drum Diameter (in.)	5
Drum Length (in.)	22
Drum Speed (RPM)	1,720
Dust Port Size (in.)	4
Horsepower	1-3/4 HP
Max. Board Thickness (in.)	4
Max. Board Width (in.)	44
Min. Board Length (in.)	2-3/8
Min. Board Thickness (in.)	1-1/32
Motor Phase	1
PreWired Voltage	115
