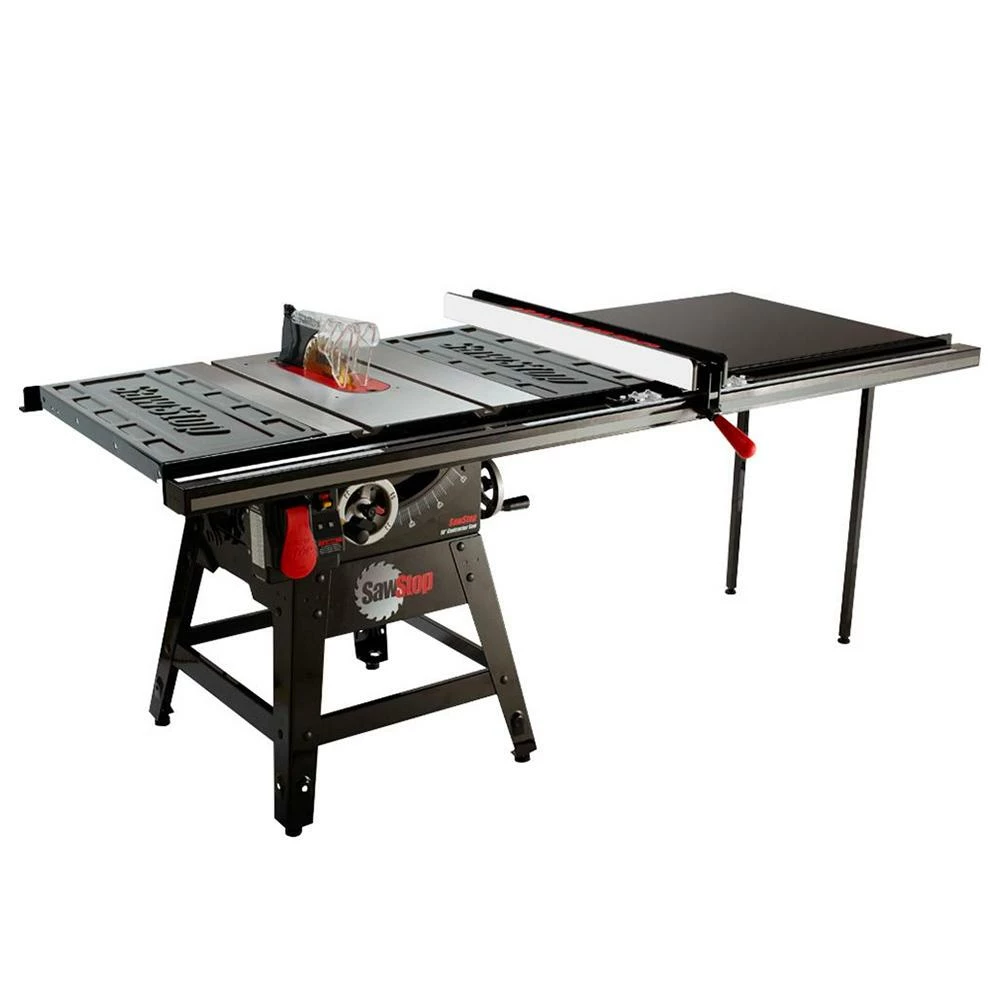

Saw Stop SawStop CNS175-TGP252 1.75Hp 52 Inch Contractor Table Saw W/ T-Glide Extension

Features

• Patented safety system prevents serious accidents and injuries to provide the highest level of safety during operation
• All purpose safety and mobility suitable for both jobsites and work shops
• Rugged 110V motor (configurable to 220V) delivers a higher level of performance and power
• Tool-free quick change mount allows for fast and easy transitions between guard and riving knifes
• Professional fence systems deliver the straightest and most accurate cuts possible
• Enhanced dust collection increases dust and debris removal to provide a cleaner and safer work environment (Includes standard Micro Blade Guard, optional Dust Collection Blade Guard Sold Separately)
• Compatible with both 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility
• Unmatched quality of construction provides a durable and reliable saw that’s built to last

What’s in The Box

• 1.75-Hp Pro Contractor Saw
• T-Glide Pro Fence
• 52-Inch T-Glide Pro Rails
• 52-Inch T-Glide Pro Table
• Owner’s Manual

Warranty

• 3-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	CNS175-TGP252
Brand	Saw Stop
Voltage	110V
Horsepower	1.75 Hp
Amperage	14A
Phase	Single
Blade Diameter	10 in.
Arbor	5/8 in.
Blade Tilt and Kerf	Left / 0.018 in.
Blade Thicknesss	0.078 in.
Max. Rip Right of Blade	52 in.
Cabinet Footprint (W x D)	19-3/8 in. x 19-3/8 in.
Cast Iron Table (W x D)	20 in. x 27 in. 44 in. x 27 in. (w/ Extension Wings)
Stamped Steel Extension Wing (W x D)	12 in. x 27 in.
Max Depth of Cut (Blade at 0-Degrees)	3-1/8 in.
Max Depth of Cut (Blade at 45-Degrees)	2-1/4 in.
Max. Rip Left of Blade	12 in.
Dado Diamter	8 in.
Dado Max. Width	13/16 in.
Arbor Diameter at Blade	5/8 in.
Main Bearing Size	62mm OD x 30mm ID
Second Bearing Size	52mm OD x 25mm ID
Table in Front of Blade	10-1/4 in.
Table Behind Blade	7-1/2 in.
Arbor Runout	0.001 in. Max. Allowable Runout
Blade Lateral Movement Over Full Elevation Range	0.006 in. Max
Table Flatness Measured Diagonally	0.010 in. Max Displacement
Deviation of Miter Gauge Indexing Stops	.025 in.
Alignment Between Spreader and Blade	0.010 in. Max Difference
Miter Slots (T-Shaped)	3/4 in. at Top 1 in. at Bottom 3/8 in. Deep
Riving Knife / Splitter Thickness	0.078 in.
Wheel Size	7 in. Diameter Cast Iron w/ Chrome Handle
Length	85-1/4 in.
Width	45 in.
Height	34-3/4 in.
Product Weight	381 lbs. (Table Saw Only)
