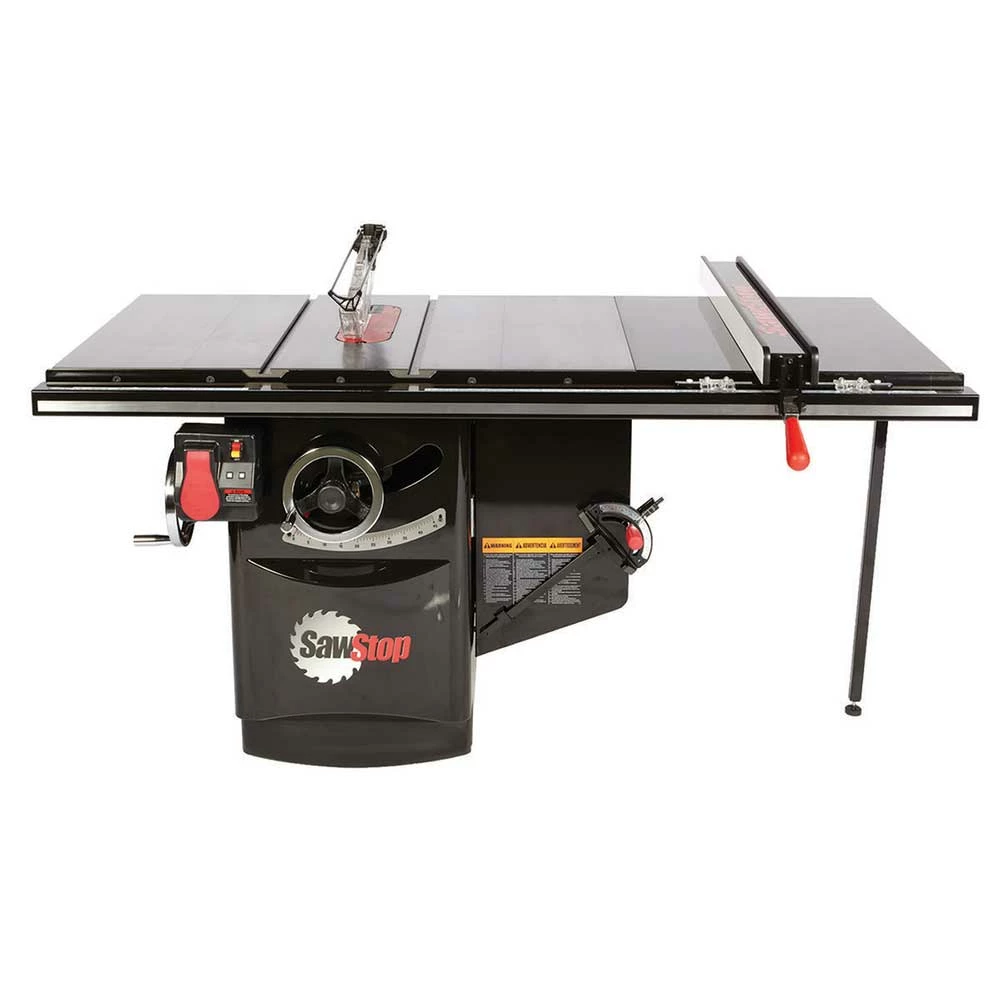

Saw Stop SawStop ICS53230-36 230V 5HP 10″ Industrial Cabinet Saw W/ 36” T-Glide System

Features

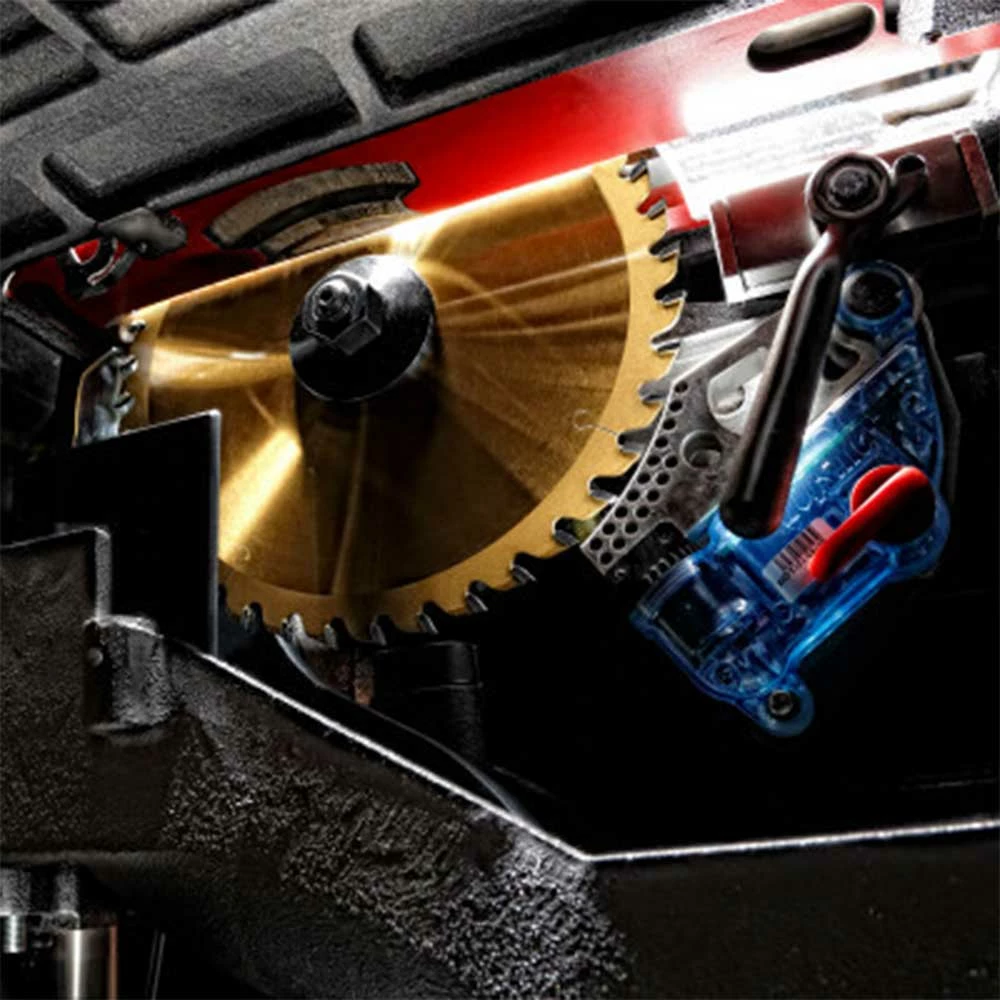

• SawStop’s patented safety system stops the blade on contact with skin, reducing the risk of serious accidents and injuries
• All purpose for workshops

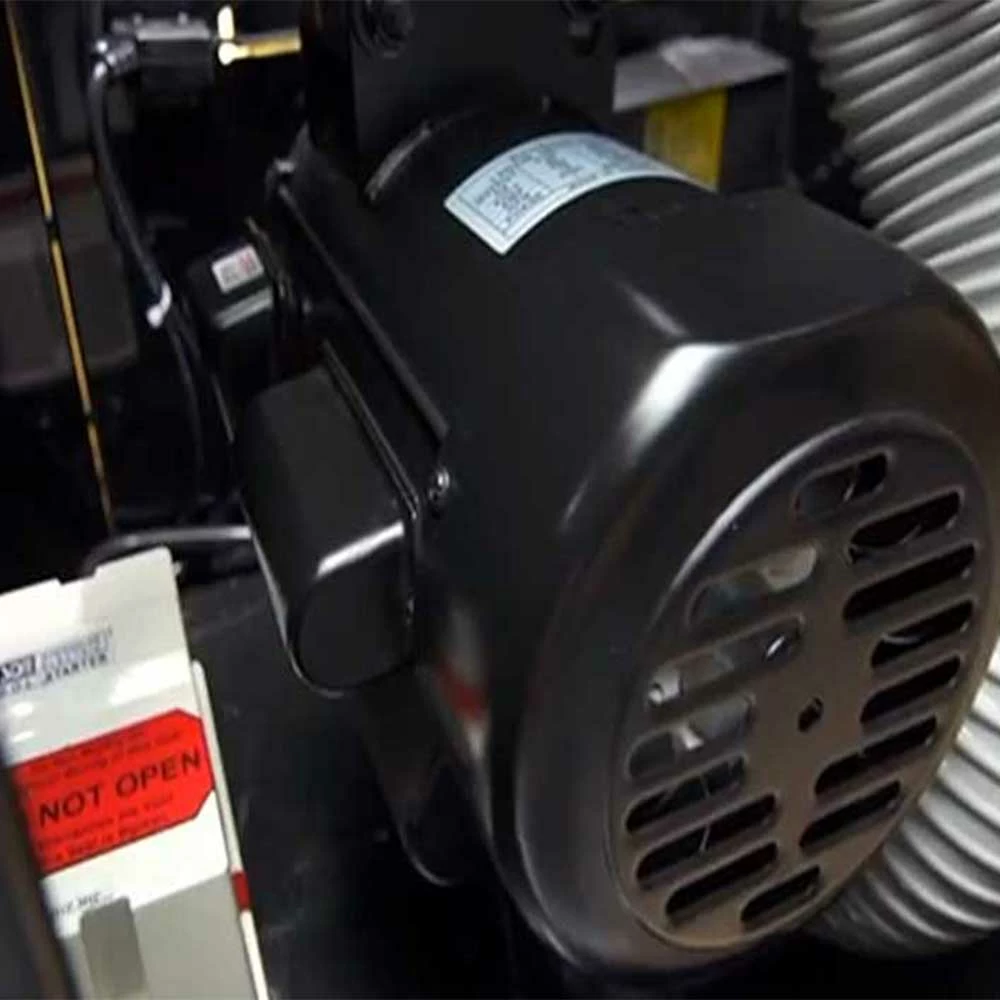

• Rugged 230V Single Phase 5 horsepower motor delivers a high level of performance and power
• Tool-free quick change mount allows for fast transitions between guard and riving knives

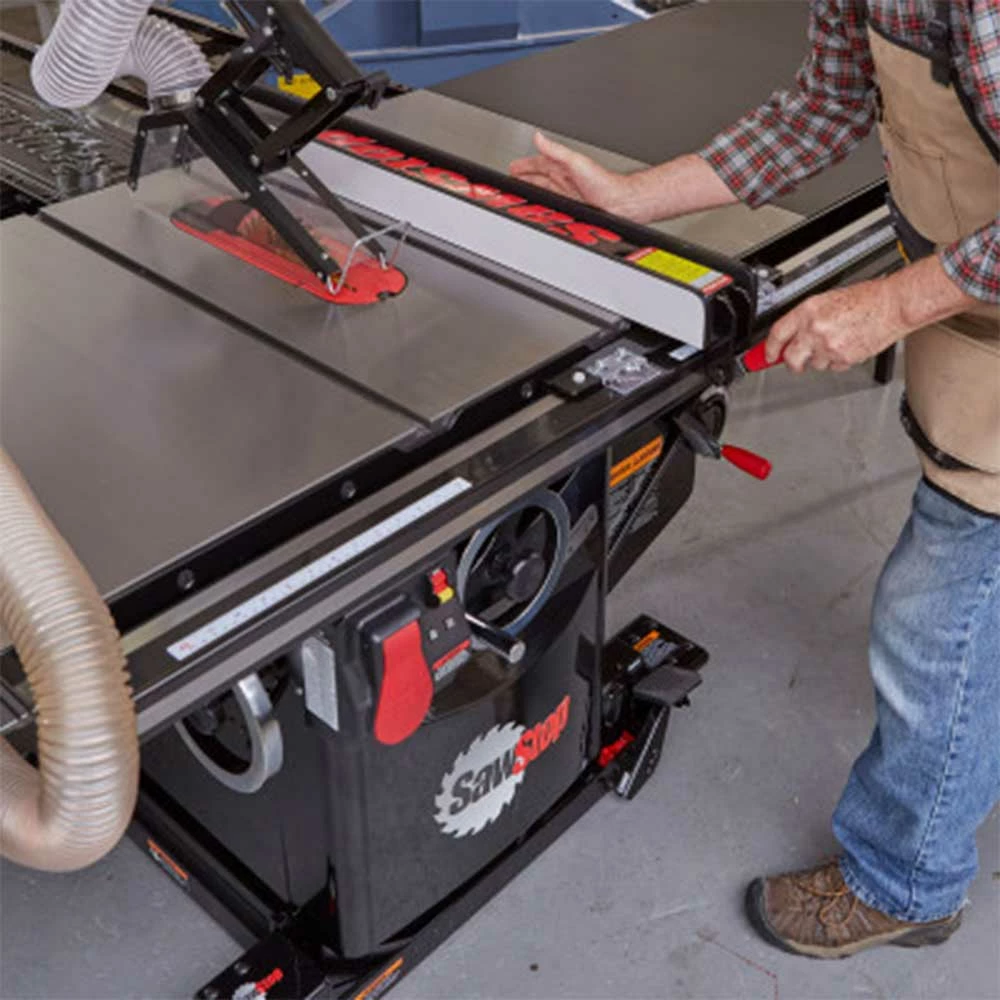

• 36″ Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection
• Industrial fence systems delivers the straightest and most accurate cuts possible
• Unmatched quality and construction provides a durable and reliable saw that’s built to last
• Compatible with 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility

What’s in The Box

• 230V Three Phase 5 HP 12 Amp Industrial Cabinet Saw -ICS53230
• T-Glide Fence Assembly – TGI2-FA
• T-Glide 36 in. Rails Assembly – TGI2-R36A
• T-Glide 36 in. Extension Table Assembly – TGI2-T36A
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	ICS53230-36
Brand	SawStop
Voltage	230 V
Amperage	13 Amps
Horsepower	5
Motor Phase	3
Power	Corded
Blade Diameter	10 Inches
Arbor Size	5/8 Inch
No Load Speed	4000 RPM
Table Type	Cost Iron
Table Width	24 in
Blade Lift	Left
Table Depth	30 in
Rip Capacity	12.5 in – Left
Rip Capacity	36 in – Right
Table Width(w/ Extension)	69-1/4 in
Blade Tilt Range	0 – 45 degrees
Depth of Cut(90 degrees)	3-1/8 in
Dado Blade Diameter	8 in
Table Width(w/ Wings)	44 in
Length	69-1/4 In
Width	36-1/2 In
Height	34 In
Weight	635 lbs
