Shop Fox W1687 3-HP 2,800 CFM Woodworking Dust Collector Collection System Tools & Equipment

Features

• Powder coated paint
• Bag volume: 10.8 cubic feet
• Air suction capacity: Approximately 2800 CFM
• 4 dust port

What’s in The Box

• W1687 SHOP FOX 3 HP 2,800 CFM Dust Collector
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

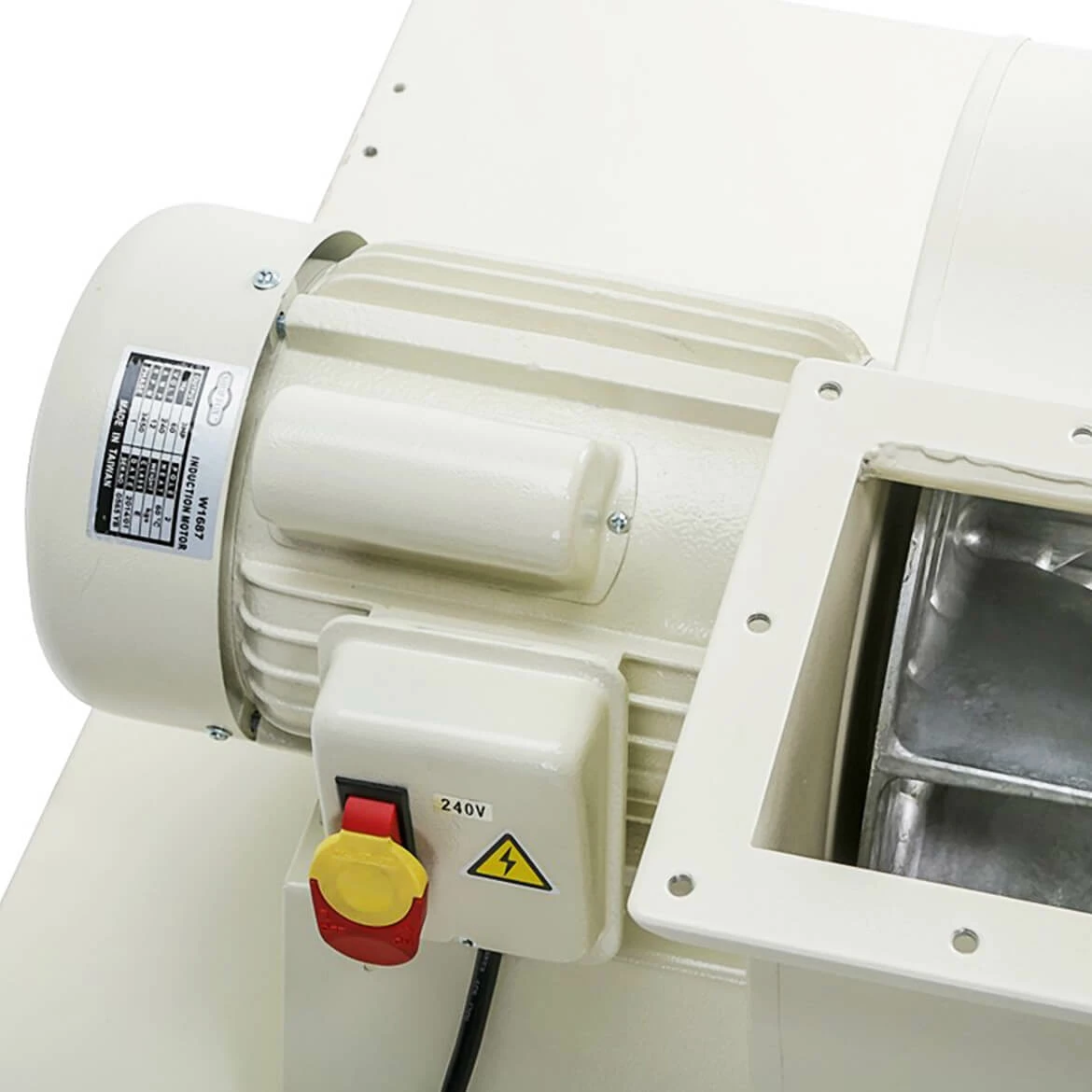

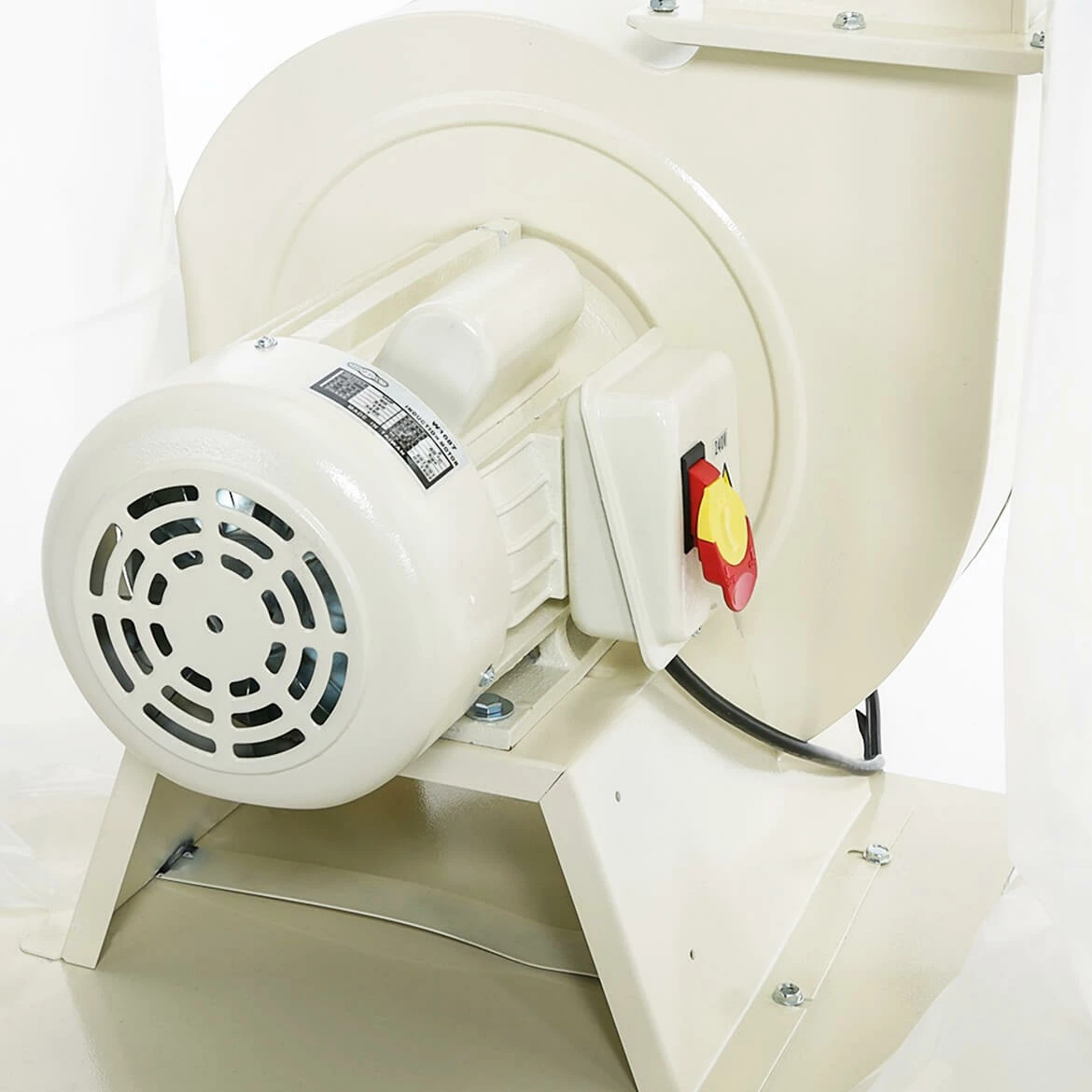

Motor:	3 HP, 240V, Single-phase, 3,450 RPM
Motor amp draw:	12A
Impeller:	13 balanced steel radial fin
Maximum inlet size:	8

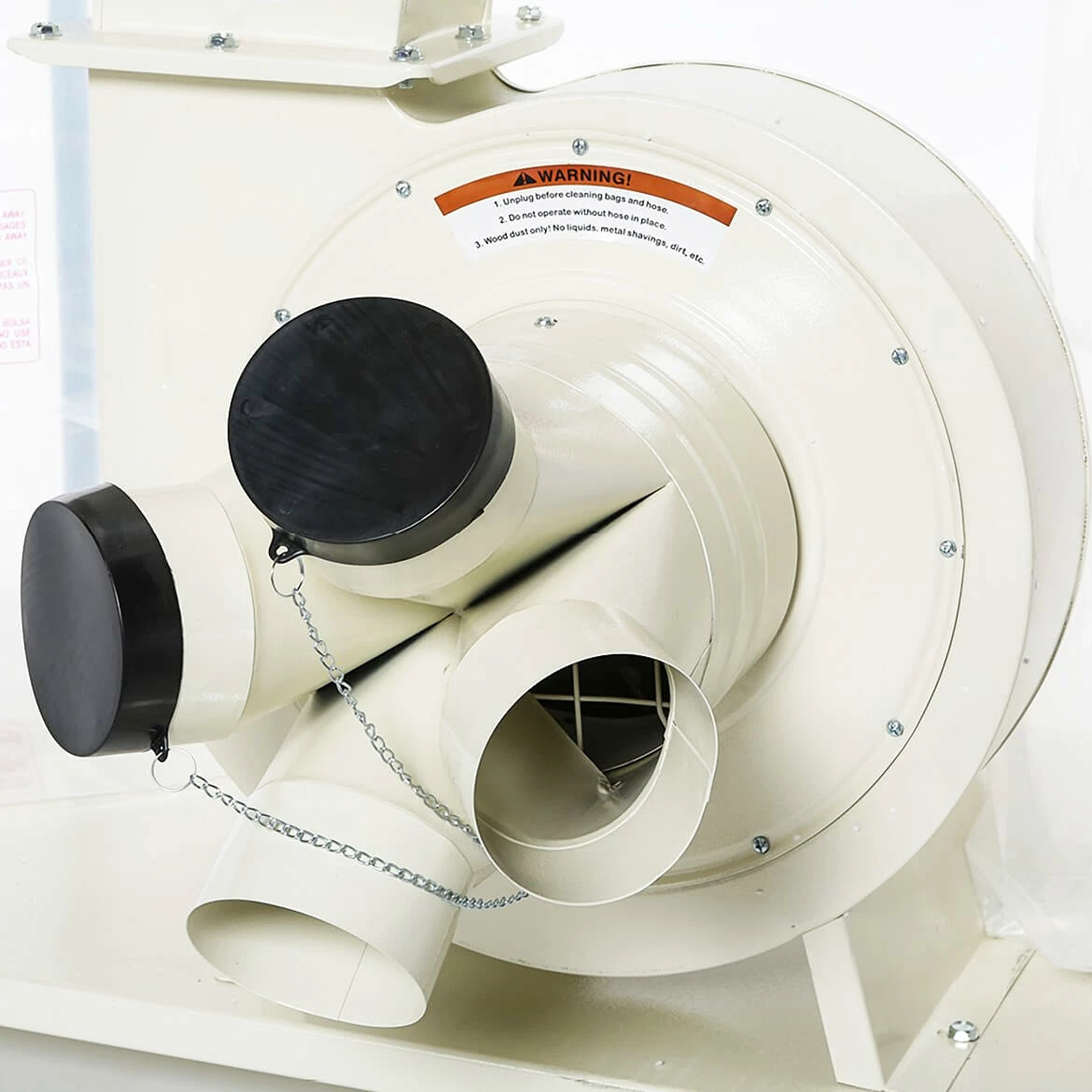

Inlet adapter:	4-way x 4 inlets
Air suction cap.:	Approx. 2,800 CFM
Static pressure:	14.4
Bag size (Dia. x depth):	19 x 33 (4)
Height (with bags inflated):	78
Bag volume:	10.8 Cubic Feet
Frame construction:	Cast iron
Standard bag filtration:	30 Micron
Approximate shipping weight:	202 lbs.
