Features
- Shielded and lubricated bearings
- Magnetic switch with thermal overload protection
- Includes extended-reach push stick
What’s in The Box

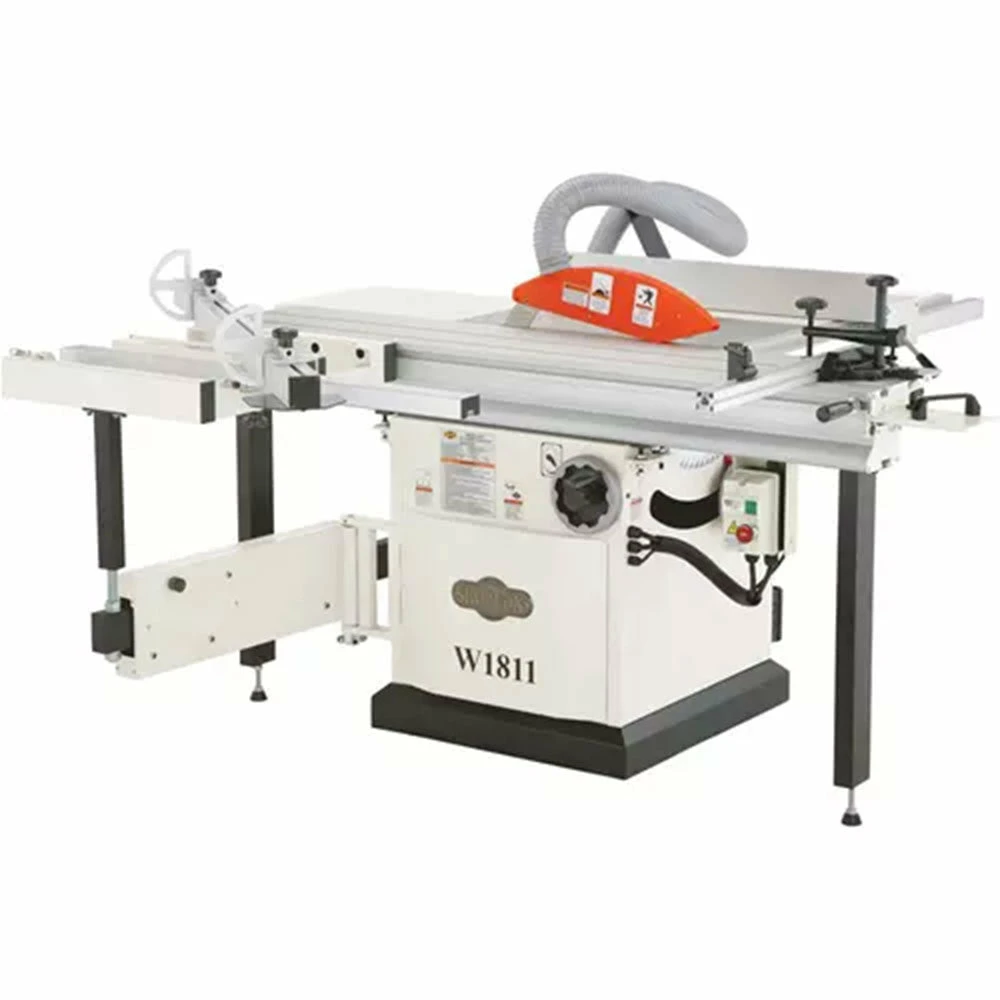

- 10″ 5 HP Sliding Table Saw – W1811
- Owner’s Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | W1811 |
| Brand | Shop Fox |
| Motor | 5 HP, 230V, single-phase, 19A |
| Blade tilt | 0° –45° |
| Main blade arbor speed | 4000 RPM |
| Main blade diameter | 10″ |
| Main blade arbor diameter | 5/8″ |
| Scoring blade diameter | 3-1/8″ |
| Scoring blade arbor diameter | 22mm |
| Scoring blade arbor speed | 8000 RPM |
| Max. dado width | 13/16″ |
| Max. depth of cut at 90°° | 3-1/8″ |
| Max. depth of cut at 45° | 2-1/4″ |
| Max. ripping width with standard rip fence | 33″ |
| Max. crosscutting width with crosscut fence | 78-1/2″ |
| Max. crosscutting length with crosscut fence | 63″ |
| Table size without extension wings | 27″ L x 14-3/8″ W |
| Table size with extension wings | 47″ L x 40″ W |
| Sliding table size | 63″L x 12-1/4″W |
| Space required for full range of movement | 123″ x 150″ |
| Dust ports | 4″ main, 2-1/2″ on blade guard |
| Overall size | 76″ L x 124-3/4″ W x 46″ H |
| Weight | 688 lbs. |
