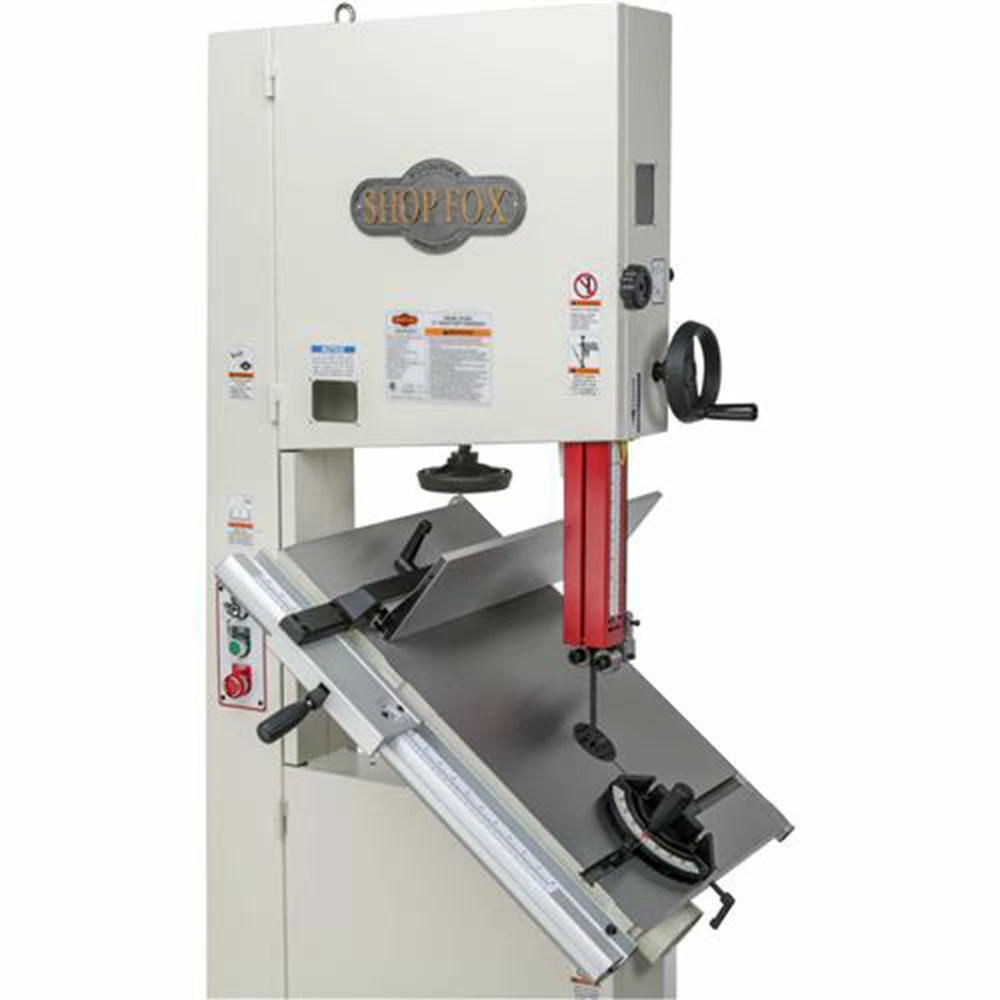

Shop Fox W1825 19″ 3 HP Heavy Duty Band Saw

Features

• Quick-change blade release/tensioning
• Blade tension indicator
• Rack-and-pinion table tilt mechanism

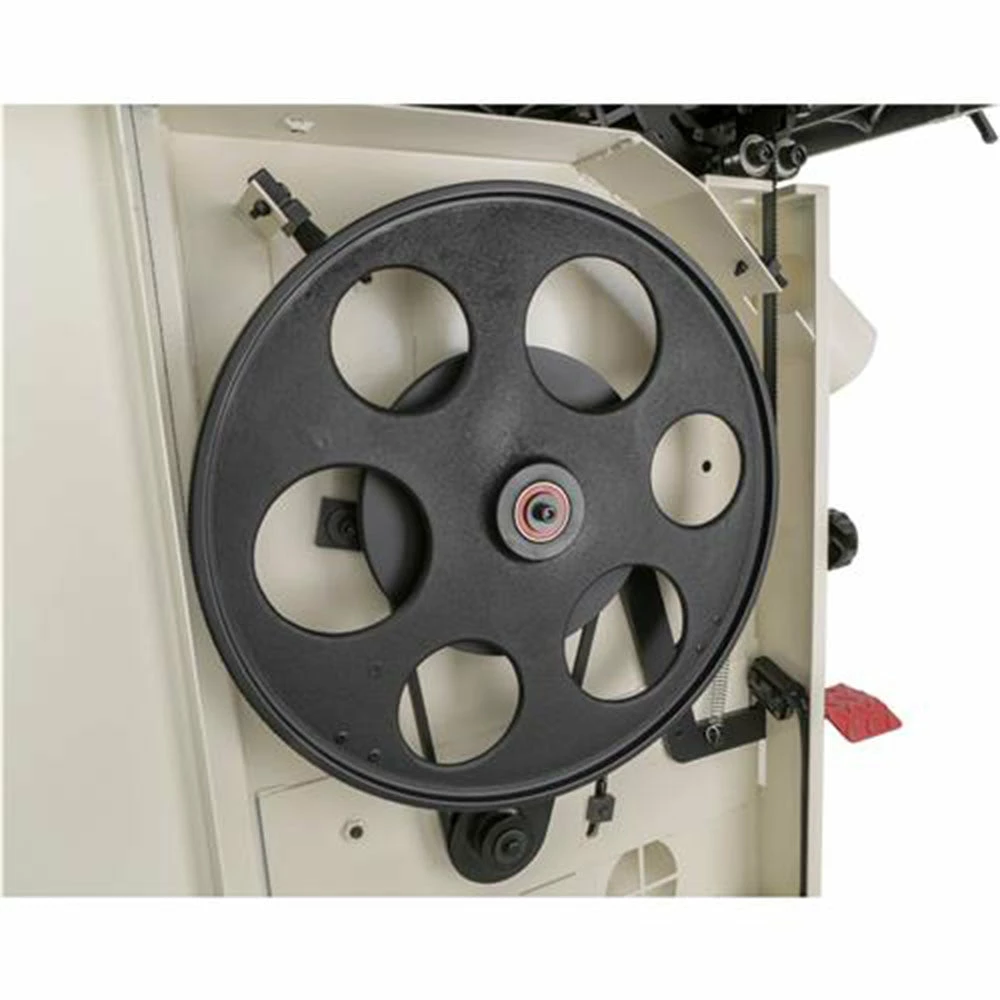

• Computer-balanced cast-iron wheels
• Height scale measurement
• Fence with scale and magnifying window
• Deluxe cast-iron fence with deluxe extruded-aluminum resaw fence
• Miter gauge
• Two 4″ dust ports
• Rack-and-pinion upper guide adjustment
• Foot brake
• Cast-iron trunnion
• Key lockout safety switch
• Includes 3/4″ hook-style blade

What’s in The Box

• 19″ 3 HP Heavy Duty Bandsaw – W1825
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	W1825
Brand	Shop Fox

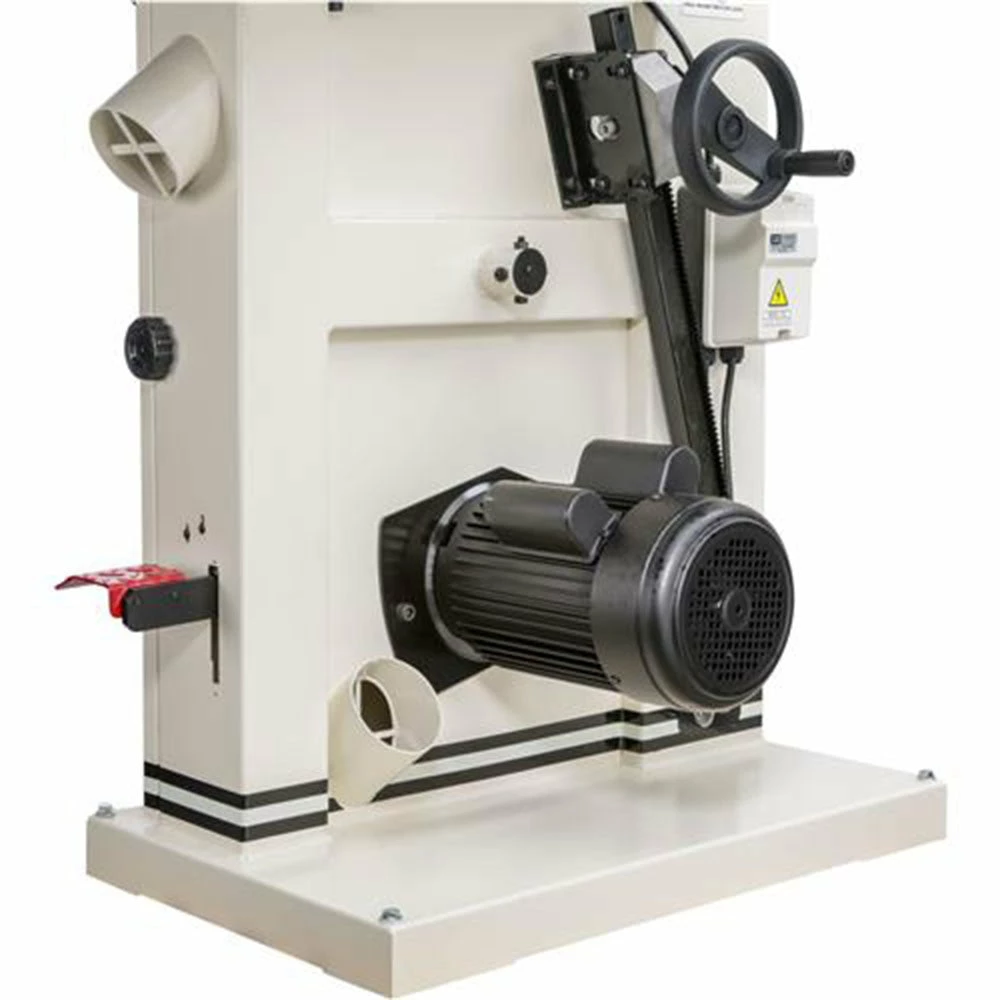

Motor	3 HP, 220V, single-phase, TEFC capacitor start-induction
RPM	1725
Precision-ground cast-iron table size	26-3/4″ x 19″ x 1-1/2″ thick
Floor to table height	37-1/2″
Cutting capacity/throat	18-1/4″
Maximum cutting height	12″
Blade length	143″
Blade length range	141-1/2″ – 143″
Blade width range	1/8″ – 1-1/4″
2 Blade speeds	1700, 3500 FPM
Wheels	computer-balanced cast-iron with polyurethane tires
Wheel covers	pre-formed, hinged steel
Blade guides	dual ball bearings with full enclosure protection
Motor bearings	sealed and permanently lubricated
Table tilt	5° left, 45° right
Overall size	36″W x 76″H x 32″D
Weight	500 lbs.
