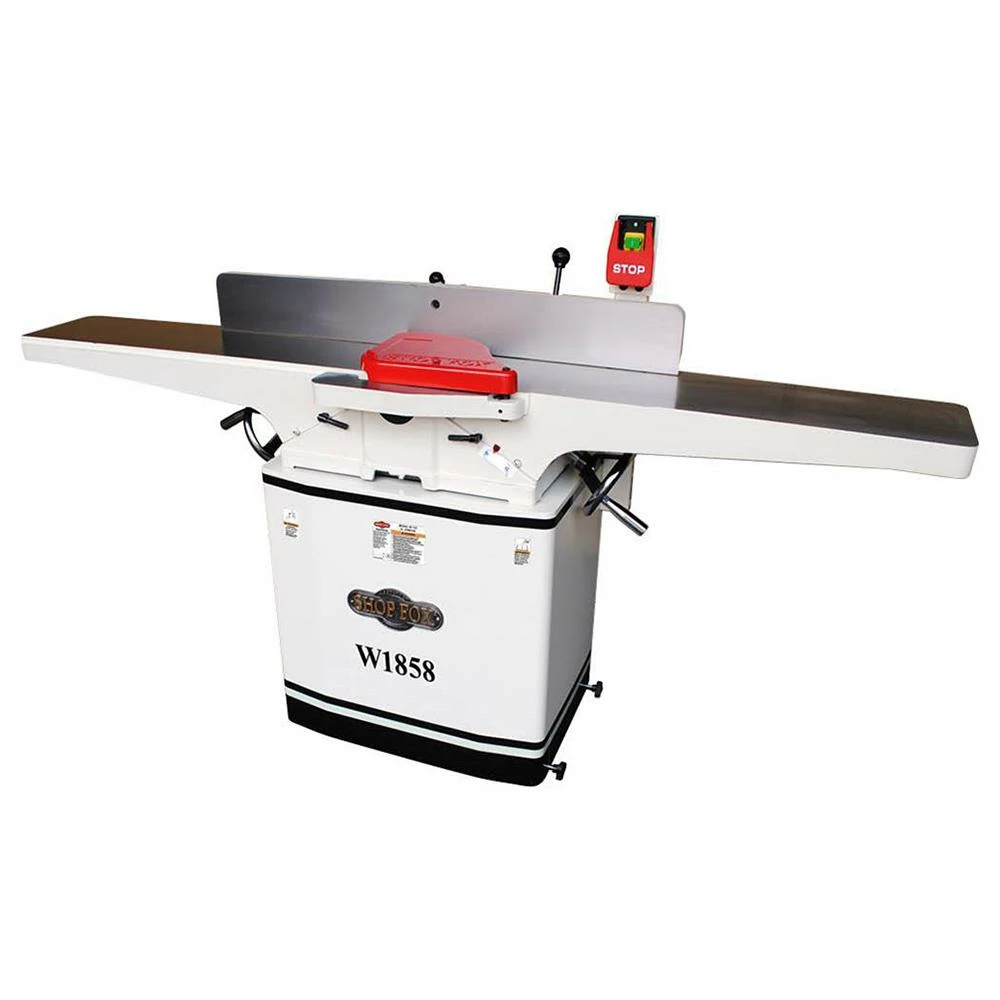

SHOP FOX W1858 8 Inch X 72 Inch Mobile Spiral Cutterhead Dovetail Jointer Tools & Equipment

Features

• Beds Slide on Dovetailed Ways
• Handwheel?Adjusted Tables with Depth Gauge
• Pedestal?Mounted Power Switch for Easy Access
• Center?Mounted Fence
• 4 Dust Port with Built?In Dust Chute
• Spiral Cutterhead with 36 Indexable Carbide Inserts
• Precision?Ground Cast?Iron Tables
• Sturdy Cabinet Stand with Built?In Mobile Base
• Rabbeting Table
• 72 Bed
• Sealed and Permanently Lubricated Bearings
• Powder?Coated Finish

What’s in The Box

• 8-Inch Dovetail Jointer w/ Helical Cutterhead
• Mobile Base
• (2) Push Blocks
• (5) Replacement Indexable Carbide Inserts
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	W1858
Brand	Shop Fox
Voltage	230V
Horsepower	3 Hp
Phase	Single
Cutterhead Type	Spiral
Cutterhead Diameter	3-1/16 in.
Number of Cutter Spirals	4
Number of Indexable Cutters	36
Cutterhead Speed	5,500 Rpm
Table Size	8 in. x 72 in.
Fence Size	4-5/8 in. x 38 in.
Max. Depth of Cut	1/8 in.
Rabbeting Capacity	1/2 in.
Power Transfer	V-Belt drive
Fence System	Positive Stops
Cutter Insert (Length x Width)/(Thickness)	15mm x 15mm / 2.5mm
Fence (Length x Width x Height)	38 in. x 1-1/4 in. x 4-5/8 in.
Footprint (Length x Width)	23-1/2 in. x 17 in.
Width (Side to Side)	72-1/2 in.
Depth (Front to Back)	25-1/2 in.
Height	42 in.
Product Weight	335 lbs.
