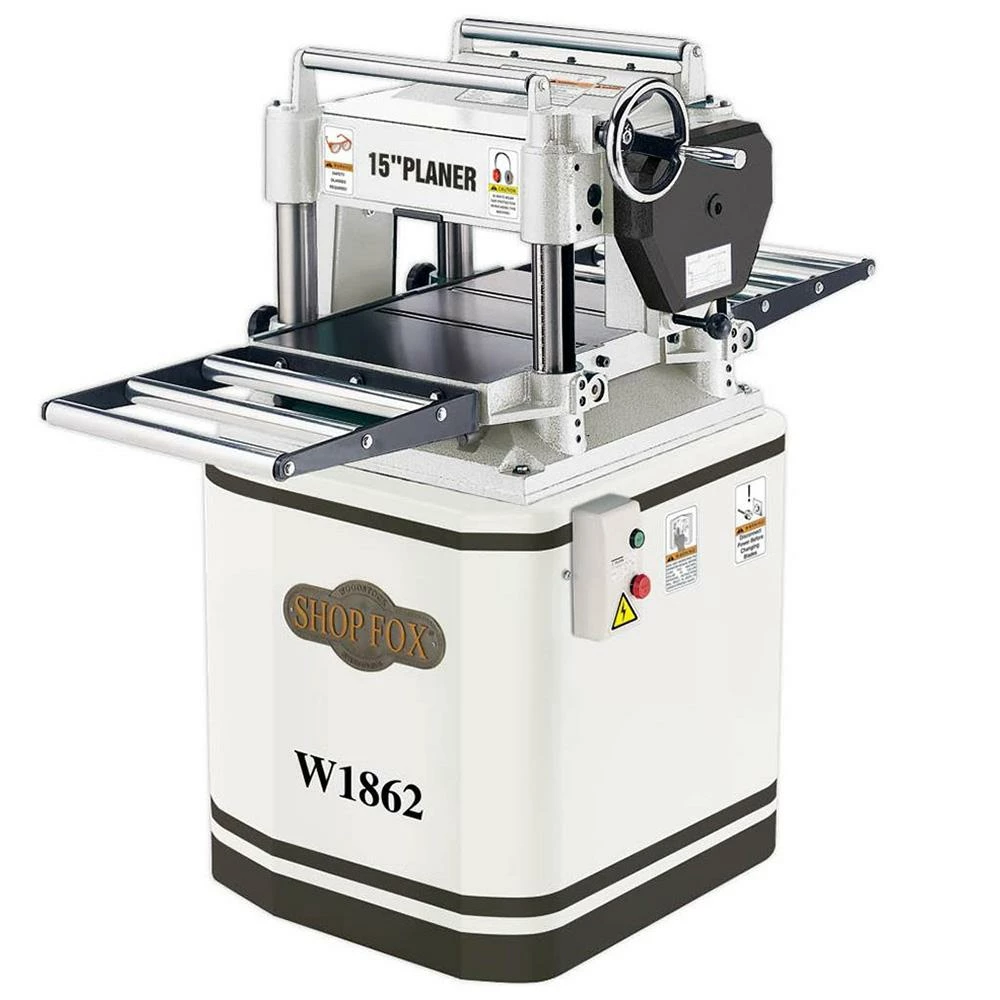

Shop Fox W1862 240 Volt 15 Inch 3 Hp Single Phase Three Knife Stationary Planer Tools & Equipment

Features

• Motor: 3 HP, 240V, 15A, single-phase
• Maximum cutting width: 15
• Maximum cutting height: 6
• Minimum stock thickness: 3/16
• Minimum stock length: 8
• Maximum depth of cut: 1/8
• Feed rate: 16 FPM and 20 FPM
• Cutterhead diameter: 3
• Knives: 3 HSS (15 x 1 x 1/8)
• Cutterhead speed: 5000 RPM
• Infeed rollers: solid serrated steel
• Outfeed rollers: knurled steel
• Table size: 15 x 20
• Precision-ground cast-iron table
• Ball bearing infeed and outfeed extension rollers
• Magnetic switch overload protection
• Locking table
• 4 Dust port
• Triple V-belt driven cutterhead
• 2-Speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Approximate shipping weight: 541 lbs.
• CSA Certified

What’s in The Box

• 15-Inch 3-Hp Single Phase Stationary Planer
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	W1862
Brand	Shop Fox
Size	15 in. x 1 in. x 1/8 in.
Knives	2 HSS
Horsepower	3 Hp
Voltage	240V
Amperage	15A
Phase	Single
Max. Cutting Width	15 in.
Max. Cutting Height	6 in.
Min. Stock Thickness	3/16 in.
Min. Stock Length	8 in.
Max. Depth of Cut	1/8 in.
Feed Rate	16 Fpm and 20 Fpm
Cutterhead Diamter	3 in.
Cutterhead Speed	5,000 Rpm
Infeed Rollers	Solid Serrated Steel
Outfeed Rollers	Knurled Steel
Table Size	15 in. x 20 in.
Table Material	Precision-Ground Cast-Iron
Infeed and Outfeed Extension Rollers	Ball Bearing
Dust Port Size	4 in.
Cutterhead Drive	Triple V-Belt
Feed Rollers	2-Speed Chain Driven
Shipping Weight	541 lbs.
