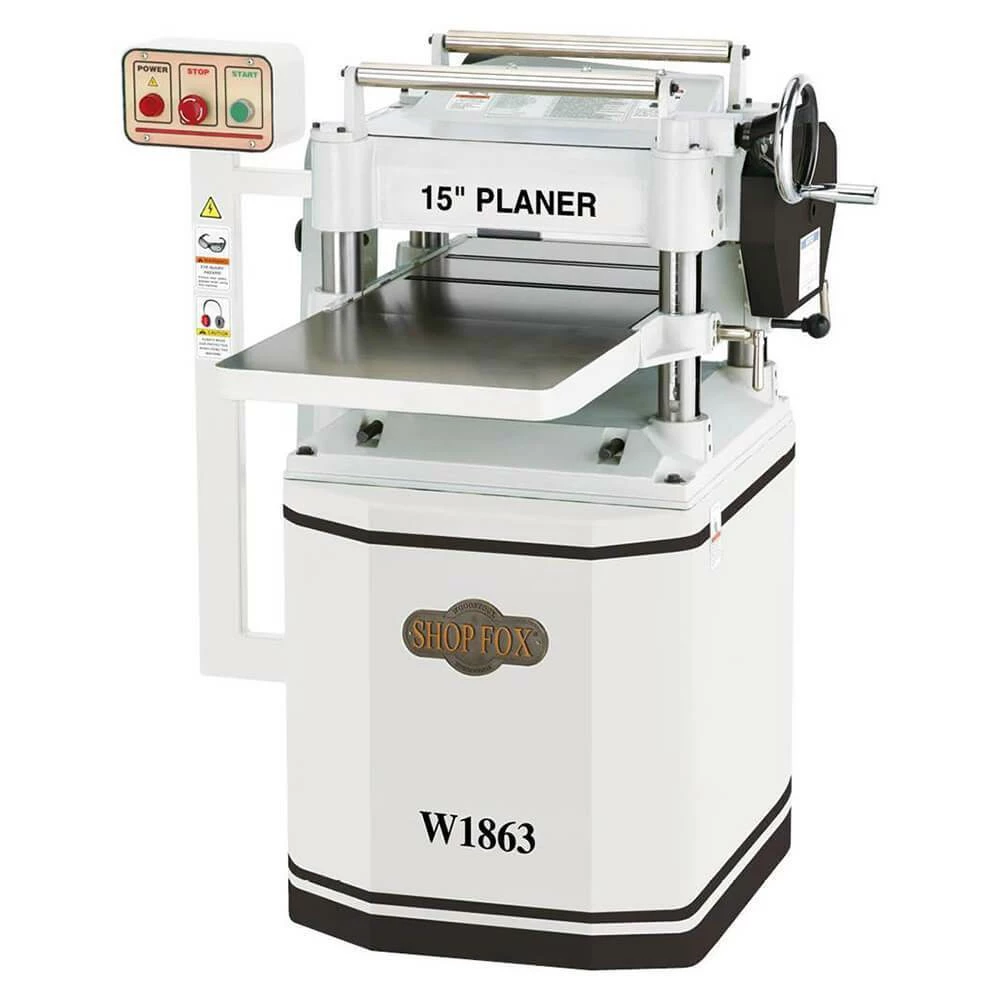

Shop Fox W1863 12-Inch X 15-Inch 3-Hp Spiral Cutterhead Wood Planer Tools & Equipment

Features

• Spiral cutterhead with triple V-belt drive
• 2-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Precision-ground cast-iron table and extension wings
• Locking table
• Magnetic switch overload protection
• Ball bearing return rollers
• Depth scales in both inch and metric
• Pedestal-mounted control panel
• Motor: 3 HP, 240V, 15A, single-phase
• Maximum cutting width: 15″
• Maximum cutting height: 6″
• Minimum stock thickness: 3/16″
• Minimum stock length: 6″
• Maximum depth of cut: 1/8″
• Feed rate: 16 FPM and 20 FPM
• Cutterhead diameter: 3″
• Cutterhead inserts: 52
• Cutterhead flutes: 4
• Infeed rollers: solid serrated steel
• Outfeed rollers: knurled steel
• Table size with extension wings: 15″ x 48″
• Dust port: 4″
• Approximate shipping weight: 581 lbs.
• CSA certified

What’s in The Box

• 15-Inch Stationary Planer w/ Spiral Cutterhead
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	W1863
Brand	Shop Fox
Horsepower	3 Hp
Voltage	240V
Amperage	15A
Phase	Single
Max. Cutting Width	15 in.
Max. Cutting Height	6 in.
Min. Stock Thickness	3/16 in.
Min. Stock Length	6 in.
Max. Depth of Cut	1/8 in.
Feed Rate	16 Fpm and 20 Fpm
Cutterhead Diamter	3 in.
Cutterhead Inserts	52
Cutterhead Flutes	4
Table Size w/ Extension Wings	15 in. x 48 in.
Dust Port	4 in.
Product Weight	581 lbs.
