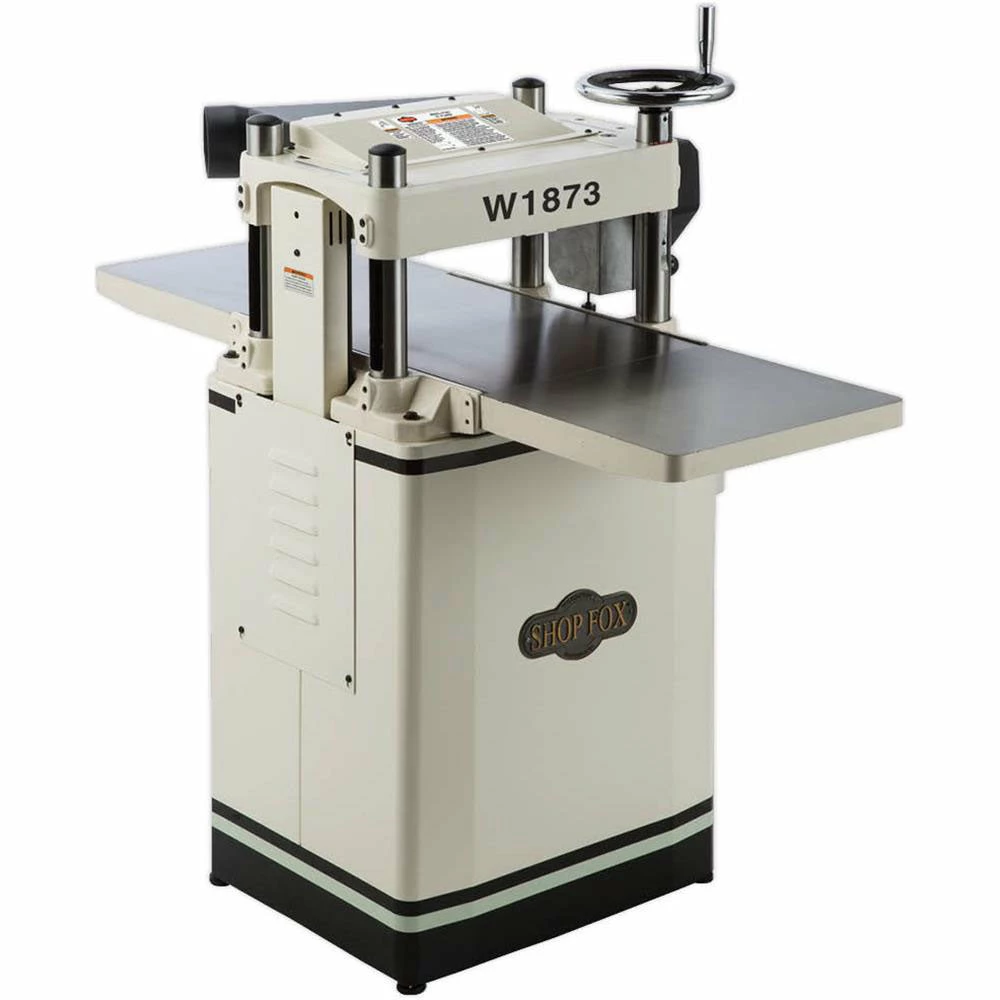

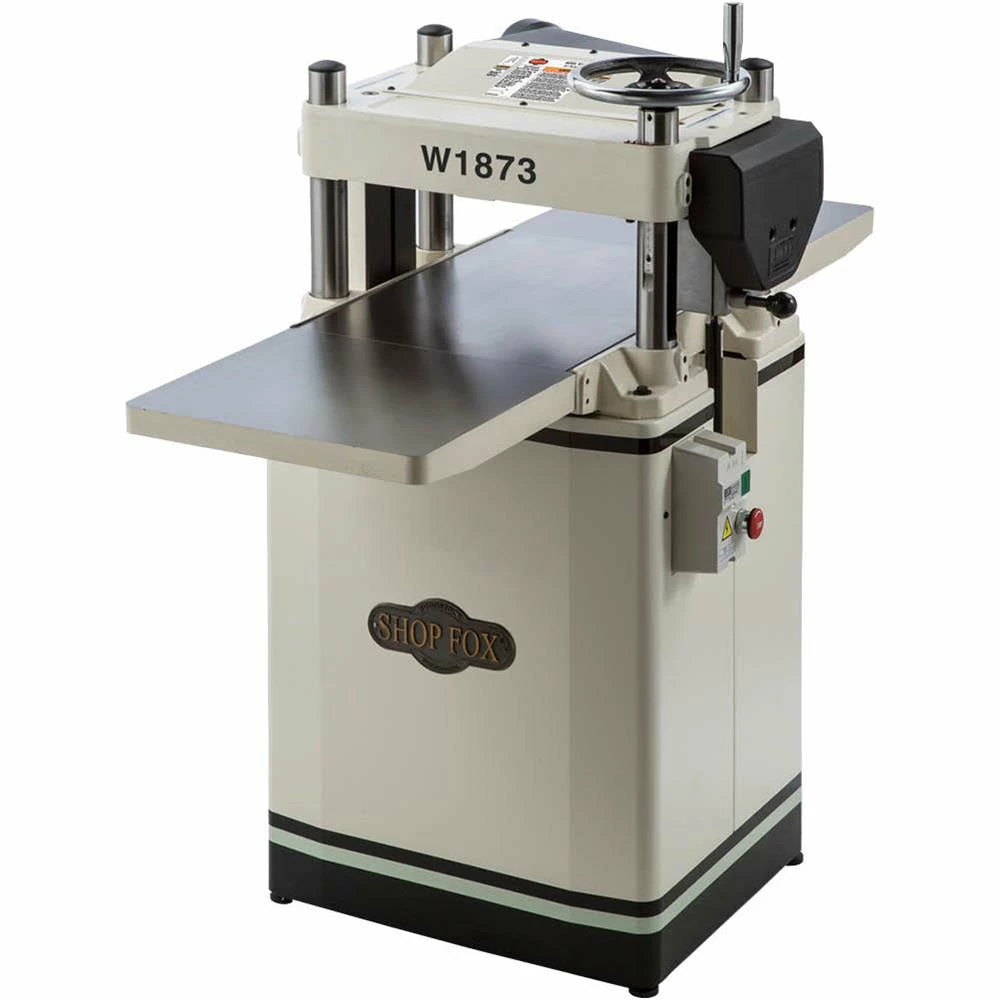

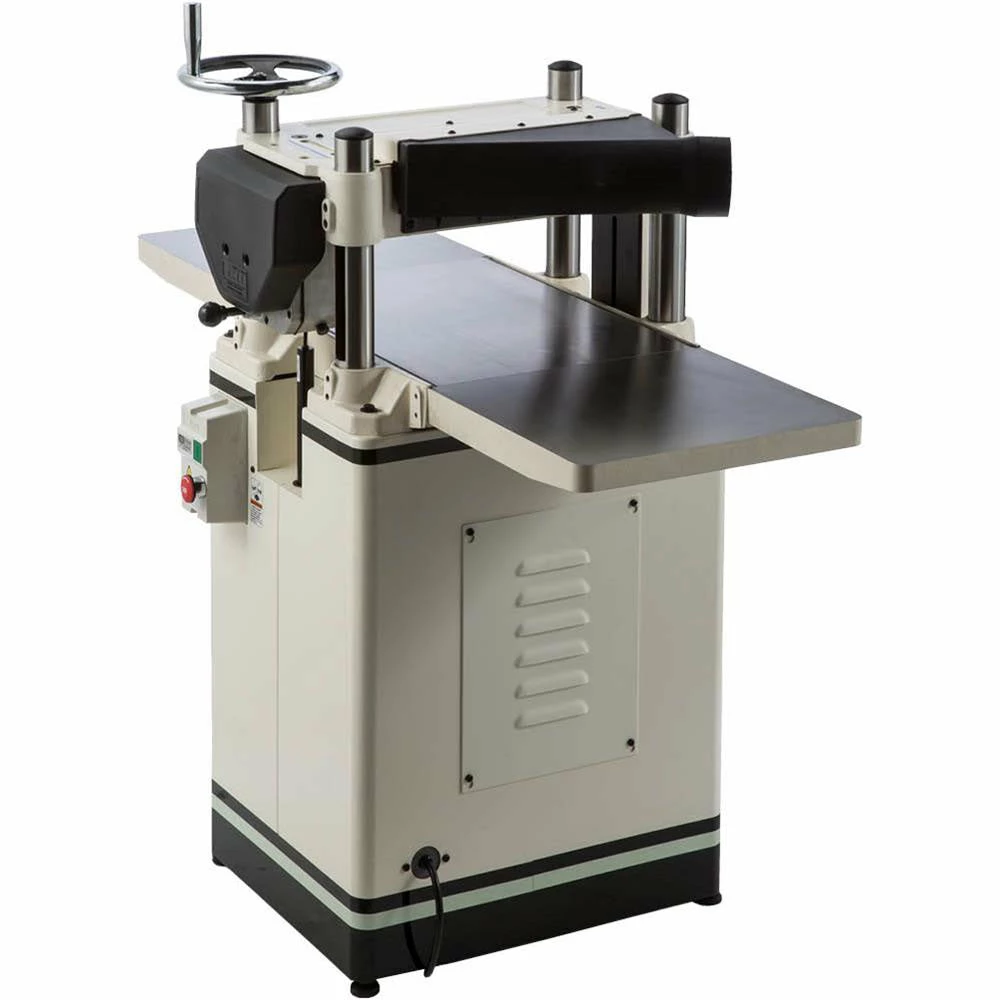

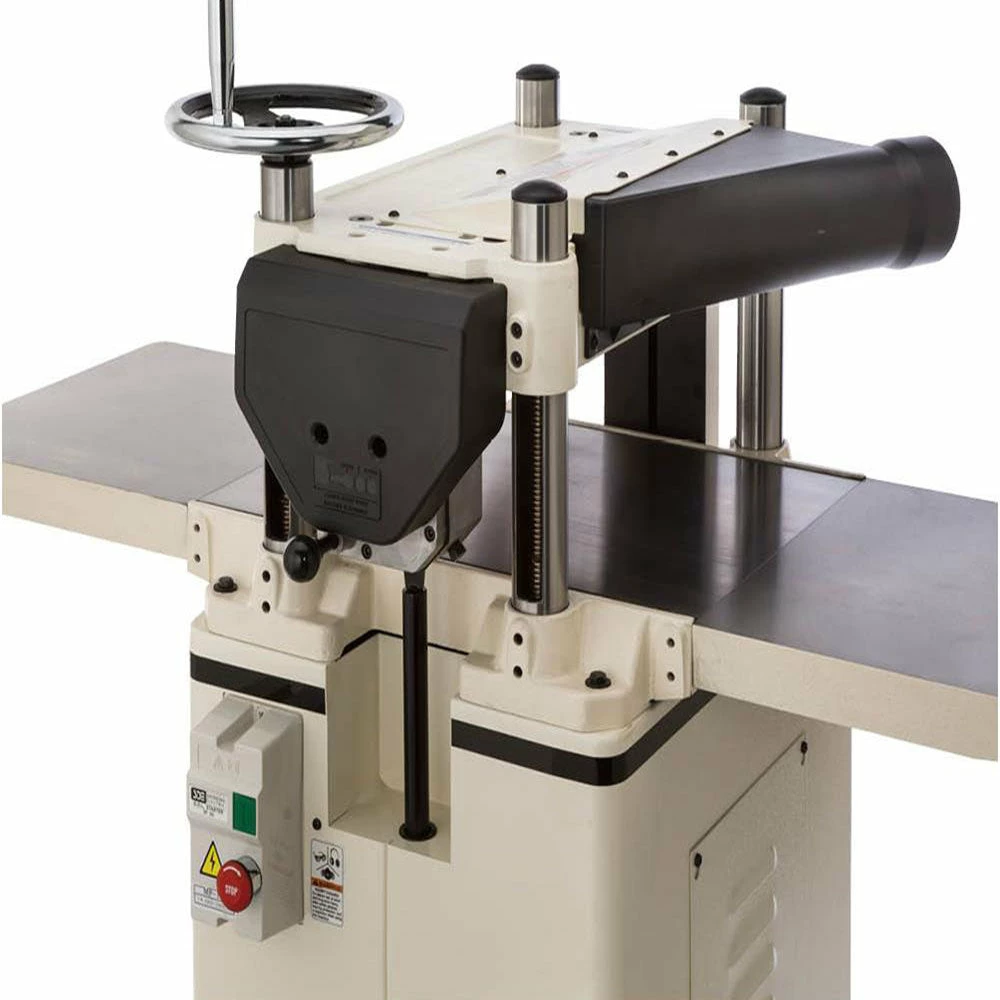

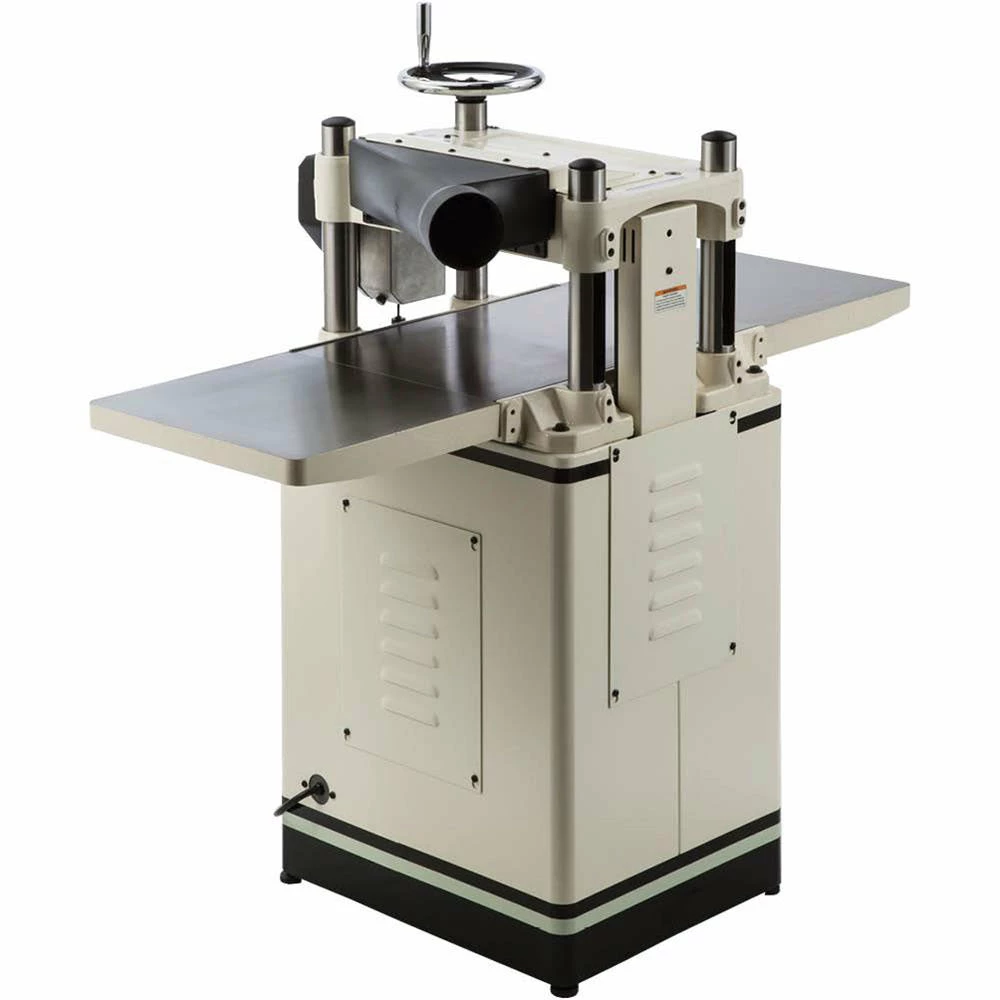

Shop Fox W1873 230V 3-HP 15” 2-Speed Fixed-Table Planer Tools & Equipment

Features

• Oil bathed 2-speed gearbox
• Four heavy-duty support columns
• Fixed table height design

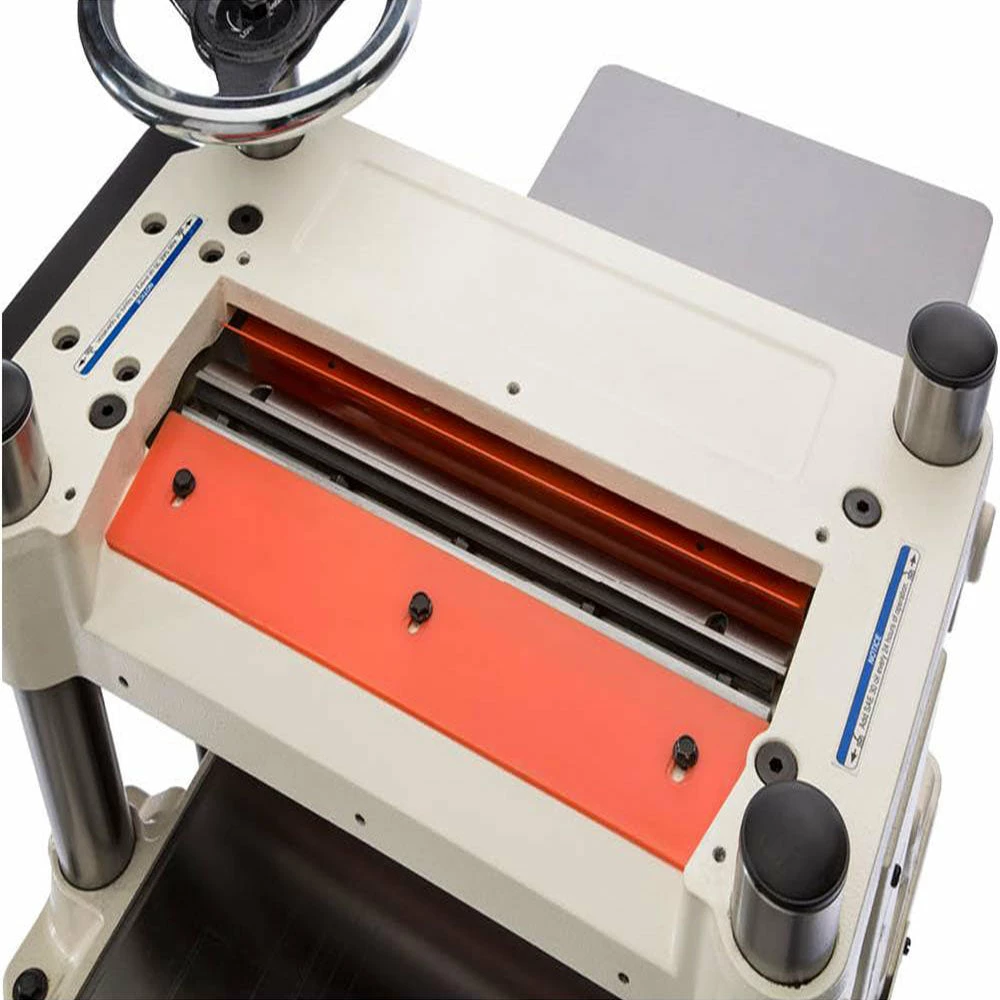

• Includes 5 spare carbide inserts
• Anti-kickback fingers
• Cast-iron extension wings
• Elevation scale with both inch and metric
• Magnetic switch

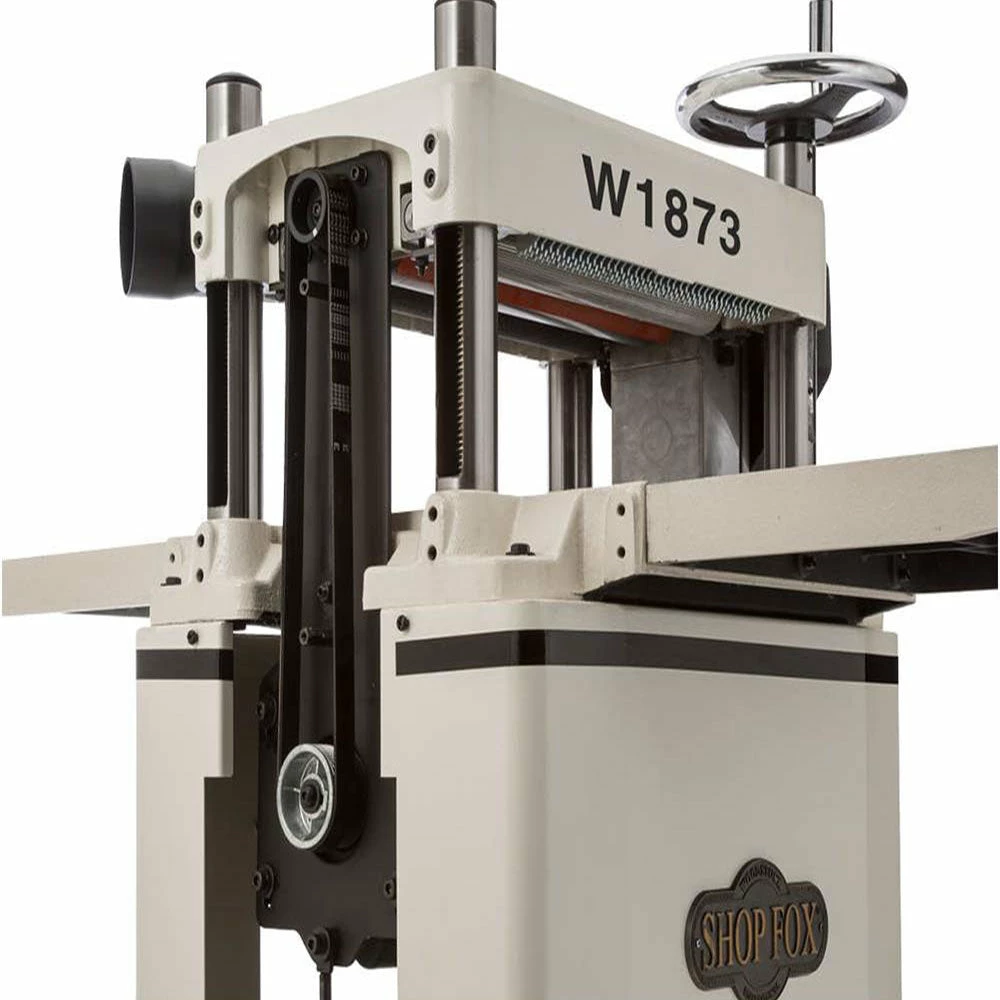

• Poly-V belt drive
• Cabinet-style stand
• Large top-mounted handwheel

What’s in The Box

• Shop Fox 15 in 2-Speed Fixed-Table Planer – W1873
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	W1873
Brand	Shop Fox
Volts	230V
Motor HP	3
Motor Phase	Single Phase
Table Size w/cast iron wings(in)	15-1/2 W x 49 L
Max Cutting Height	6 in
Max Cutting width	15 in
Min Cutting Height	3/16 in
Max Cutting Depth	1/8 in
Min Length os Stock	6 in
Feed Rates	16, 28 FPM
Cutterhead Diameter	2-5/8 in
Cutterhead Speed	5200 RPM
Width	25 in
Depth	49 in
Height	47-1/2 in
Weight	300 lbs
