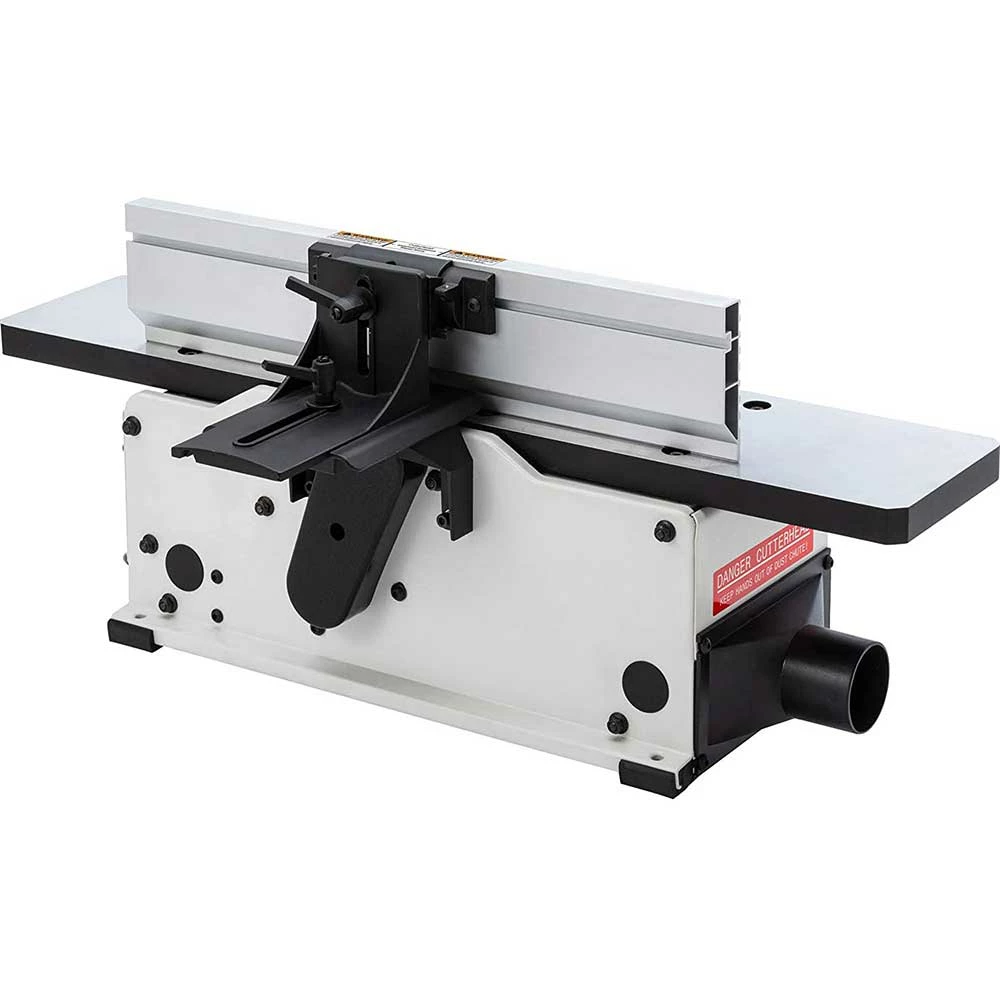

Shop Fox W1876 6″ Corded Heavy Duty Benchtop Jointer W/ Spiral-Style Cutterhead

Features

• Motor: 1-1/2 HP, 120-Volt, single-phase, 10 Amp
• Maximum depth of cut: 1/8 in.
• Maximum with of cut: 6 in.
• Cutterhead type: spiral-style with 12 two-sided indexable inserts
• Cutterhead speed: 12,000 RPM
• Table size: 6-1/4 x 30
• Dust port size: 2-1/2 in.
• Dimensions: 30 x 17-1/2 x 13-1/2 in.
• Carbide insert size: 14mm x 14mm x 2mm

What’s in The Box

• 6″ Bench Jointer w/ Spiral Style Cutterhead
• Owner’s Manual

Warranty

• 3 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	W1876
Brand	Shop Fox
Horsepower	1-1/2
Volts	120V
Phase	Single
Speed	19000 RPM
Power Transfer	Belt
Full Load Current Rating	10A
Minimum Circuit Size	15A
Connection Type	Cord and Plug
Power Cord Length	6 ft
Power Cord Gauge	18 AWG
Plug Included	Yes
Jointer Size	6 in
Bevel Jointing	0 – 45 degrees
Max Width of Cut	6 in
Max Depth of Cut	1/8 in
Cuts Per Minute	12000
Width	30 in
Depth	17-1/2 in
Height	13-1/2 in
Weight	43 lbs
