Features
- 4200 PSI @ 4.0 GPM
- PowerBoost Technology
- Fully adjustable unloader system with ergonomic control

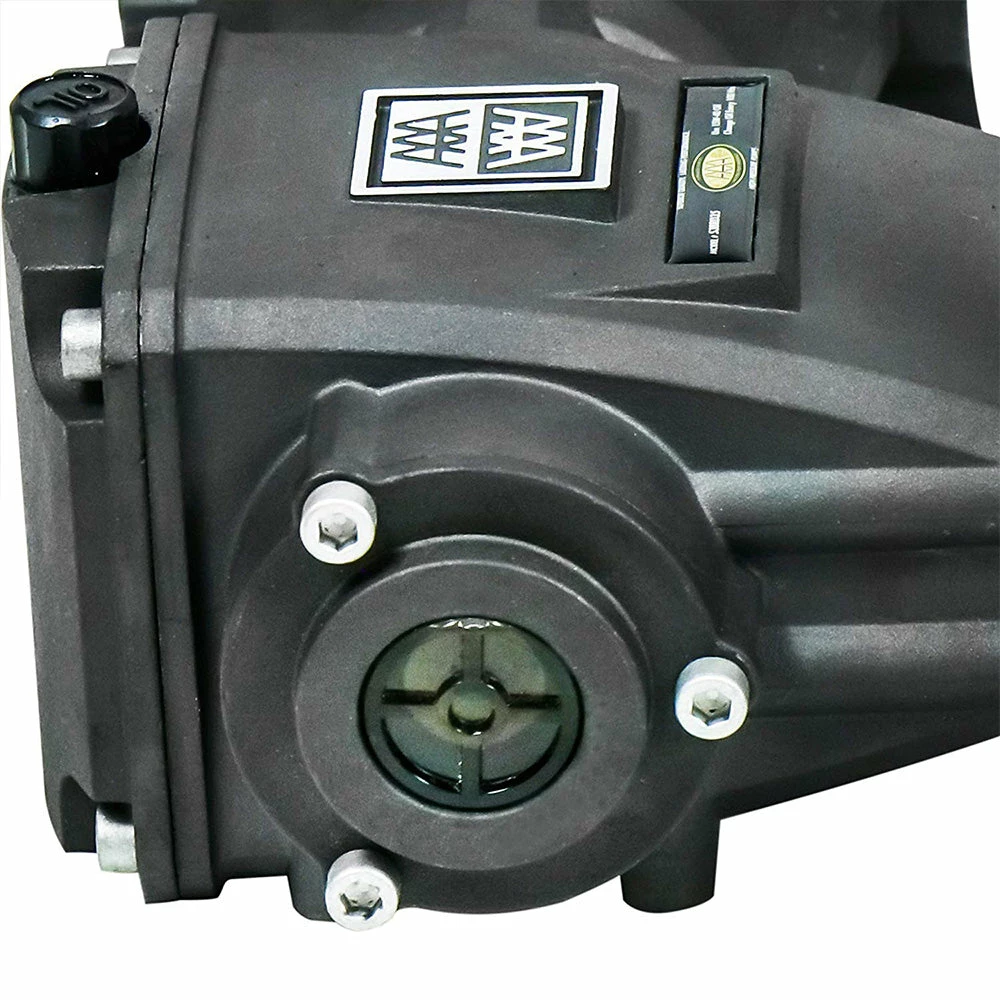

- Sight glass and advanced oil seal technology, does away with the need for a dipstick
- Thermal relief protection to prevent pump overheating
- Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life
- Crankcase is manufactured from fully anodized die cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure

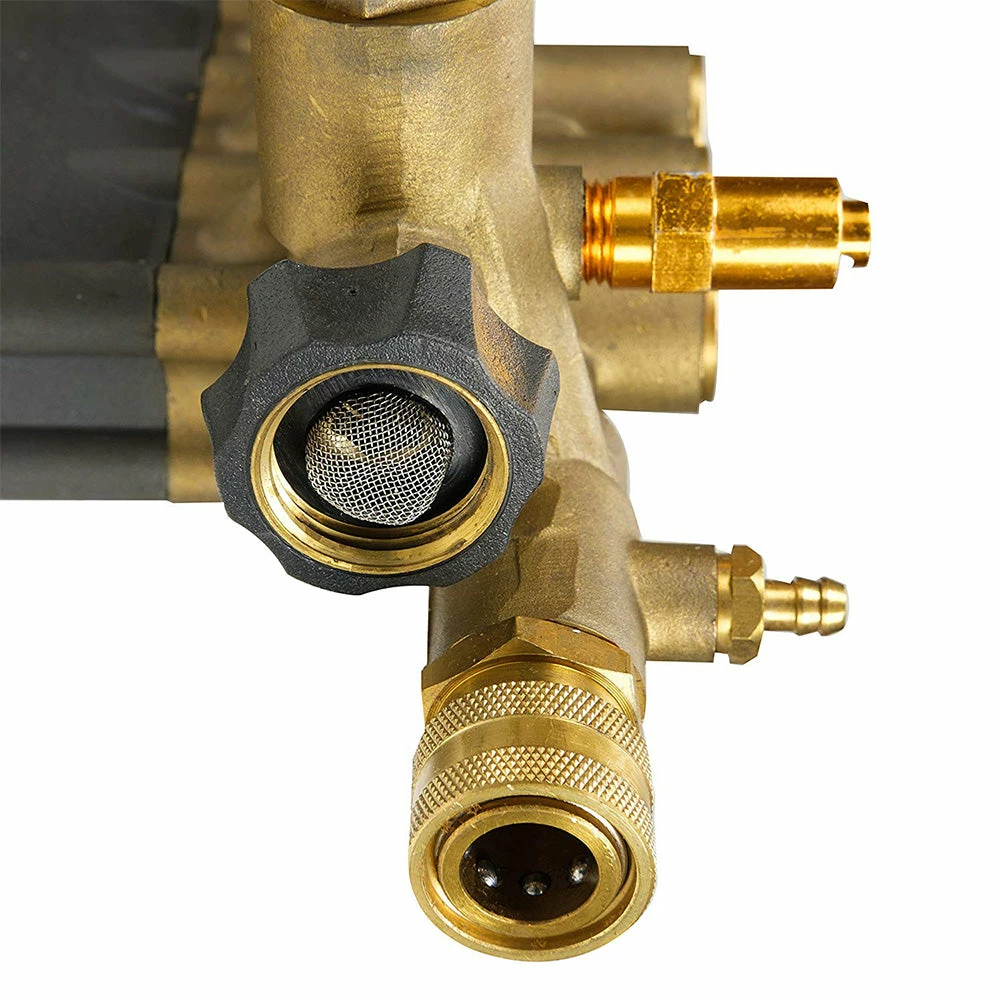

- Quick Connect outlet for easy connection to the pressure hose

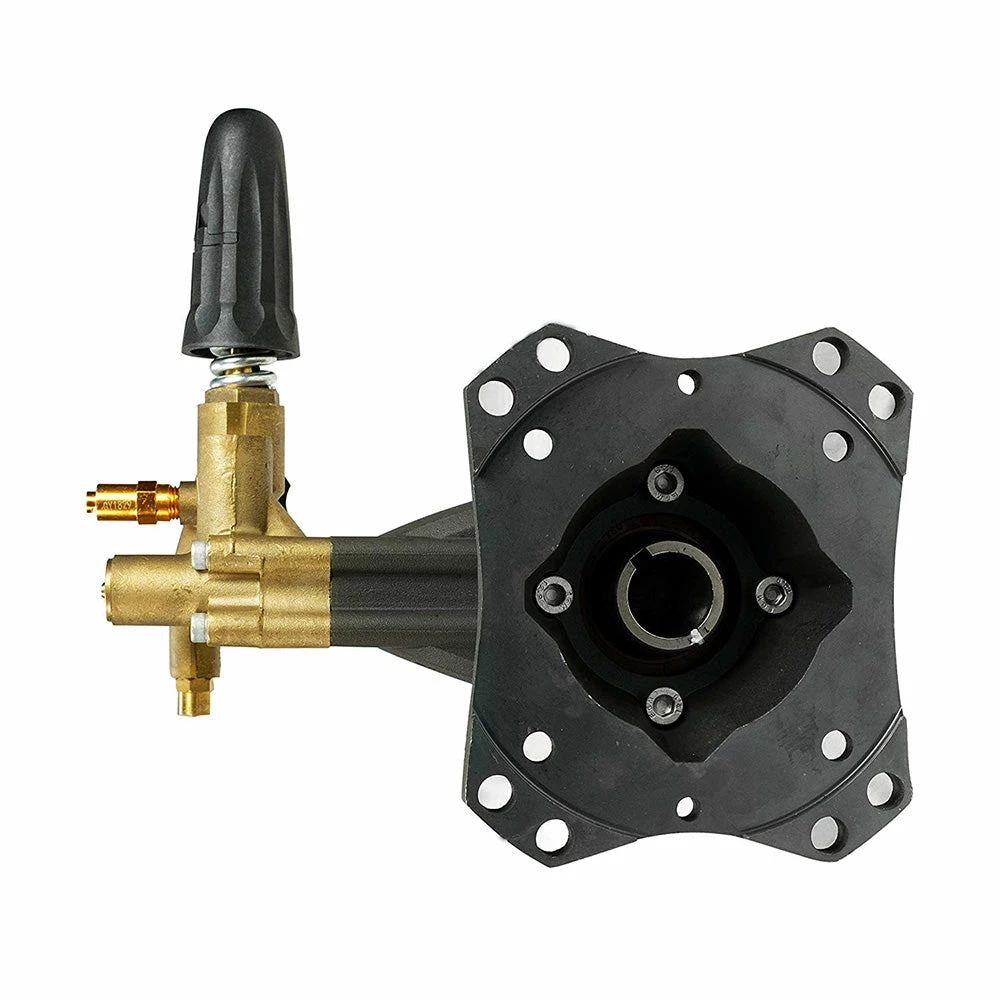

- Gas engine flange and hollow shaft that fits most horizontal shaft engines
What’s in The Box
- AAA Triplex Plunger Pump
- Inlet/Outlet Connections
- Siphon Tube w/ Filter
- New Mounting Bolts
- Shaft Key
- Owner’s Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 90034 |
| Brand | Simpson |
| Max Pressure | 4,200 Psi |
| Gallons Per Minute | 4.0 Gpm |
| Inlet Port | 3/4 in. GH |
| Discharge Port | 3/8 in. Quick Connect Female |
| Inlet Pressure Range | 10 – 60 Psi |
| Thermal Relief Port | 1/2 in. NPT |
| Flang Bolt Pattern | SAW J-609A |
| Shaft Diameter | 24mm |
| Key Way | MB |
| Pump Oil Capacity | 11 fl-oz. |
| Power Boost | Yes |
| Head Material | Brass |
| Shipping Weight | 16 lbs. |
