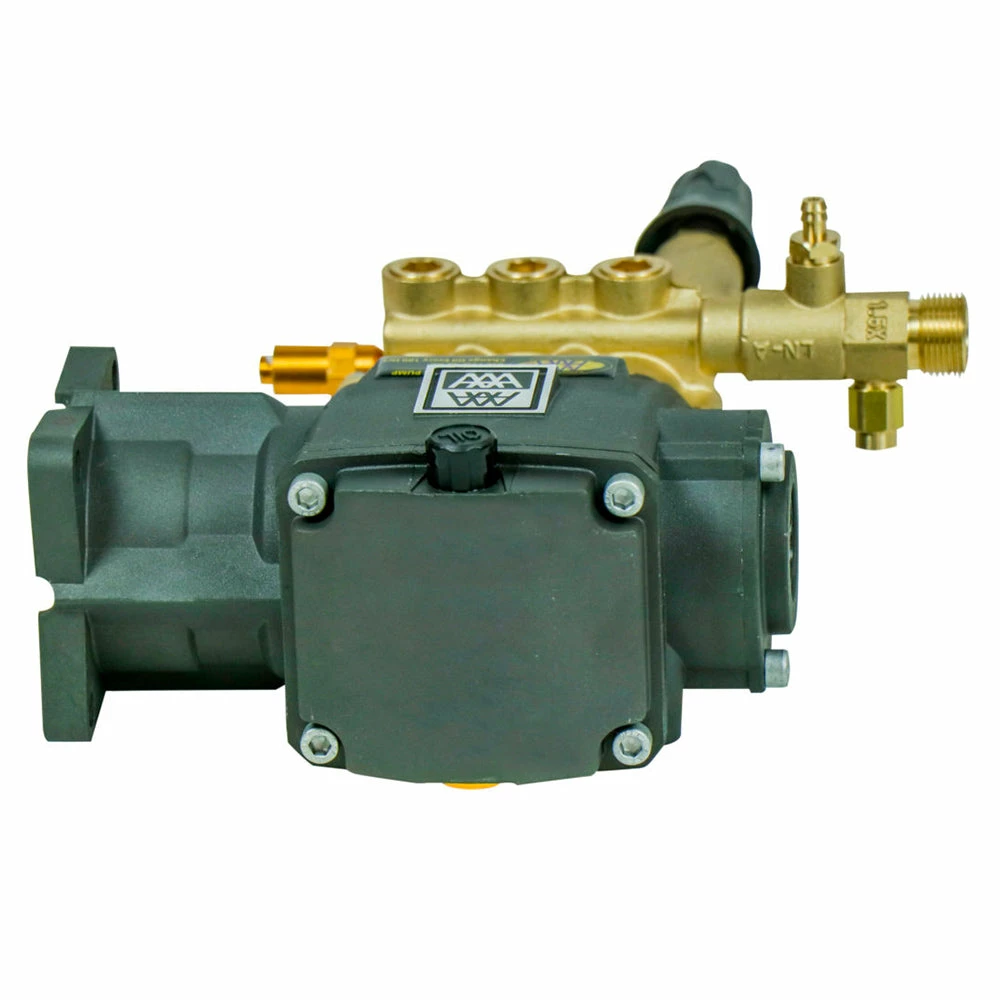

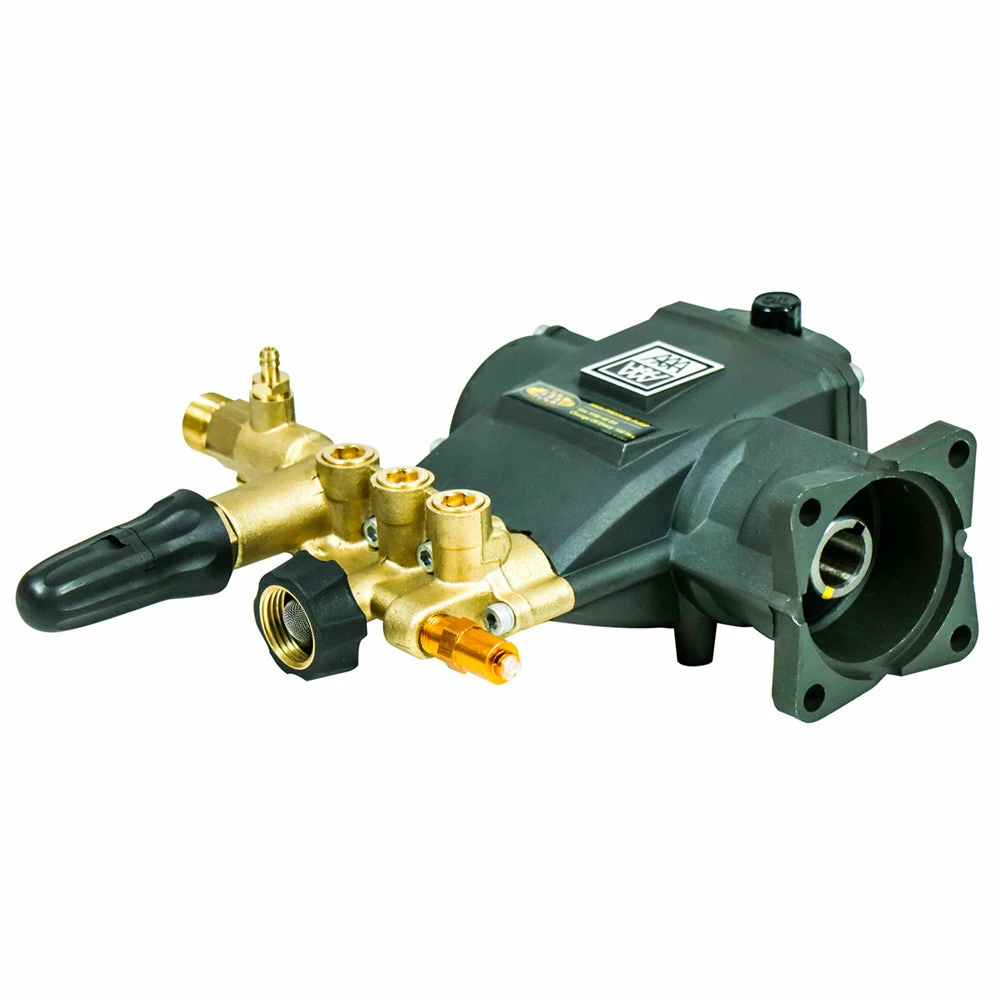

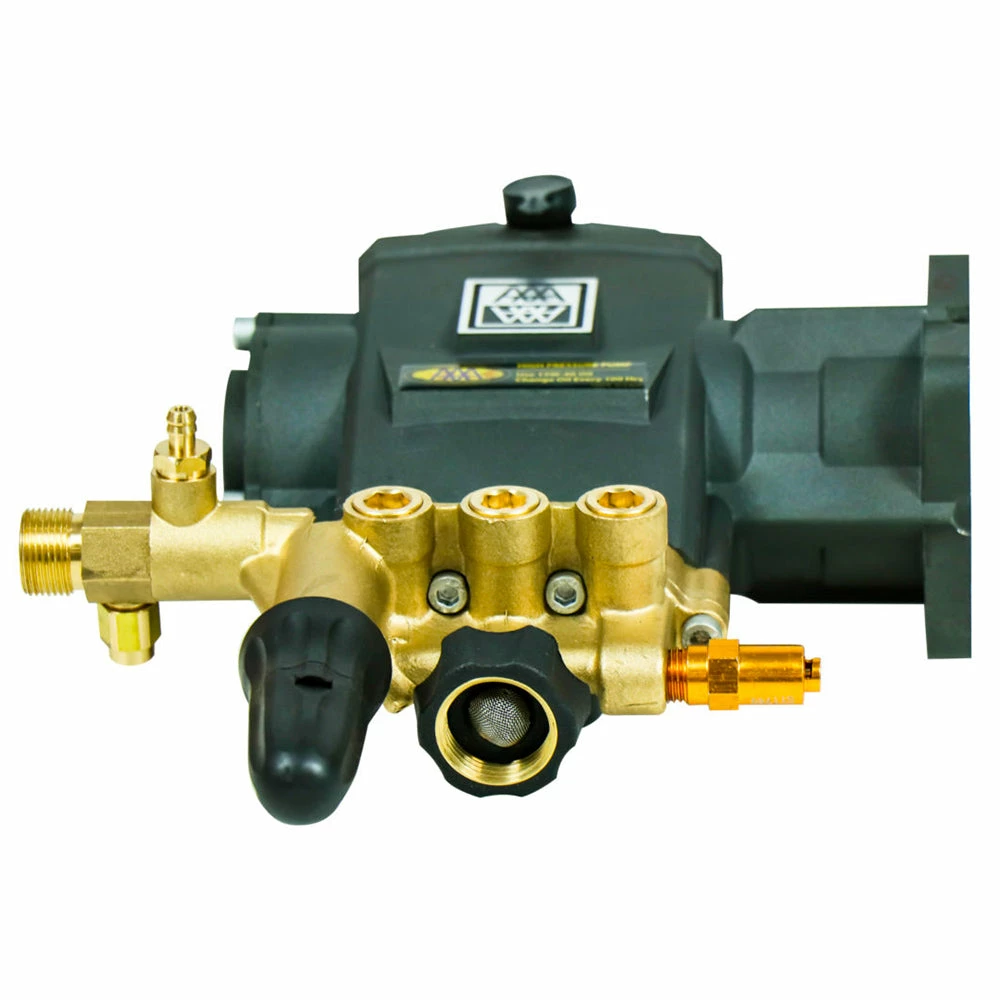

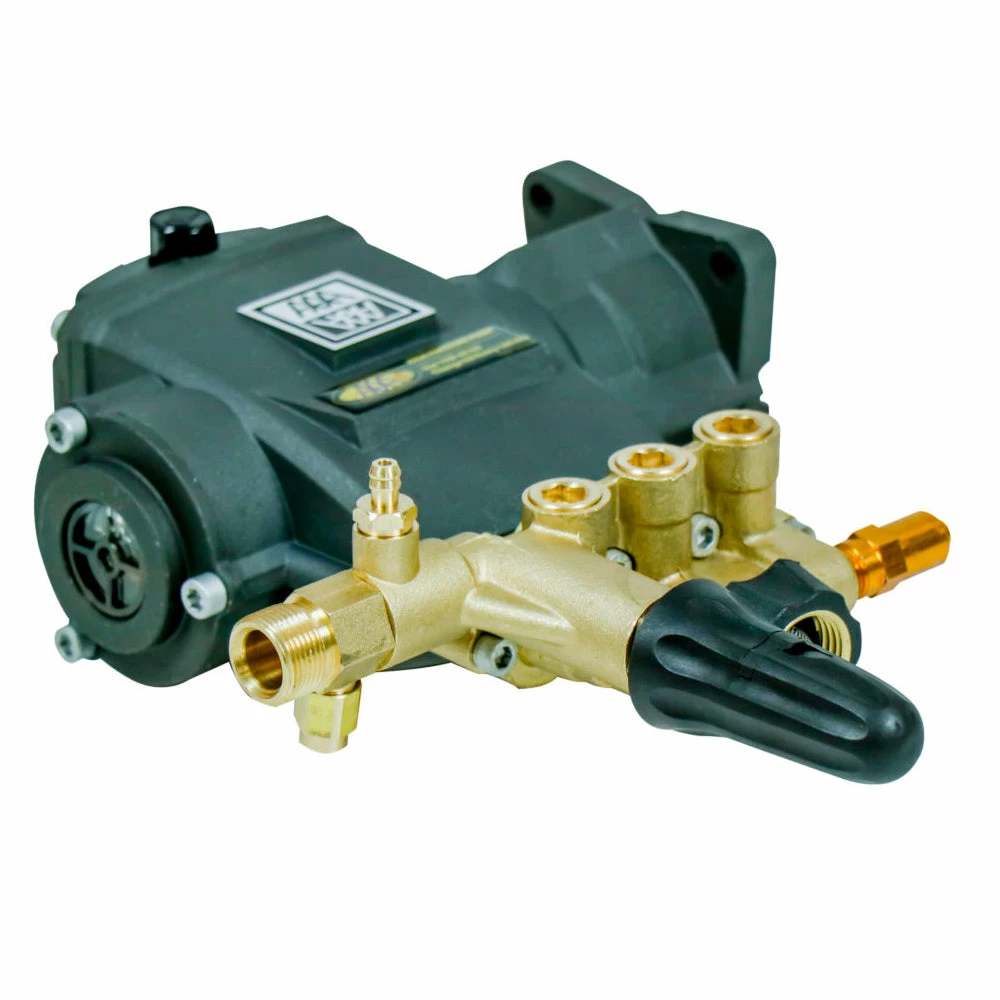

Simpson 90037 3400 Psi 2.5 Gpm AAA Technologies Triplex Plunger Pump Kit

Features

• 3400 PSI @ 2.5 GPM
• PowerBoost Technology
• Fully adjustable unloader system with ergonomic control
• Sight glass and advanced oil seal technology, does away with the need for a dipstick
• Thermal relief protection to prevent pump overheating
• Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life
• Crankcase is manufactured from fully anodized die cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure
• Gas engine flange and hollow shaft that fits most horizontal shaft engines

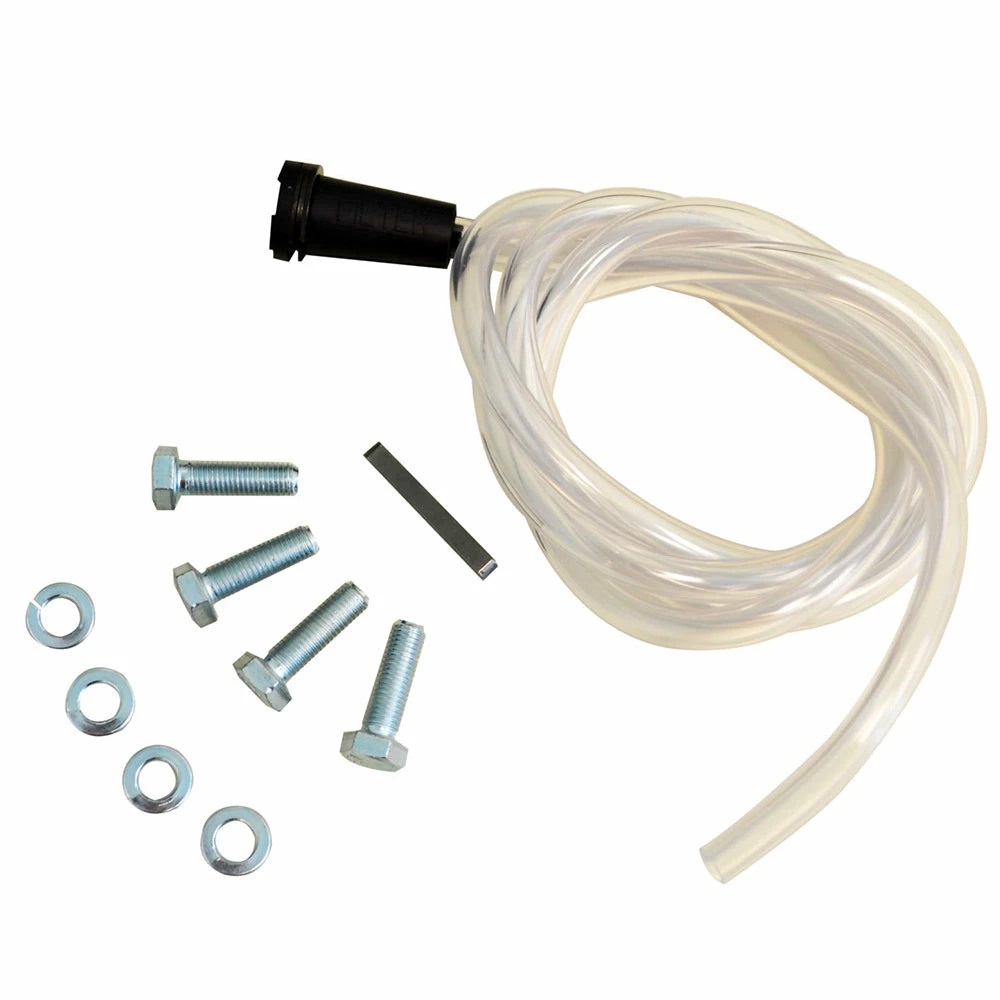

What’s in The Box

• AAA Triplex Plunger Pump
• Inlet/Outlet Connections
• Siphon Tube w/ Filter
• New Mounting Bolts
• Shaft Key
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	90037
Brand	Simpson
Max Pressure	3,400 Psi
Gallons Per Minute	2.5 Gpm
Inlet Port	3/4 in. GH
Discharge Port	Threaded Male Fitting
Inlet Pressure Range	10-60 Psi
Thermal Relief Port	1/4 in. NPT
Shaft Diameter	3/4 in.
Flange Bolt Pattern	SAE J-609A
Key Way	3/16 in.
Pump Oil Capacity	8.0 fl-oz.
Power Boost	Yes
Head Material	Brass
Shipping Weight	9 lbs.
