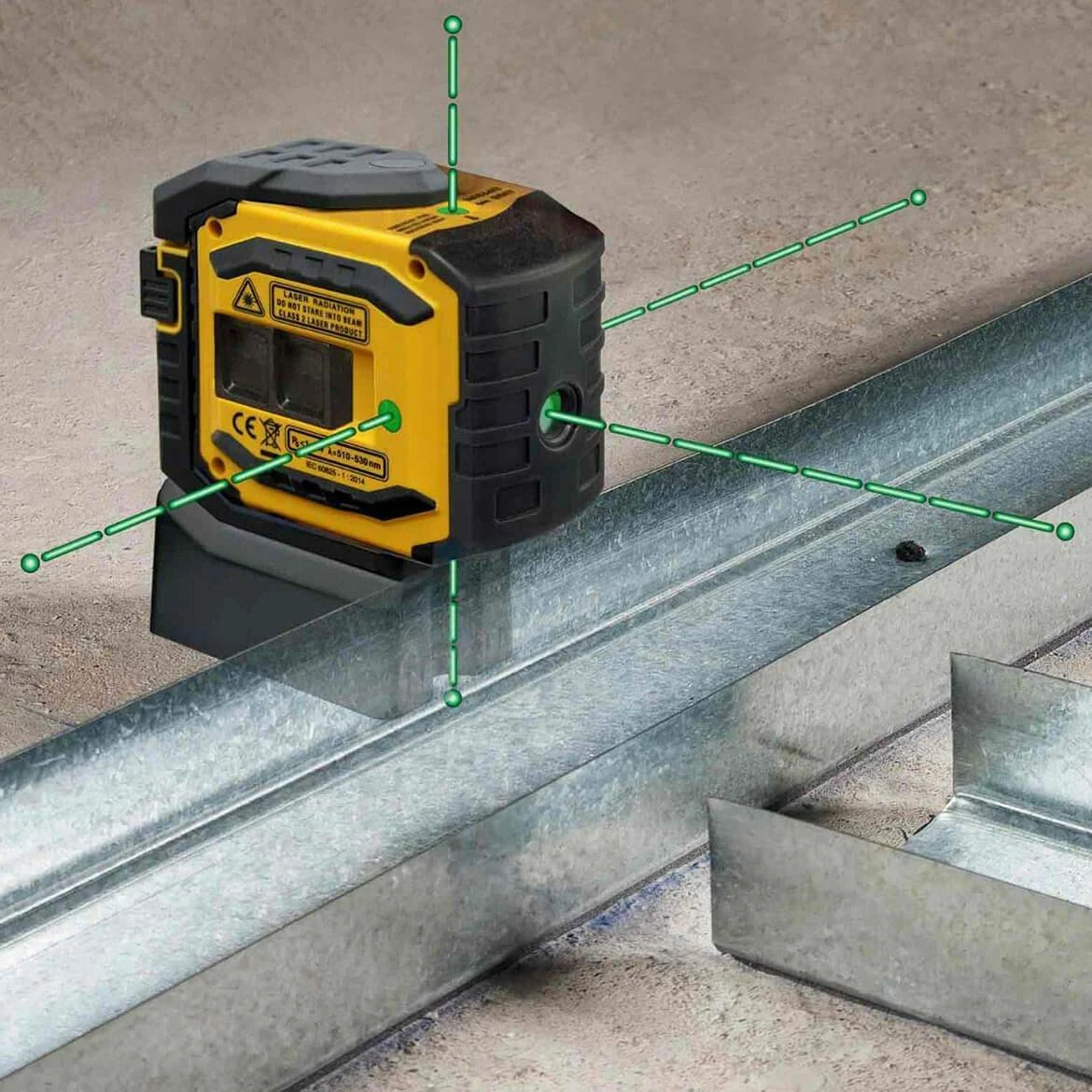

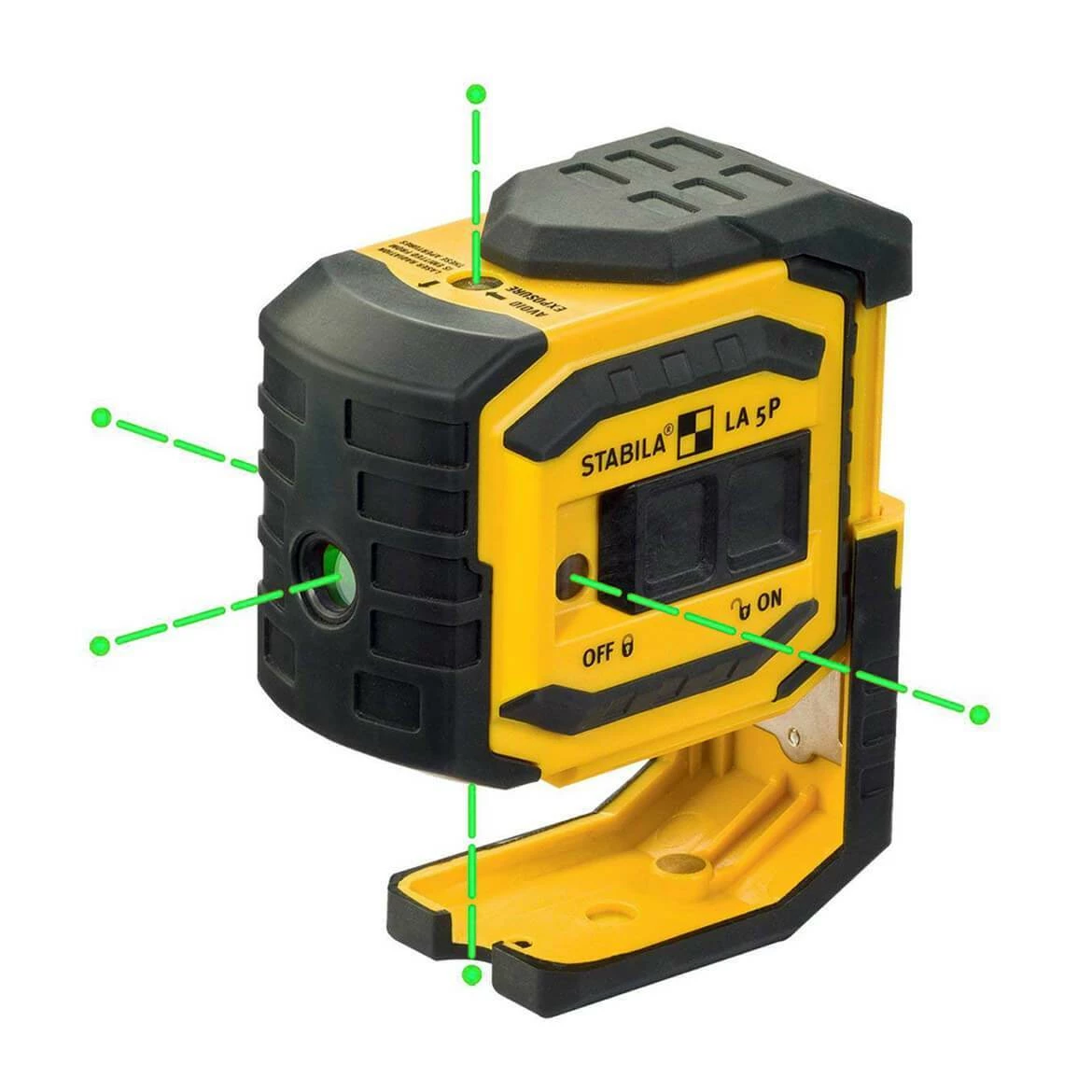

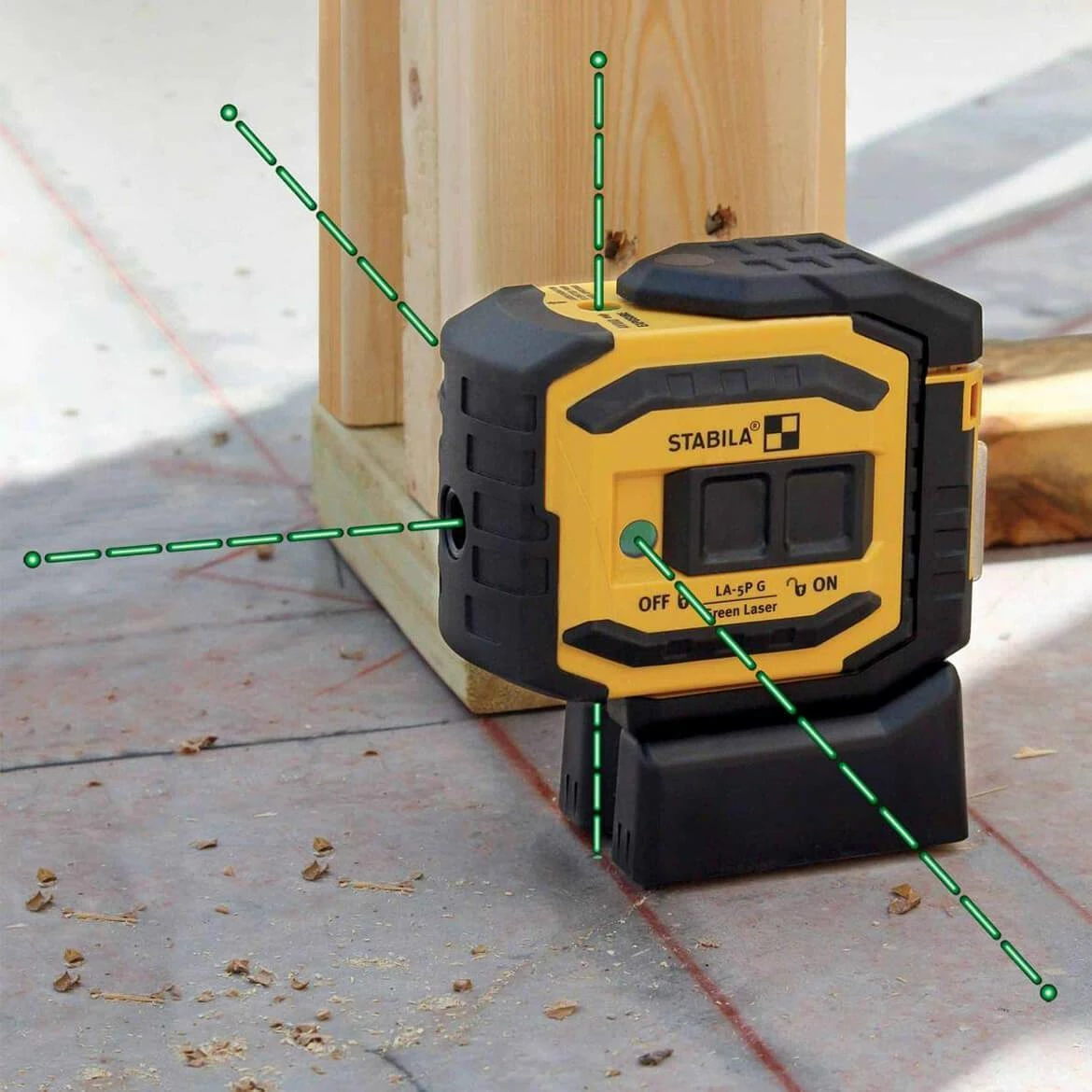

Stabila 03165 5-Point/Dot 60-Foot Range Self-Leveling Grean Beam Laser Level Tools & Equipment

Features

• Transfer plumb points from floor to ceiling and layout right angles/square.
• 5 Bright tight dots visible over 50ft.
• Up dot accuracy tolerance: Will not exceed 3/32in @ 30ft.
• Down dot accuracy tolerance: Will not exceed 1/8 @ 30ft.
• Level dot accuracy tolerance: Will not exceed 3/32in @ 30ft
• Square dot accuracy tolerance: Will not exceed 1/16in @ 30ft
• Warranty: Up to 2 years from the date of purchase.
• Mechanical off/on switch with automatic pendulum lock.
• V Groove rare earth magnetic mount is built into the housing.
• Self -leveling range: 4.5 degrees
• Up to 20 hours of run time on 3-AA batteries.

What’s in The Box

• 5-Point Self-Leveling Point/Dot Laser
• Framing Base
• Target Plate
• Metal Wall Mount Plate
• Alkaline Batteries
• Pouch
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	03165
Brand	Stabila
Beam Color	Green
Beam Count	5
Power Type	(3) Alkaline Batteries
Laser Class	2
Output	Less than 1mW
Measuring Range of Visible Point	60 ft.
Operating Life	20 Hours
Protection Class	IP54
Tripod Connection	1/4 in. – 20
Self-Leveling Range	+/- 4.5-Degrees
Levelling Accuracy	+/- 3/16 in. @ 30 ft.
Laser Beam Accuracy (up)	3/16 in. @ 30 ft.
Laser Beam Accuracy (down)	1/8 in. @ 30 ft.
