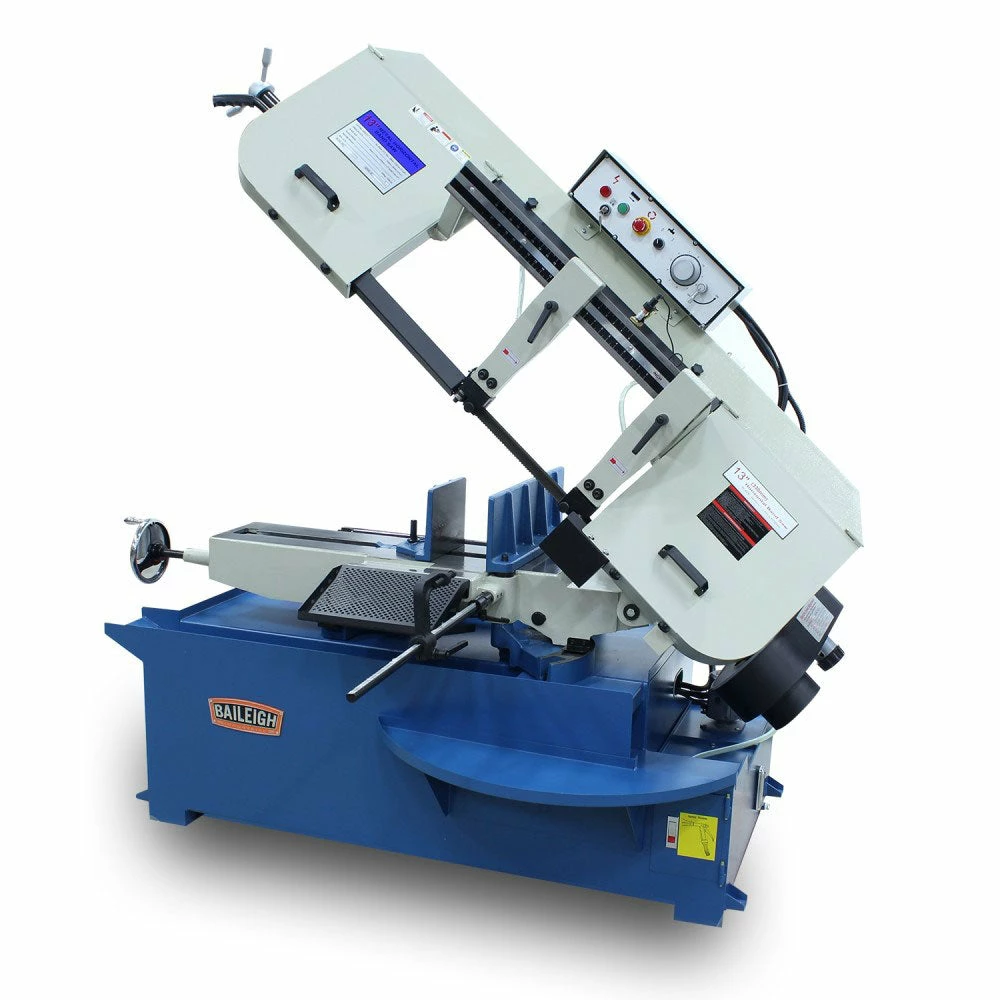

Tools & Equipment Baileigh 1001517 BS-330M 220V Metal Cutting Band Saw W/ Cast Iron Head

Features

• Maximum capacity of 13” OD round at 90°.
• Accepts a large 1.25” blade.

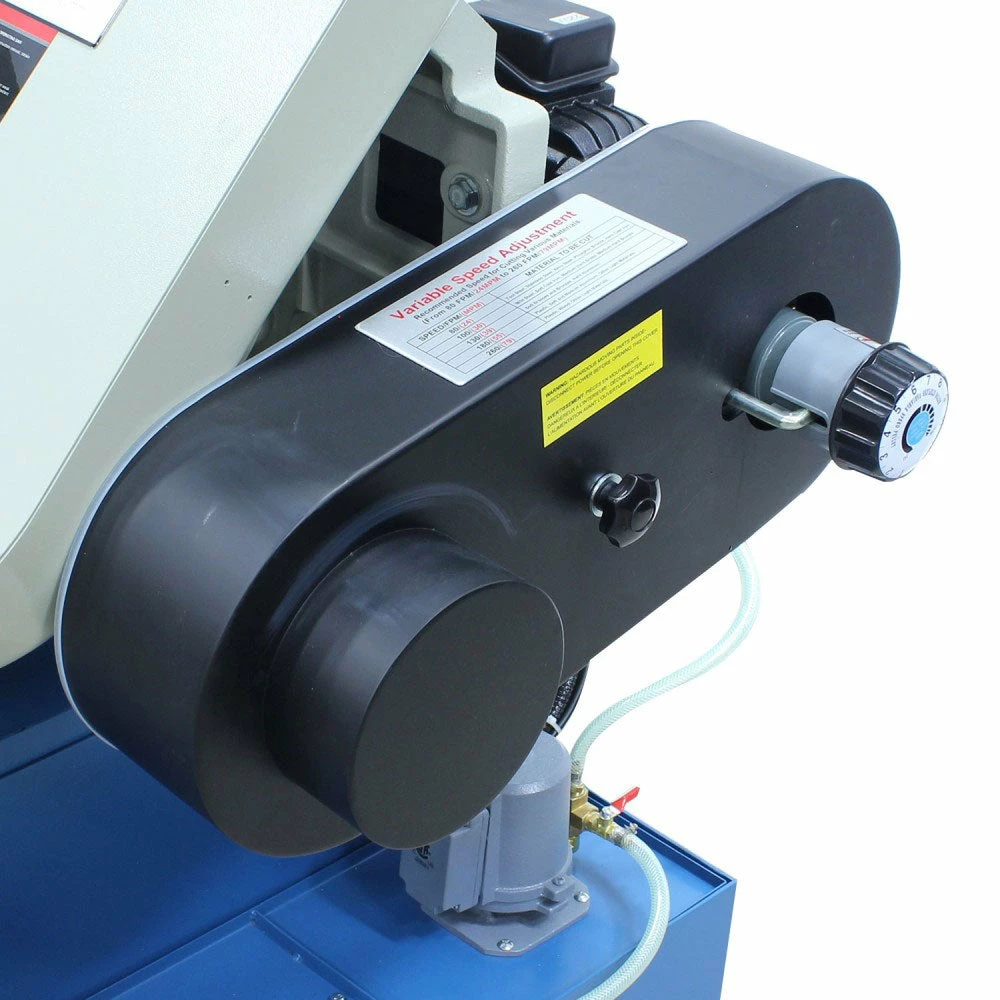

• Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
• 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.

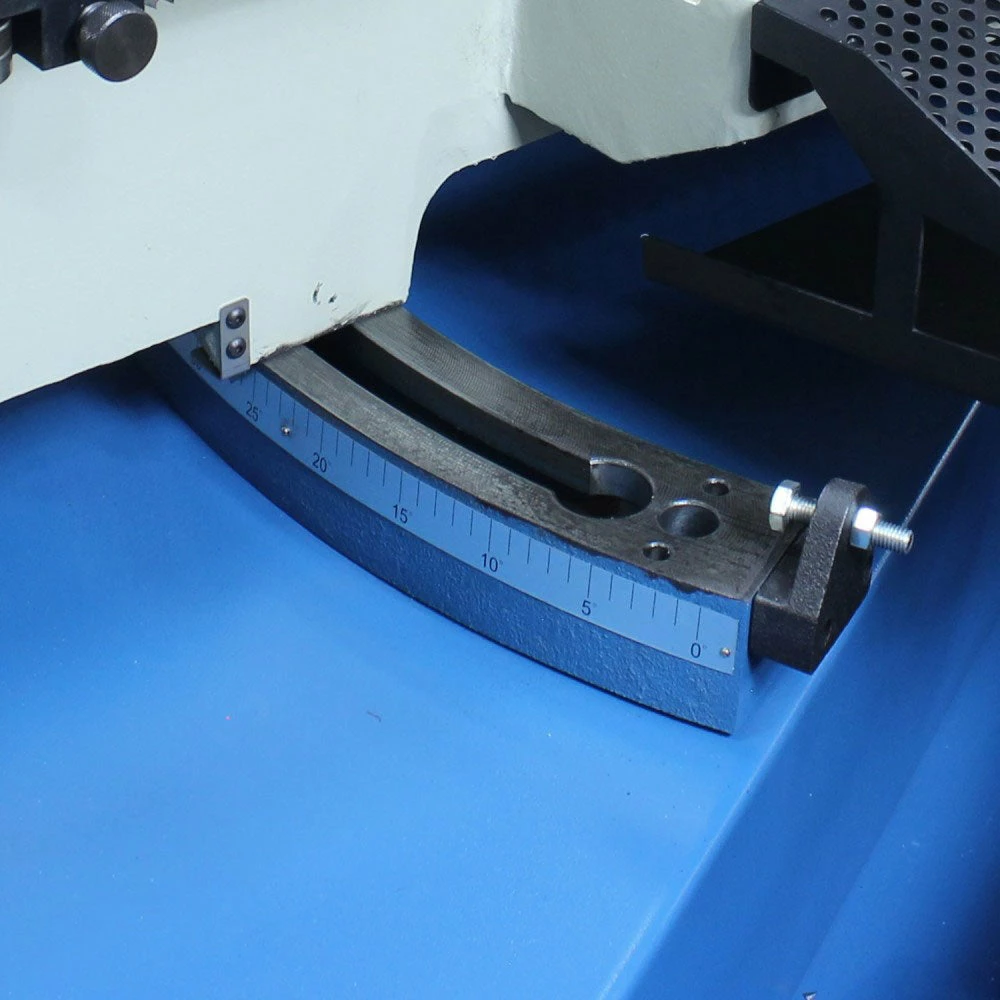

• Saw head miters up to 45°.
• Heavy cast iron head and bow reduce vibrations while cutting.

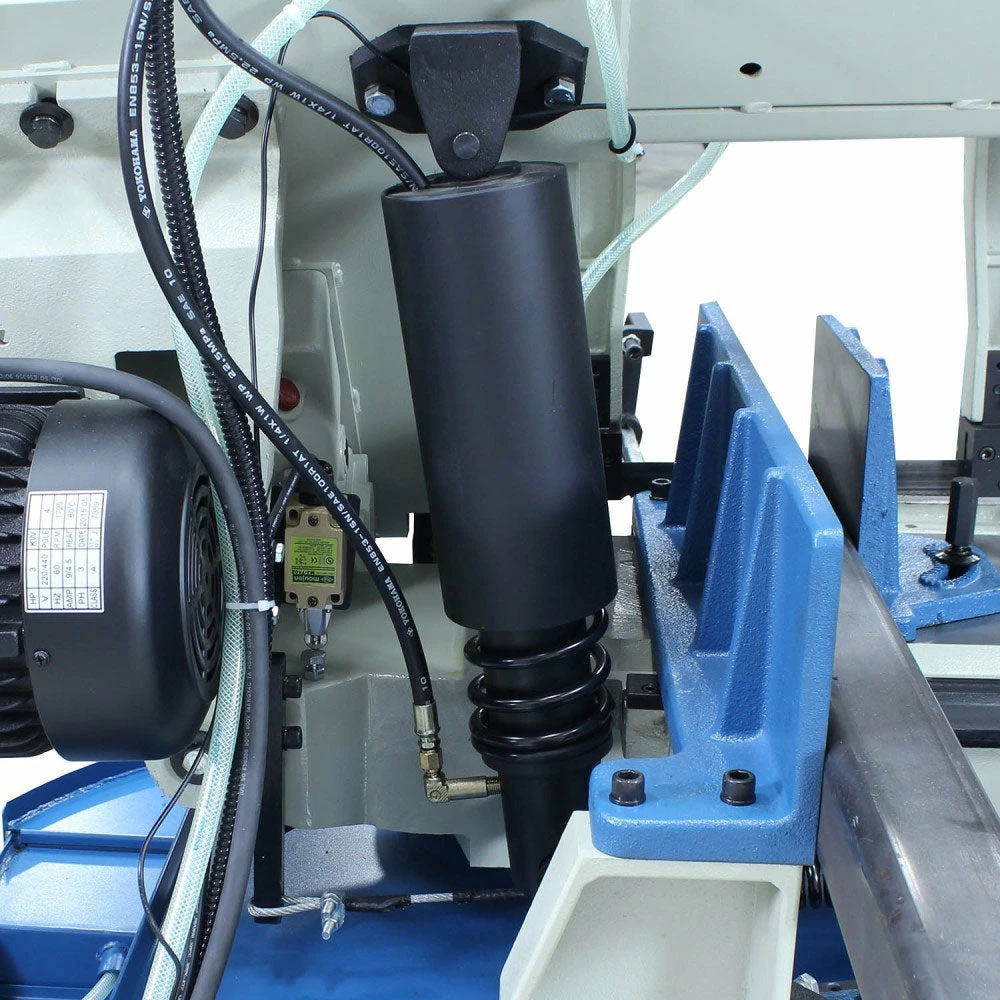

• Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.
• Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
• Laser guide helps you see where your cut will be and line it up.
• Durable steel flywheels drive the blade.

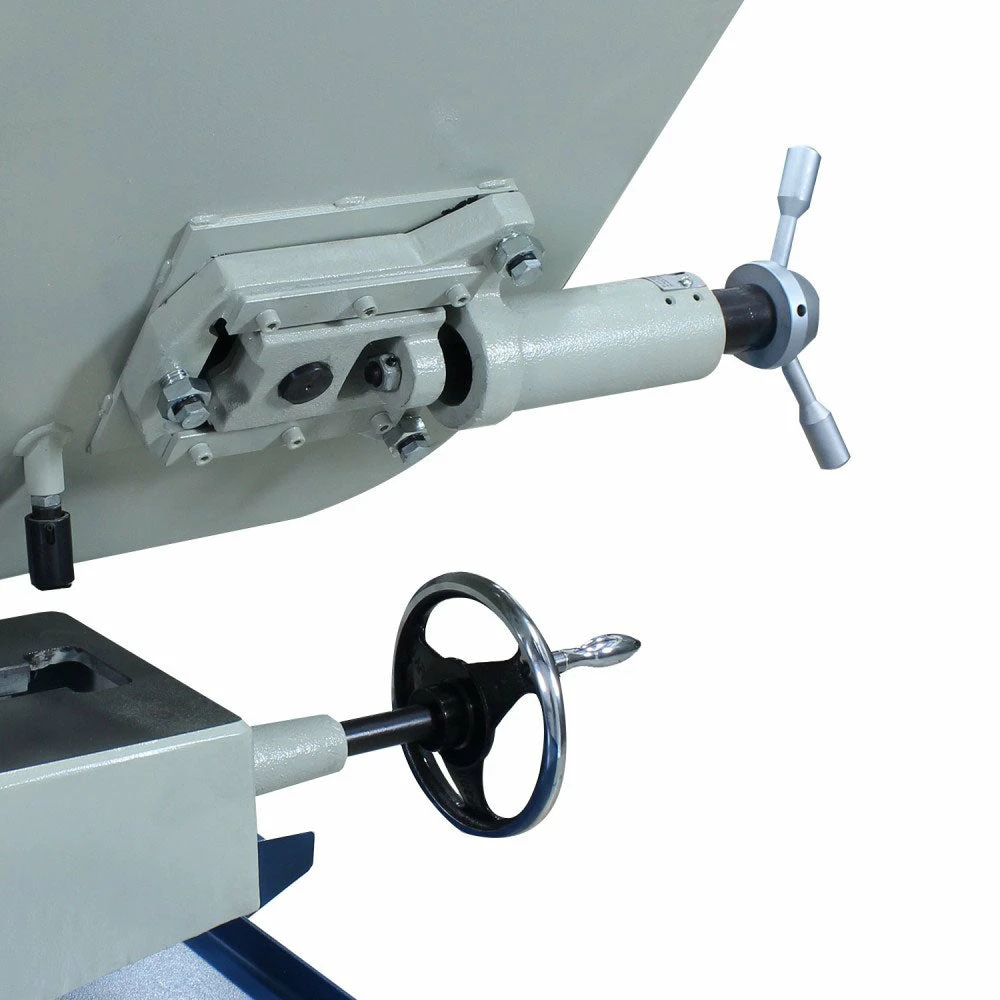

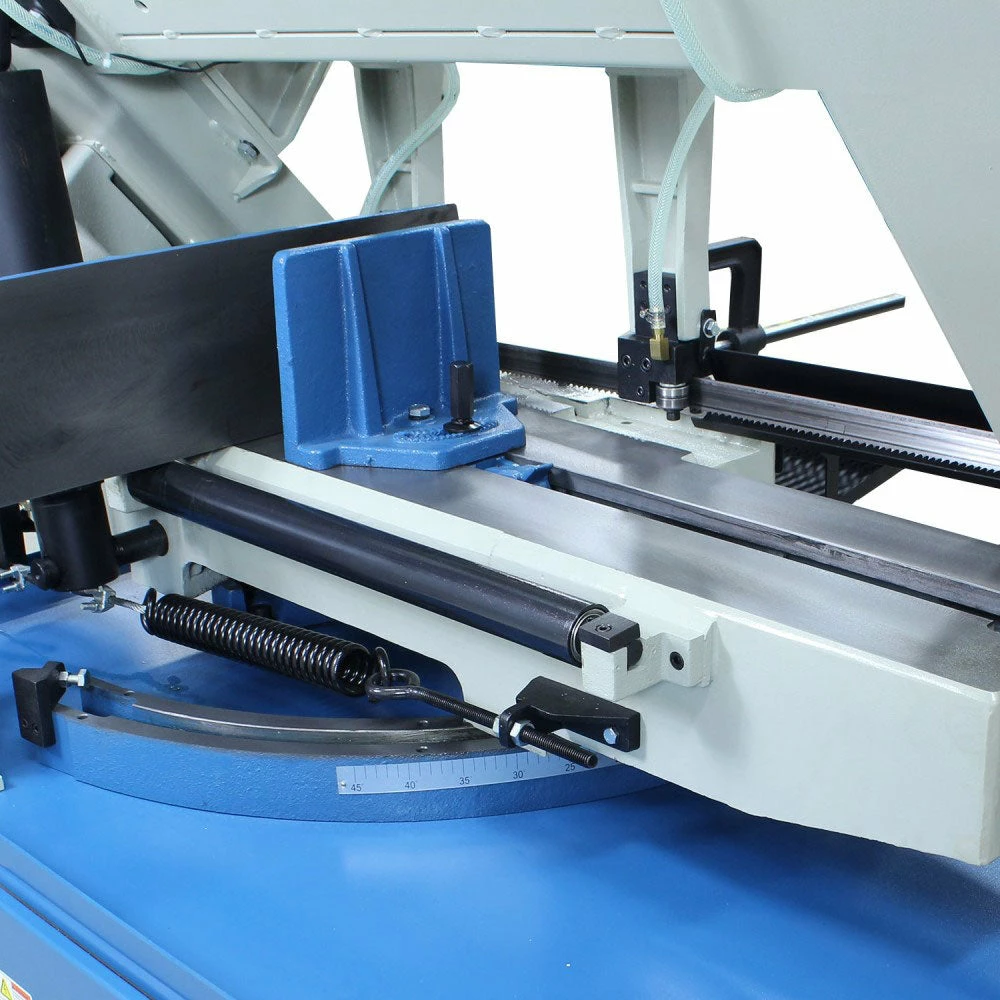

• Adjustable vise can move back and forth. A quick cam lock system holds it in place.

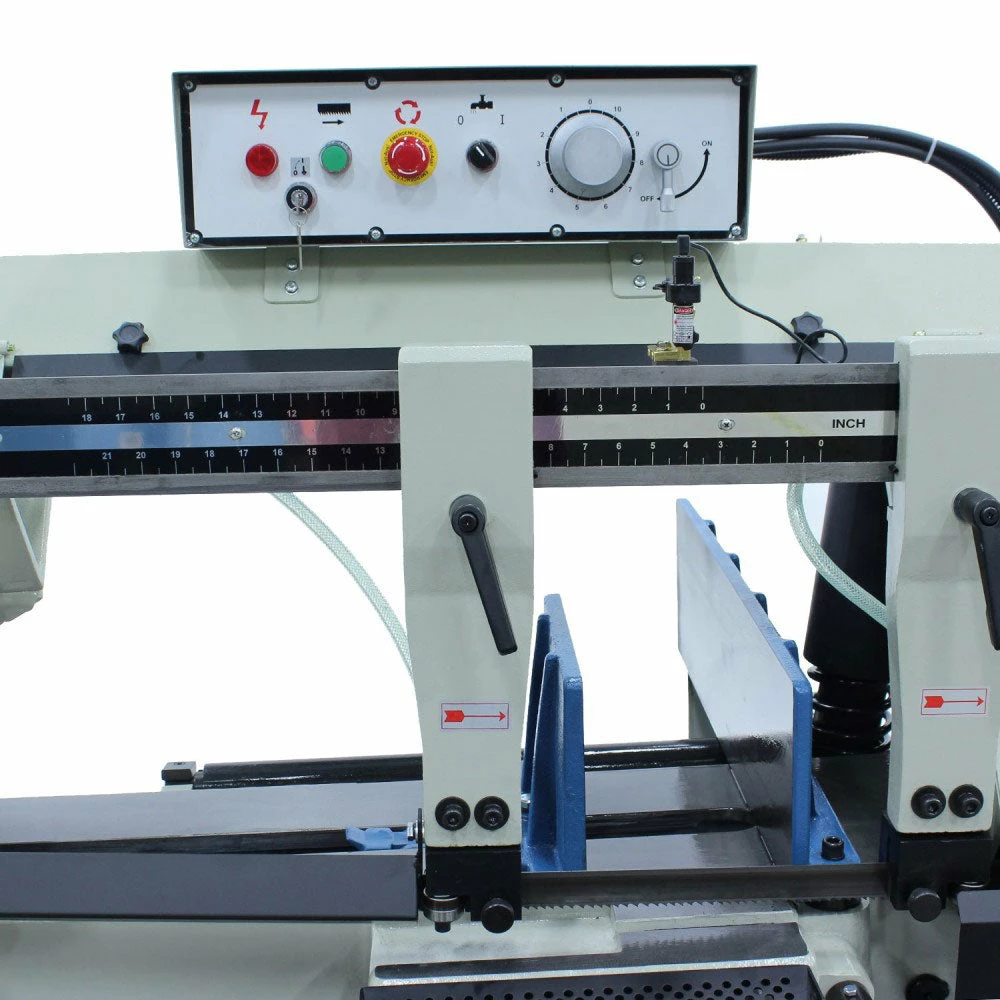

• Control panel has large start and emergency stop buttons and a dial for adjusting the speed.
• Swing-away material stop enables you to easily make repeatable cuts.
• Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.
• Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
• Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
• Weighs over 1,800 lbs.
• Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
• This metal band saw and its replacement parts are almost always in stock for quick deliveries.
• Covered by a 1-year parts warranty.

What’s in The Box

• BS-330M – Metal Cutting Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-330M
Power	220V / 3-phase
Return	Manual
Miter Adjustment	Swivel Head and Vise
Miter Angle	0 – 45°
Motor	3 hp
Included Accesories	Included Accesories
Capacity Rectangular 90° x 45°	13″ x 18.9″ / 11″ x 10.04″
Capacity Round 90° x 45°	13″ x 8.86″
Capacity Square 90° x 45°	13″ x 8.86″
Table Height	30.5″
Blade Guide	Carbide x Roller
Blade Size	1.3″ x .043″ x 161.4″
Blade Speed (fpm)	82–270
Descent Control	Hydraulic
Drive	Belt x Pulley
Shipping Dimensions (Inches)	90x37x63
Weight	1830lbs
