Features
- Maximum capacity of 13” OD round at 90°.
- Accepts a 1.25” blade, a large size for greater accuracy and speed.
- Variable blade speed ranges from 82 to 270 fpm.
- You can adjust the dial to set the speed at the perfect fpm for your material.
- 3 hp motor runs on 220-volt three-phase power.
- Gear-driven transmission makes the machine more reliable. No belts to break and replace.
- Saw head miters up to 45°.

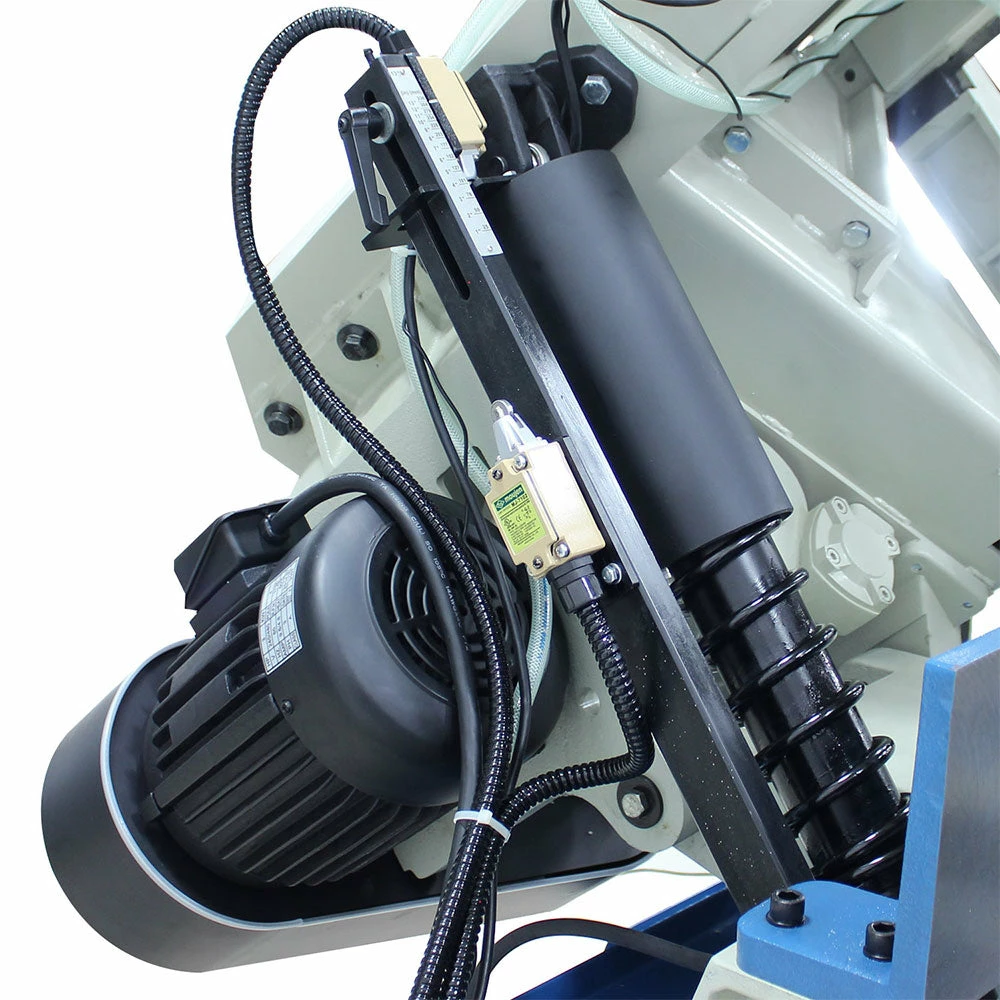

- Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done.
- Cast iron mitering head and bow reduce vibrations when cutting.
- Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut.
- Laser pointer guide lets you see where the cut will be, for more accurate work.
- Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area.
- Electro-welded steel construction keeps the machine stable for more accurate cutting.
- Large-capacity flood coolant system washes away metal chips and helps blades last longer.
- You can get replacement parts quickly. We stock them at our headquarters in Wisconsin.
- Covered by a 1-year parts warranty.
What’s in The Box

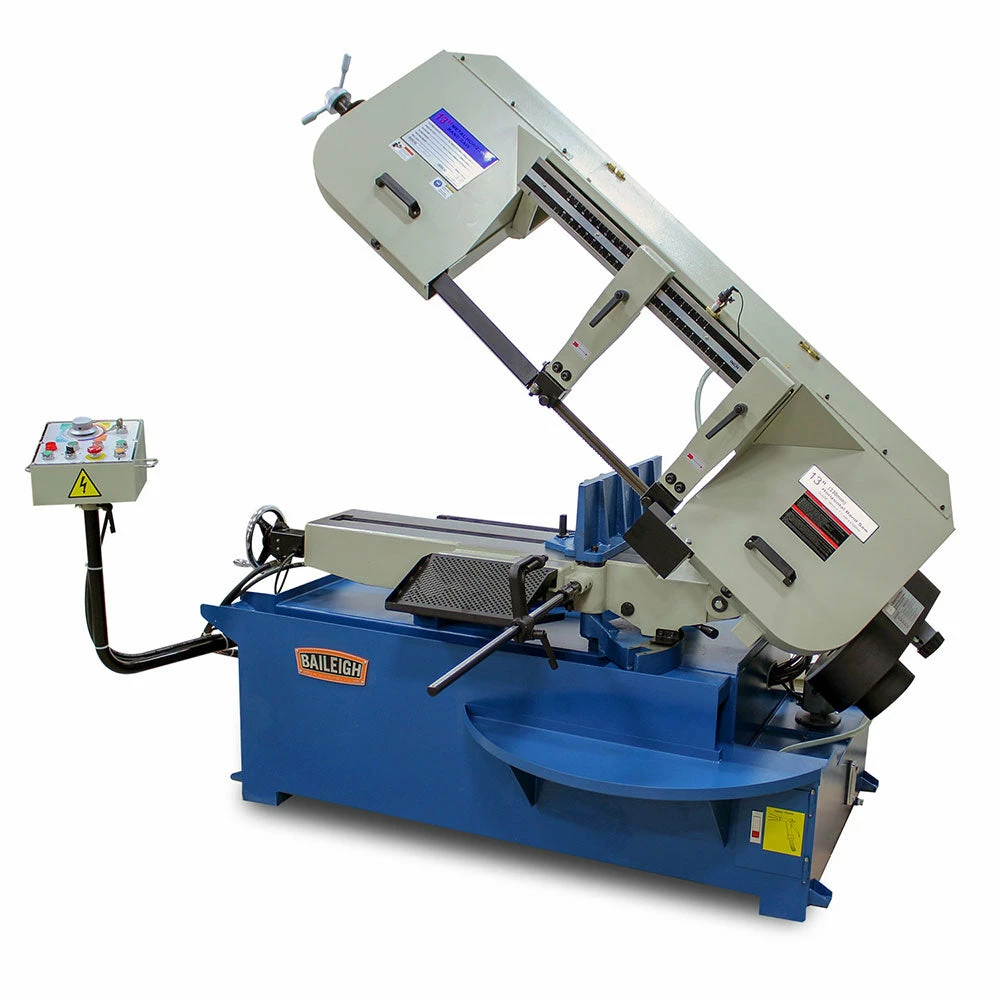

- BS-330SA – Semi-Automatic Band Saw
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | BS-330SA |
| Power | 220V / 3-phase |
| Return | Hydraulic |
| Miter Adjustment | Swivel Head and Vise |
| Miter Angle | 0 – 45° |
| Motor | 3 hp |
| Capacity Rectangular 90 x 45 x 45L | 13″ x 18.9″ x 11″ x 10.04″ |
| Capacity Round 90° x 45° | 13″ x 8.86″ |
| Capacity Square 90° x 45° | 13″ x 8.86″ |
| Table Height | 30.5″ |
| Blade Guide | Carbide x Roller |
| Blade Size | 1.3″ x .043″ x 161.4″ |
| Blade Speed (fpm) | 82 – 270 |
| Descent Control | Pressure Assist Hydraulic |
| Drive | Belt x Pulley |
| Shipping Dimensions (Inches) | 90x38x60 |
| Weight | 1800 lbs |
