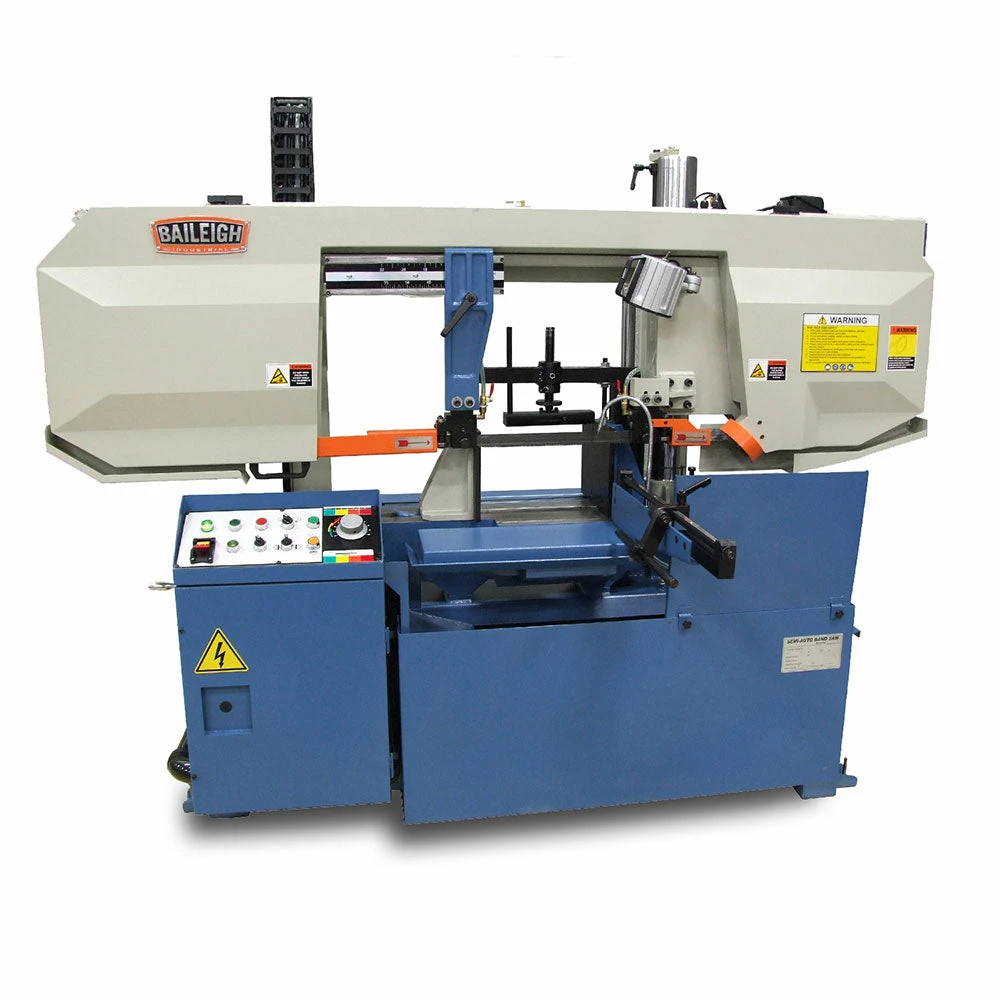

Tools & Equipment Baileigh 1001582 BS-360SA 220V Horizontal Metal Band Saw

Features

• Huge capacity of 14” round and 14” x 22” rectangle.

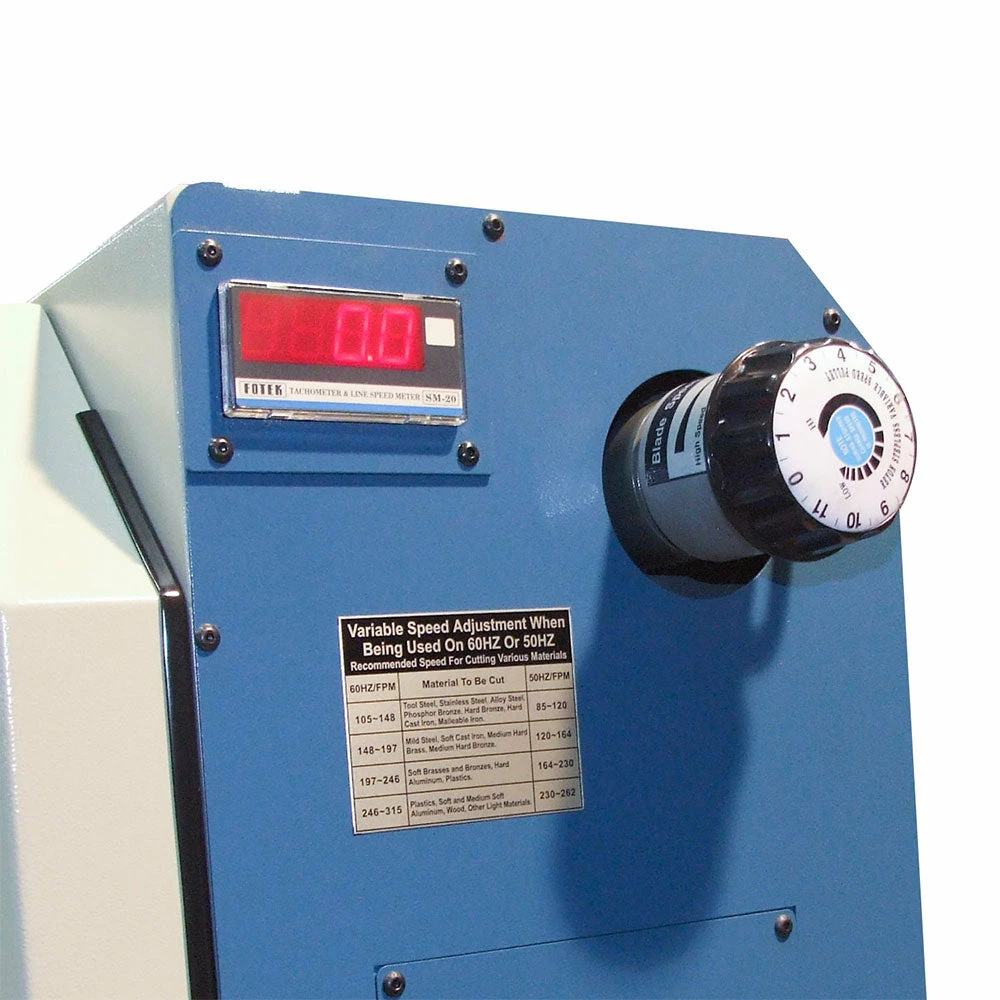

• 77 to 252 fpm variable blade speed.
• Accepts a standard 1.25” blade (included) to make straight, accurate cuts.
• Robust 5 hp motor runs on 220-volt 3-phase power.

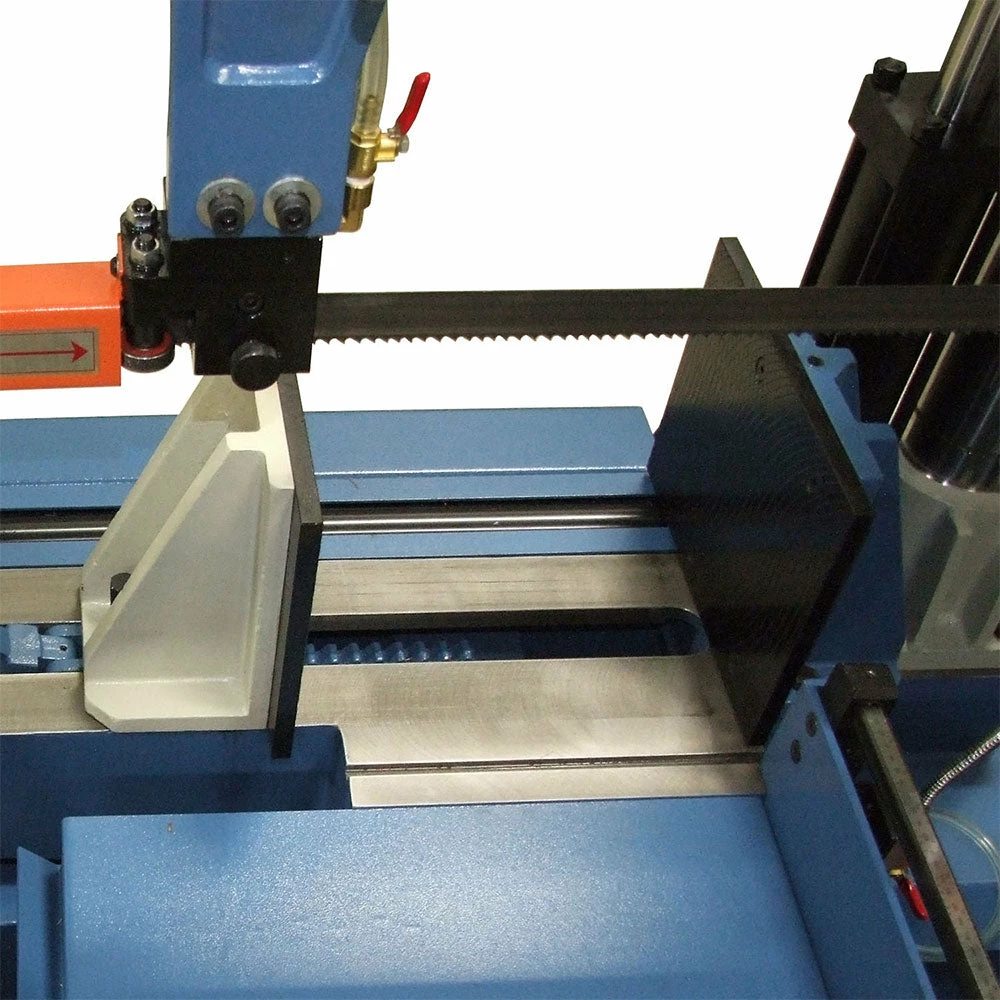

• Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible.

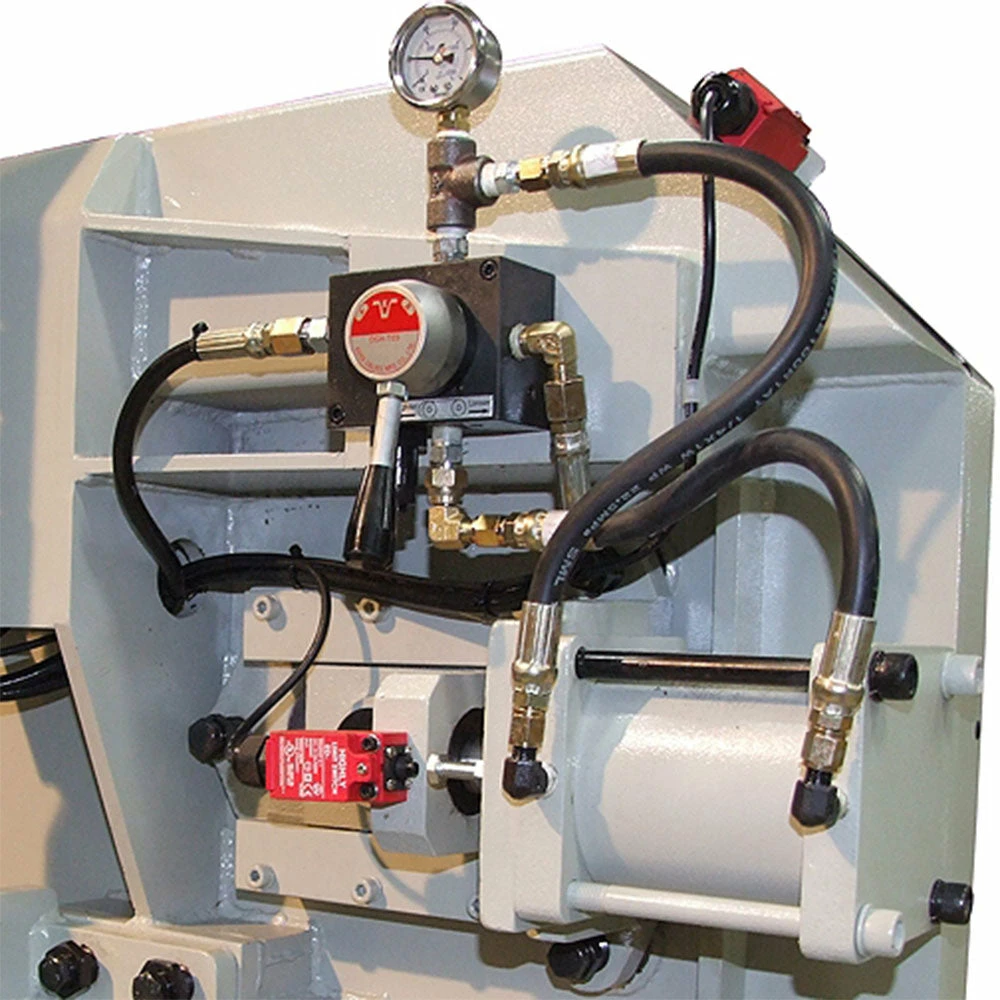

• Industrial-grade hydraulic system controls the vise and the bow height.
• Fully-sealed ball bearings used as blade guides track the blade smoothly and properly.

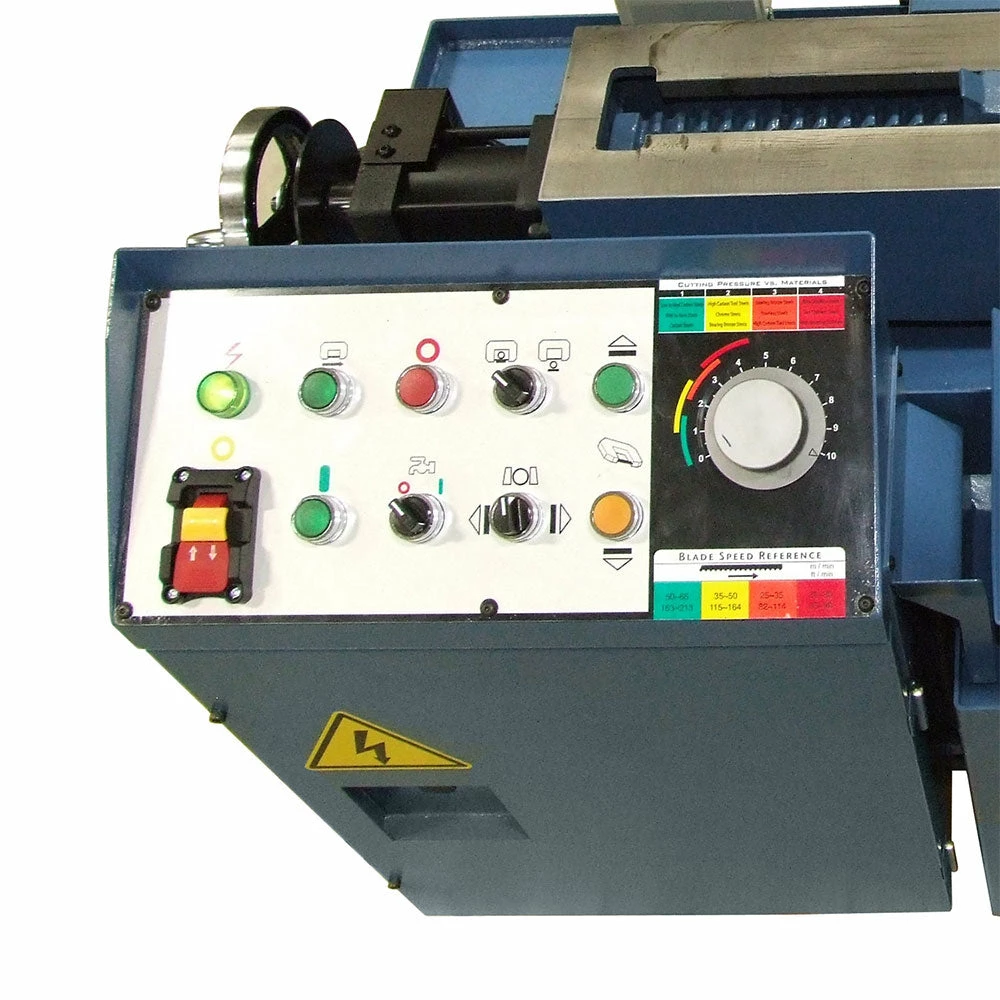

• Easy-to-use control panel—with labeled buttons and dials for locking the vice, starting the blade, and more—lets you get up and running quickly.
• Patented hydraulic blade tension device makes it easy to get the right settings. Just line up the arrow with the green fluid-filled gauge.
• Electro-welded steel frame reduces vibrations and keeps cuts accurate over many years of production.

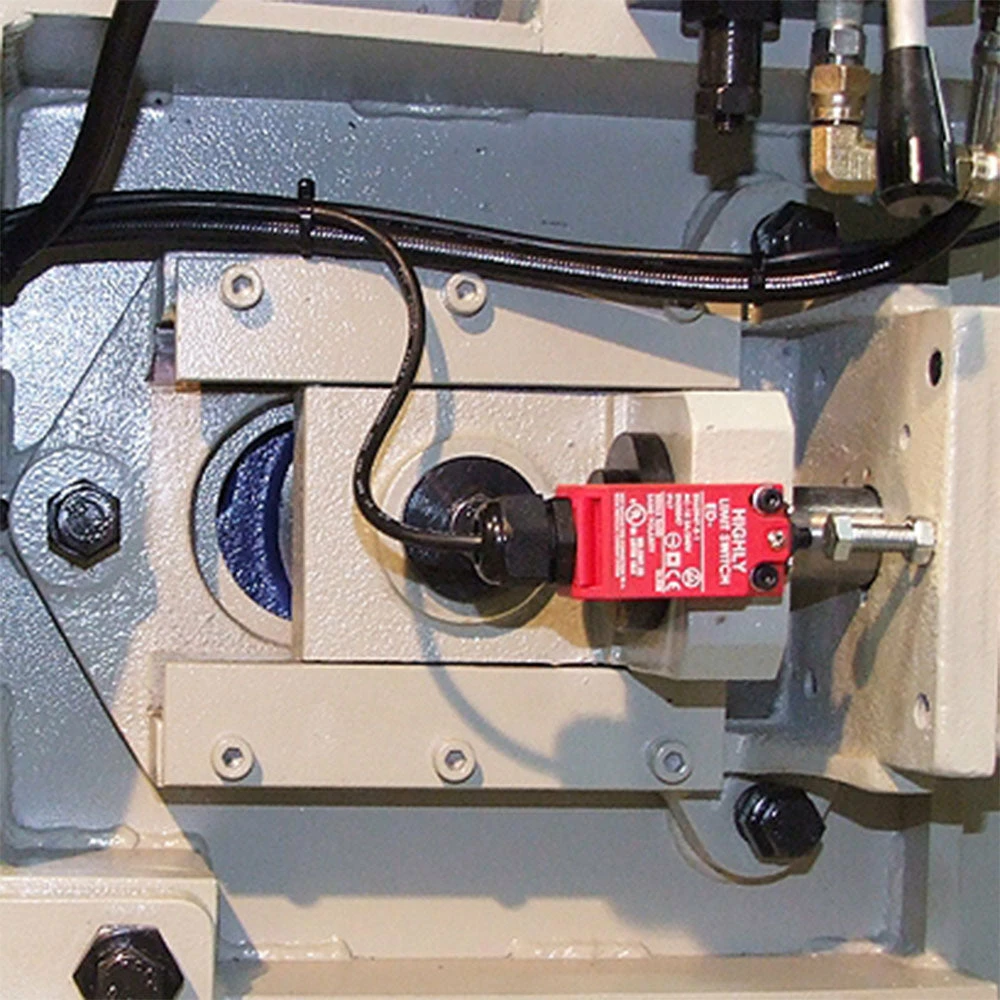

• Includes blade brake switch for safety.

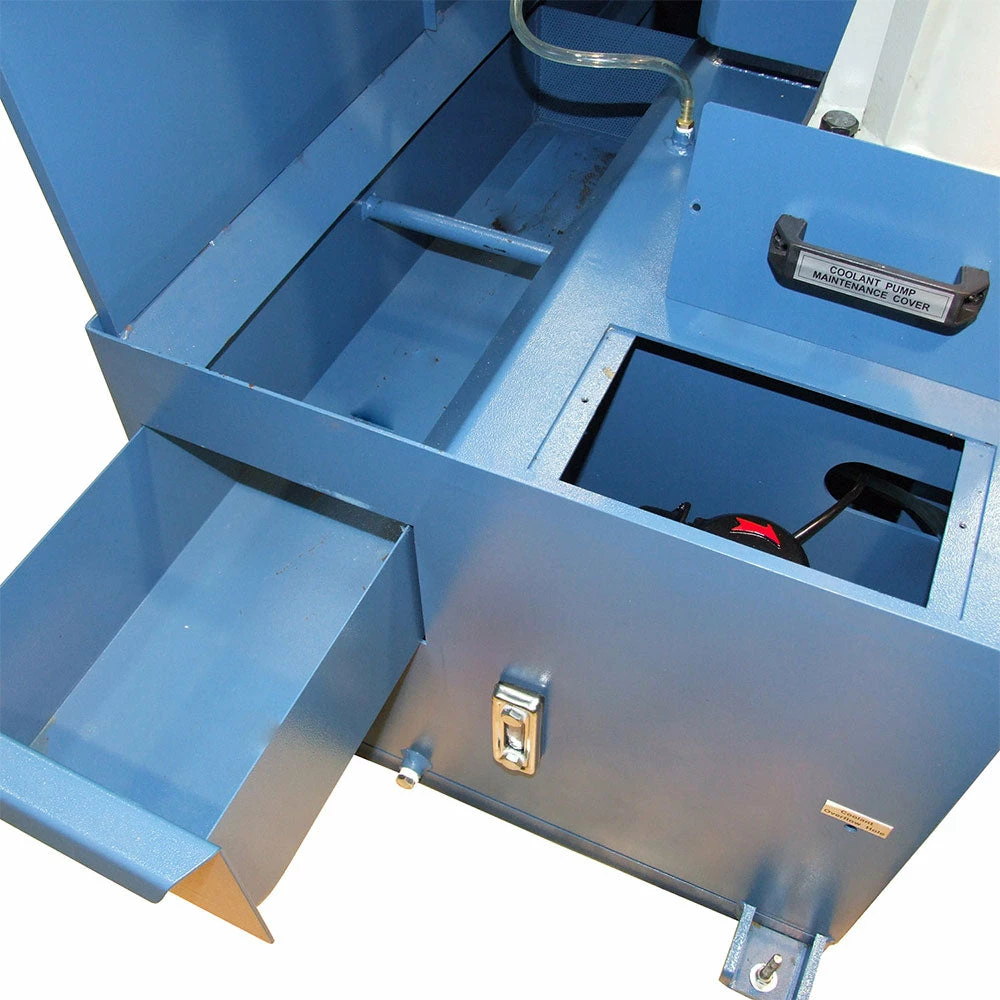

• Flood coolant system washes away chips after cutting and helps blades last longer.

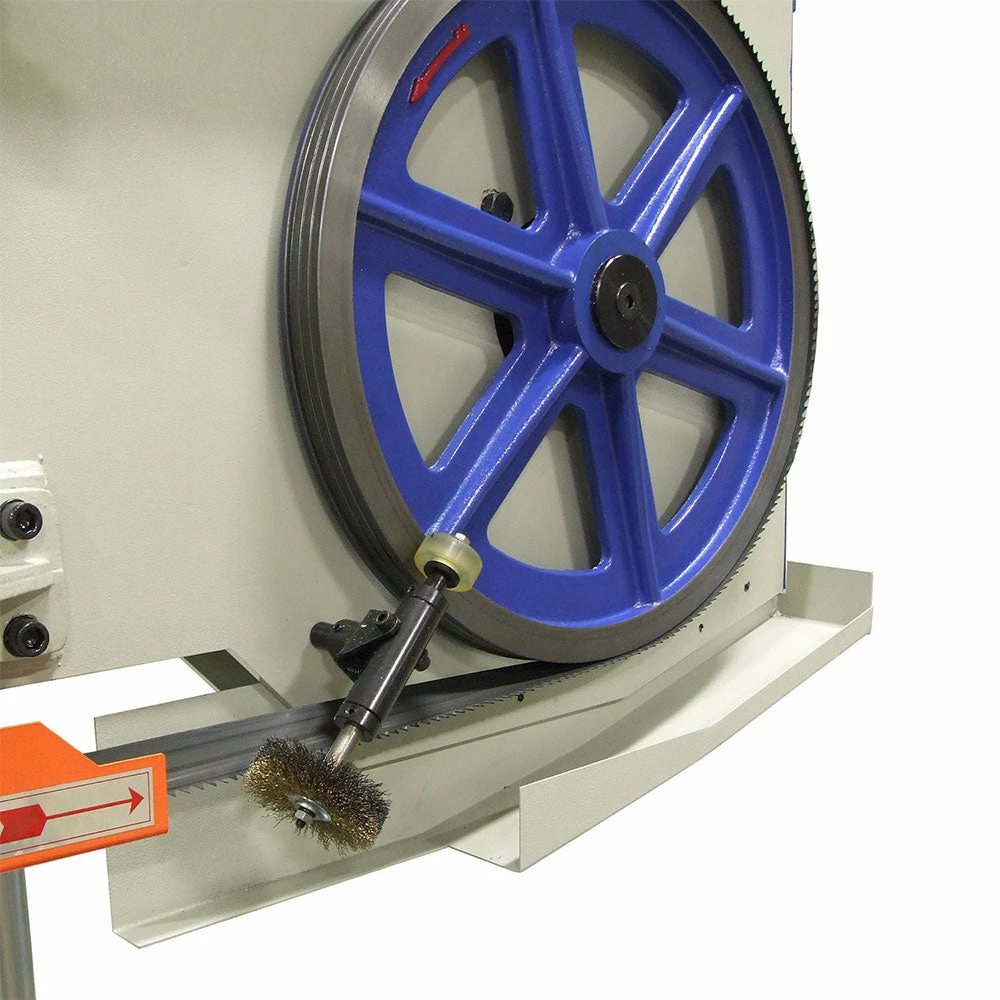

• Comes with a chip removal blade brush.

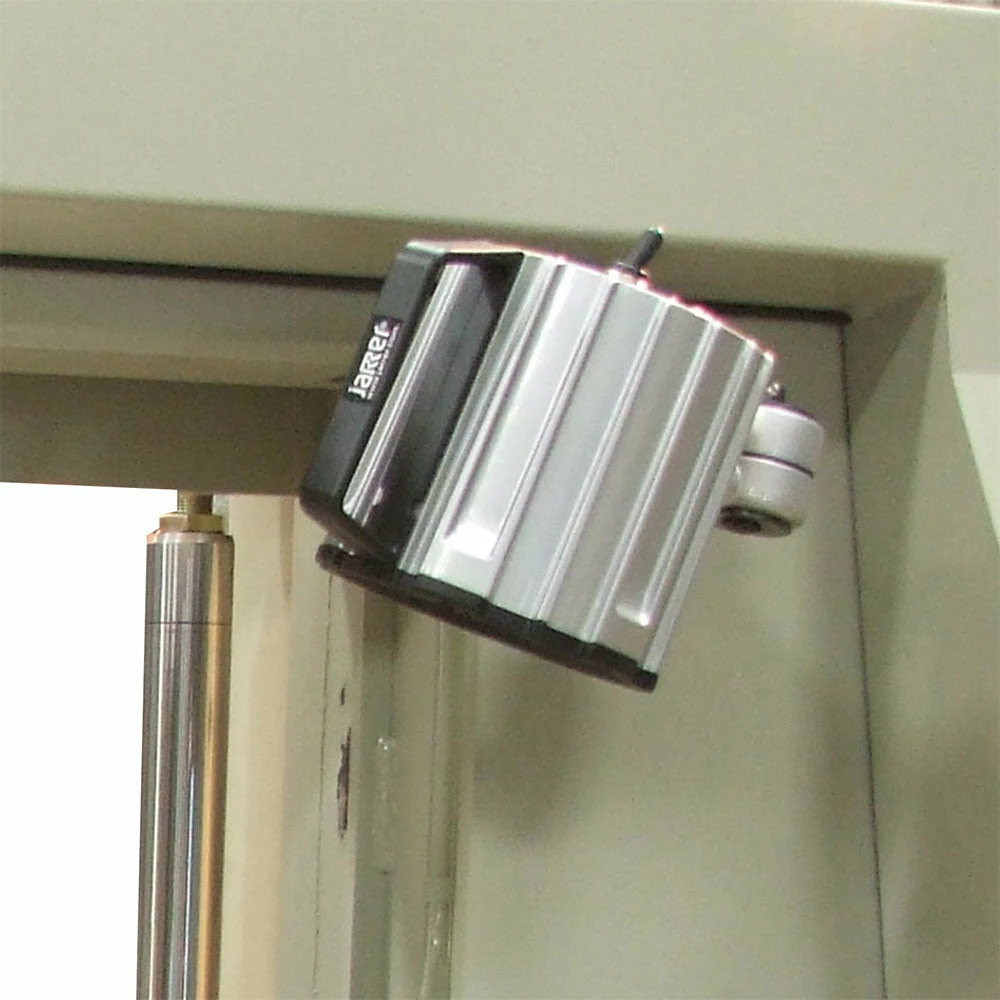

• Bright halogen work light gives you a clear view of what you’re cutting.
• Most replacement parts are in stock at our Wisconsin headquarters for fast shipping.
• This horizontal band saw is covered by a 1-year parts warranty.

What’s in The Box

• BS-360SA – Horiznotal Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-360SA
Power	220V / 3-phase
Capacity Square	14.17″
Return	Hydraulic
Miter Angle	N x A
Motor	5 hp
Capacity Round	14.17″
Capacity Rectangular	14.17″ x 22″
Table Height	29.21″
Blade Guide	Carbide x Roller
Blade Size	1.3″ x .04″ x 192.13″
Blade Speed (fpm)	77 to 252 (Variable Speed)
Descent Control	Pressure Assist Hydraulic
Drive	Belt x Pulley
Dimensions (Inches)	98 x 31 x 74
Weight	2600 lbs
