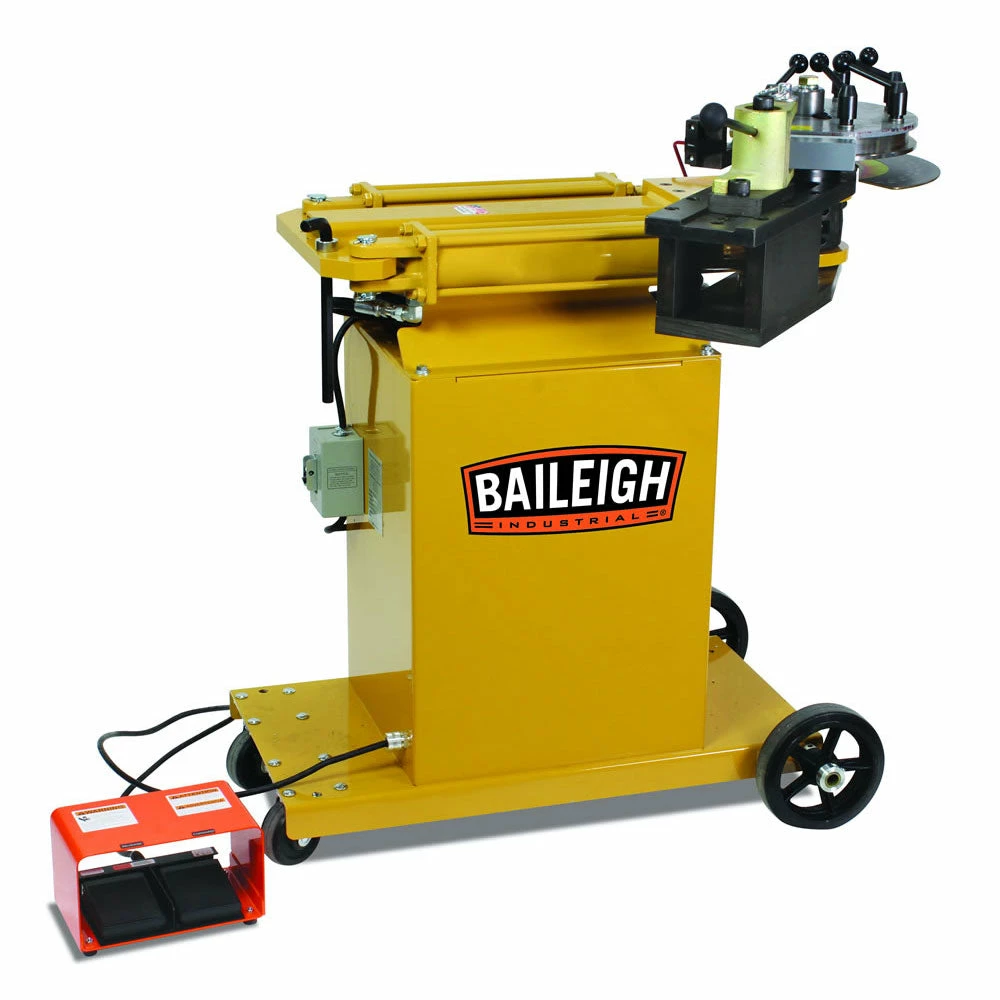

Tools & Equipment Baileigh 1006778 RDB-150 110V Hydraulic Tube Bender

Features

• Runs on just 110 volts of power and will work at most fabrication sites in North America.

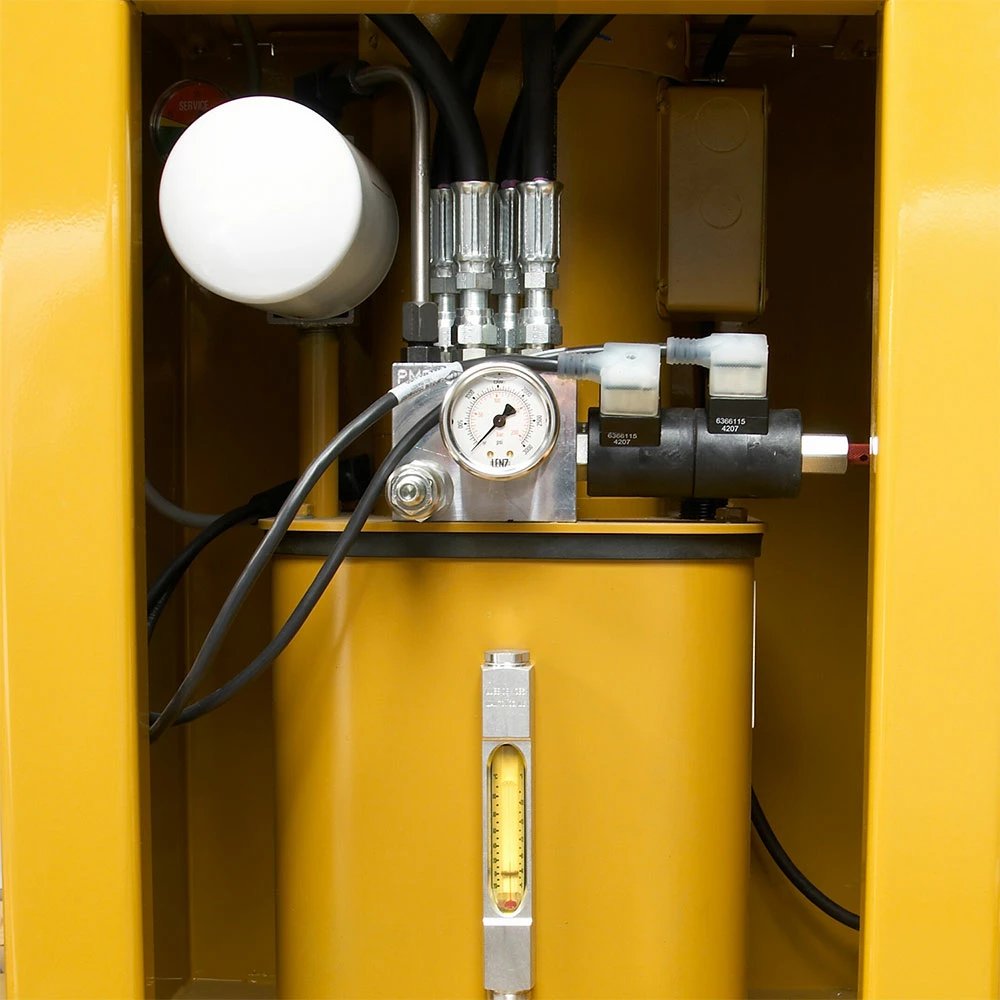

• Rotary draw powered by low-pressure, industrial-grade hydraulic system.
• 8” centerline radius maximum, depending on the outside diameter of the material.
• Bends with a capacity of 2″ schedule 40 pipe and up to 2.5″ tubing with a wall thickness of .120″ mild steel.

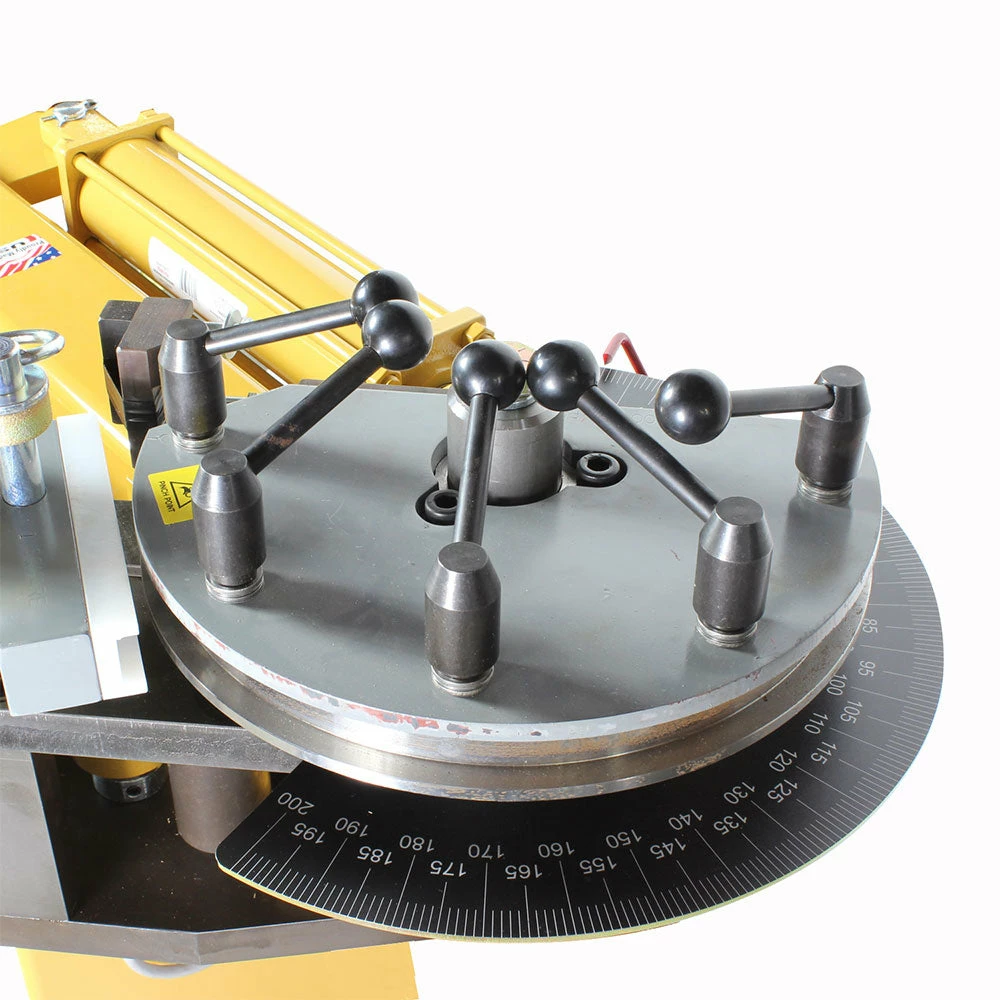

• Easy-to-read degree indicator to help you achieve correct bend degrees.

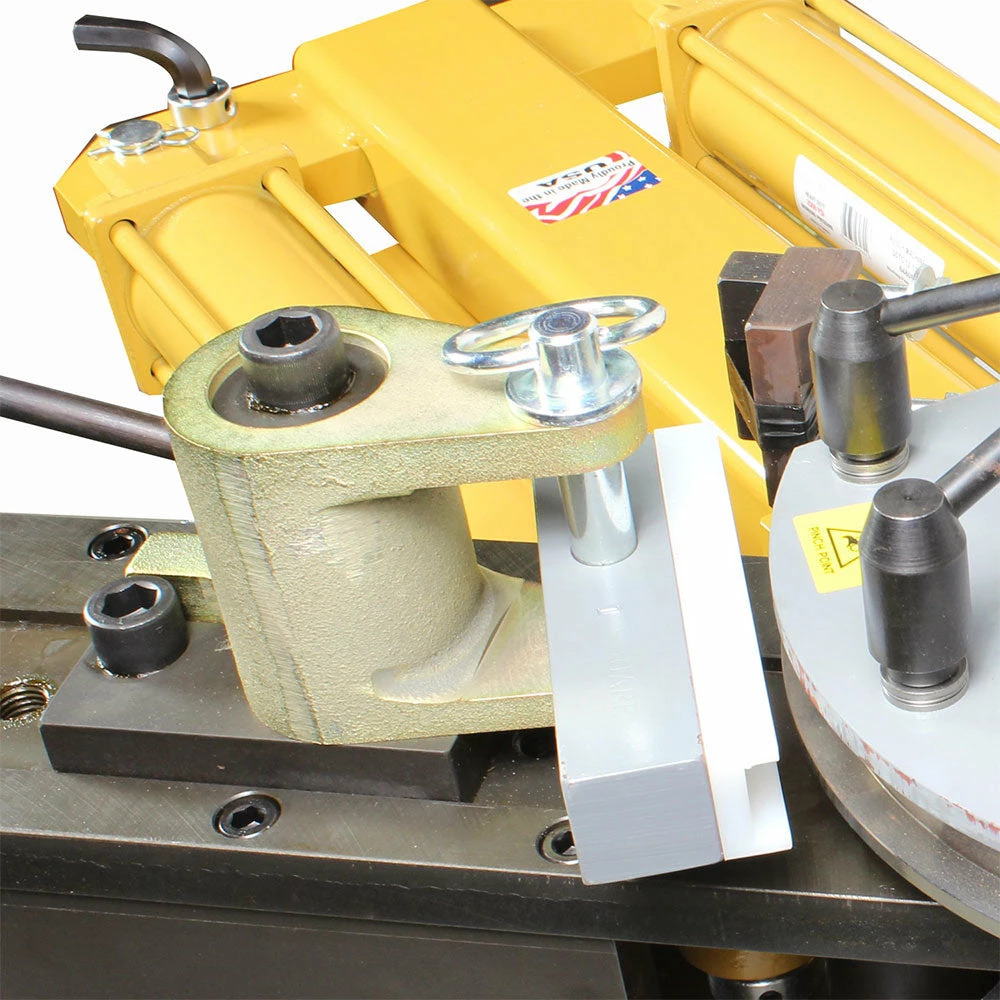

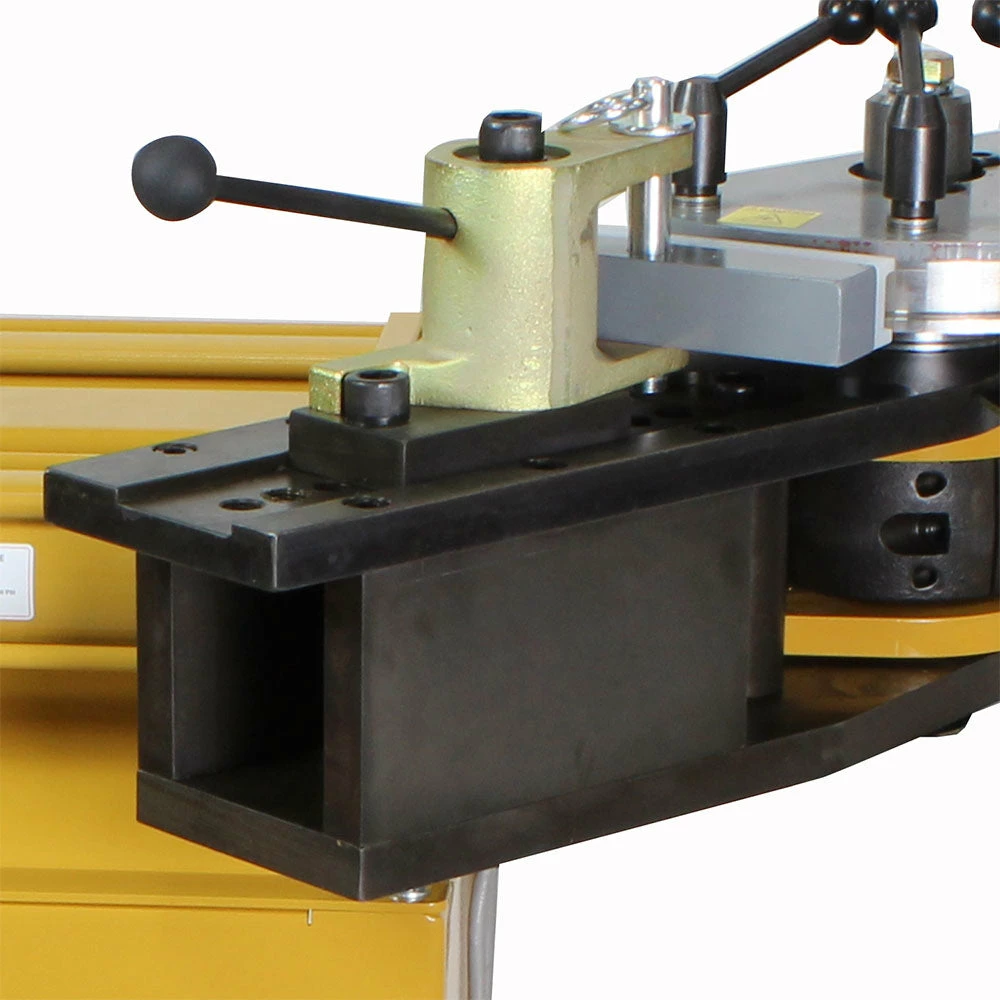

• Quick-release counter die system for hassle-free loading and unloading.
• Includes wheels on the base for smooth movement, helpful for storage in small shops.

What’s in The Box

• RDB-150 – Tube Bender
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RDB-150
Power	110V
Country of Manufacture	United States
Minimum CLR	.5″
Minimum OD	.25″
Mild Steel Solid Rod	1″
Mild Steel Pipe Schedule 40	2″
Mild Steel Round Tube Wall	2.5″ (.125)
Mild Steel Square Tube (Wall)	2″ (.125)
Stainless Steel Pipe Schedule 40	1.5″
Stainless Steel Round Tube Wall	2.375″ (.125)
Chromolly Round Tube Wall	2″ (.125)
Aluminum Round Tube Wall	2.5″ (.156)
Maximum Center Line Radius Clr	9.5″
Special Notes	Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Dimensions (Inches)	60 x 44 x 77
Weight	610 lbs
