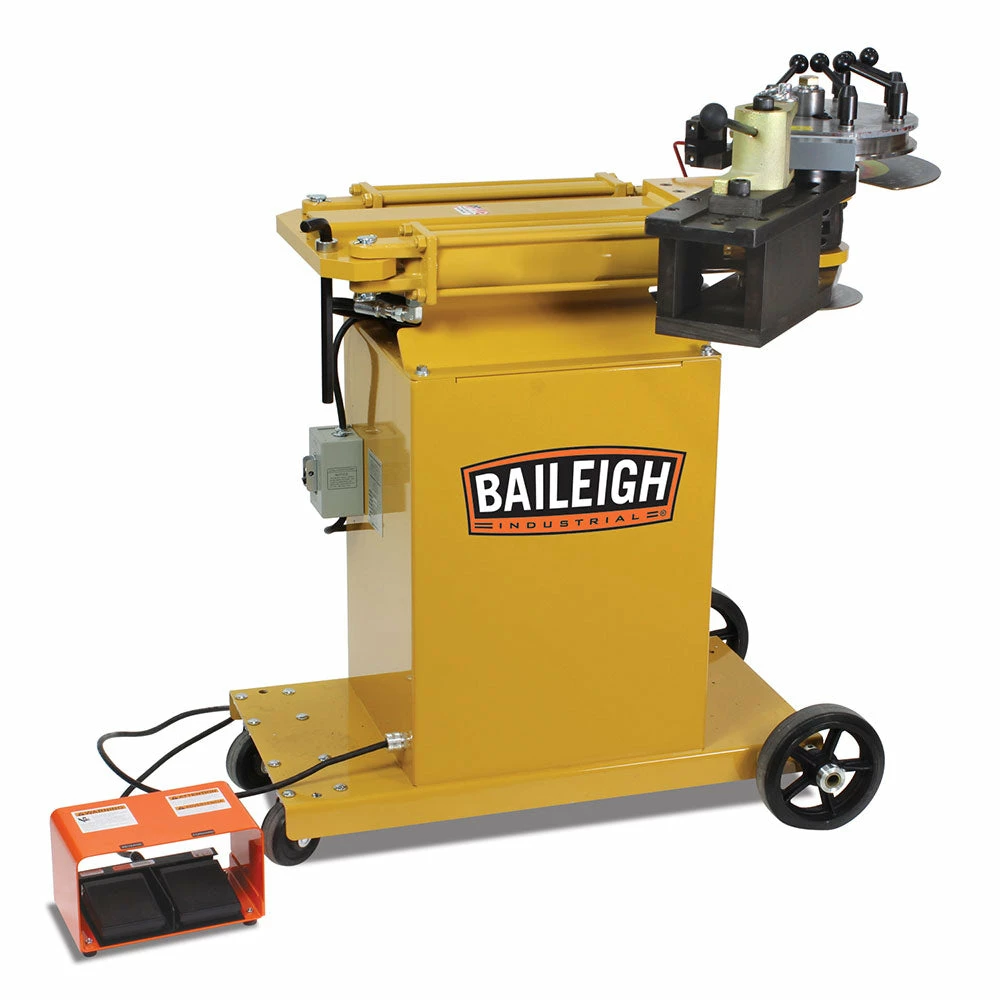

Tools & Equipment Baileigh 1006779 RDB-150-AS 110V Low Pressure Hydraulic Pipe Bender

Features

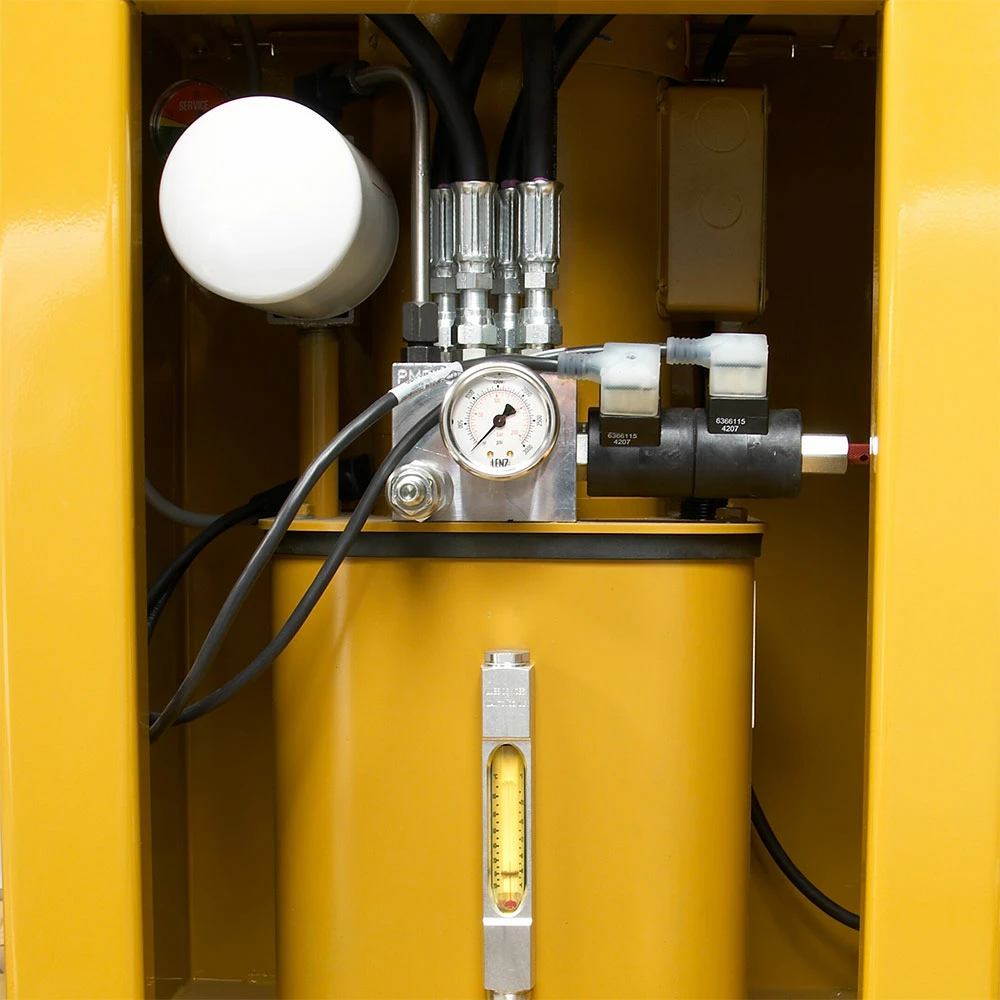

• Powerful low-pressure hydraulic system operates on only 110 volts.
• Tackles a maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
• Executes consistent 180° bends in one fluid motion.
• Auto-stop programmer lets you set the desired bend angle for convenient precision and repeatability.

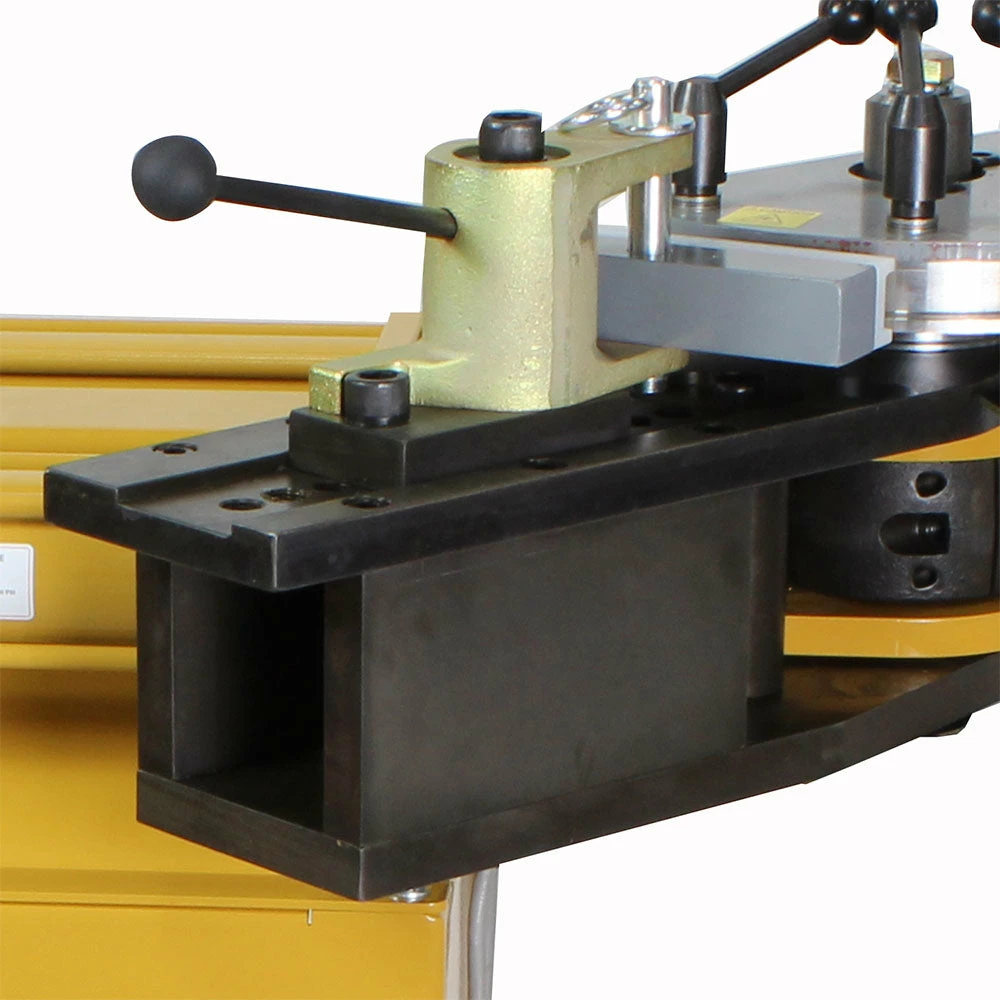

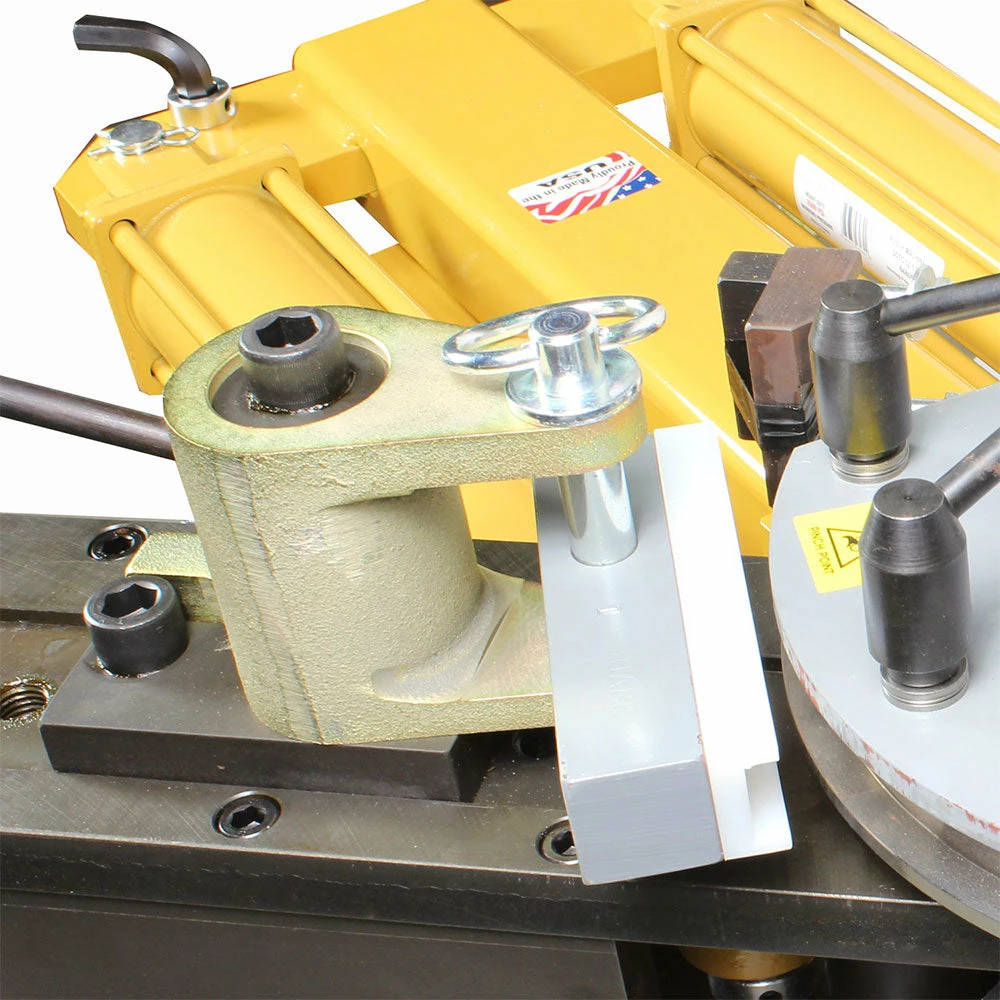

• Quick-release counter die makes for fast loading and unloading.

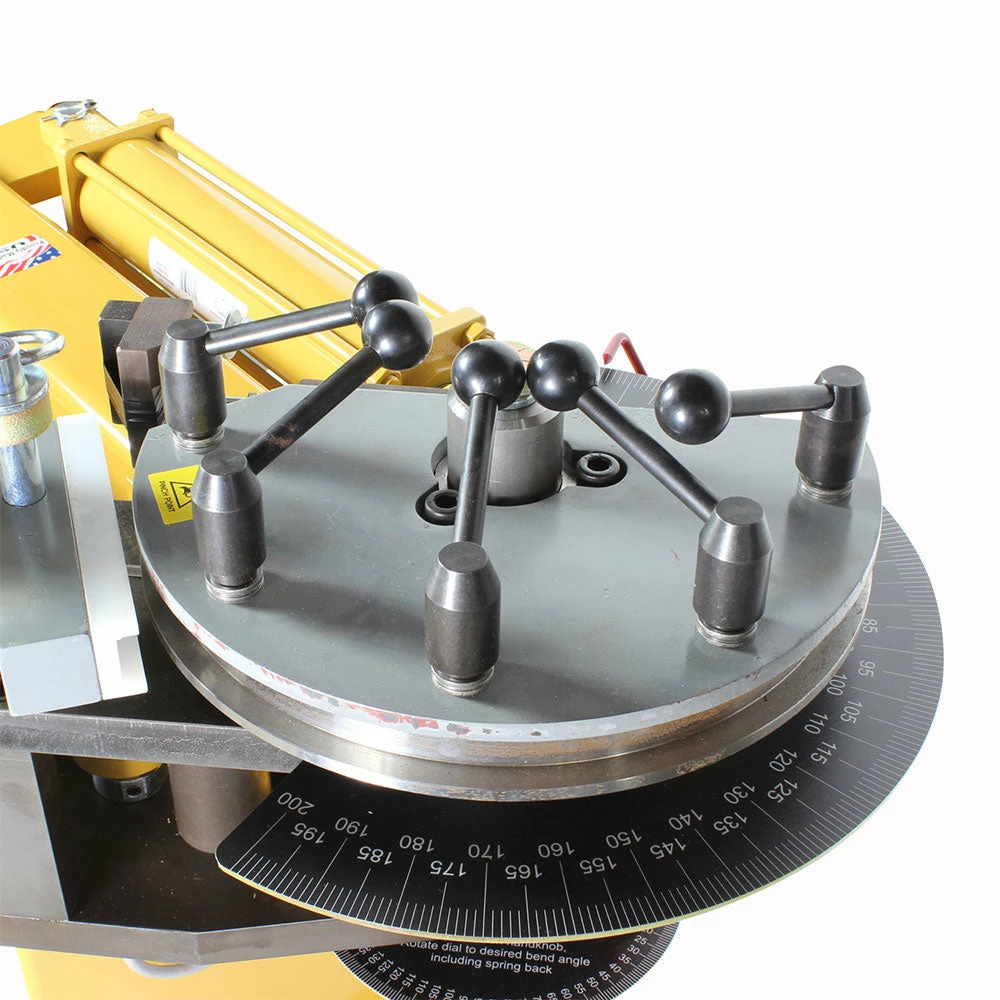

• Easy-to-read degree indicator shows a bend’s progress.

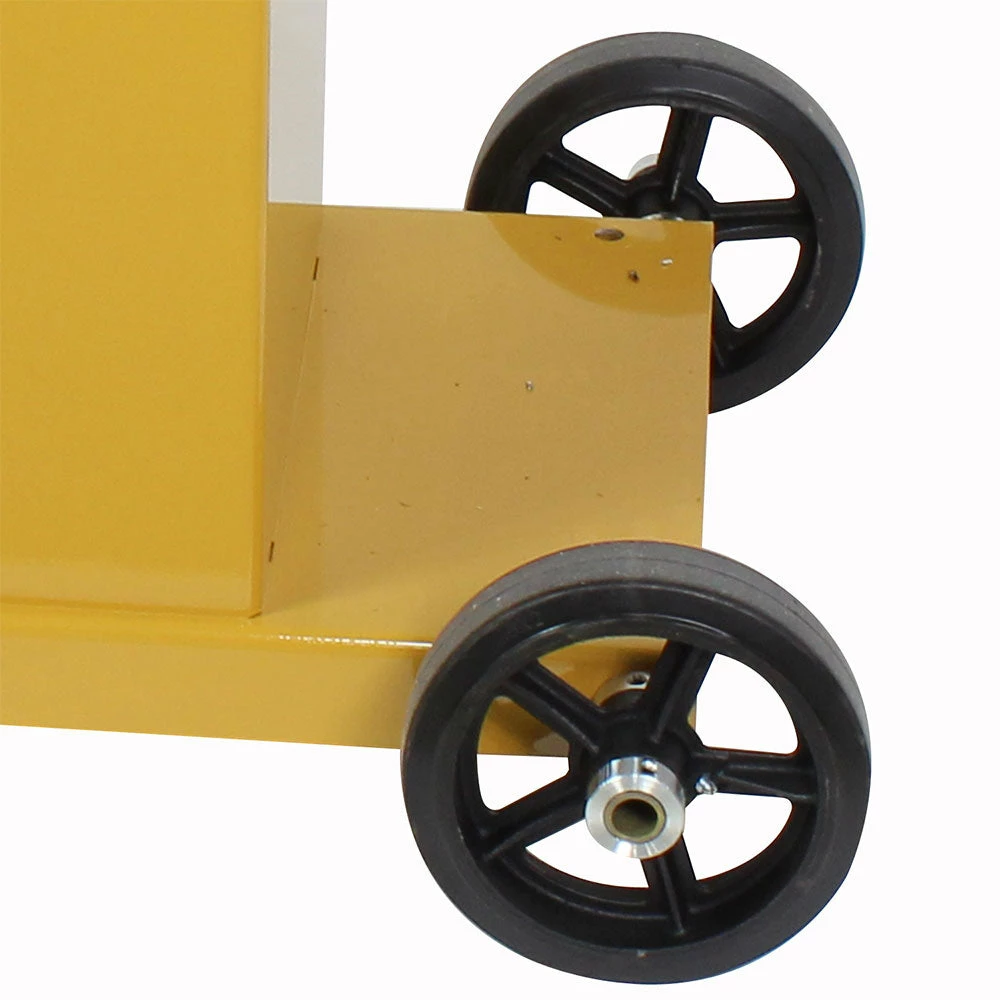

• Compact machine includes wheels on the base for convenient storage in small shops.
• Covered by a 1-year parts warranty.

What’s in The Box

• RDB-150-AS – Pipe Bender
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RDB-150-AS
Power	110V
Country of Manufacture	United States
Minimum CLR	.5″
Minimum OD	.25″
Mild Steel Solid Rod	1″
Mild Steel Pipe Schedule 40	2″
Mild Steel Round Tube Wall	2.5″ (.125)
Mild Steel Square Tube (Wall)	2″ (.125)
Stainless Steel Pipe Schedule 40	1.5″
Stainless Steel Round Tube Wall	2.375″ (.125)
Chromolly Round Tube Wall	2″ (.125)
Aluminum Round Tube Wall	2.5″ (.156)
Maximum Center Line Radius Clr	*7 – 8″
Special Notes	Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Dimensions (Inches)	60 x 44 x 77
Weight	610 lbs
