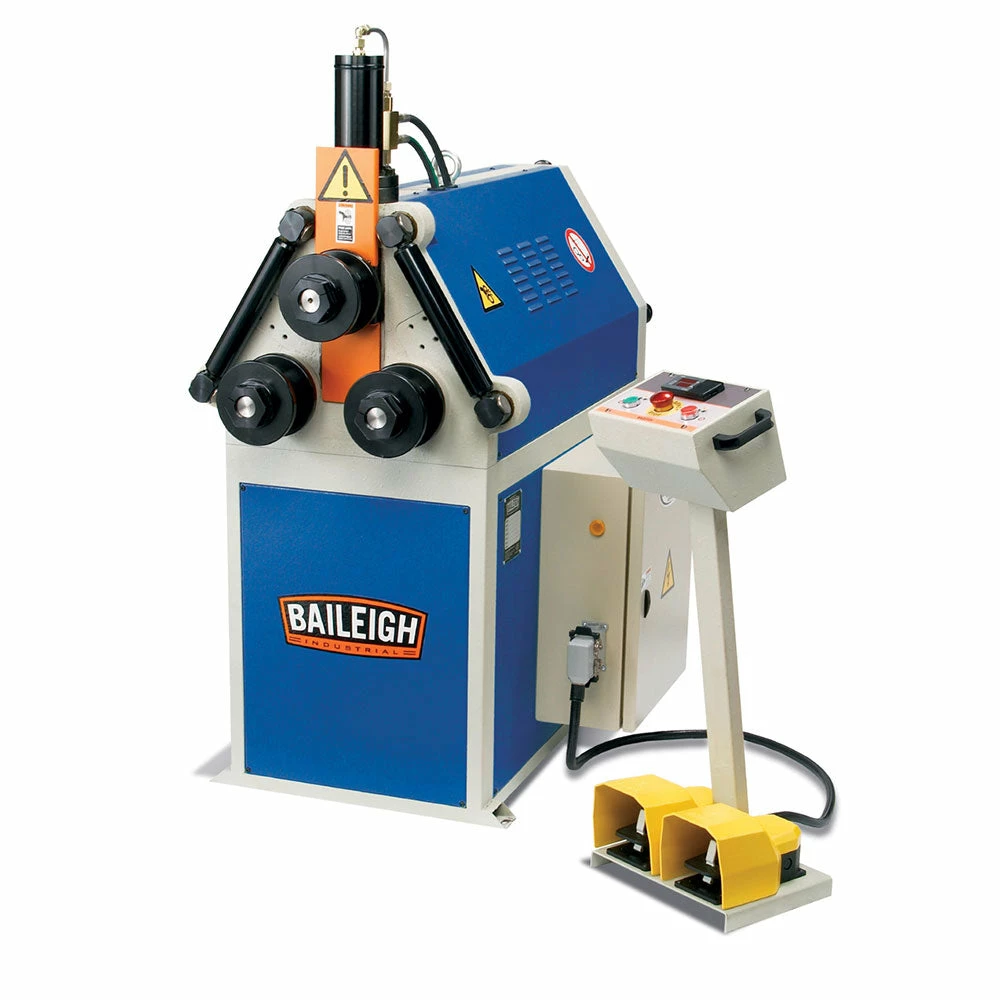

Tools & Equipment Baileigh 1006835 R-H45 Hydraulic Roll Bender W/ 3 Driven Rolls

Features

• Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
• Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

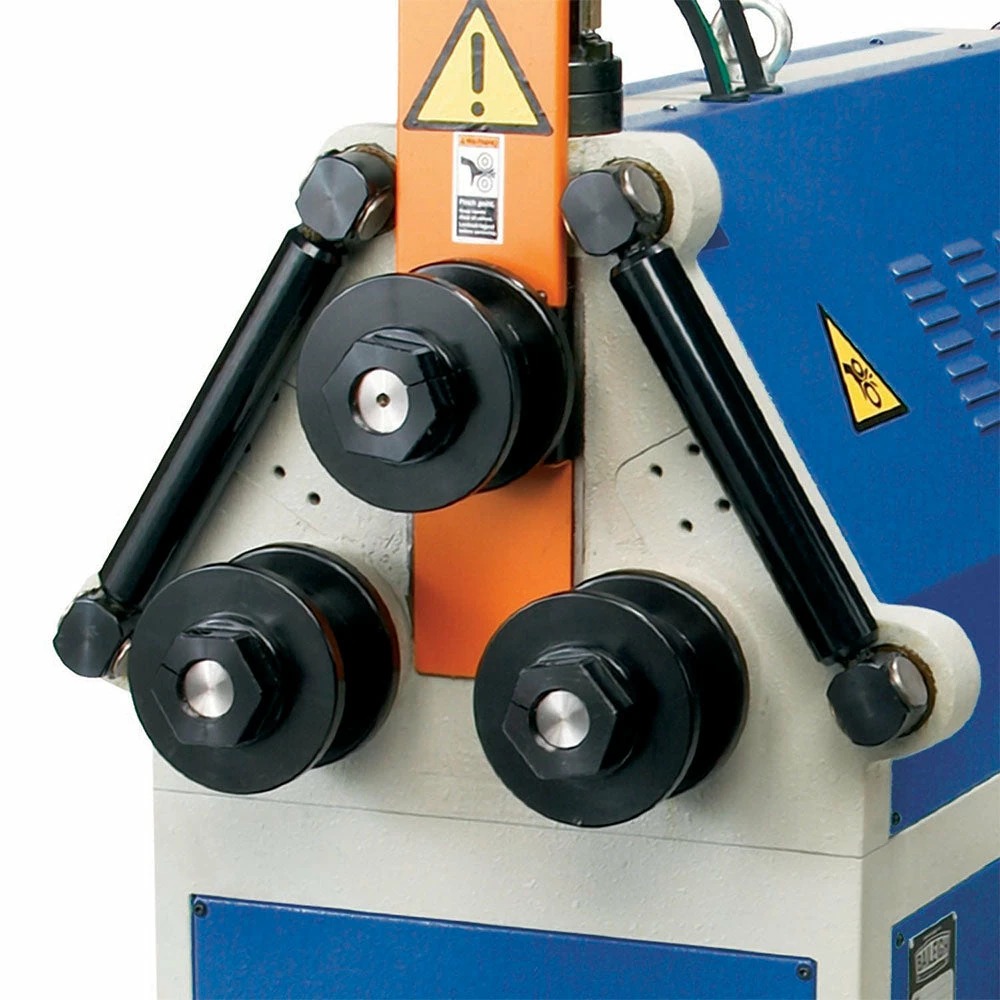

• All 3 rolls turn on industrial motor and transmission.

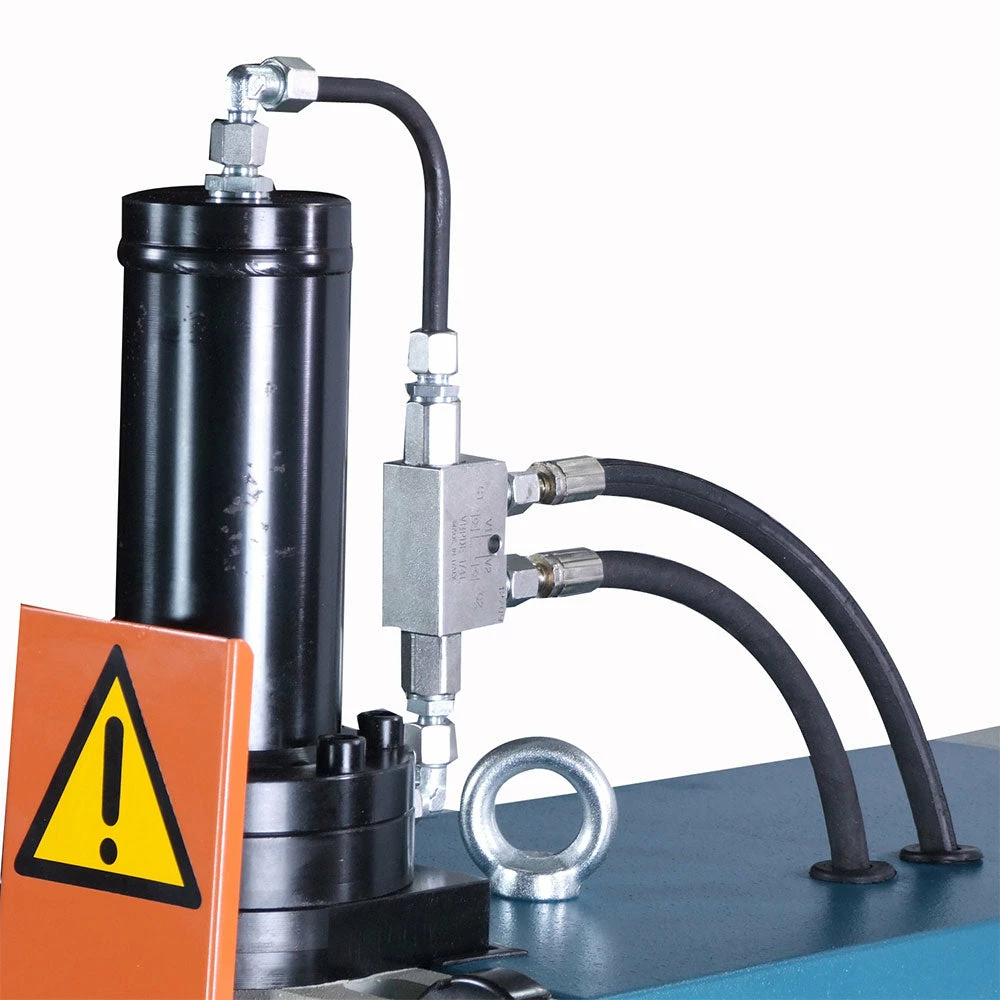

• Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

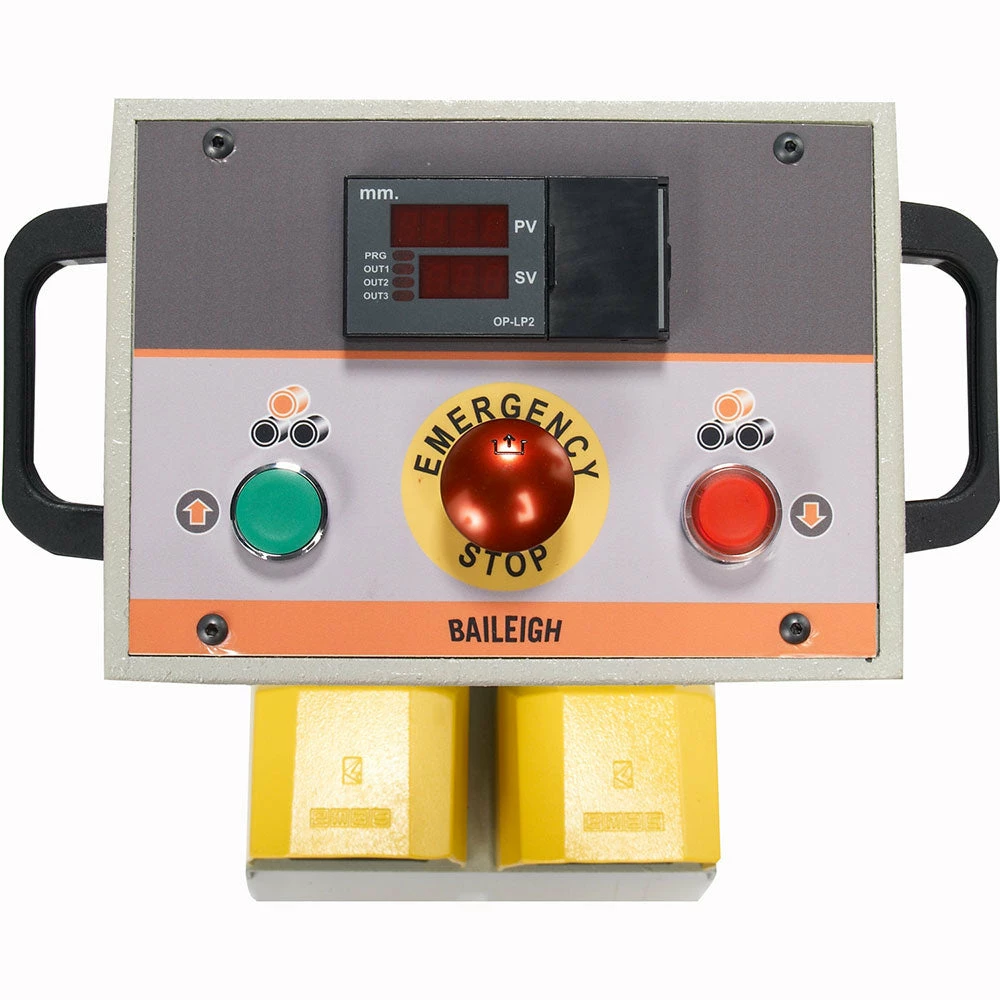

• Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
• Siemens inverter drive enables soft start-ups to prolong motor life.
• Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
• You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
• Fully-welded steel plate frame adds strength to the machine and minimizes flex.

What’s in The Box

• R-H45 – Hydraulic Roll Bender
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	R-H45
Power	220V Single Phase
Roll Adjustment	Hydraulic
Pipe Capacity	Size: 2″ (sch. 40) / Min. Dia.: 48″
Round Tube Capacity	Size: 2.75″ (.083″) / Min. Dia.: 60″
Square Tube Capacity	Size: 2″ (.120″) / Min. Dia.: 51″
Solid Round Capacity	Size: 1.5″ / Min. Dia. 28″
Flat Bar Easy Way	Size: 4″ (.75″) / Min. Dia. 28″
Flat Bar Hard Way	Size: 3.25″ (.375″)/ Min. Dia.: 32″
Angle Iron Capacity	Size: 2″ (.250″)/ Min. Dia.: 36″
Shaft Diameter	1.772″
Shaft Center Distance Lower Rolls	9.562″

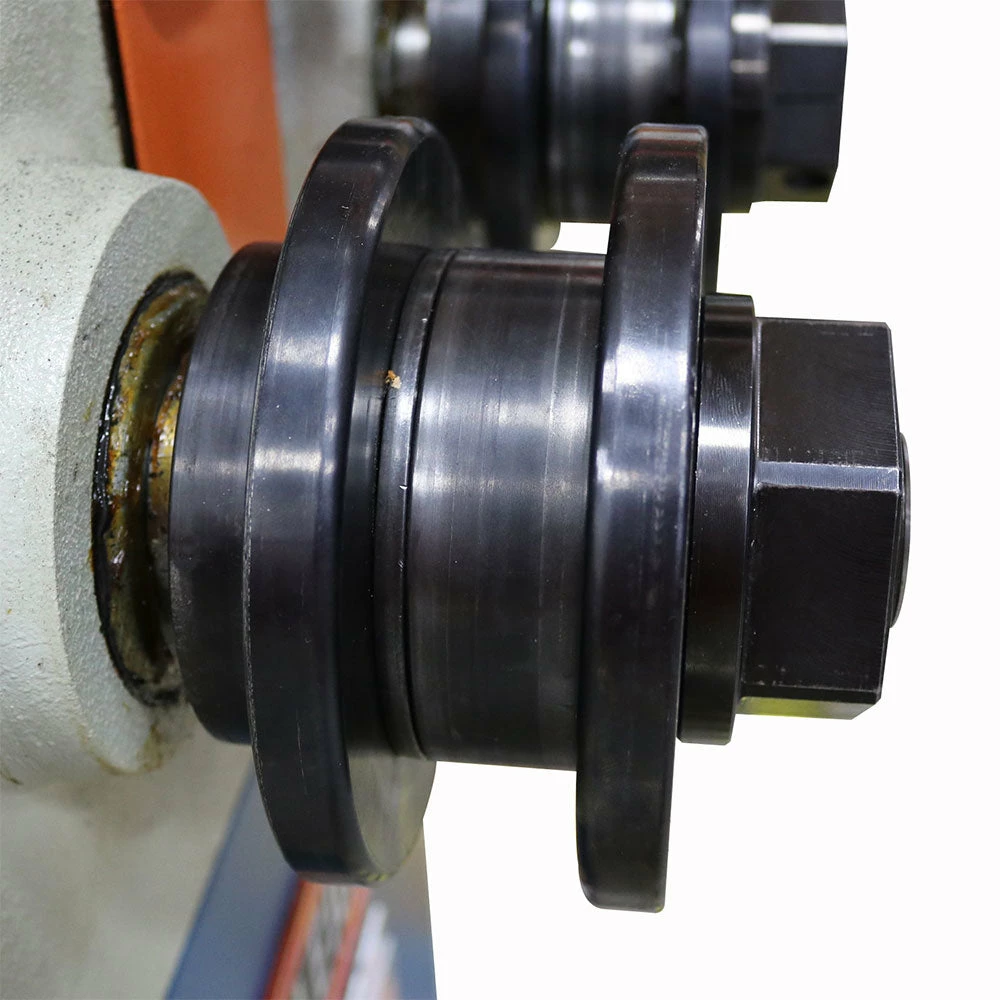

Lower Roll Dia.	5.827″
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60 x 44 x 77
Weight	1000 lbs
