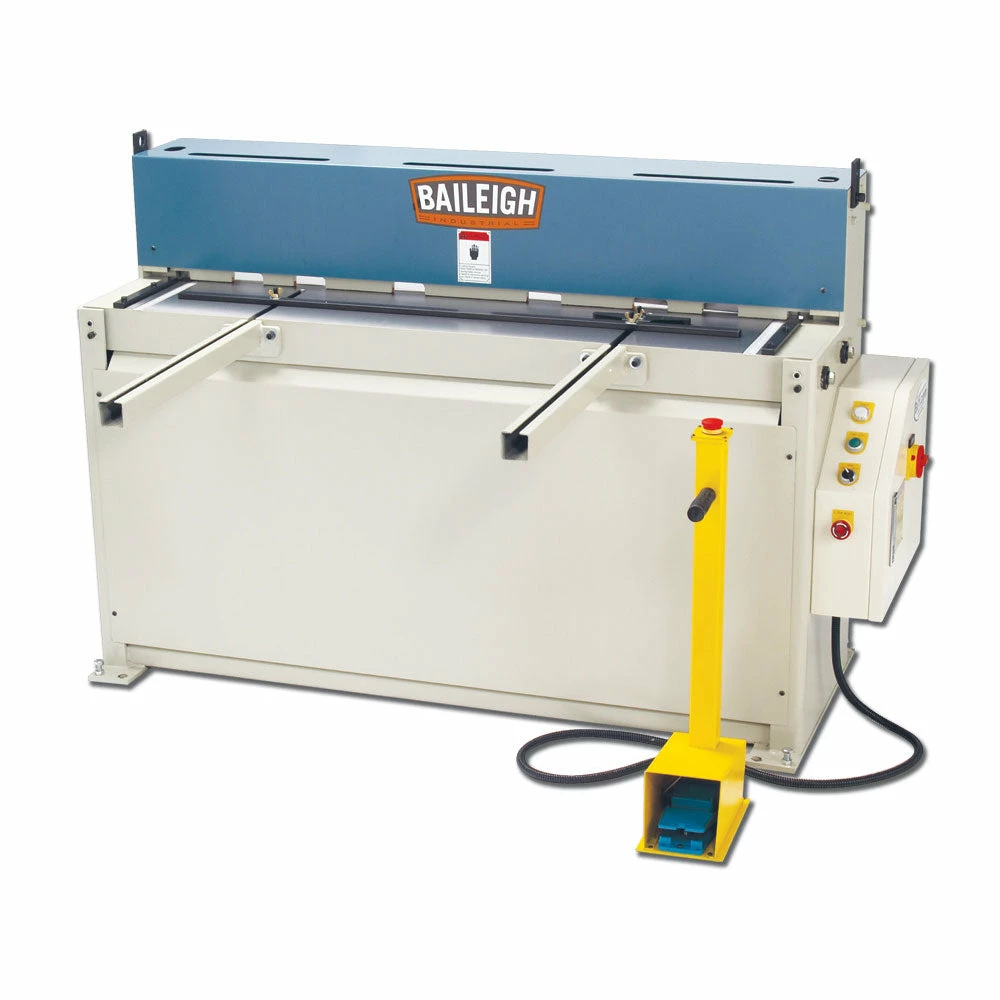

Tools & Equipment Baileigh 1007100 SH-5210 60″ Hydraulic Metal Shear W/ 10 Gauge Capacity

Features

• 52” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 5 hp motor runs on 220-volt single-phase power.
• Up to 28 strokes per minute.

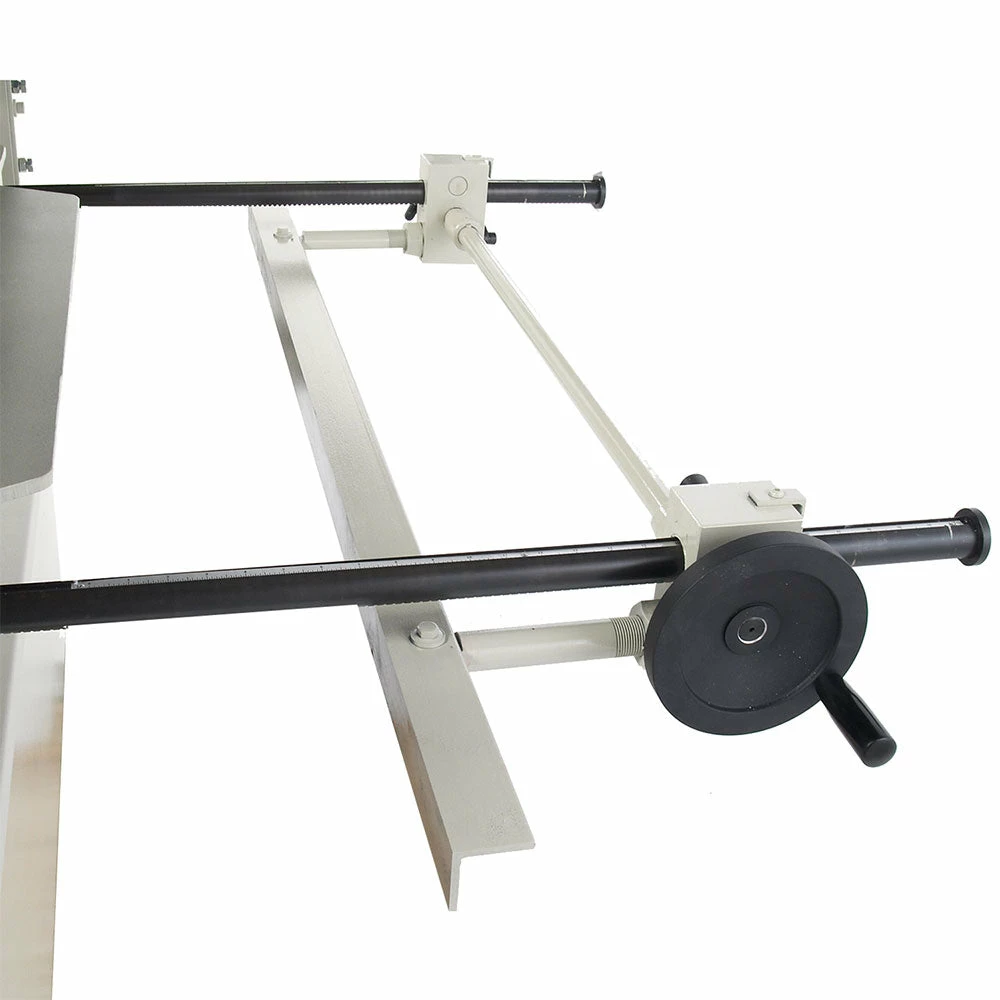

• Adjustable 24” backgauge ensures precise repeatability.

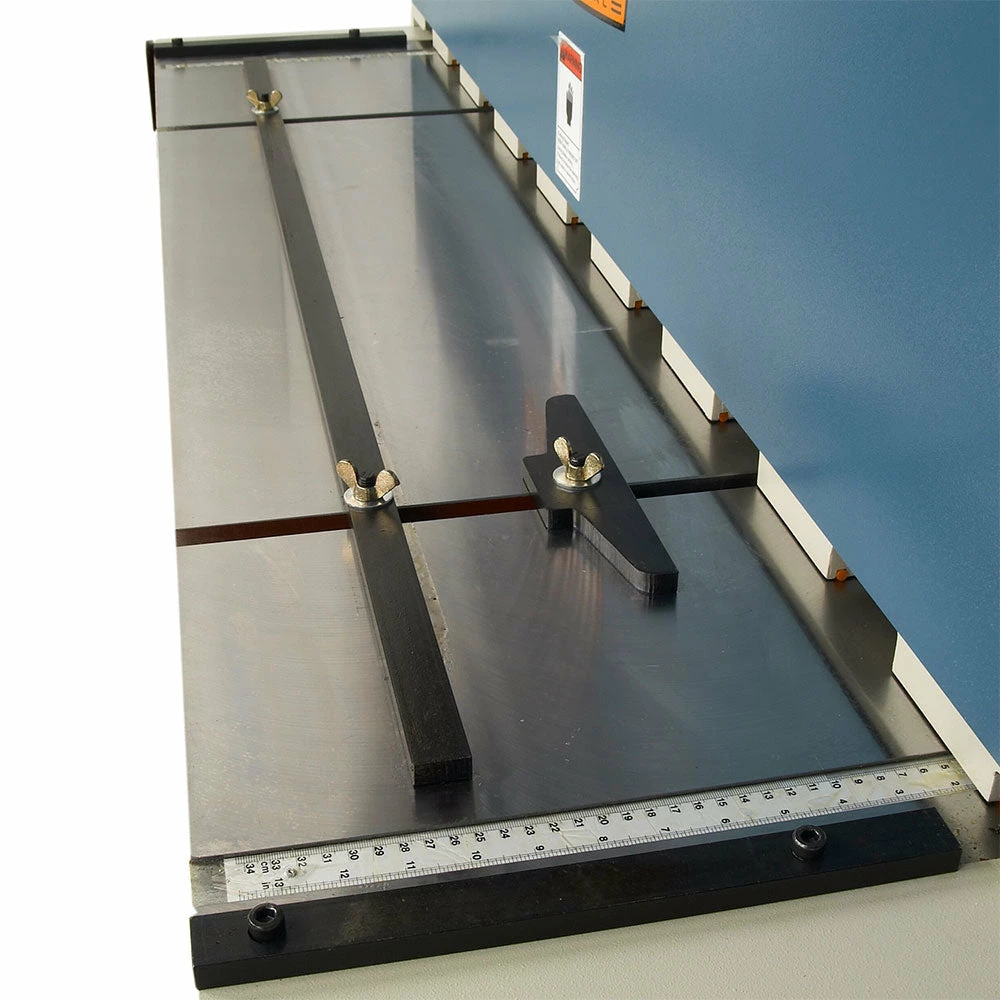

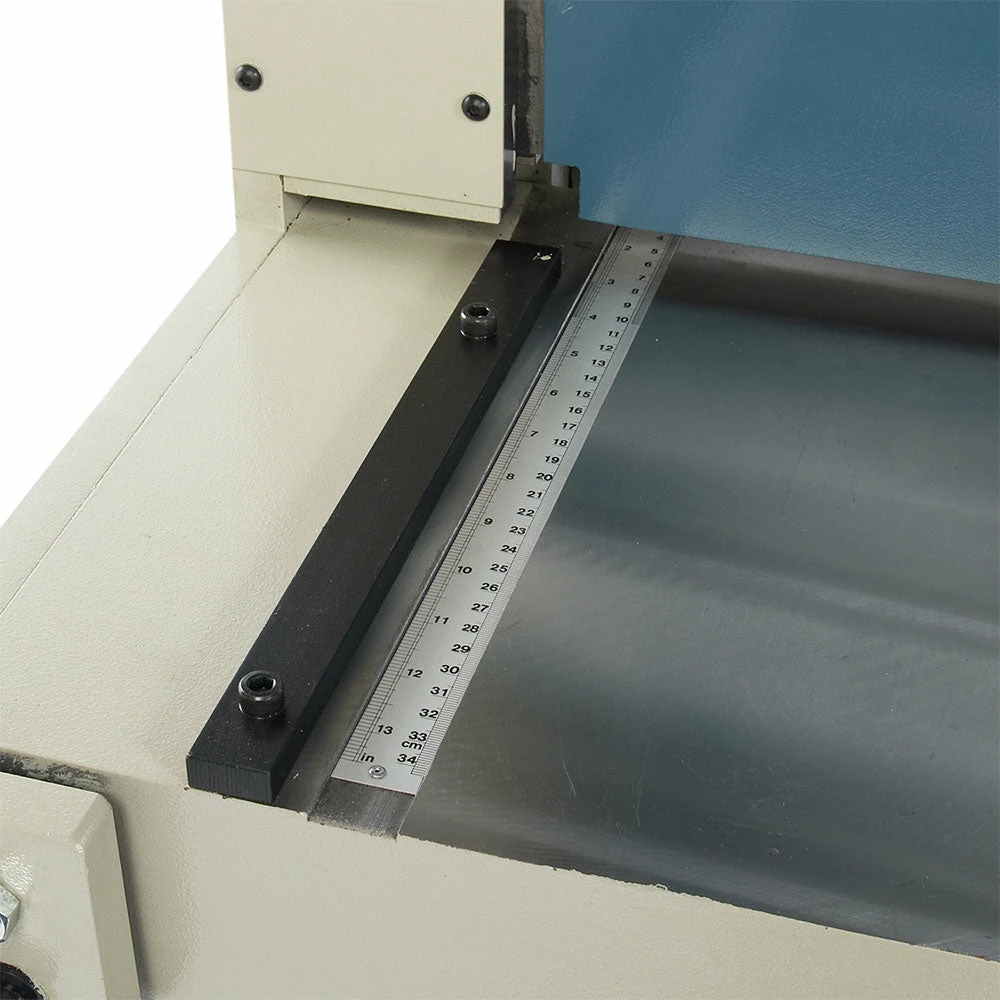

• Front support arms and table guides keep the material square to the blade.

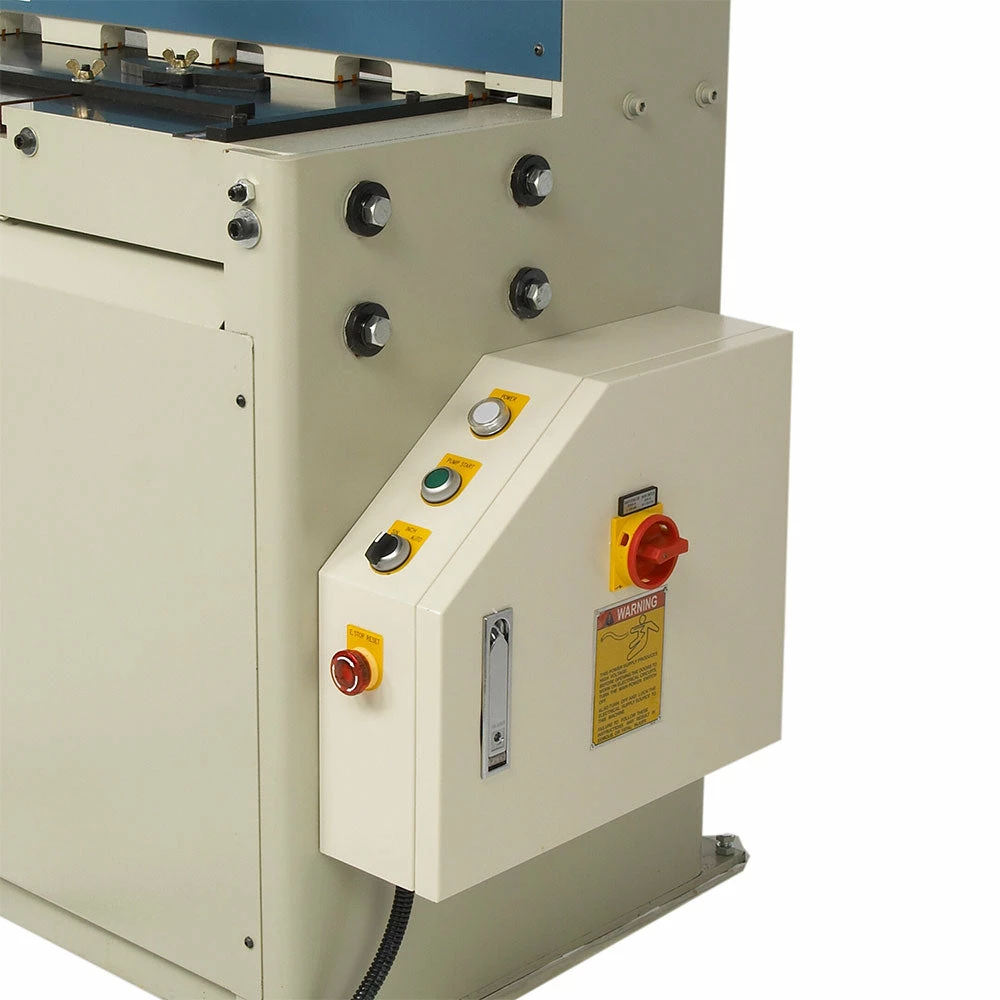

• 3 modes on the operator console:
• Inch mode: Jog the control and ease the blade down to the material.

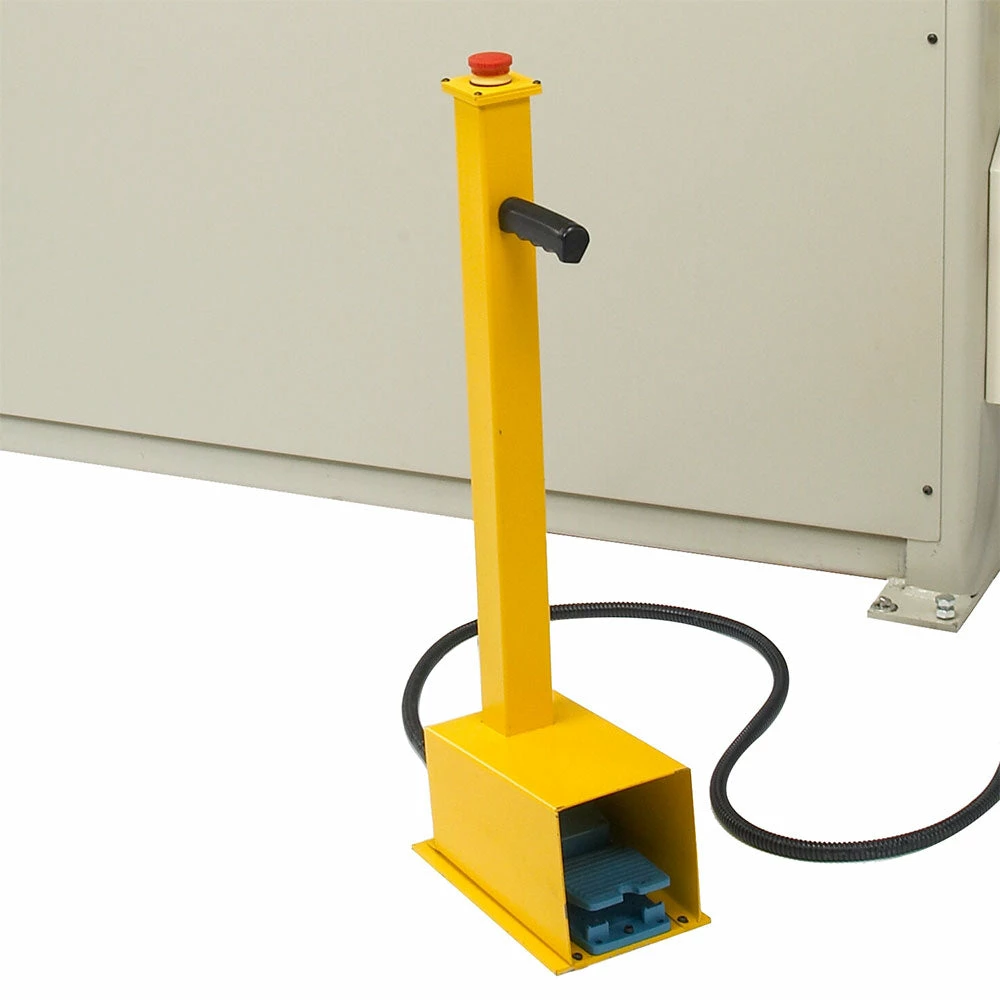

• Single mode: Make one cut cycle per foot pedal push.
• Auto mode: Continue cycling as you hold the pedal down.
• This hydraulic shear comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

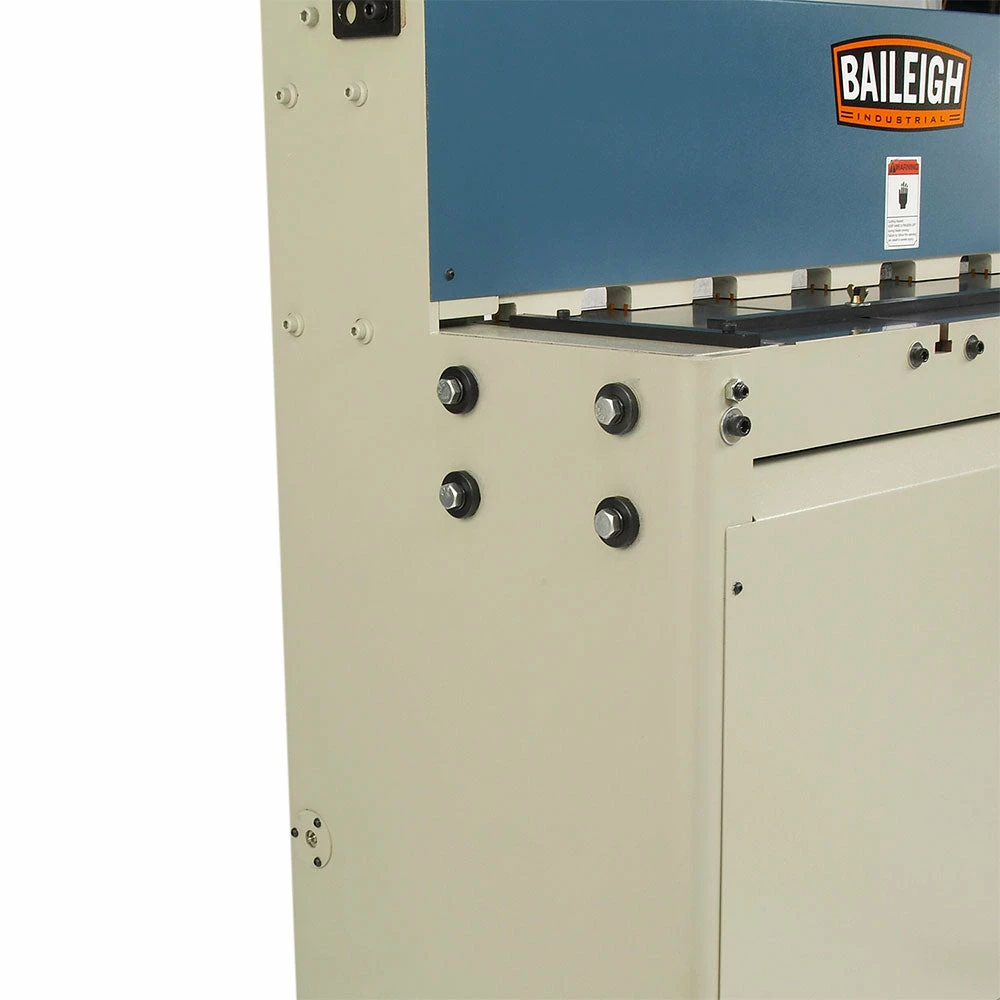

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• This 10 gauge sheet metal shear is covered by a 1-year parts warranty.

What’s in The Box

• SH-5210 – Sheet Metal Shear
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	SH-5210
Power	220V Single Phase
Back Gauge Length	24″
Shear Length	52″
Motor	5 hp
Thickness (SS)	10 ga. (13 ga.)
Strokes Per Minute	28
Front Gauge Length	24″
Blade Angle	1°
Weight	3150 lbs
Minimum Material Thickness	24ga
Dimensions (Inches)	75 x 35 x 59
Weight	3150 lbs
