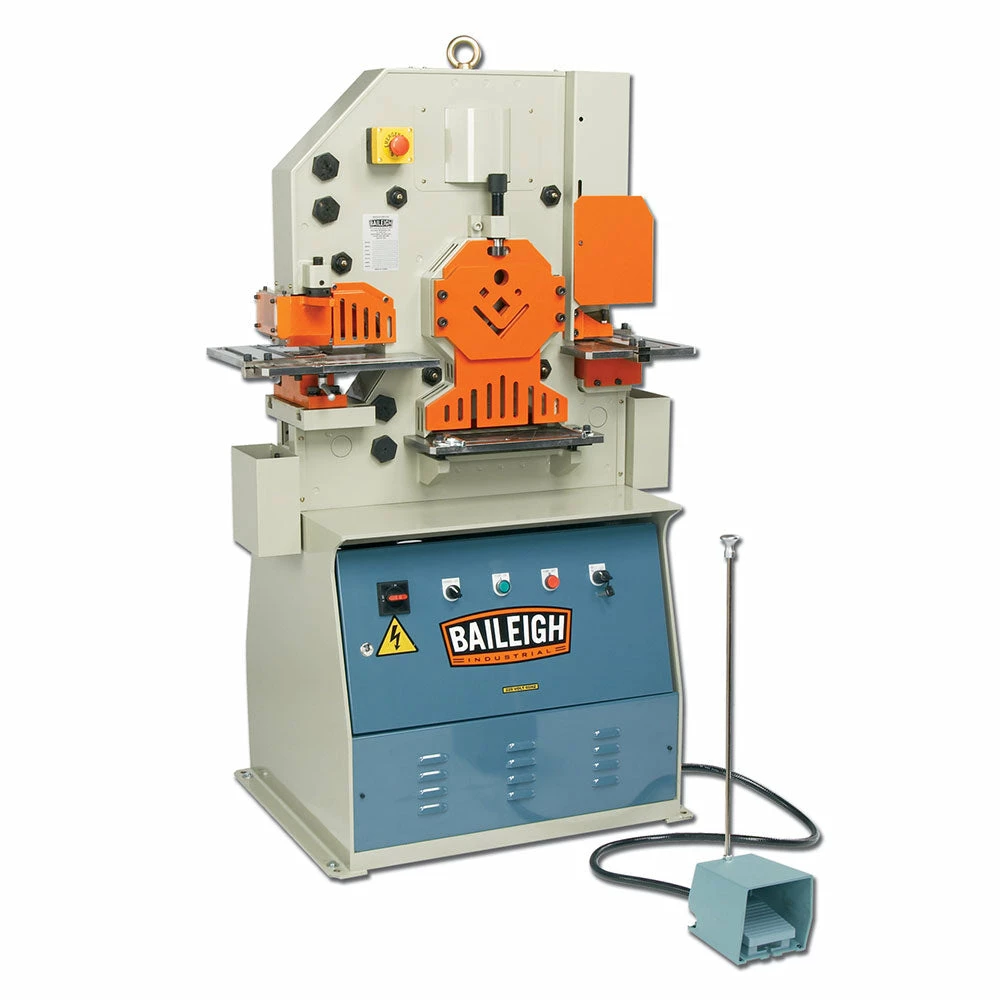

Tools & Equipment Baileigh 1007792 230V 220V 3PH 50 Ton 5 Station Ironworker W/ Welded Steel Plate

Features

• This 50 ton ironworker runs on 220-volt 3-phase power.
• 50 tons of vertical pressure at each of its 5 integrated stations.

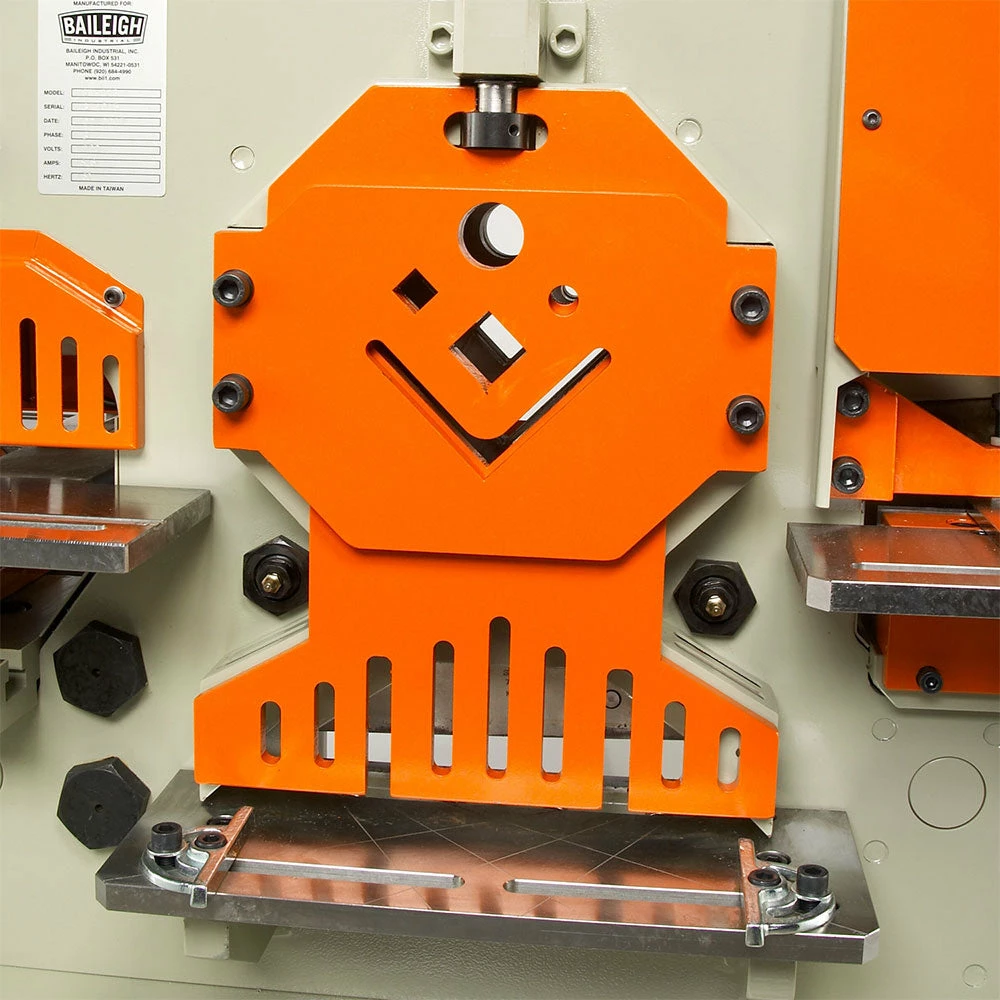

• 5 workstations each execute a different function: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
• Vertical hydraulic movement executes clean cuts in seconds, prevents deformed edges, and reduces waste.
• Material stops and multipositional backgauge simplify production runs.
• Large 2-piece tables with meter guides pull out from the machine to handle many shapes and profiles.
• Adjustable stroke control, with downward and upward stroke knobs, can limit machine movement and reduce production costs.
• Jog dial lets you align tooling for safe and easy set-ups.
• Material hold-down with knurled handle enables you to quickly fine-tune and fit a given profile.

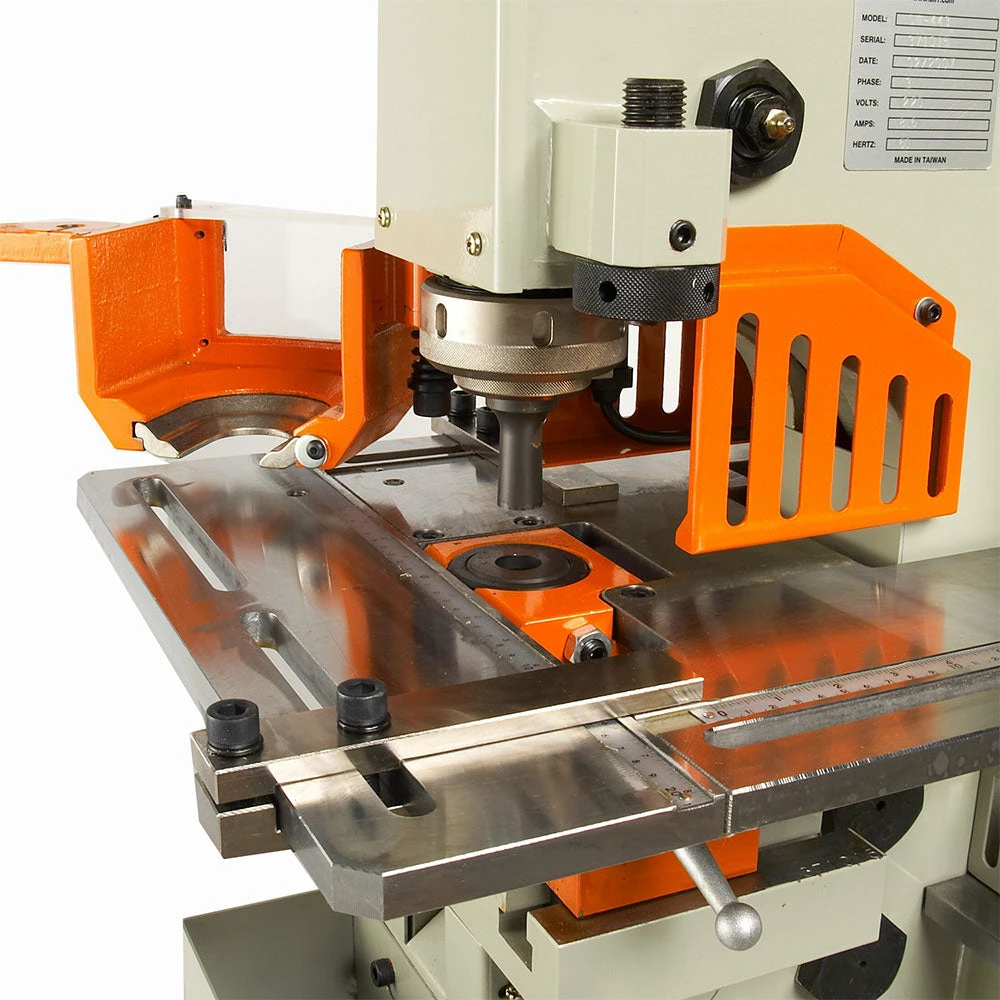

• Punching station includes a T-slot base.
• 7 sets of punches and dies can tackle a wide range of projects and our patented swing-away stripper makes tooling changes more efficient.
• Welded steel plate framework keeps the machine rigid and minimizes flex.

What’s in The Box

• SW-503 – Ironworker
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	SW-503
Power	3 HP – 220V 3-Phase
Round Bar Shear	1.125″
Rectangle Notcher W x D x T	2″ x 3.5″ x .281″
Single Vee Press Brake L x T	6.312″ x .312″*
Punch Capacity	.875″ x .625″
Punching Pressure	50 Tons
Pipe Notching	2.5″*
Multi Vee Press Brake L x T	9.875″ x .156″*
Throat Depth	6″
Vee Notcher Side x Side x T	3.5″ x 3.5″ x .312″*
Working Height	32.5″
Square Bar Shear	1″ x 1″
Angle Shearing at 90°	3″ x 3″ x .25″
Angle Bending	2.5″ x .312″*
Angle Flange Trim	3″
Blade Length	10.25″
Max. Stroke Length	1.125″
Diameter x Thickness	1.625″ x .375″
Cycles / Min.	19 @ 15 mm
Flat Bar Shearing	10″ x .375″
Shipping Dimensions (Inches)	60x48x73
Weight	1650 lbs
