Features
- Runs on 220-volt 3-phase power.
- Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
- Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.
- You can set the backgauge and material stops to save time and ensure repeatability for production runs.
- Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.

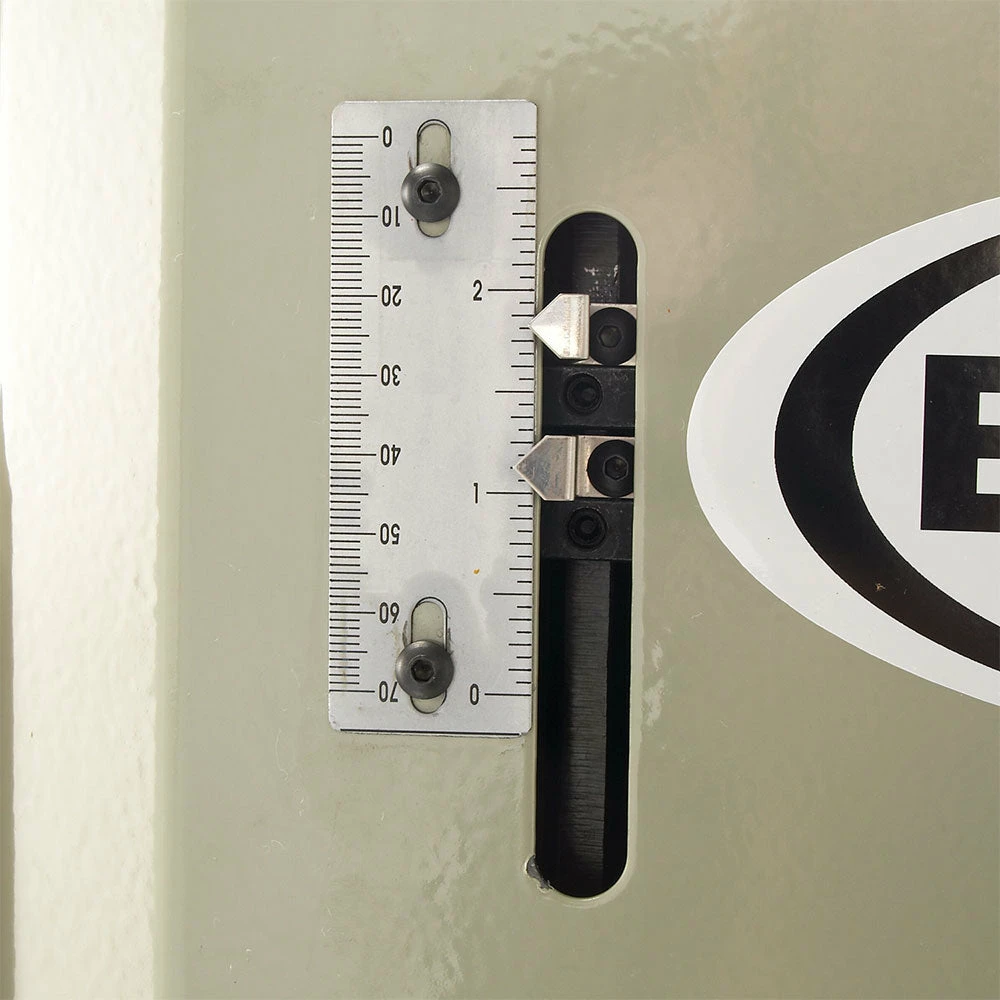

- Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.

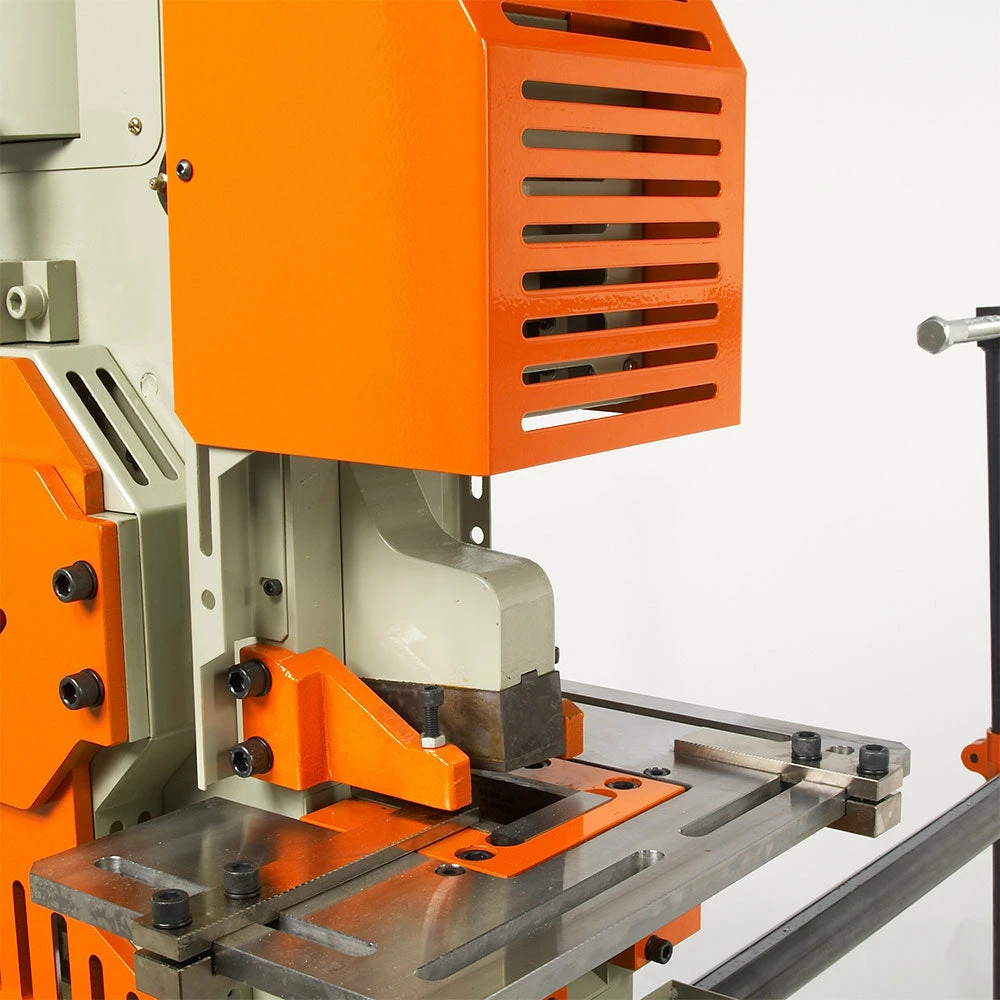

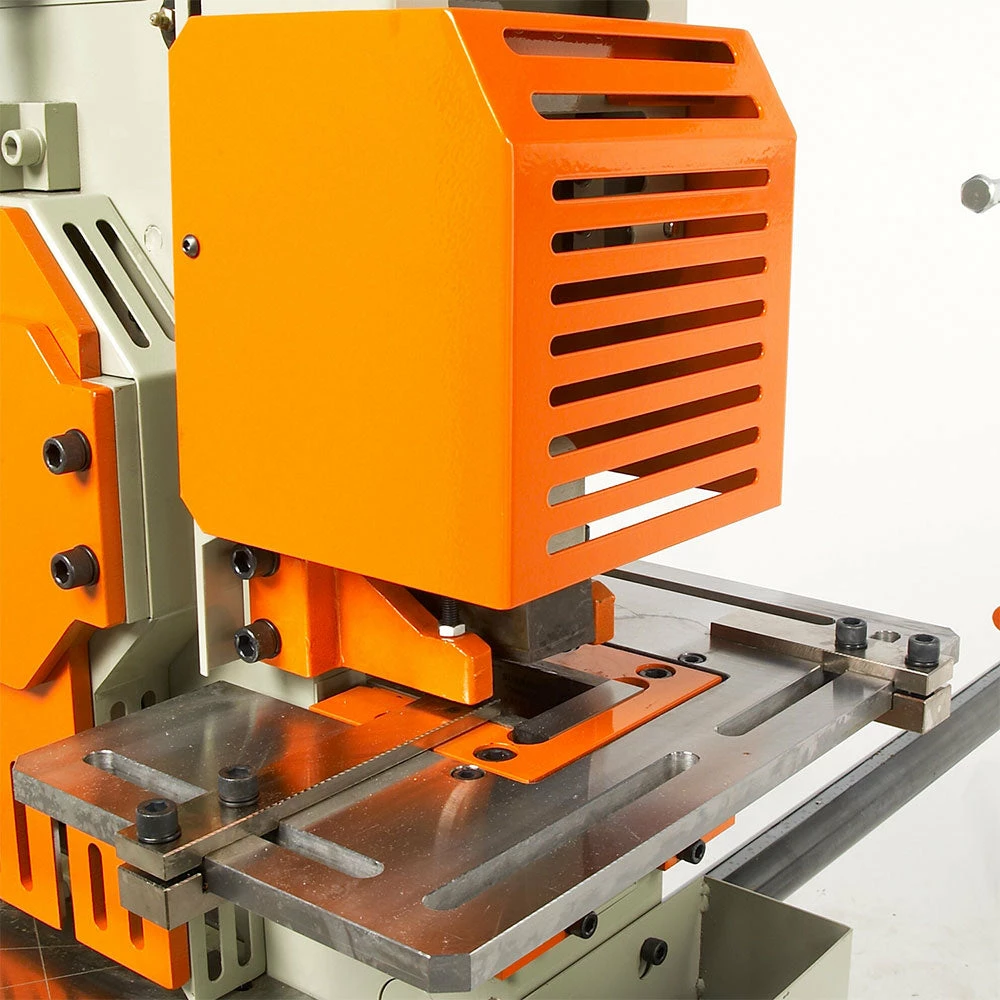

- Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.
- Our patented swing-away material stripper lets you change tooling in seconds.

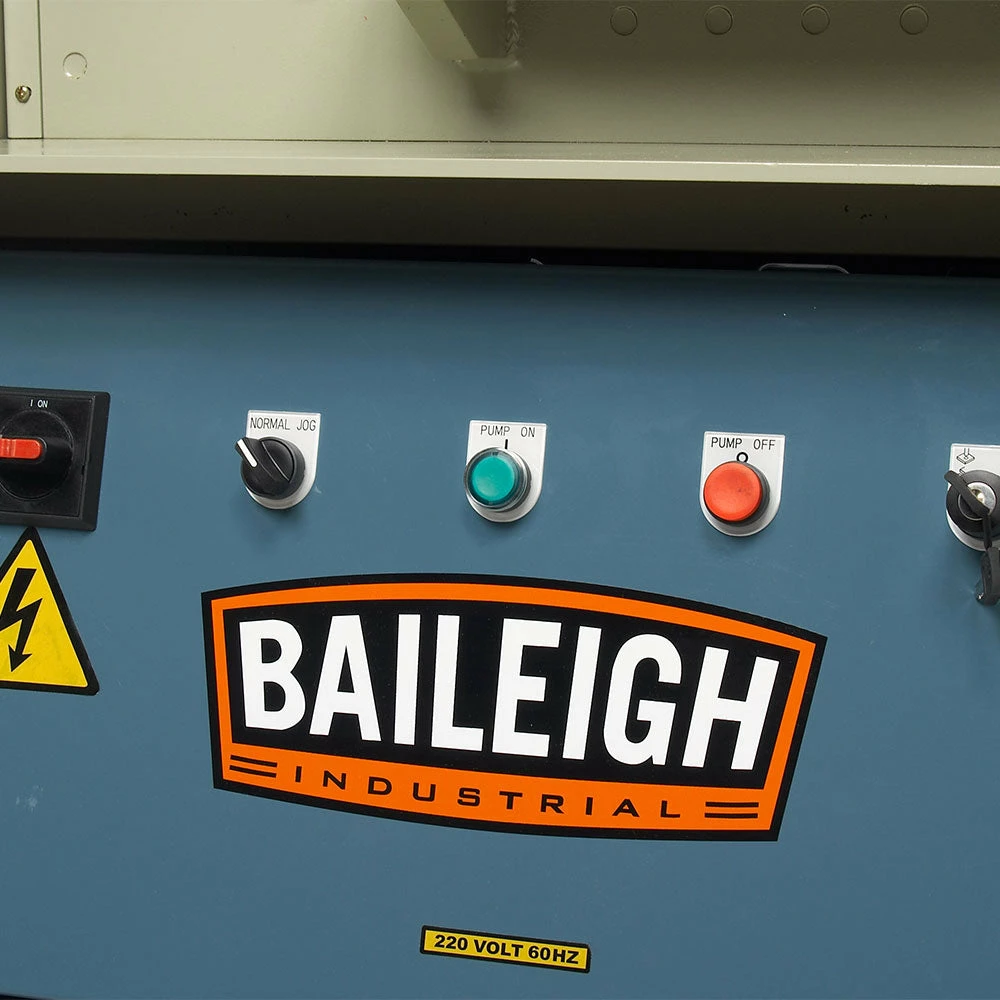

- Specify tooling alignment with a turn of the jog dial for increased safety.
- Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.
- Accepts durable tooling options from Baileigh, such as press brake or pipe notching attachments, that make the SW-623’s even more useful.
- Rigid steel plate construction strengthens the machine and maintains accuracy.
What’s in The Box

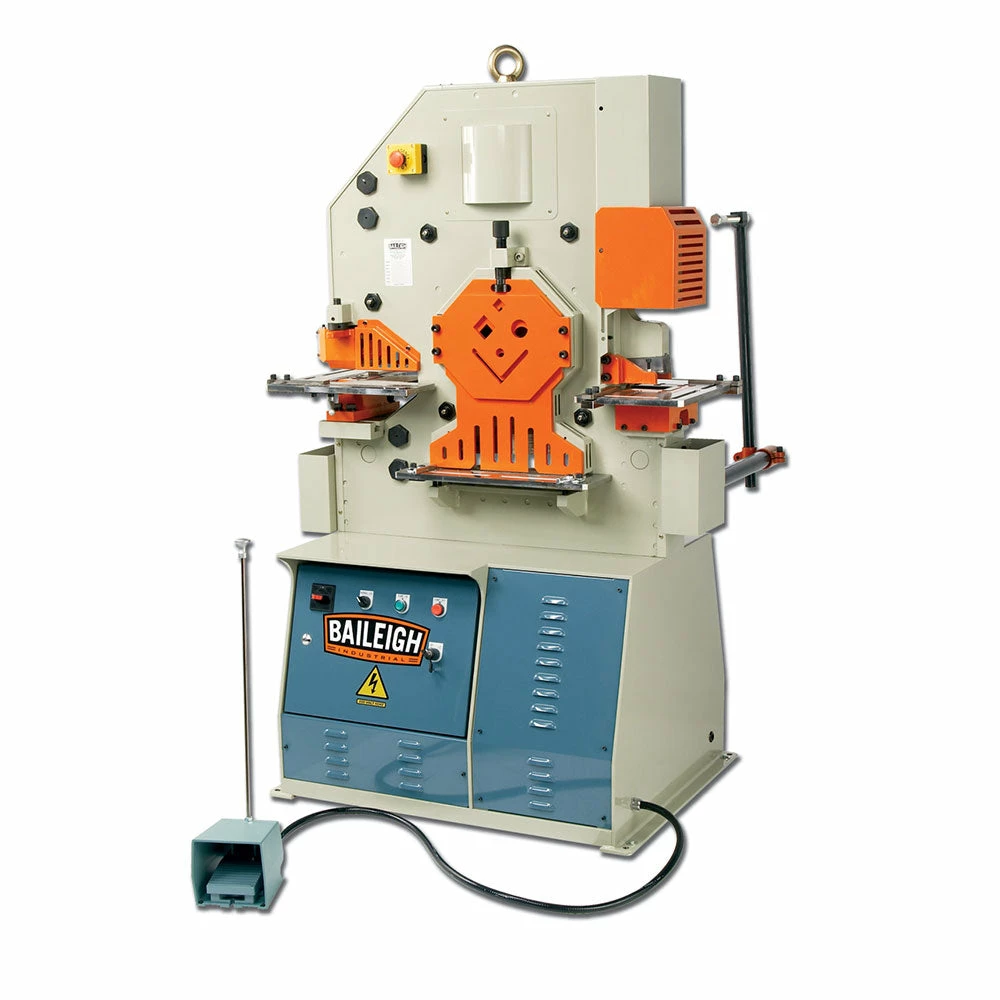

- SW-623 – Hydraulic Ironworker
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | SW-623 |
| Power | 5 HP – 220V 3-Phase |
| Round Bar Shear | 1.5″ |
| Rectangle Notcher W x D x T | 2″ x 3.5″ x .312″ |
| Single Vee Press Brake L x T | 6.312″ x .312″* |
| Punch Capacity | 1.125″ x .625″ |
| Punching Pressure | 62 Tons |
| Pipe Notching | 2.5″ |
| Multi Vee Press Brake L x T | 9.875″ x .156″* |
| Notching Working Height | 40″ |
| Throat Depth | 8″ |
| Vee Notcher Side x Side x T | 3.5″ x 3.5″ x .312″* |
| Working Height | 39.5″ |
| Square Bar Shear | 1.5″ x 1.5″ |
| Channel Shear | 4″* |
| Bar Shearing Working Height | 44″ |
| Angle Shearing Working Height | 40″ |
| Angle Shearing at 90° | 4″ x 4″ x .375″ |
| Angle Bending | 2.5″ x .312″* |
| Angle Flange Trim | 4″ |
| Blade Length | 14.125″ |
| I Beam Shear | 4″* |
| Max. Stroke Length | 2″ |
| Cycles / Min. | 28 @ 15 mm |
| Flat Bar Shearing | 13.50″ x .5″ |
| Flat Shearing Working Height | 31.5″ |
| Shipping Dimensions (Inches) | 60x48x78 |
| Weight | 2465 lbs |
