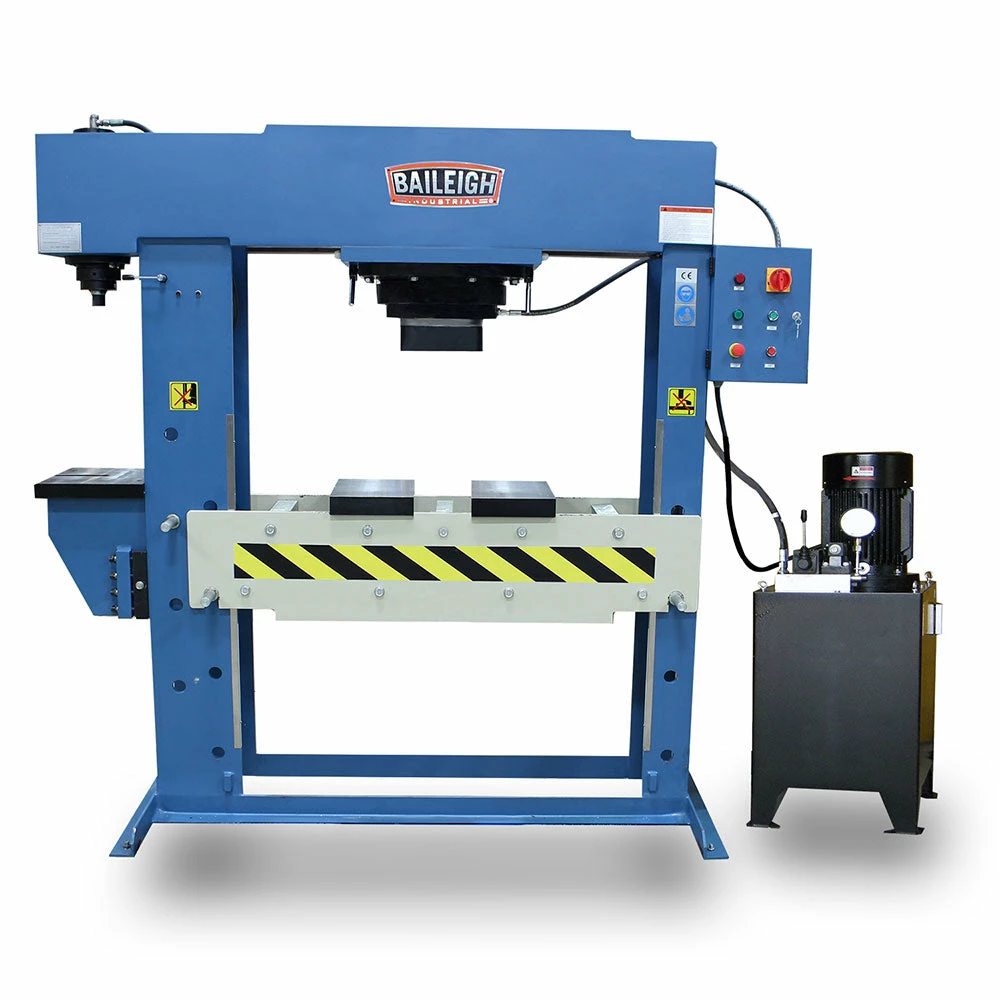

Tools & Equipment Baileigh 1019291 HSP-200M-C 200/20 Ton Two Station Hydraulic H-Frame Press

Features

• Unique two station design.
• 200-ton capacity on main press.

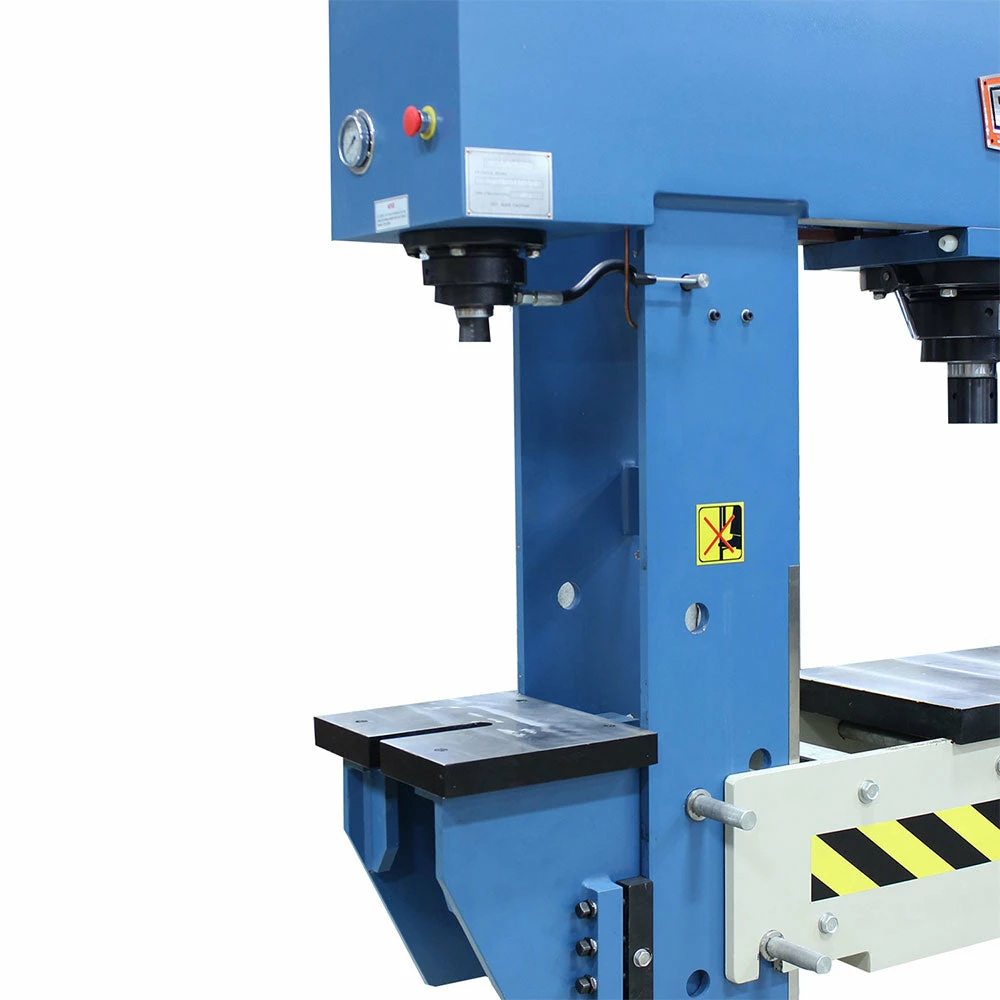

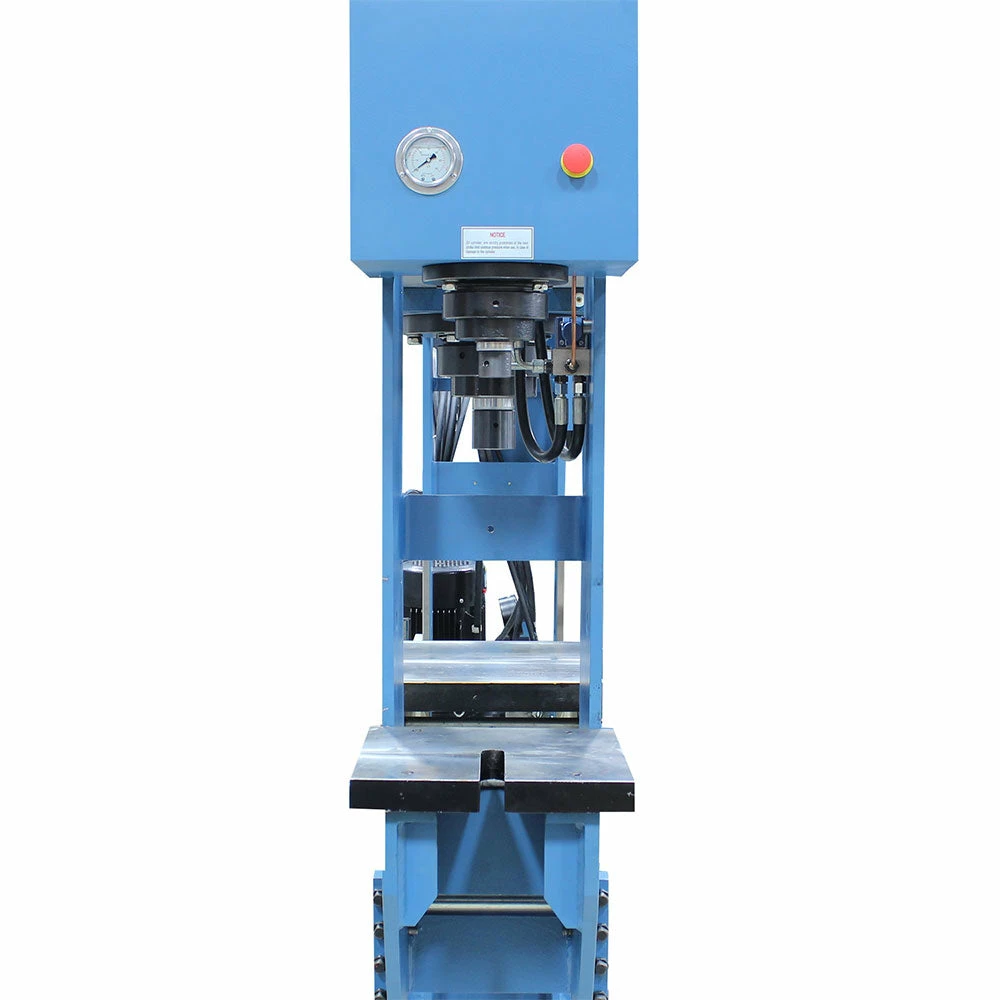

• 20-ton capacity on side press.
• 47” working width.
• 11”-diameter cylinder with 11.8” stroke.
• 10 hp motor runs on 220-volt 3-phase power.
• Stand-alone hydraulic system with a piston-style pump.
• Cylinder can move left and right within the frame, ideal for off-center projects.
• Pressure gauge comes standard.
• Includes a 2-piece V-block set.
• Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.

What’s in The Box

• HSP-200M-C – Two Station Hydraulic Press
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	HSP-200M-C
Power	220 Volt Three Phase
Return Speed	.228″ / sec.
Motor	10 hp
Piston Head Diameter	6.125″ (Main), 1.77″ (Side)
Pump Speed	4 gal/min
Oil Capacity	32 gal.
Included Accesories	Included Accesories
Working Speed	.154″ / sec.
Working Width	47″ (Main)
Maximum Capacity	200 ton (Main), 20 ton (Side)
Cylinder Stroke	11.8″ (Main), 11.75″ (Side)
Cylinder Movable	Yes (Main Only)
Cylinder Diameter	11″ (Main), 3.95″ (Side)
Distance From Table To Ram	Min. 8.11″ – Max. 32.01″ (Main), Min. 9.84″ – Max. 38.97″ (Side)
Shipping Dimensions (Inches)	96x48x93 & 48x45x55
Shipping Weight	6910 lbs
