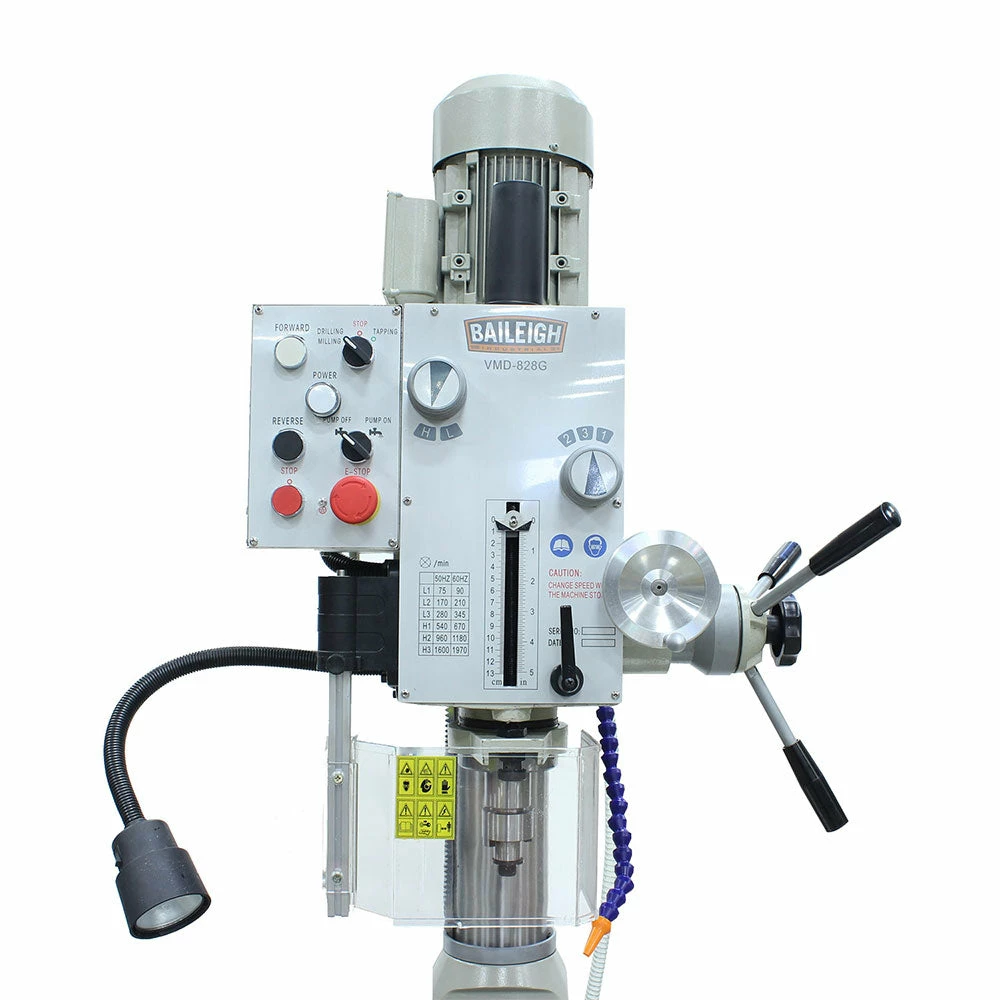

Tools & Equipment Baileigh 1020692 VMD-828G 110V 2HP Vertical Mill Drill W/ 1.5″ Drill Capacity

Features

• 2 hp motor runs on 110-volt power and will work almost any site.
• 1.5” maximum drilling capacity.
• Includes 29” x 8” milling-style table which expands the machine’s possible uses.

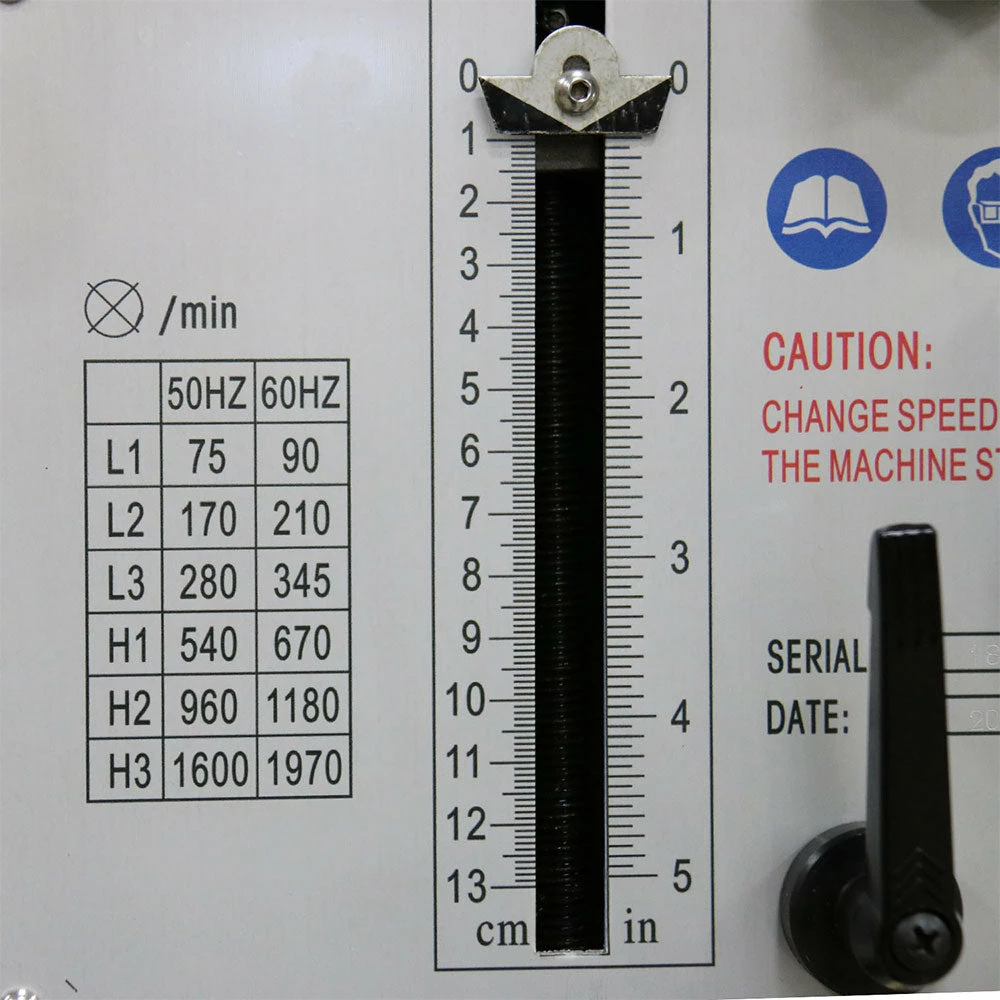

• Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
• Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
• Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.

What’s in The Box

• VMD-828G – Vertical Mill Drill
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	VMD-828G
Power	110V
Spindle Speeds	90, 210, 345, 670, 1180, 1970 RPM
Table Size	28.75″ x 8.25″
Motor	2 hp
X Axis Travel	19-1/2″
Y Axis Travel	9″
Spindle Nose to Base	16.14″
Spindle Stroke	4-3/4″
Spindle Taper	R8
T Slots	.550″
Coolant Pump	1/8 hp
Drill Capacity	1.5″
Spindle Travel	4.75″
Shipping Dimensions (Inches)	60x44x51
Weight	815 lbs
